Multi head wood engraving cnc router machine features and applications

Views:2     Author:Site Editor     Publish Time: 2017-08-02      Origin:Site

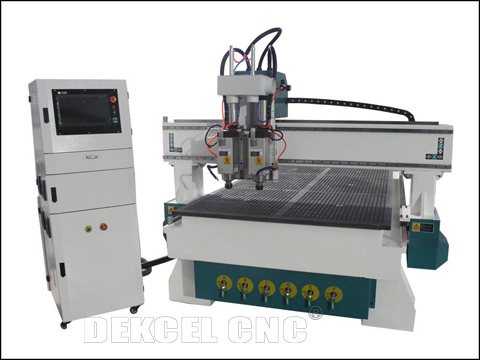

Multi head wood engraving cnc router machine features and applications

Multi head wood engraving cnc router machine features and applications


Jinan dekcel cnc company offers multi head cnc woodworking router machine. In the following passage, dekcel cnc company will share some advantages and features of the wood carving cnc router withe multi head.


Applications: three-dimensional wave board processing, cabinet doors, solid wood doors, wooden craft, paint free door, screen, craft window processing, shoe polisher, game cabinets and panels, auxiliary processing mahjong table, computer desk and panel furniture products (relief processing).


The mulit head wood carving and cutting router machine adopts vacuum table. And if you do the relief work, instead of vacuum table, the t-slot aluminum profile table will be needed.


The performance parameters of the multi head cnc wood engraving router is same as those of the standard cnc woodworking router machine:

Repeatability accuracy is 0.05mm

System resolution + 0.025mm

Spindle power: 1.5 kW or 2.2 kw

Main shaft: 24000rpm/Min

Empty running speed 35000mm/Min

Maximum processing speed 20000mm/Min

Feed height 200mm

Operating voltage AC380V/50Hz

Run instructions HPGL and G code


The detailed configurations of multi head cnc wood carving router are as follows:

1. the whole cnc wood carving router machine is approval by European CE standard. It has CE certification and export type design

2. bed: seamless welded square tube, the bed is tested by failure treatment, the structure will never change and deform. There are rail shields, reducing the maintenance of the multi head wood cnc router machine.

3. wire rod: German ball screw

4 spindle motor: 1.5 kW, 2.2 kW optional

5. frequency converter: Shanghai Fu Ling

6. drive: YAKO large drive

7. Rail: square rail (Taiwan HIWIN20, high dust resistance, linear scraping chip, linear slide rail);

8. Leadshine stepper motor

9. control system: Shanghai Weihong control system (with genuine and copy available)

10. cabinet: independent computer cabinet

11. rack: Taiwan high precision rack


Hope this article will help you. If you have any questions about wood carving cnc router price and qualities, please contact us as soon as possible. Jinan Dekcel Cnc Euipment Co., Ltd will always be there for you.
