Double processing wood router engraving machine

Double processing wood router engraving machine suitable for used in furniture industry and decoration industry: like engraving and cutting the cabinet door, wooden door, advertising board, logo production etc

Quantity:
  • DEK-1325M-2
  • DEKCEL
  • 030
Equipment Feature
1. DEK-1325M, remarkable double-processing wood router engraving machine, is an intelligent as well as economic ATC equipment which can auto-complete multi-process engraving through two seperate spindle switching automatically.
2. Tool change type: spindle instant switch.
3. Driving system adopts stable stepper motor.
4. Main parts are imported and of high performance and long time use. Like Taiwan HIWIN square orbit, German ballscrew and so on.
5. Leadshine driver and Fuling inverter.
6. DSP operating stystem.

Functional Characteristics of wood router engraving machine
1. HIWIN square orbit, double slippers, bearing heavy, working steadily, high precision, and long life time, import ball screw, high precision for cutting.
2. High speed stepper motor and drivers, and tow motors for Y axis. Max speed is 25M/MIN. With water cooling spindle highly upgrade the processing speed.
3.The optional equipment for spindle is Japan imported high power water cooling motor (Japan NSK bearing) high speed spindle, stable capability.
4. Unique intelligent budget principle, fully develops the potential of the motor and lead to high processing speed, the synchronization of curves and straight lines, smooth curves.
5. Well compatibility: CAD/CAM designing software e.g. Type3/Artcam/Castmate/Ucancam etc.

Technical parameter

Model

DEK-1325M

DEK-1325M

DEK-2030M

Travel of Engraving

1300×2500×200mm

1500×3000×200mm

2000×3000×200mm

Maximum Engraving Speed

20000mm/min

Power of Spindle

4.5kw air cooling spindle

Rotation Speed of Spindle

6000~24000rpm

Manner of Receiving Data

USB Interface

Capacity of Memory

32M

Format of Instructions

G code

Cutter

Ø3.175 or Ø 6.00mm

Power Supply

AC220/50HZ

Table structure

Vacuum table/clamp

X,Y structure

Taiwan HIWIN linear guide and rack gear

Z structure

Taiwan HIWIN linear guide and original TBI ball screw

Software

Artcam/Type3/UcancamV9(optional)

Operating system

DSP system

Driving System

Stepper/Servo motor

Weight

1000KG

1500KG

1800KG


Wood router engraving machine detail parts

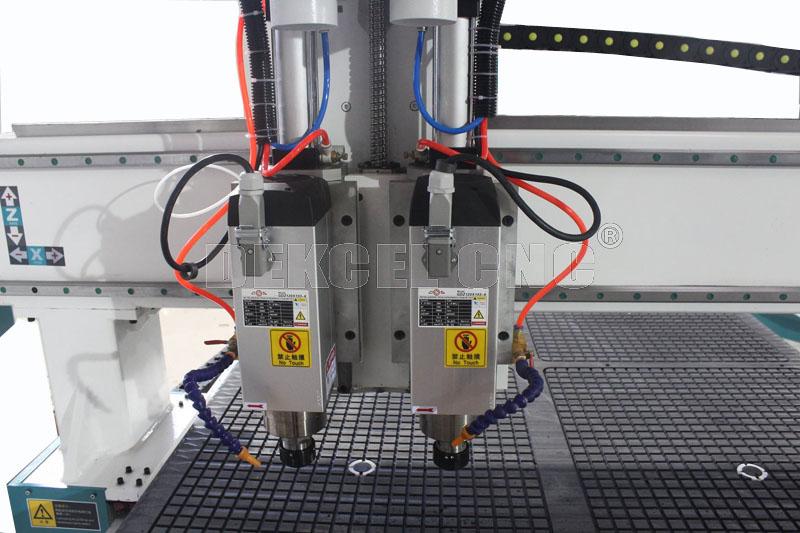

Two 4.5KW China air cooling spindle
wood engraving router machine spindle

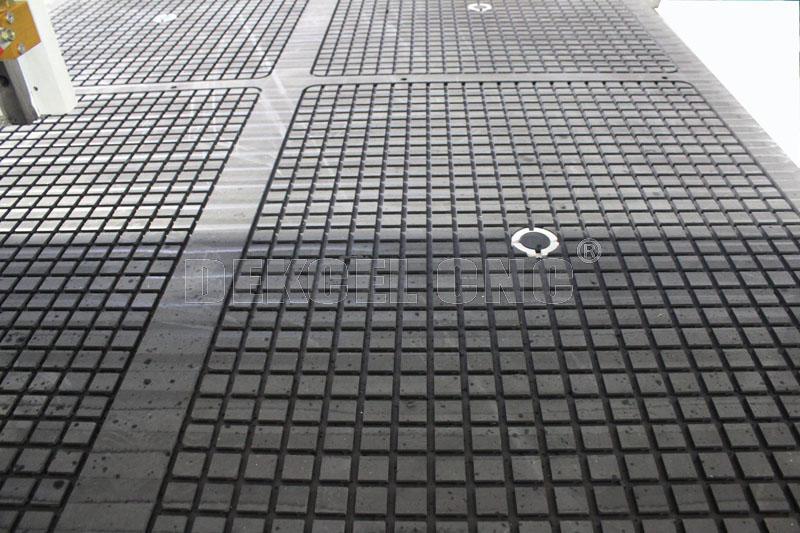

Vacuum table
wood engraving router machine vacuum table

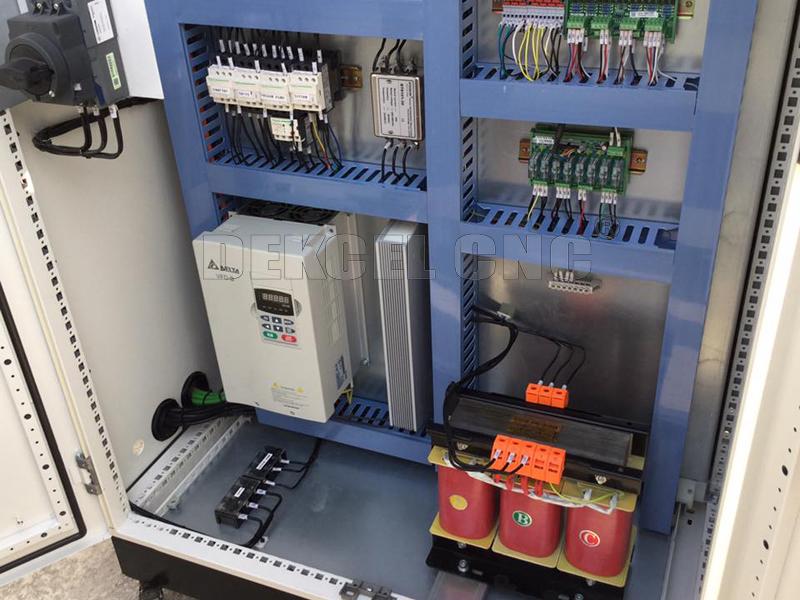

Control box
wood engraving router machine electronic cabinet

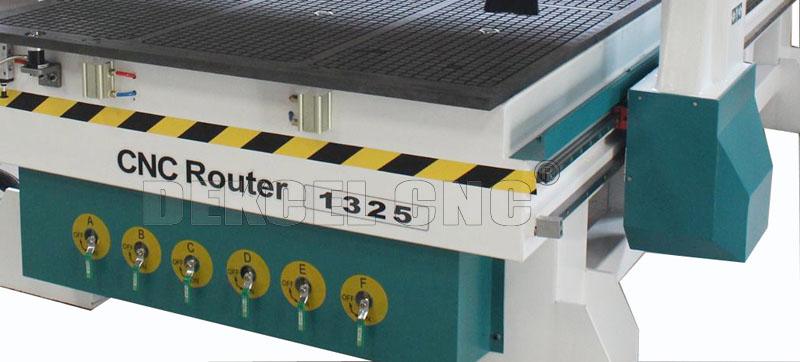

wood engraving router machine vacuum system

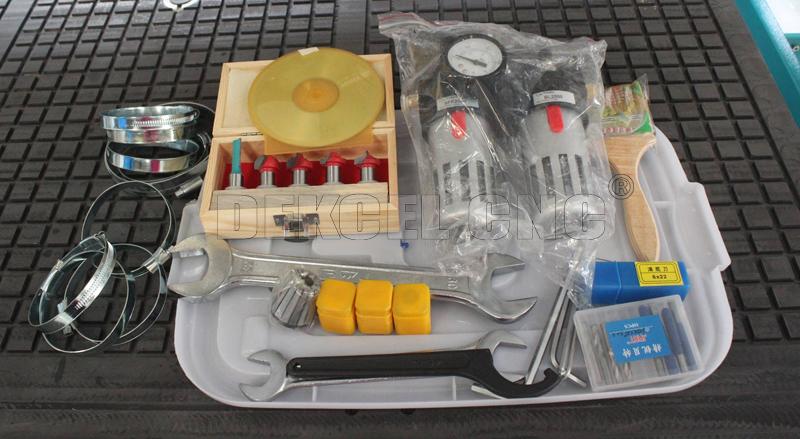

wood engraving router machine accessories

Wood enngraving router machine application
Woodworking,Advertising industry, seal industry, craft and gift, art mould, mould etc.
Applicable material: wood, arylic, double-color board, PVC, EVA, ABS board, stone, imitation stone, metal, Aluminum Mold etc.
Major applicationd fields: furniture, furniture decoration, woodworking decoration, musical instrument, wooden handicraft etc.

l Woodwork industry: sewing machine table, machine cabinet panel, sporting equipment, wooden door etc.
l Mould industry: wooden mould, aviation wooden mould
l Musice instrument: three-dimensional wood carving in relief , and profile cutting.
wood engraving machine sample

wood engraving router machine sample

wood router machine sample
