Three spindle wood furniture cnc router machine 1325

Name: Three spindle wood furniture cnc router machine 1325
Brand: DEKCEL
Rating: 5.0 (31 reviews)

Dekcel three spindle wood furniture cnc router machine 1325 suitable used for furniture industry, solid wood furniture, solid wood doors, decorative materials, computer tables, panel furniture, office furniture, wooden speaker and kitchenware, etc.

Quantity:



Inquire

Model:
DEK-1325M
Brand:
DEKCEL
Code:
095

What is the three spindle furniture cnc router machine main features ?

#.Working area:1300x2500x200mm

#.380V 50HZ, 3 phase

#.T-slot and vacuum working table ,with clamps

#. Rack and gear transmission,

#.X,Y axis rock and pinion,Z axis ball screw

#.DSP/NC Studio/Shanglong control system for option

#.Taiwan Hiwin square rails ,high quality

#.Hybird servo motor and drivers

#.Fulling inverter,

#.China high quality 3.5KW air cooling spindle

#.One set of wood tool bits

#.Tool sensor

#.Good aftersales service and support

Optional

#,Dust colletion system

#.Rotary device

#.Vacuum pump

Advantages of the furniture cnc rotuer machine

1.Whole machine is welded with seamless steel structure, which is high temperature annealing and vibrating stress relief, so the lathe body is stabilized and will not be deformed forever.

2.Three axes adopt Taiwan HIWIN linear guide rail with high precision.

3.Z axis adopts imported Taiwan made ball screw, so high precision and long life time using are assured.

4.X and Y axis is transmitted by helical rack and pinion. This makes the machine work faster and has larger cutting force compared with ball screw transmission.

5.Well compatibility: CAD/CAM designing software, such as type3/castmate/wentai/artcam, etc.

6.This machine has the function of re-carving after break point or power failure and it can estimate the processing time.

7.Manual/automatic oil-injection system allows the machine maintenance mush easier.

8.Dust-collection device and considerate oil plate can always keep the working table clean.

9.High soft and famous brand electric cables with high abrasion, fold, high temperature, acid or alkali resistance.

10.We will provide you several kinds of software for free, with English and multilingual versions. Also you will get the picture storage with thousands of 2D and 3D designs.

11.Along with the machine, some spare parts, work fixtures and tools will be packed into the tool box.

12.Whole machine will be wrapped with cling plastic and then packed into fumigation-free IPPC wooden case.

Technical parameter of the furniture cnc router machine

X,Y,Z Working Area	1300x2500x200mm
Spindle	3.5KW air cooling spindle
X,Y,Z Traveling Positioning Accuracy	±0.03/300mm
Lathe Structure	Welded Structure
Transmission	X,Y AXIS--Rack transmission, Z AXIS----ball screw tranmission
Max. Consume power	5.0kw
Max. Speed	0-32000mm/min
Max. Working Speed	0-20000mm/min
Spindle Power Motor	Servo
Spindle Speed	0-24000RMP
Working Mode	air cooling
Working Voltage	AC220V/ 380V /50HZ /60Hz
Command	G Code, uoo, mmg, *plt
Operating System	DSP System (Option: Mach3 PC Software)
Flash Memory	32M
Collet	ER25
Software	Ucancam software, Artcam software, Option
Running circumstance	Temperature: 0°C~45°C, Relative humidity: 30%~75%
Packing Size	315022602300mm
Net Weight	1227kg
Gross Weight	1240kg

Main parts pictures

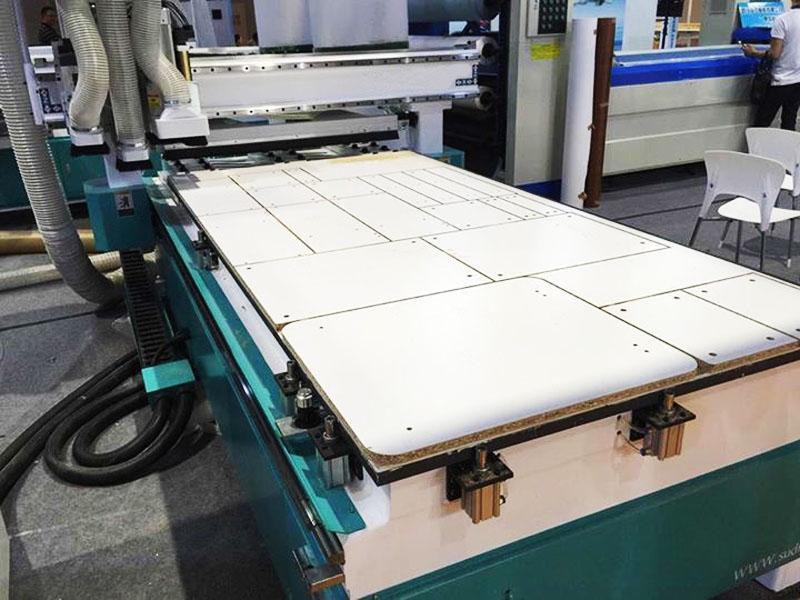

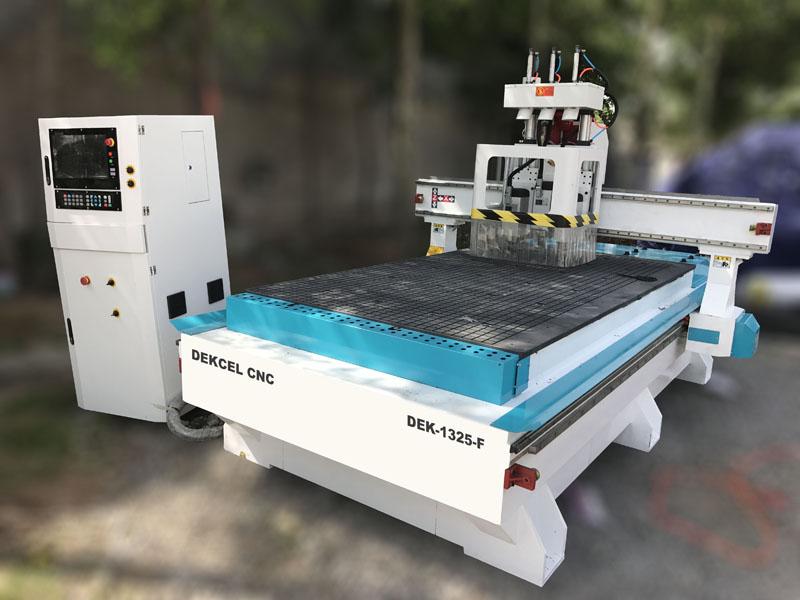

three spindle furniture carving cnc router

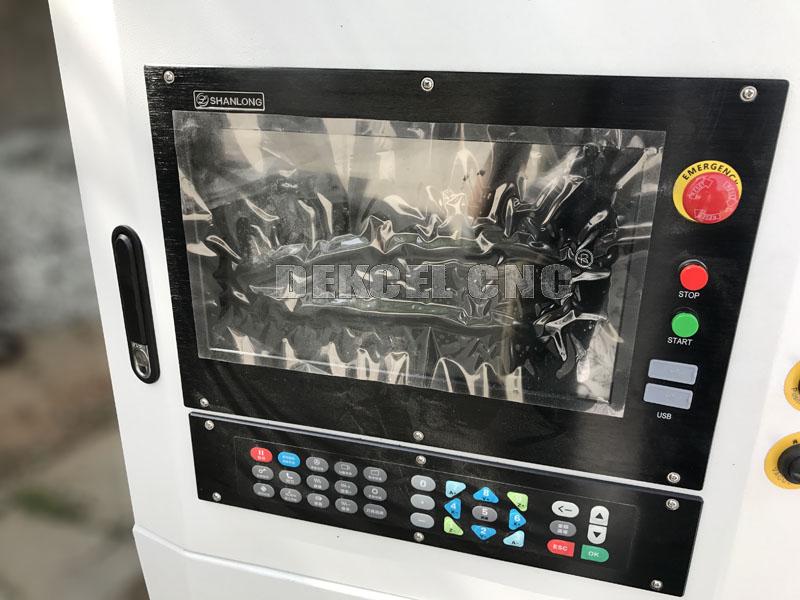

Three spindle cnc router machine Shanlong control system

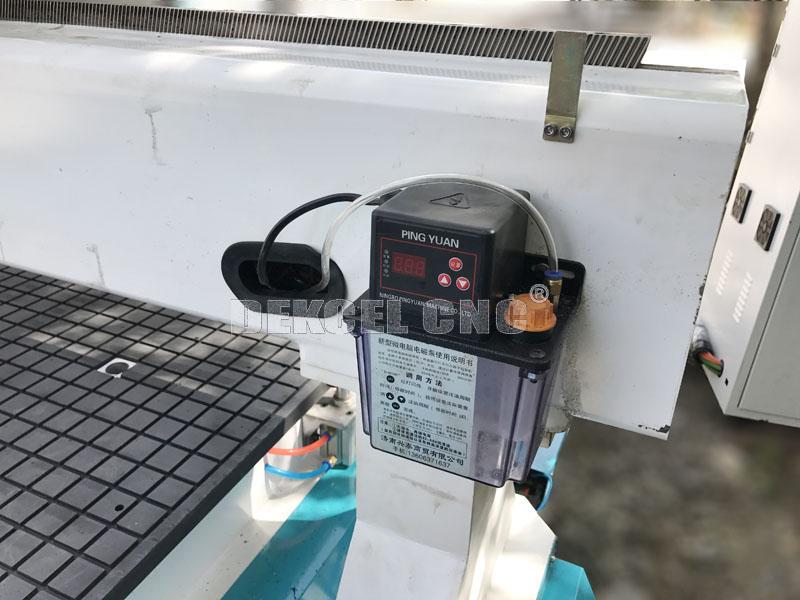

auto injection system for cnc router machine 1325

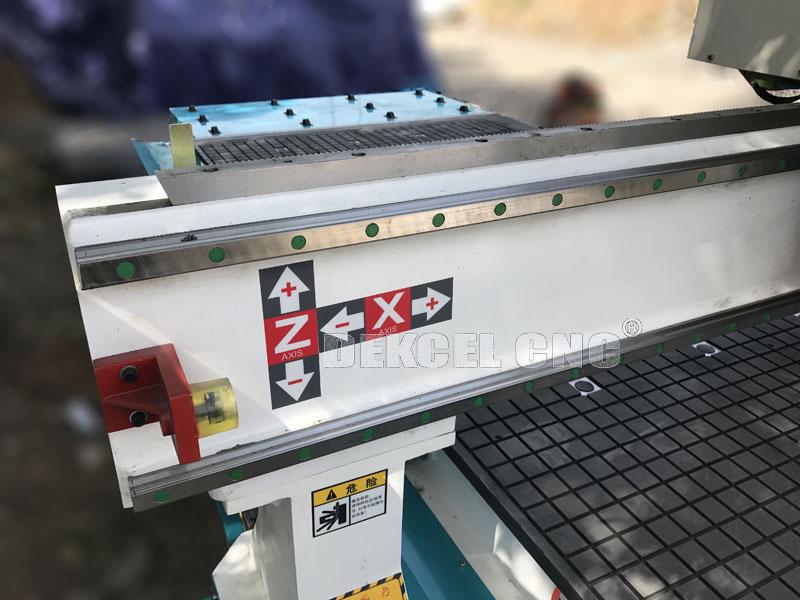

square rails of furniture cnc router machine
