1325 RichAUTO DSP Wood Engraving CNC Router T Slot Table

Richauto DSP controller of 1325 wood engraving cnc rouiter can work without computer, easy operation and fast working speed.DSP Controller is the most important part for one CNC Router machine that supportted the standard G code,breakpoint memory and online working speed adjusting ect .

Quantity:
  • DEK-1325
  • DEKCELCNC
  • 122
1325 Richauto DSP Wood Engraving CNC Router T Slot Table

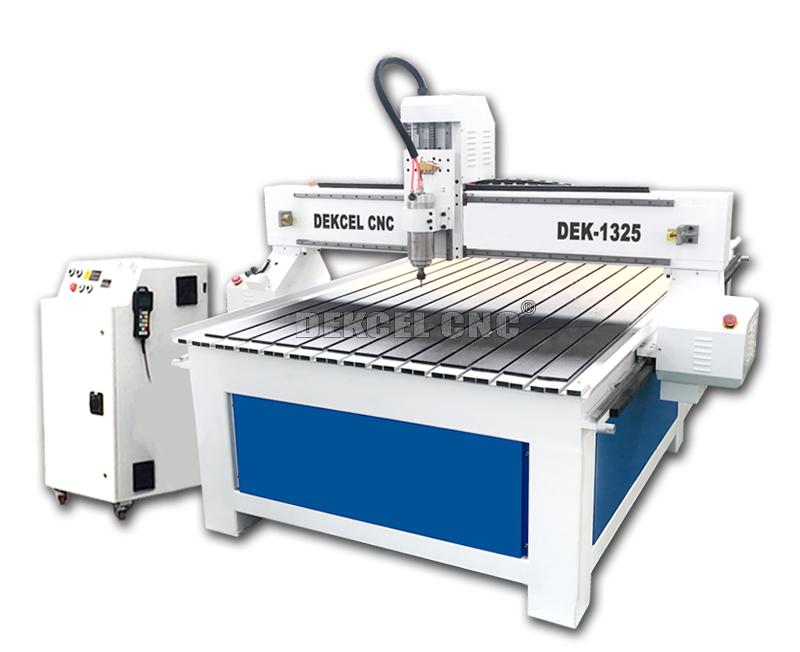

  DSP 1325 wood engraving router
Advantage of DSP Controller for Wood CNC Router
1). Support the standard G code, PLT format instructions; support domestic and international mainstream CAM software, such as: Type3, Art cam, UG, Pro / E, Master CAM, Cimatron, Wentai etc.
2). Provide with power-down protection. Instantaneous power processing system to automatically save the current processing of information
3). Support breakpoint memory, Save 8 different breakpoint processing information.
4). Multicoordinate memory function. Provide nine working coordinate system,
5). Support online adjust spindle operating frequency.1 - 8 threshold can be processed directly adjust up and down without suspend processing.
6). Support adjust working speed ratio online.
7). Simply manual operate mode:provides:continuous, step (crawl), distance, manual operation became more simple and convenient.
8). Identifies M code, F code and other development commands, can open a special code based on user needs.
9). C omes with USB communications port, file transfer efficiency can be directly read U disk, card reader file,Plug and Play.

10). System can support automatic dynamic upgrades, convenient to remote operation, remote maintenance.

wood guitar engraving machine

Richauto DSP Engraving CNC Router Main Configurations:
1. DSP controller (Mach3 NCstudio optional) wood engraving control system
2. effective XYZ working size(1300*2500mm,1500x3000mm optional or customized any size)
3. Z-Axis Travel: 200mm-600mm can be customized
4. 3.0kw water cooling spindle (4.5kw,5.5kw optional) with Fuling Inverter , italy HSD Brand for optional
5. Repeatability: +/-0 .03mm
6. Traveling Speed: 20m/min-40m/min
7. Drive System X and Y axis: Rack and Pinion, Taiwan HIWIN, PMI ,ABBA Square rails
8. Drive System Z axis: Taiwan TBI Ball screw
9. Motor: Stepper or Servo
10. Vacuum table with air cooled vacuum pump(T-slot optional)
11. Dust collector available
12. Manual lubrication system
13. Rotary device optional
14. Command languages: G code, *mmg, *plt, *u00
15. Voltage: 380V/3phase ; 220V/3phase
Technical Parameter of 1325 DSP Engraving Router

Model NO.

DEK-1325A Wood CNC Router

Table Size

1440×3000mm

X Y Z Traveling Area

1300x2500*200mm

Table Structure

T-slot

X Y Transmisson

 Rack Gear

Z transmission

 TBI Ball Screws

X Y Z Guide Rail

 TAIWAN HIWIN Square Rail

Spindle Power

 3.0 kw Water Cooling Spindle (option)

Max Spindle Speed

24000r/ min

Max Traveling Speed

35m/s

Max Working Speed

30m/s

Processing Accuracy

±0.025mm

Reposition Accuracy

≤0.025mm

Working Voltage

220/380V 50Hz

Work-holding

Clamps

Processor

Windows /100MHz

Interface

PCI

Command

G*.u00*.mmg*.plt

Operation System

Nc-studio

Power(not include the spindle)

500W

Net weight /Gross Weight

800KGS /900KGS

Package Dimension

3200*1840*1900mm

Application of 1325 wood cnc router

Wood working
Solid wave board process,door of cabinet,wooden door,artistic wooden door ,no-paint door,avoid wind,process of the artistic window,shoes cleaning machine,the cabinet of the playing
machine and the board,mahjong table,computer table and the assistant process of the household effects
Advertising:
Advertising board,Label design,Acrylic cutting,model, of the multi material decoration products.
Model industry:

It can engrave on the steal materials such as copper, aluminum ,iron etc and  non-mental materials such as man-made marble, sand, plastic board PVC materials, wood board etc.

Other field:

It can engrave many image, embossment,It is widely used in artistic industry.

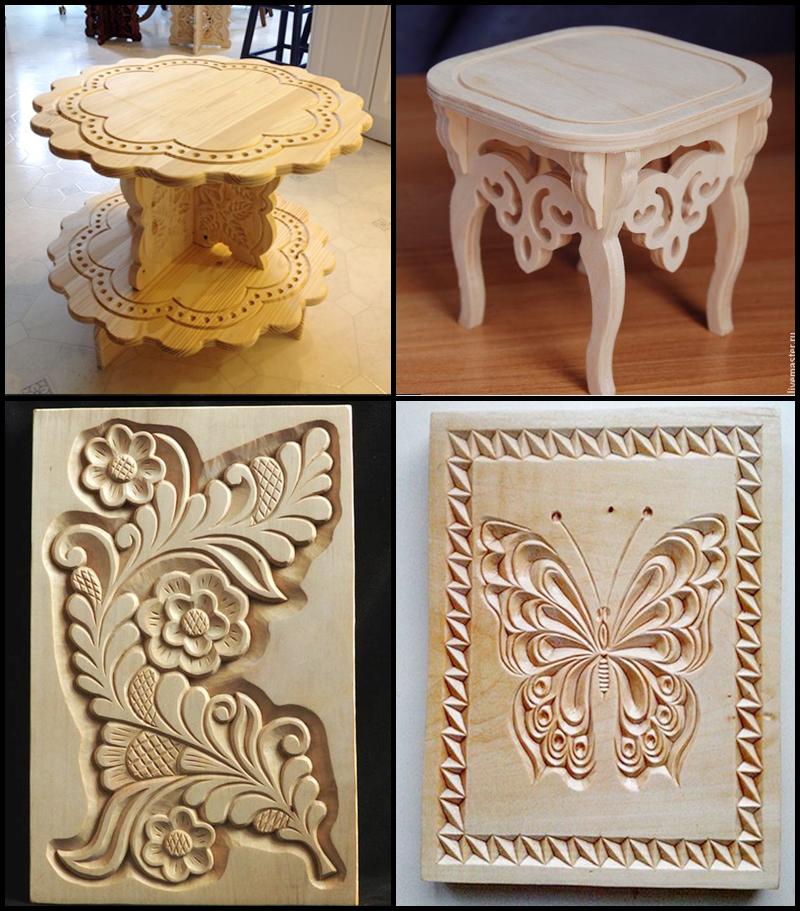

wood art engraving router

3d wood carving router

1325 wood furniture engraving router
