Wood cabinet furniture side hole drilling cnc router machine

Side hole drilling cnc router machine mainly used in furniture industry such as cabinets doors, computer tables,office furniture,wooden sound box, kitchenware,etc , all kinds of board type furniture making needs use this type side hole drilling machine.

Quantity:
  • DEK-1 axis side hole drilling
  • DEKCEL
  • 093

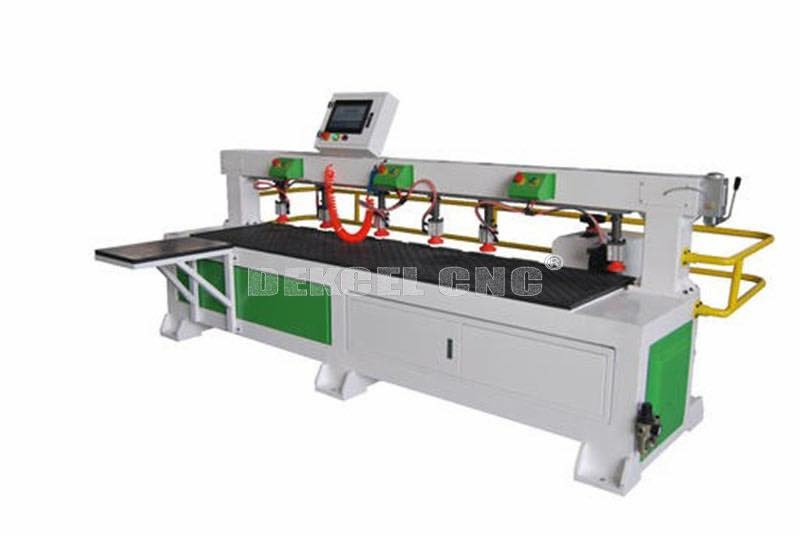

IMG_4684
Side hole drilling cnc router machine features
1.New researched special cnc router machine used for horizontal perforated plate custom furniture,Completely replace the traditional drilling hole, to get rid of the traditional punching mode.Dependence on skilled workers, scan code processing directly.Through the production with special design software
2.High precision parts: Adopt Taiwan Hiwin linear guide and TBI ball screw; Delta servo with Taiwan reducer;
3.Reasonable design: Independent computer control, operation and maintenance more convenient.
4.Perfect automatic oil lubrication system, prolong the service life of the machine.

Technial parameter
Maximum workpiece length 2800mm
Minimum workpiece length 50mm
Maximum workpiece width No limit
Minimum workpiece width 50mm
workpiece thickness ≤30mm
Y movement Rack and pinion, gear drive/Taiwan
Z movement Pneumatic cylinder
Guide Linear 20 square/Taiwan
Max. speed 25,000mm/min
Max. drilling speed 20,000mm/min
Spindle power 3.5kw (Chinese air cooling)
Spindle speed 18,000rpm
Inverter power 3.7kw
Drive motors servo
Working voltage AC380V/50-60Hz, 3-phase
Command code G code
Computer interface USB 2.0
Collet ER32- 3.175mm, 6mm, 12.7mm
Software
Controls CNC dedicated controlling system
Packing dimensions 3600 x 2280 x 1500mm, 1200kgs
Standard equipment included 1. Dedicated positioning device 2. Auto oil lubrication system
Main parts of this side hole drilling cnc router machine

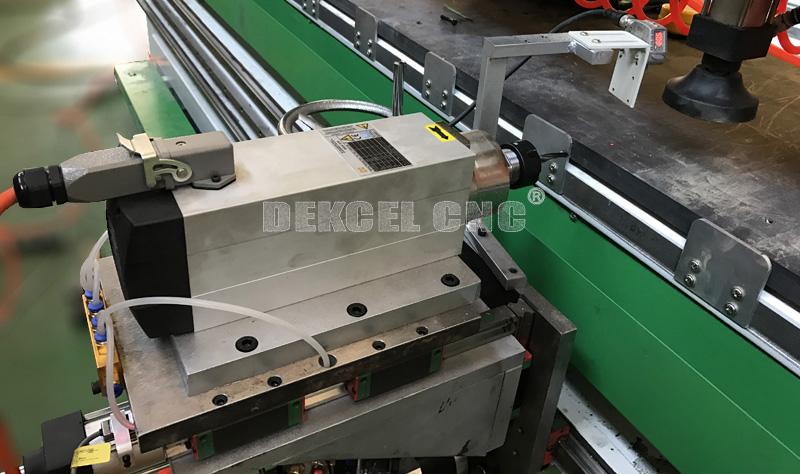

3.5KW air cooling spindle for cnc router

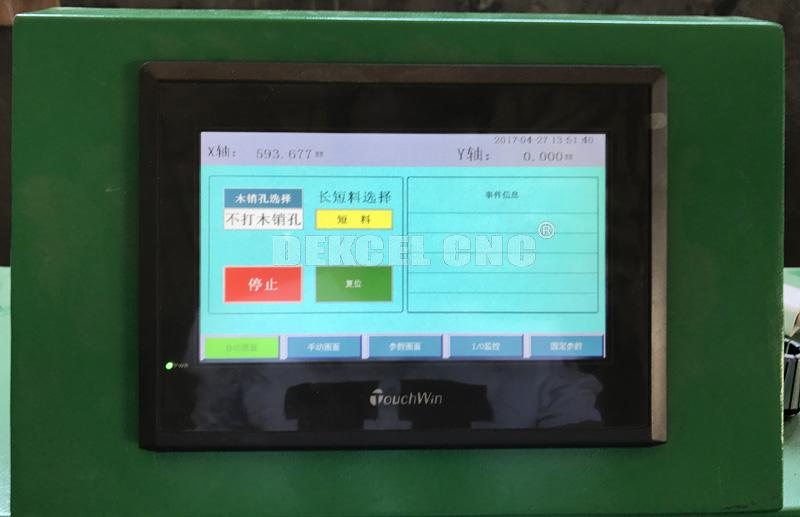

control system for side hole drilling machine

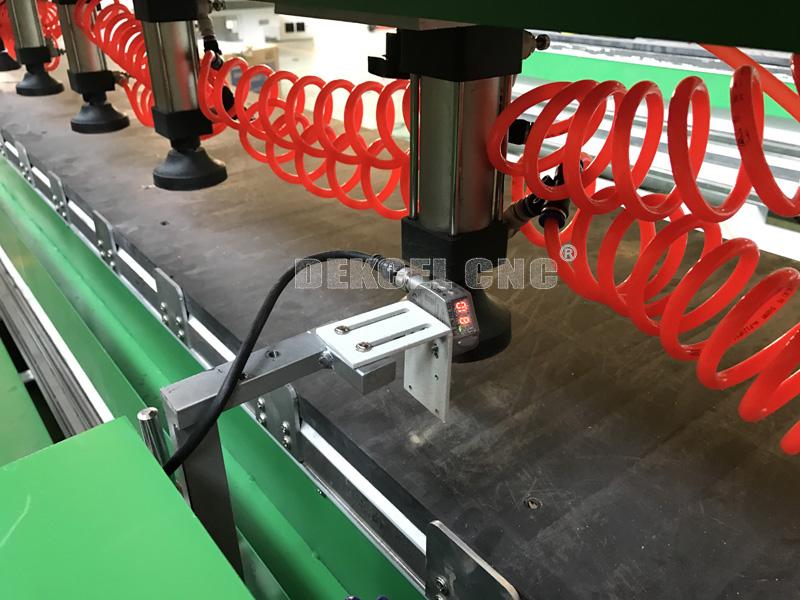

Side hole drilling dedicated positioning device
Side hole drilling dedicated positioning device

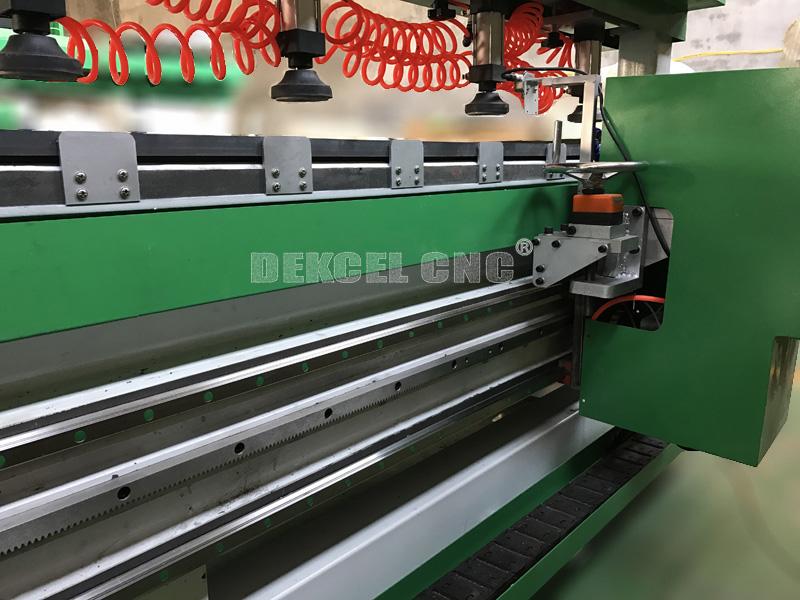

side hole drilling cnc router machine

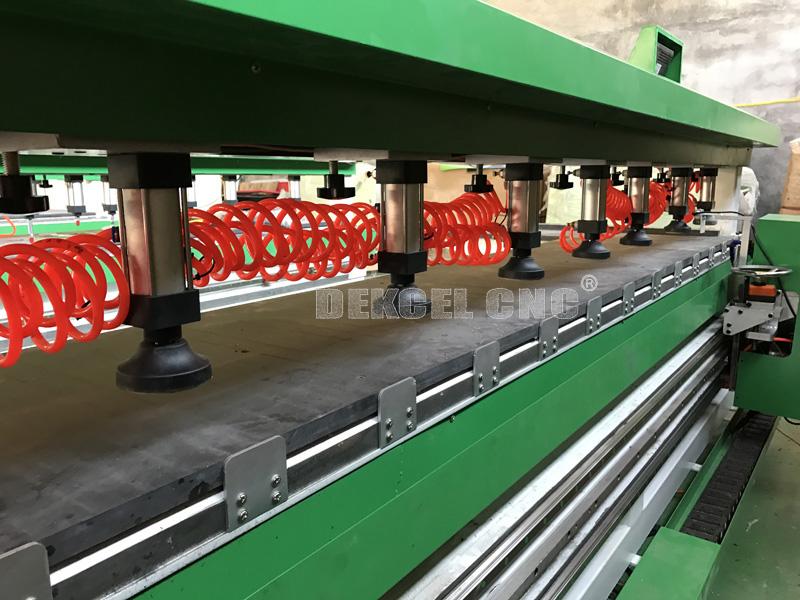

cupboard door cnc router machine

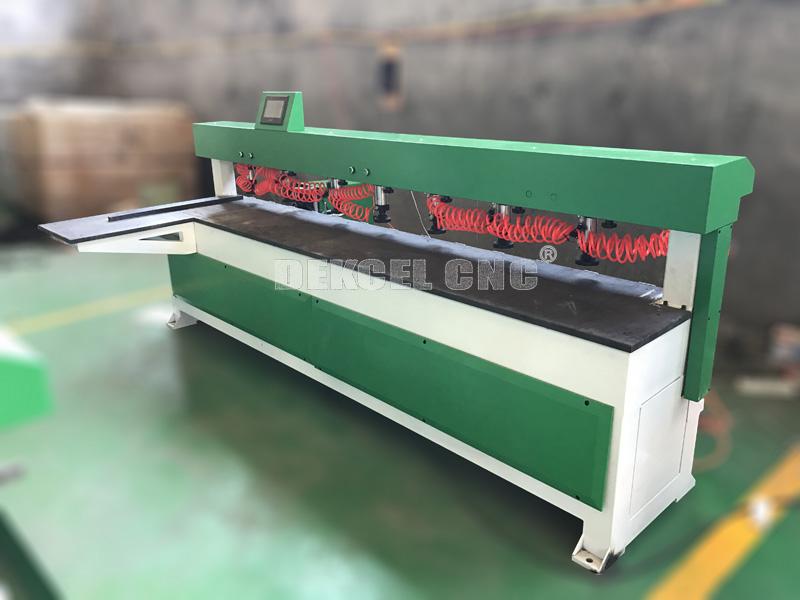

cabinet door wood cnc router machine


Side hole drilling cnc router machine mainly used in furniture industry
Panel furniture industry,wood furniture,solid wood doors,decorative materials,cabinets doors, computer tables,mahjong table,office furniture,wooden sound box, kitchenware,etc ,all kinds of board type furniture making needs use this type side hole drilling machine.

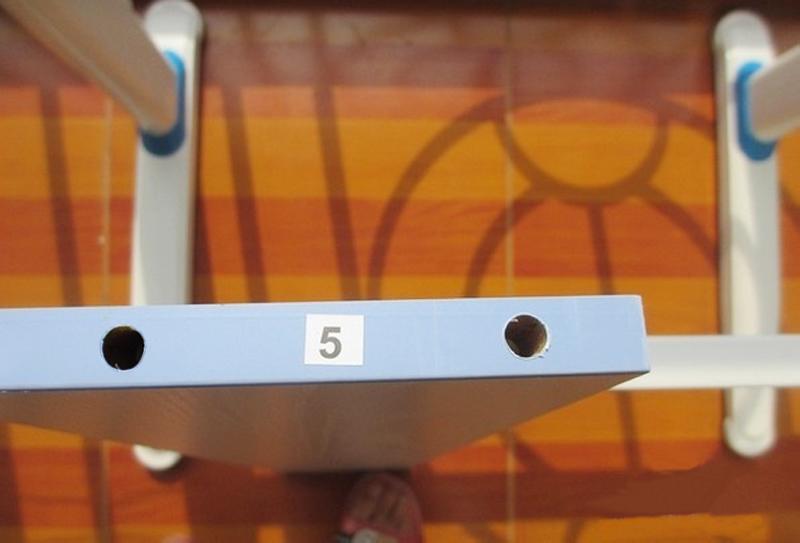

side hole drilling samples

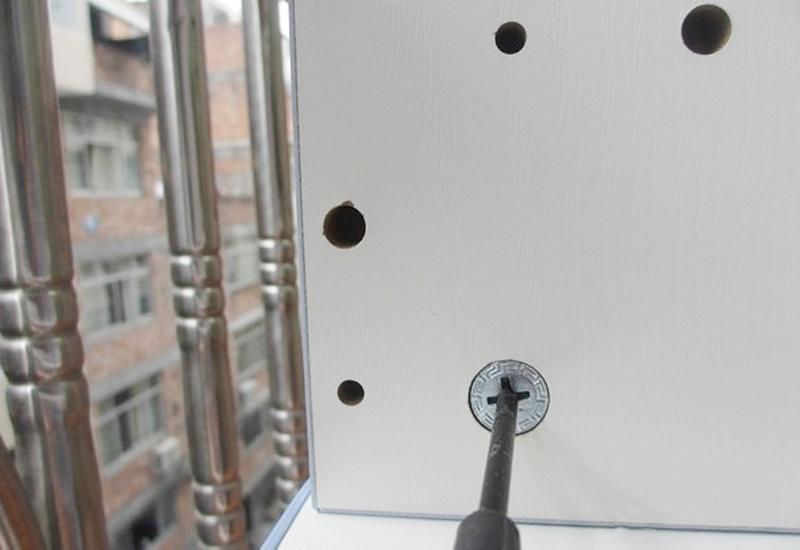

wood cabinet door side hole drilling

cnc router machine for drilling hole

computer table making cnc router machine

wood cnc router machine for drilling holes
