 Brand of DEKCEL, CNC router, CNC laser, CNC parts manufacturers and suppliers in china. Supply different types of cnc routers machine used in different industries.
 |
| Quantity: | |
|---|---|
DEK-1325R
DEKCELCNC
123
DSP Cylinder 4 Axis Wood Engraving CNC Router Vacuum Table with Rotary
Dekcel cnc cylinder wood router with rotary axis put on the side, allow to perform flat materials, such as doors, panels, icons, sheets, etc(3D professing), as well as engrave cylindrical objects, such as columns, balusters, table/chair legs,or many other cylindrical models(4D processing)
Rotary device engraving:
Making relief on cylinder items, stair rail, handrail, desk or char legs, tea-tray, the human body, avatar, buddha statue, etc.
Flat material engraving:
Antique reproduction furniture, solid wood carving, arts and crafts carving, ornamental engraving, furniture-processing, instrument making, etc.
Main Features of Rotary Wood Engraving Router Machine
1.Integrally cast lathe bed made of thick steel tube,designed and made by bridge experts through finite element analysis.
2.Gantry and arms both welded by steel plate,assembled after finishing machining, powerful environmental protection for equipment operation provided.
3.Constant power spindle water -cooled 3.0kw, large cutting force, high efficiency, high precision and low noise.
4.The motors and drives are stepper system, high accuracy and large working power.carving and cutting soft wood ,solid wood,MDF, pvc ,plastic etc, easily and quickly.
5.Optional automatic lubrication system fulfills the periodic lubrication maintenance just by one single touch.
6.The software system adopts international instruction format, strong compatibility, type3 / Actcam/Castmate/UG/Proe/wen tai and other CAD/CAM design software are compatible.
7. Nc studio cnc router control system ,easy operation. USB interface type,128 MB of flash memory ( mach3,NK105 for option )
8.Overall dust proof system,escaping spindle from dust,working life prolonged.
9.X,Y rack and pinion,HIWIN square guide rails,fast speed,stable movement.
10.Z axis ball screw,Hiwin square guide rails,long service life and high precision.
11.Best mechanical and electrical design with well-selected brand pars minimize breakdown rate.
12 . The dust collector can adsorb the wood dust and other fillings when the machine is working, which can make the environment clean and healthy.

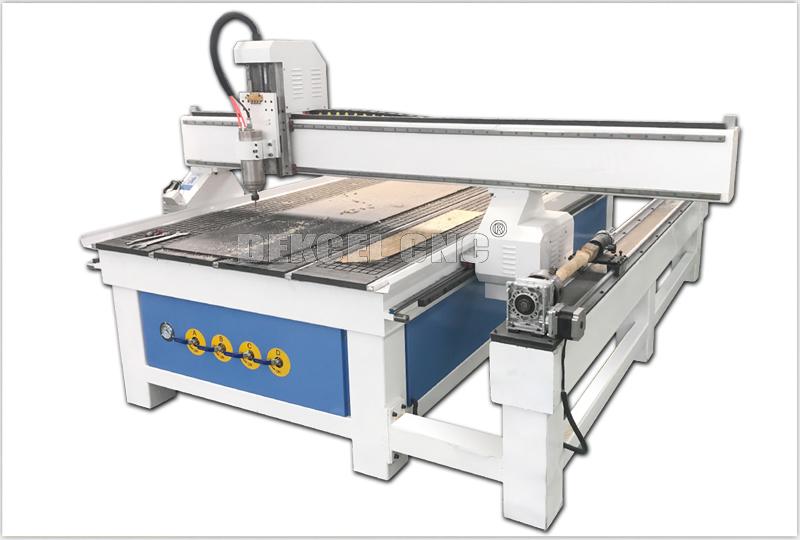

1325 Wood Engraving Router with Rotary Detals Show

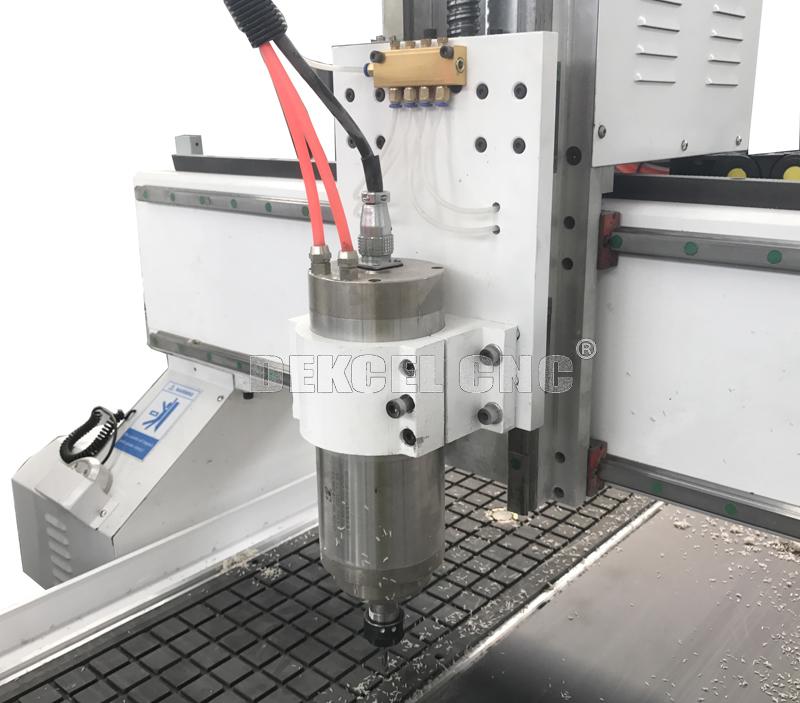

3.0kw water cooling spindle (4.5kw , 5.5kw for option )

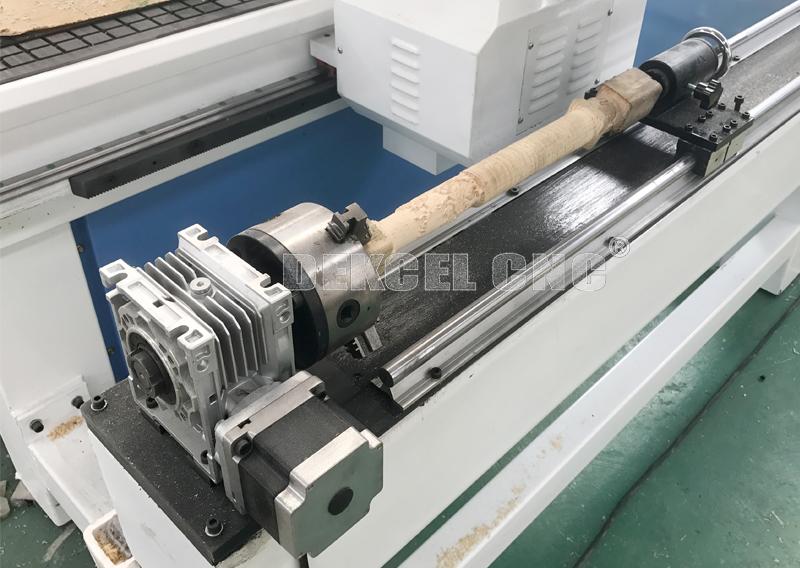

Cylinder wood engraving rotary device

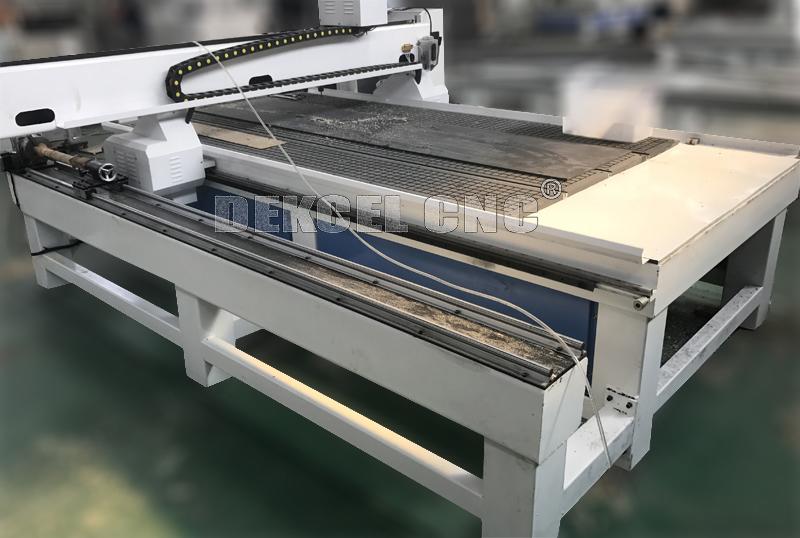

Vacuum and T slot working table
Technical Parameter of Wood Engraving Router With Rotary
| Model | DEK-1325R |
| Working area (X*Y*Z) | 1300*2500*300mm |
| X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
| X,Y,Z Repositioning Accuracy | ±0.03mm |
| Table Surface | Vacuum and T-slot Table |
| Frame | Welded Structure |
| X, Y Structure | Rack and Pinion Drive, Hiwin Rail Linear Bearings |
| Z Structure | Hiwin Rail Linear Bearings and Ball Screw |
| Max. Power Consumption | (Without Spindle) 2.5kw~3Kw |
| Max. Rapid Travel Rate | 33000mm/min |
| Max. Working Speed | 25000mm/min |
| Spindle Power | 3.0KW (4.5KW.5.5KW for option ) |
| Spindle Speed | 0-24000RPM |
| Drive Motors | Stepper System |
| Working Voltage | AC380V/50/60Hz,3PH (Option: 220V) |
| Command Language | G Code |
| Operating System | DSP System(Options: Ncstudio/Mach3 PC Software) |
| Rotary Device | Diameter and length can be customized |
| Flash Memory | 128M(U Disk) |
| Collet | ER20 |
| X,Y Resolution | <0.01mm |
| Software Compatibility | Type3/UcancameV9 Software, (Option: Artcam Software) |
| Running Environment Temperature | 0 - 45 Centigrade |
| Relative Humidity | 30% - 75% |
Applications of Cylinder 4 Axis Wood Engraving CNC Router
1.The advertising
All kinds of signage,trademark, nameplates, badge, decorative gift, certificate, souvenir, photo frame, furnituredecoration.
2.Small-scale woodworking
Solid wood furniture,mahogany furniture,MDF paint door,solid wood door, composite door,cupboard door and window,bedside cabinet,folding screen.
3.Artwork
Wooden craft,mural art of wood,artwork.embossed,jewelery, cosmetics package, musical instrument.
4.Soft metal processing
Aluminum front panel,pop can,aluminum honeycomb panel,train car and aircraft interior decoration,bronze medal,copper mold.
5.Electronics industry
Electronic component,integrated circuit,electronic plastic case,electronic product model, circuit board,electronic Light box,computer and mobile phone keyboard.
