Cnc laser machine cutting acrylic advantages
1. Adjustable Speed and Power, Smooth and Precise Engraving and Cutting
2. USB Interface or off USB , U-Flash Disk Supported, Can work without a PC.
3. Air Assist, Remove heat and combustible gases from the cutting surface.

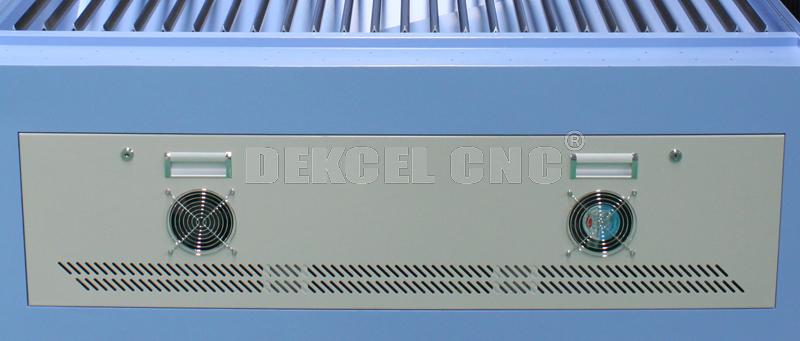

4. Embedded Exhaust Fan, Easier intall, Safer transport.
5. Rotary Axis, Engrave any cylindrical object.
6. Cellular platform, Leave no chippings on working area.
7. Intuitive Control Panel, Set Speed, power and more controls directly from the laser.
8. Water Cooling and Protection System.
9. Lsser position.
10. Emergency Stop Button.
12. Lifting platform is electric control.

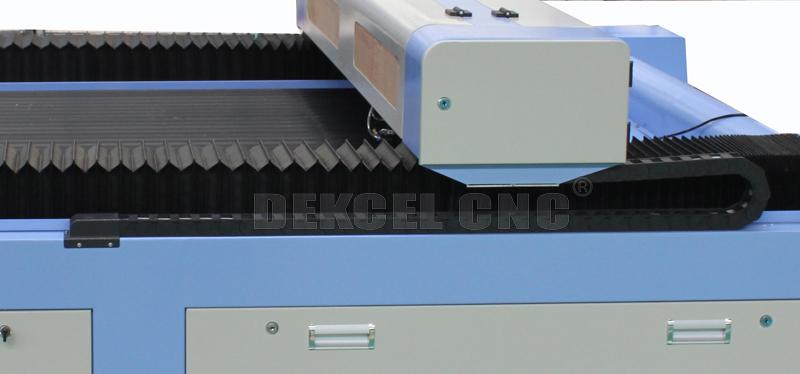

13. Drag - and - chain transmission line
Technical Detailes for cnc laser machine cutting acrylic Total power | <300W |
Laser power | 80W-150W |
Laser type | CO2 cnc laser cutting machine |
Power supply | AC 220V/110V |
Working area | 1600*1000 mm |
Engraving depth | 0-10 mm (different material differ) |
Cutting depth | 0-10 mm |
Engraving speed | 0-600mm/s |
Cutting speed | 0-600mm/s |
Lifting platform | 0-250 mm Honeycomb/Blade Worktable |
Locating precision | <0.01 mm |
Min shaping character | Character: 2*2mm, Letter: 1*1mm |
Working temperature | 5ºC-45ºC |
Working humidity | 5%-95% |
Resolution ratio | ≤1000dpi |
Data transfer interface | USB 2.0 (offline) |
System environment | Windows XP / Win 7 / Win 8 |
Cooling | Water Cooling and protection system with chiller |
Graphic Format Supported | The Files which CorelDraw & WinsealXP can identify |
(BMP,JPEG,PLT,CDR,AI,) TIFF,PCX,DIB,TIF |
Compatible software | CorelDraw,WinsealXP |
Color separation | NO |
Sloping engraving | NO |
Protection | Emergency stop buttom and Stop working when water broken |
The detail parts of cnc laser machine cutting acrylic
Blade knife table.suitable for cutting hard material,like acrylic,wood,MDF etc
Cnc laser machine cutting acrylic advantages
1. Adjustable Speed and Power, Smooth and Precise Engraving and Cutting
2. USB Interface or off USB , U-Flash Disk Supported, Can work without a PC.
3. Air Assist, Remove heat and combustible gases from the cutting surface.
4. Embedded Exhaust Fan, Easier intall, Safer transport.
5. Rotary Axis, Engrave any cylindrical object.
6. Cellular platform, Leave no chippings on working area.
7. Intuitive Control Panel, Set Speed, power and more controls directly from the laser.
8. Water Cooling and Protection System.
9. Lsser position.
10. Emergency Stop Button.
12. Lifting platform is electric control.
13. Drag - and - chain transmission line
Technical Detailes for cnc laser machine cutting acrylic Total power | <300W |
Laser power | 80W-150W |
Laser type | CO2 cnc laser cutting machine |
Power supply | AC 220V/110V |
Working area | 1600*1000 mm |
Engraving depth | 0-10 mm (different material differ) |
Cutting depth | 0-10 mm |
Engraving speed | 0-600mm/s |
Cutting speed | 0-600mm/s |
Lifting platform | 0-250 mm Honeycomb/Blade Worktable |
Locating precision | <0.01 mm |
Min shaping character | Character: 2*2mm, Letter: 1*1mm |
Working temperature | 5ºC-45ºC |
Working humidity | 5%-95% |
Resolution ratio | ≤1000dpi |
Data transfer interface | USB 2.0 (offline) |
System environment | Windows XP / Win 7 / Win 8 |
Cooling | Water Cooling and protection system with chiller |
Graphic Format Supported | The Files which CorelDraw & WinsealXP can identify |
(BMP,JPEG,PLT,CDR,AI,) TIFF,PCX,DIB,TIF |
Compatible software | CorelDraw,WinsealXP |
Color separation | NO |
Sloping engraving | NO |
Protection | Emergency stop buttom and Stop working when water broken |
The detail parts of cnc laser machine cutting acrylic
Blade knife table.suitable for cutting hard material,like acrylic,wood,MDF etc
Application of cnc laser cutting acrylic
This model can work on metal and non-metal materials .
1.Advertising industry: large blister word cutting, organic glass engraving and cutting,engraving of double color board,scutcheon,crystal cup, authorize brand etc.
2.Leather and clothing industry: complex text and graphic engraving on leather, synthetic leather,leatheroid,cloth,fur and leather.Craft processing like cutting,carving
patterns or designs on woodwork,hollowing out.Cutting of clothes,underware,home decoration,gloves,bags,shoes,hats,toys and other industries.
3.Art & Craft industry: engraving on marble, bone, bamboo craft, leather, shell, ivory and so on.
4.Model industry:cutting on architectural model, aviation and navigation model, and wooden toys.
Application of cnc laser cutting acrylic
This model can work on metal and non-metal materials .
1.Advertising industry: large blister word cutting, organic glass engraving and cutting,engraving of double color board,scutcheon,crystal cup, authorize brand etc.
2.Leather and clothing industry: complex text and graphic engraving on leather, synthetic leather,leatheroid,cloth,fur and leather.Craft processing like cutting,carving
patterns or designs on woodwork,hollowing out.Cutting of clothes,underware,home decoration,gloves,bags,shoes,hats,toys and other industries.
3.Art & Craft industry: engraving on marble, bone, bamboo craft, leather, shell, ivory and so on.
4.Model industry:cutting on architectural model, aviation and navigation model, and wooden toys.
