6040 Mini Phone Case CO2 Laser Cutting and Engraving CNC Machine

Dekcel cnc phone case laser engraving machine is mainly used for engraving and cutting for nonmetal material, such as acrylic, wood planks (light planks, candlenut wood), bamboo ware, double color board, paper, leather, shell, coconut shell, ox horn, resin animal grease, ABS board, lampshade, etc

Quantity:
  • DEK-6040J
  • DEKCEL CNC
  • 130

6040 Phone Case CO2 Laser Cutting and Engraving CNC Machine

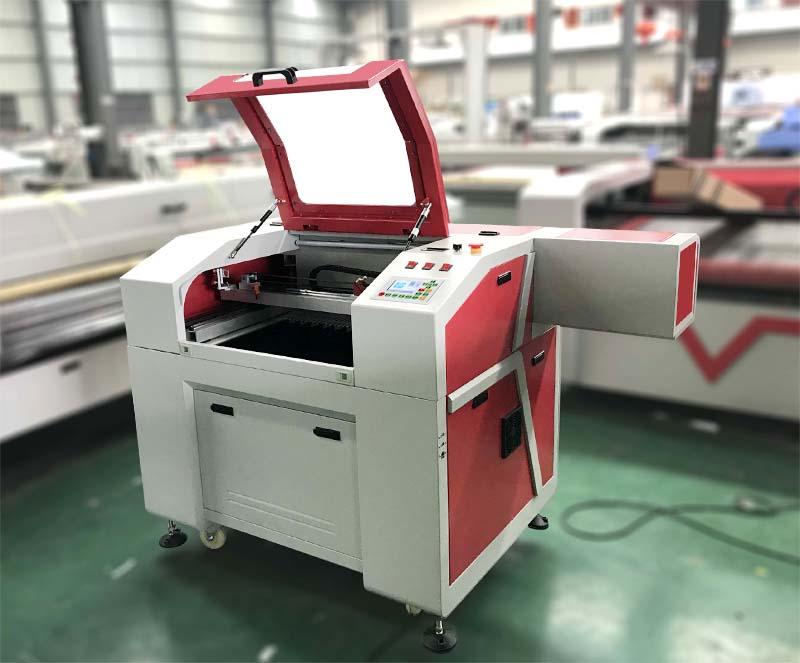

6040 cnc mini laser engraving and cutting machine.jpg

Main Features of Mini Laser Cutting and Engraving Machine:
1). Water chiller.It is used to cool the laser tube, CW3000 model for 60W/80W, CW5200 for 100W/150W/180W
2). Air pump or compressor. Push fumes away from the laser's focal lens; push air into the material's kerf as created by the laser beam;the air will help to cool the material.
3). Exhaust fan. It creates an air flow to remove dust and fumes from the work area of the laser machine.
4). Worktable. Metal-bar worktable for hard materials such as acrylic, glass,etc.
Or Honeycomb worktable for soft materials such as cloth,paper,fabric,etc.
5). Red dot pointer. It will show you where is the laser dot.
CNC Mini Laser Cutting Machine Optional Parts for More Functions
1). Z-axis motorized up-down worktable
With this device,Z-Axis worktable can move up and down automatically.With about 500mm of usable height.
 2). Chuck rotary device for engraving cyliners such as bamboo,cups,etc.
 3). Roller rotary device for engraving irregular cylinders such as bottle,etc.

Technical Parameters for  6040 CNC Laser Engraving Machine

Model

DEK-6040J

Laser type

Sealed CO2 laser tube

Laser power

60W, 80W, 100W, 130w, 150W,200W

Engraving area

600*400mm

Engraving speed

0-60000mm/min

Cutting speed

0-40000mm/min

Resetting position accuracy

≤±0.01mm

Max scanning accuracy

2500DPI

Working voltage

AC110-220V ±10%,50-60HZ

Power

Max 1,500W

Operating temperature

0-45 degree

Operating humidity

5-95%

Minimum shaping character

English 1*1mm,Chinese 2*2mm

Graphic format supported

BMP, PLT, DST, DXF, AI

Driving system

stepper motor

Cooling mode

Water-cooling and protection system

Assistant equipment

Water pump,Air pump,Exhaust-fan,Red dot pointer

Optional Equipment

Water chiller,up and down clump,honeycomb table

Rotary system, Auto focus

Consumable parts

Extra laser tube  Extra 1 lens and 3 mirrors

Compatible software

CorelDraw,AutoCAD,PhotoShop,TAJIMA,Lasercut.

Control system

DSP CONTROL

Details Show of Mini Laser Machine

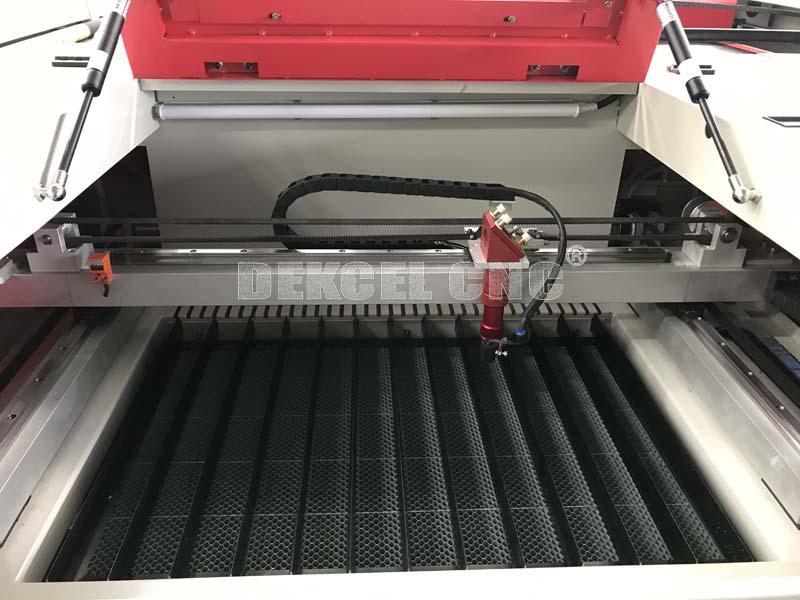

 laser machine cutting head.jpg

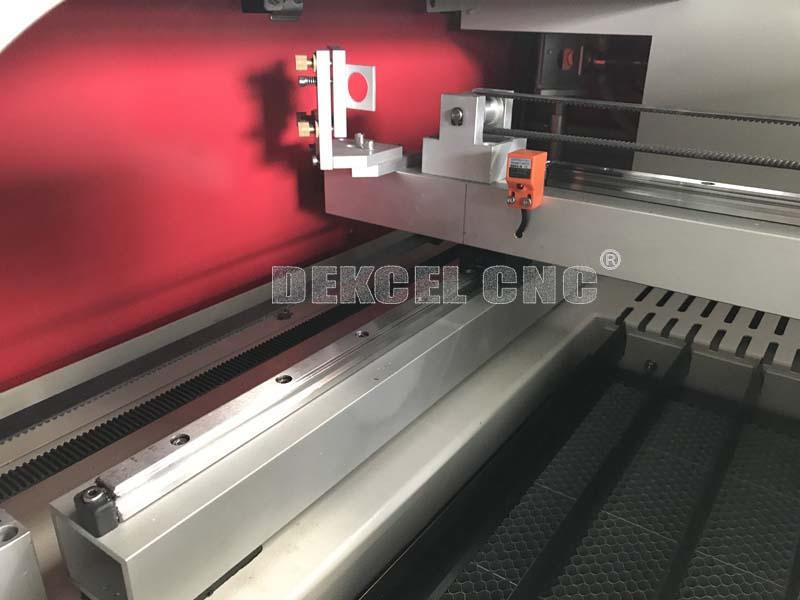

laser machine hiwin guide rail.jpg

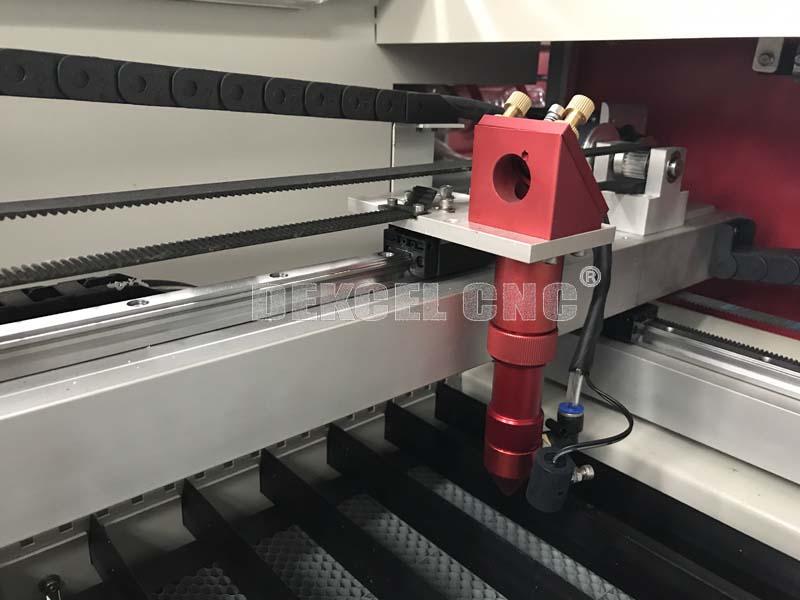

red laser position pointer.jpg

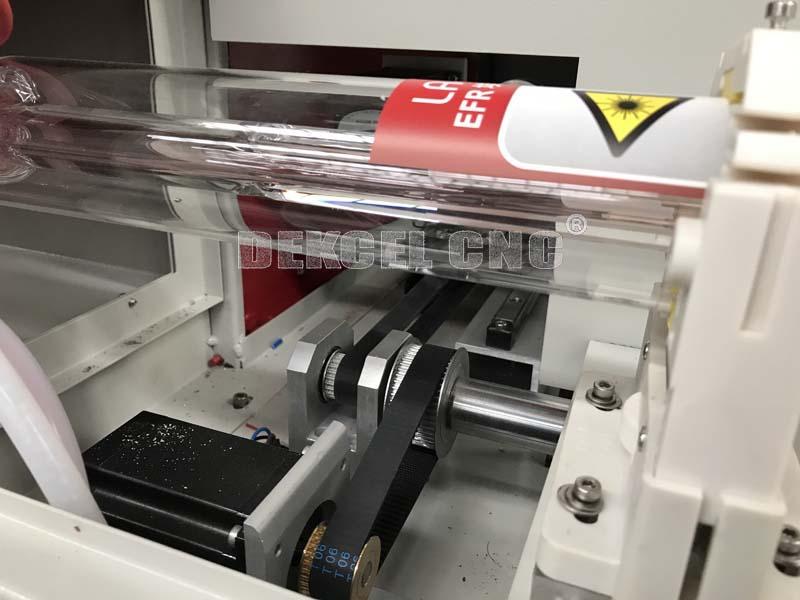

laser machine stepping motor.jpg

Applicable Industry and Materials:
# Industry : Arts and crafts, mould ndustry (construction mould, aviation and navigation mould, wooden mould), decoration, electric appliances, etc.

# Materials : Non-metal materials such as double-color sheets, acrylic, glass, wood planks, paper, leather, rubber, marble, granite and tiles, etc.

phone case laser engraving machine.jpg

wood crafts laser engraving machine.JPG

wood lights laser engraving machine.jpg

MDF laser cutting and engraving machine.JPG
