1390 CCD Fabric Visual Contour Cutting Laser Cutting Machine

Dekcel CCD camera fabric laser cutting machine is equipped with advanced Vision system.Camera auto positioning and Laser cutting applied on printed fabric, such as digital printed apparel, sublimated sports garment, cycling clothes, racing suits, swimming suit, printed toys, carpet, home furnishing, banners, flags and so on

Quantity:
  • DEK-1390-CCD
  • DEKCEL CNC
  • 129

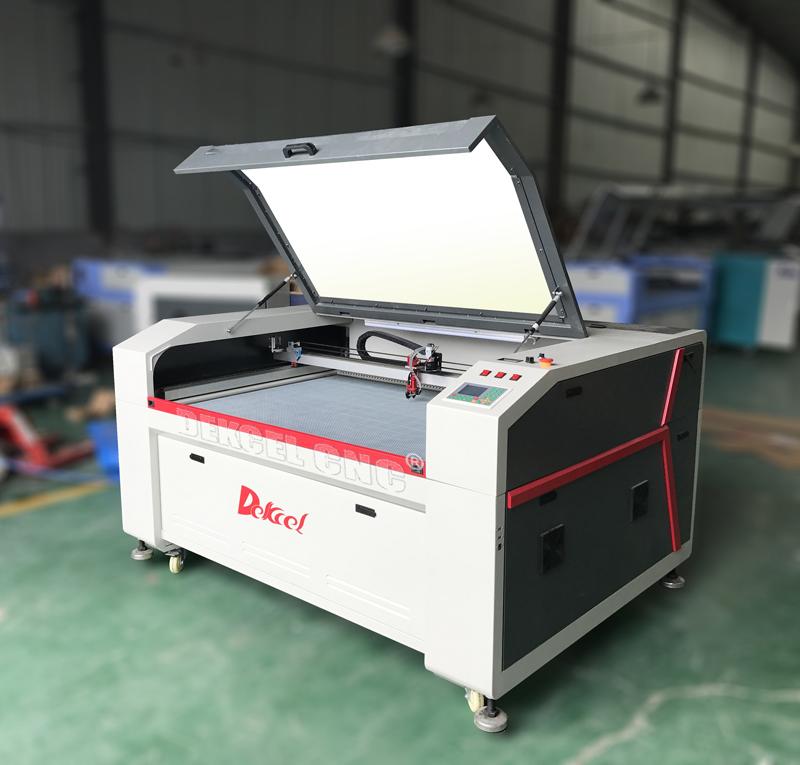

1390 CCD Fabric Visual Contour Cutting Laser Machine
80w CCD contour laser cutting machine.jpg

Visual contour cutting control system (RDVision) is cutting system based on intelligent target recognition. This system is mainly composed of PCI motion control card and CCD industrial camera. Combined with image processing algorithm for target image feature extraction and target recognition and finish cutting work by artificial cut outline.

CCD Working Video Show

Feature of CCD Contour Cutting Machine :
1. Dekcel CCD fabric cutting machine adopt Reci 80w power laser tube.
2. Video collecting card adopting high quality draw code technology
3. Owns functions of restoring from power off, continuation on break point.
4.Transmit files directly in Coreldraw, AutoCAD,etc.
5. Adopt international linear rail, more precision.
6. The Camera in Automatic Camera Positioning Cutting Machine reflects very fast with high frame rate. It’s much easier to install and adjust. One time position fixing will be OK for total work.
7. Have professional visual light source. During working process, it can automatically intake the pictures into computer by the visual system. Through treatment, it can automatically search for the work and  position accurately to cut.
8. Two working models “identify firstly then cut” and “identify and cut together”, with the design of “shortest cutting path software” can save 20% time averagely.
CCD Camera Cutting Procedure
Step 1: Various graphics printed on fabric and loaded to the laser cutter working table.
Step 2: Material contour information extracted by the HD SRL Camera
Step 3: The software recognize outer contour of graphics, then automatically create the cutting path model.
Step 4: Laser head cuts as the path in software

Visual Contour Laser Cutting Machine Details Show

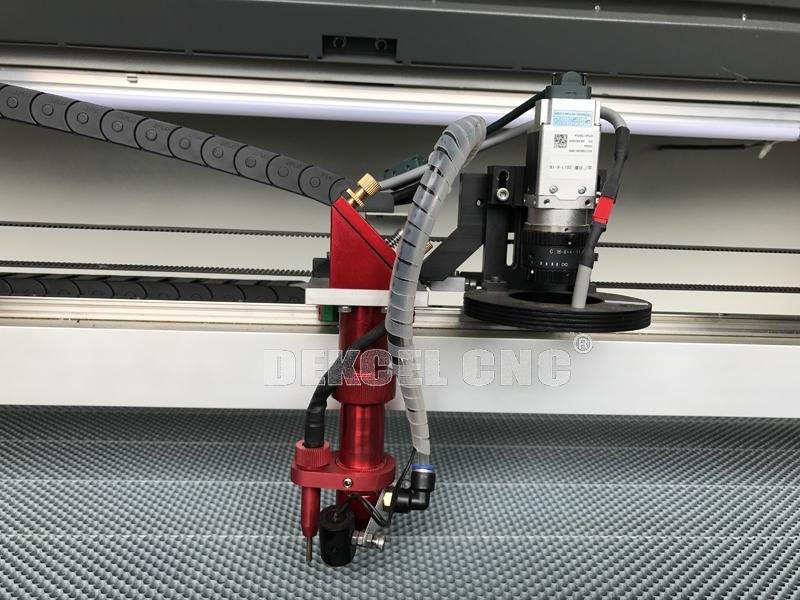

visual contour cutting CCD camera,red laser postion & autofocus system

visual contour cutting CCD camera.jpg

CCD visual cutting control software

CCD visual cutting control software.jpg

CCD camera cutting control panal

CCD camera cutting control panal.jpg

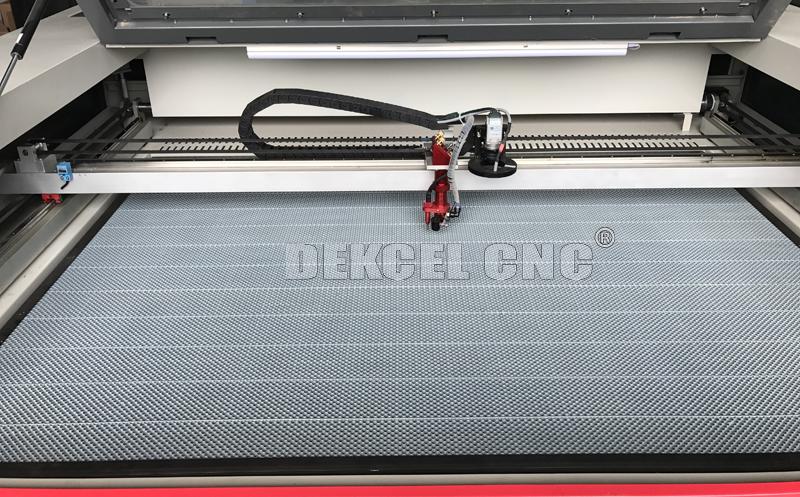

CCD trademark contour cutting honeycomb table

CCD trademark contour cutting honeycomb table.jpg

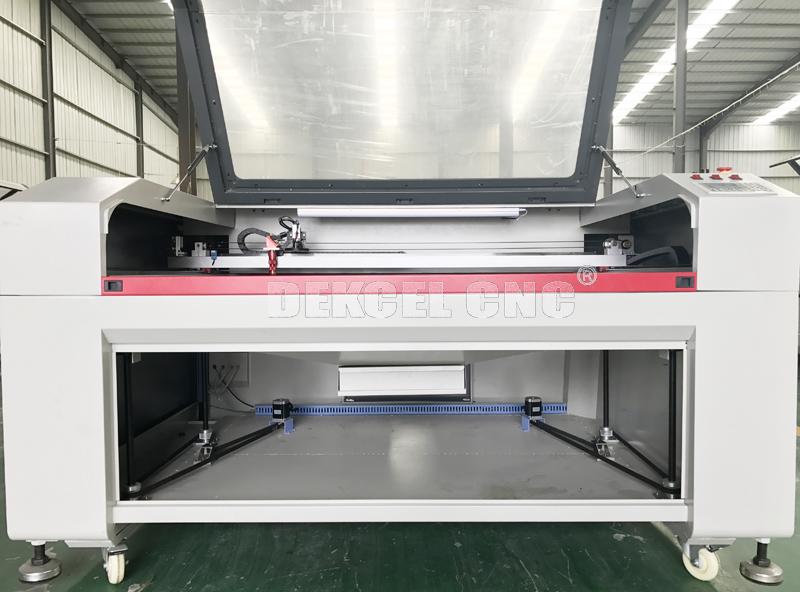

CCD visual cutting machine with up and down table

CCD visual cutting machine with up and down table.jpg

Specification of CCD camera Laser Cutting Machine:

Model

DEK-6040

DEK-9060

DEK-1390

DEK-1810

Work Area (cm)

600 × 400

900 × 600

1300 × 900

1800 × 1000

Laser Generator

Water cooled Co2 glass sealed laser tube

Laser Power

80W

80W/100W/130W

Drive Motors

Micro stepping stepper motor system

Control System

64 Bit DSP

PC Interface

USB 2.0 Port, USB Disk

Cutting Speed

0-48000mm/min

Resolution Ratio

<0.025mm

Power Supply

AC110V/220V-240V ± 10%, 50/60HZ

Work Style

The continuous automatic array moves. To take(CCD take mutually head)

Location Precision

<0.01mm

Operating Temperature

0℃-45℃

Graphic Format supported

HPGL(PLT), JPGE, PCS, TGA, DST, DXP, DXF, DWG, CDR

Red Pointer

Optional

Dual Laser Head

No

Optional

Optional

Optional

Accessories

Water cooling unit, Air Pump, Exhaust Blower Unit

Warranty

12 Months

Dimension (cm)

1100×980×1200

1480×1180×1200

2070×1600×1300

2450×2150×130

Weight (kg)

280

350

480

550

 Applicable Industry:

This type of laser machine is applicable to the trademark label, garment leather, cloth toys, computer embroidery and clipping, die cutting, cutting paper products.
- Sportswear, sports garment, swimwear, printed sublimation textile & apparel
- Strips & plaids clothing, suits, shirts, dresses
- Fabric with Repetitive Visual Motifs,logo,label,trademark ect
- Sofa upholstery, Banners, flags
Applicable Materials:
leather, cloth, rubber, wood, bag, clothing, shoes, toys, bags, engraving and cutting.
1390 CCD visual system laser cutting machine sample.jpg
