CCD visual double rails fabric laser cutting machine with auto feeding system
This laser cutting machine is equipped with advanced CCD Camera Vision system and 2 rails for x-axis.Camera auto positioning and Laser cutting applied on printed fabric, such as digital printed apparel, sublimated sports garment, cycling clothes, racing suits, swimming suit, printed toys, carpet, home furnishing, banners, flags and so on.
Double X Axis Laser Machine Cutting Video
CCD Visual Fbric Cutting Machine Features
1.Adopt advanced CCD camera recognition systems,through visual identification system putting the images into computer,identify automatically and located cutting correctly and fast,greatly reduces the material and the waste of time.
2.Machine with 2 cutting rails for x axis,high improve the cutting efficiency.
3.Fast continuous cutting function based on the powerful date processing ability of high-end DSP technology,professional camera recognition software,and the coordination between precision mechanical components,guaranteed the procision,high speed cutting.
4.Fast curvilinear cutting function:it can cut via any curve fast continuous cutting,the laser heads move in beautiful arc just evoke industry needs.
5.To fully support design software,such as CAD,CORELDRAW,PHOTOSHOP,friendly man-machine interface,live close to the industry needs.
CCD Camera cutting Machine Work Procedure
Without the need for human intervention, Vision Laser machine can achieve continuous recognition and cutting of the entire roll printed fabrics.
※ Step 1: Various graphics printed on fabric and loaded to the laser cutter working table with our auto-feeder.
※ Step 2:Material information extracted by the HD SRL Camera
※ Step 3: The software recognize outer contour of graphics, then automatically create the cutting path
※ Step 4: Laser head cuts as the path in software
CCD Visual Fbric Cutting Machine Parameters | Model | DEK-1810 | DEK-1610 | DEK-1630 |
| Cutting Size | 1800*1000mm | 1600*1000mm | 1600*3000mm |
| Laser Power | CO2 80w-150W AC glass tube / RF metal tube |
| Laser Power Control | 0-100% Manual Adjustment and Software Controlling |
| Working Table | Stainless Steel Conveyor |
| Axial Speed | 0-48000mm/min |
| Motion System | Stepping motor and driver / Servo Motor option |
| Repeat Location Accuracy | ± 0.01mm |
| Voltage | 110V/220V 50HZ/60HZ |
| Cooling System | Industrial water chiller |
| Camera Pixels | 18 Million Pixels |
| Camera View Range | 2100mm*2100mm |
| User Control | Digital Screen Panel |
| Operate system | Windows XP/7/8 |
| Format Support | AI/DXF/DWG/JPG/BMP/PLT/DST CorelDraw/PhotoShop/AutoCAD/Illustrator |
| Software | CCD Visual Contour Cutting System |

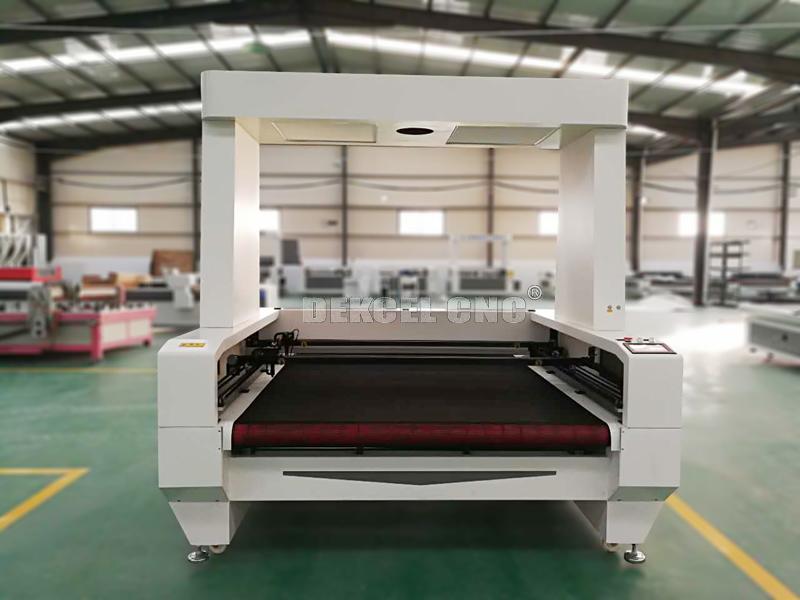

Details Show of Double Rail Laser Cutting Machine

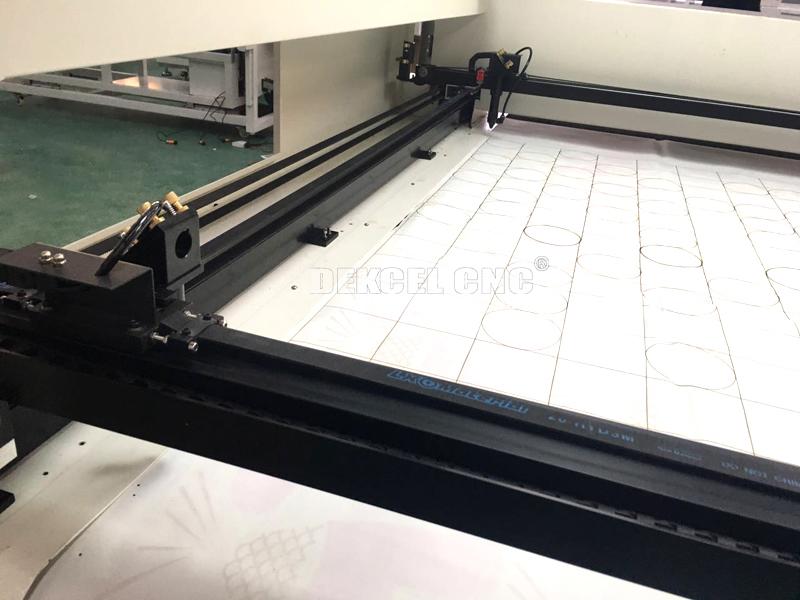

※ Double x axis for fabric cutting,fast cutting speed,improve the processing efficiency.
※ Double x axis for cutting with double laser head for fabric cutting

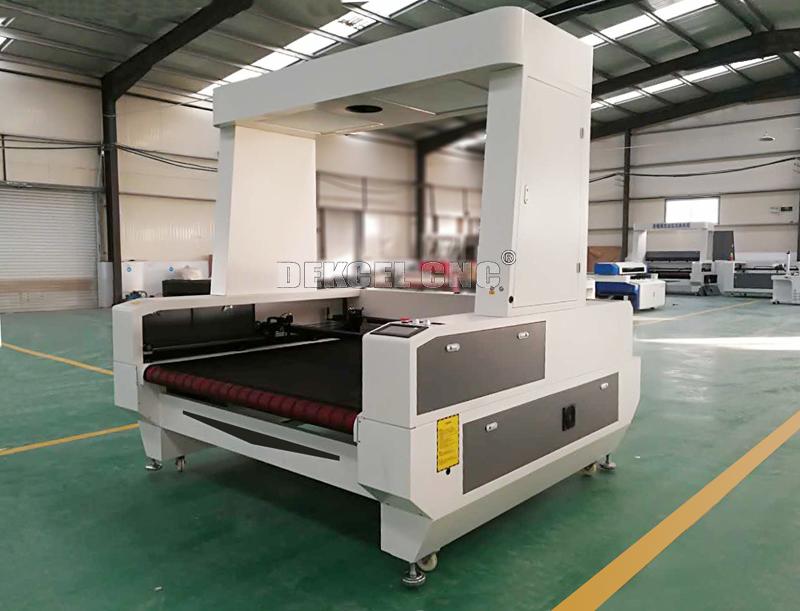

※ Advanced CCD camera recognition systems

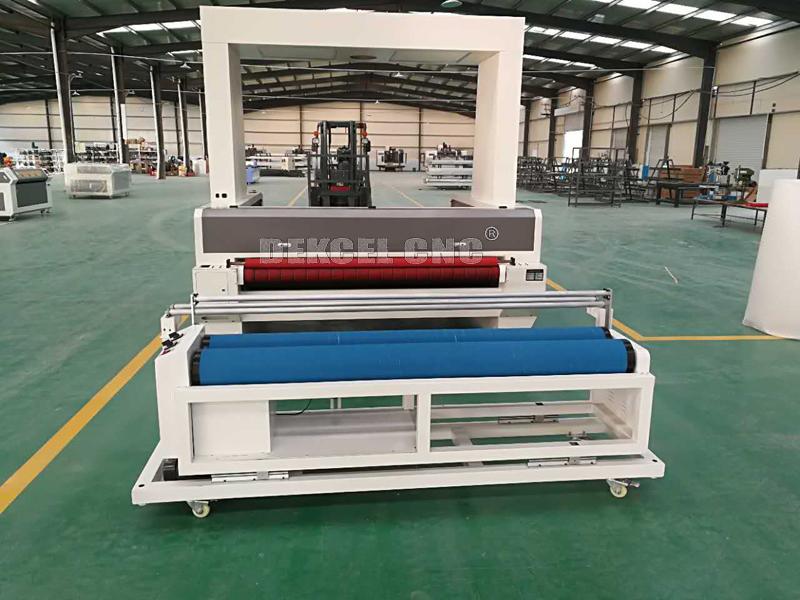

※ Auto feeding system for fabric transmission and cutting
Fabric Laser Cutting Machine Application
This model is CO2 laser cutting machines with full frame CCD camera designed for efficient processing of printed fabric, leather, textiles and many more,to cut T-Shirt,Logo,shoe upper,leather wallet,key wallet,and many more. Available in different workstations sizes with several power options, these laser cutting systems provide high-quality results at maximum speed.
CCD visual double rails fabric laser cutting machine with auto feeding system
This laser cutting machine is equipped with advanced CCD Camera Vision system and 2 rails for x-axis.Camera auto positioning and Laser cutting applied on printed fabric, such as digital printed apparel, sublimated sports garment, cycling clothes, racing suits, swimming suit, printed toys, carpet, home furnishing, banners, flags and so on.
Double X Axis Laser Machine Cutting Video
CCD Visual Fbric Cutting Machine Features
1.Adopt advanced CCD camera recognition systems,through visual identification system putting the images into computer,identify automatically and located cutting correctly and fast,greatly reduces the material and the waste of time.
2.Machine with 2 cutting rails for x axis,high improve the cutting efficiency.
3.Fast continuous cutting function based on the powerful date processing ability of high-end DSP technology,professional camera recognition software,and the coordination between precision mechanical components,guaranteed the procision,high speed cutting.
4.Fast curvilinear cutting function:it can cut via any curve fast continuous cutting,the laser heads move in beautiful arc just evoke industry needs.
5.To fully support design software,such as CAD,CORELDRAW,PHOTOSHOP,friendly man-machine interface,live close to the industry needs.
CCD Camera cutting Machine Work Procedure
Without the need for human intervention, Vision Laser machine can achieve continuous recognition and cutting of the entire roll printed fabrics.
※ Step 1: Various graphics printed on fabric and loaded to the laser cutter working table with our auto-feeder.
※ Step 2:Material information extracted by the HD SRL Camera
※ Step 3: The software recognize outer contour of graphics, then automatically create the cutting path
※ Step 4: Laser head cuts as the path in software
CCD Visual Fbric Cutting Machine Parameters | Model | DEK-1810 | DEK-1610 | DEK-1630 |
| Cutting Size | 1800*1000mm | 1600*1000mm | 1600*3000mm |
| Laser Power | CO2 80w-150W AC glass tube / RF metal tube |
| Laser Power Control | 0-100% Manual Adjustment and Software Controlling |
| Working Table | Stainless Steel Conveyor |
| Axial Speed | 0-48000mm/min |
| Motion System | Stepping motor and driver / Servo Motor option |
| Repeat Location Accuracy | ± 0.01mm |
| Voltage | 110V/220V 50HZ/60HZ |
| Cooling System | Industrial water chiller |
| Camera Pixels | 18 Million Pixels |
| Camera View Range | 2100mm*2100mm |
| User Control | Digital Screen Panel |
| Operate system | Windows XP/7/8 |
| Format Support | AI/DXF/DWG/JPG/BMP/PLT/DST CorelDraw/PhotoShop/AutoCAD/Illustrator |
| Software | CCD Visual Contour Cutting System |
Details Show of Double Rail Laser Cutting Machine
※ Double x axis for fabric cutting,fast cutting speed,improve the processing efficiency.
※ Double x axis for cutting with double laser head for fabric cutting
※ Advanced CCD camera recognition systems
※ Auto feeding system for fabric transmission and cutting
Fabric Laser Cutting Machine Application
This model is CO2 laser cutting machines with full frame CCD camera designed for efficient processing of printed fabric, leather, textiles and many more,to cut T-Shirt,Logo,shoe upper,leather wallet,key wallet,and many more. Available in different workstations sizes with several power options, these laser cutting systems provide high-quality results at maximum speed.
