Cnc laser MDF cutting machine features
1).Equipped with imported dual linear guide,so machine can move stably and cut the edge smoothly
2).Adopt three-phase motor and driver, belt can move in fast cutting speed and high precision.
3).Advanced control system: Advanced DSP numerical control systm and laserge liquid crystal
display brings out much convenient operation and simpler maintenance.Special intelligent
pre-calculating system fully develops the potential of the engine and leads to high speed processing
of smoother curves and straight lines simultaneously.
4).Powerful compatibility: Internationalized directives ensure that it is compatible with CAD/CAM
software like type3/ artcam/ castmate/ proe/ UG/ artcut etc. home and abroad.
5). Off-line control system: Apply USB interface to communicate with computer under the system
of WIN98/NT2000/XP, which can instantly compete transmission.
Great characteristics of cnc laser MDF cutting machine
1. High speed co2 laser cutting machine adopts the new high efficiency RECI laser tube,the laser beam is more stable than the troditional type, and the life time of the laser tube is very long.
2.Compared with the ordinary laser machine, the series adopts more scientific design and high strength steel-frame structure, which increase the fuselage strength more than 40% to prevent the machine from distortion long term work.

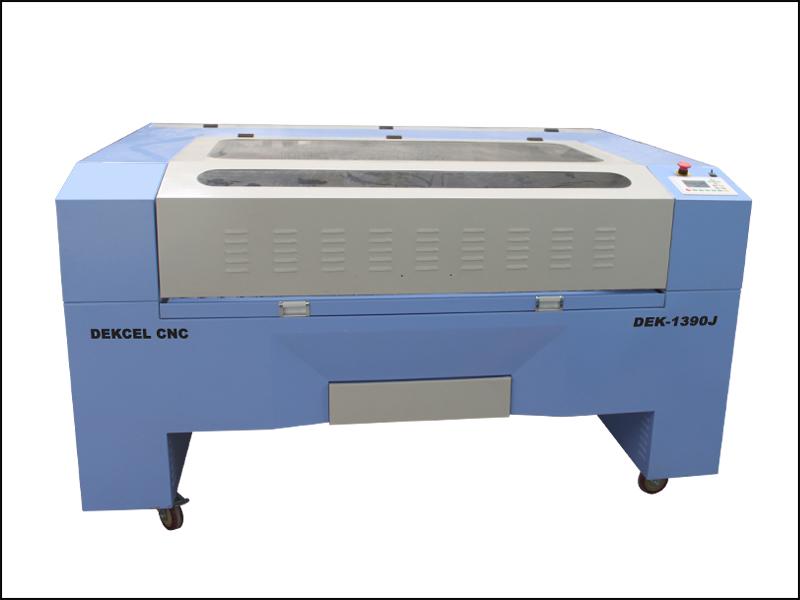

Technical Detailes for this cnc laser MDF cutting machine Name: | DEK-1390J |
Processing area | 1300mm*900mm |
Laser power | 80W,100W,150W |
Laser type: | Sealed Co2 glass laser tube |
Cooling mode: | Water cooling and protection system |
Resetting positioning accuracy: | ±0.01mm |
Compatible Software: | CorelDraw AutoCAD Photoshop |
Whole machine size: | 1820mm*1320mm*1100mm |
Engraving speed | 1-60000mm/min |
Cutting speed | 1-10000mm/min |
Cutting thickness | 0-20 MDF(others determined by materials) |
Resolution ratio | ≤0.0125mm |
Position system: | Red dot |
Interface: | USB |
Minimum shaping character | letter 0.5mm, Chinese 0.5mm |
Support graphic format | DST, PLT, BMP, DXF |
Gross power | 1000W |
Driving mode: | DC0.8A 24V stepper motor |
Cooling mode: | Circulation water cooling |
Working voltage: | AC 110 - 220V±10%, 50 - 60Hz or depend on customer |
Operating temperature | 0-45C |
Operating humidity: | 5-95% |
Driving system | stepper |
Option: | Up and down table, rotary attachment |
Packing: | wooden box |
Guarantee time: | 1 year, laser tube 8 months |
Option: | Rotary attachment for column materials |
Operation: | Video to tell customer how to operate the machine |
Gross weight: | 350KGS after package |

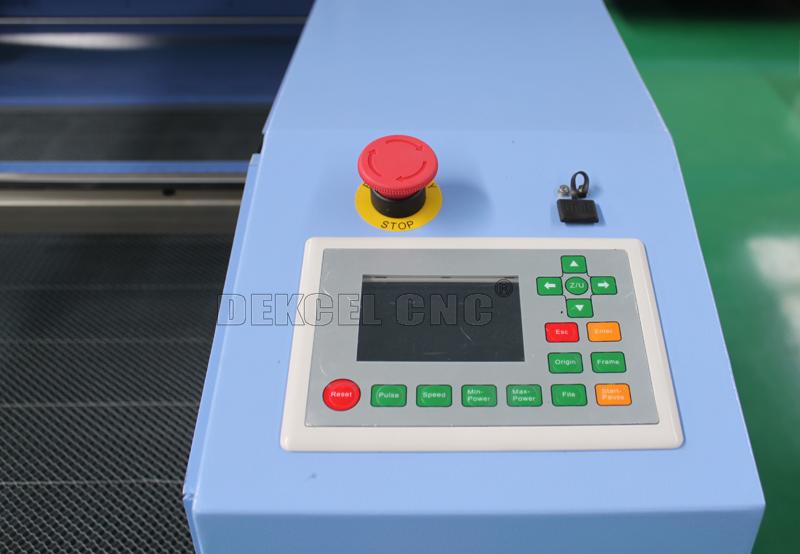

Advanced Ruida Control system.
Laser cutting head

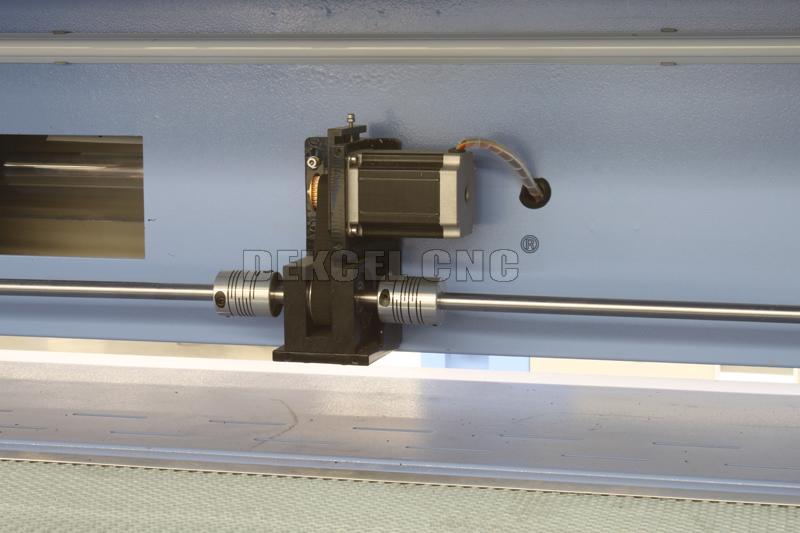

Leadshine stepper motor

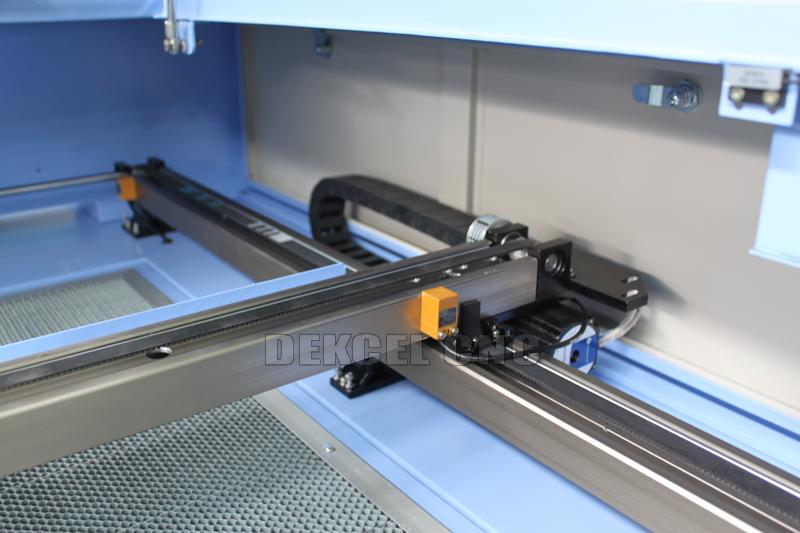

Taiwan Hiwin square rails

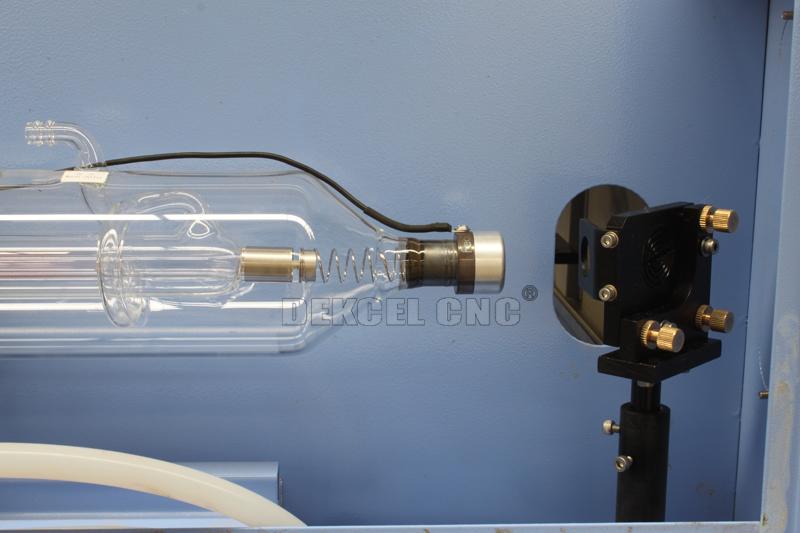

Beijing Reci laser tube,imported lens and mirror
Honey comb table,for cutting MDF,option knife blade table
Cnc laser MDF cutting machine features
1).Equipped with imported dual linear guide,so machine can move stably and cut the edge smoothly
2).Adopt three-phase motor and driver, belt can move in fast cutting speed and high precision.
3).Advanced control system: Advanced DSP numerical control systm and laserge liquid crystal
display brings out much convenient operation and simpler maintenance.Special intelligent
pre-calculating system fully develops the potential of the engine and leads to high speed processing
of smoother curves and straight lines simultaneously.
4).Powerful compatibility: Internationalized directives ensure that it is compatible with CAD/CAM
software like type3/ artcam/ castmate/ proe/ UG/ artcut etc. home and abroad.
5). Off-line control system: Apply USB interface to communicate with computer under the system
of WIN98/NT2000/XP, which can instantly compete transmission.
Great characteristics of cnc laser MDF cutting machine
1. High speed co2 laser cutting machine adopts the new high efficiency RECI laser tube,the laser beam is more stable than the troditional type, and the life time of the laser tube is very long.
2.Compared with the ordinary laser machine, the series adopts more scientific design and high strength steel-frame structure, which increase the fuselage strength more than 40% to prevent the machine from distortion long term work.
Technical Detailes for this cnc laser MDF cutting machine Name: | DEK-1390J |
Processing area | 1300mm*900mm |
Laser power | 80W,100W,150W |
Laser type: | Sealed Co2 glass laser tube |
Cooling mode: | Water cooling and protection system |
Resetting positioning accuracy: | ±0.01mm |
Compatible Software: | CorelDraw AutoCAD Photoshop |
Whole machine size: | 1820mm*1320mm*1100mm |
Engraving speed | 1-60000mm/min |
Cutting speed | 1-10000mm/min |
Cutting thickness | 0-20 MDF(others determined by materials) |
Resolution ratio | ≤0.0125mm |
Position system: | Red dot |
Interface: | USB |
Minimum shaping character | letter 0.5mm, Chinese 0.5mm |
Support graphic format | DST, PLT, BMP, DXF |
Gross power | 1000W |
Driving mode: | DC0.8A 24V stepper motor |
Cooling mode: | Circulation water cooling |
Working voltage: | AC 110 - 220V±10%, 50 - 60Hz or depend on customer |
Operating temperature | 0-45C |
Operating humidity: | 5-95% |
Driving system | stepper |
Option: | Up and down table, rotary attachment |
Packing: | wooden box |
Guarantee time: | 1 year, laser tube 8 months |
Option: | Rotary attachment for column materials |
Operation: | Video to tell customer how to operate the machine |
Gross weight: | 350KGS after package |
Advanced Ruida Control system.
Laser cutting head
Leadshine stepper motor
Taiwan Hiwin square rails
Beijing Reci laser tube,imported lens and mirror
Honey comb table,for cutting MDF,option knife blade table
Cnc laser MDF cutting machine applicable industry :
Suitable materials
MDF,Acrylic, color plates, rubber, plastics, glass, leather, cloth, glass, ceramics, crystal, jade, bamboo products, wood products,paper.
Suitable industry:
Advertisement decoration, gifts, packaging, printing, stone carvings, toys, electronics, model, paper products, construction and decoration industries.
Cnc laser MDF cutting machine applicable industry :
Suitable materials
MDF,Acrylic, color plates, rubber, plastics, glass, leather, cloth, glass, ceramics, crystal, jade, bamboo products, wood products,paper.
Suitable industry:
Advertisement decoration, gifts, packaging, printing, stone carvings, toys, electronics, model, paper products, construction and decoration industries.
