China laser cutter manufacturer for cutting cloth 1812
You are here: Home » Cnc Laser » Nonmetal laser cutting machine » China laser cutter manufacturer for cutting cloth 1812
Share to:

China laser cutter manufacturer for cutting cloth 1812

China laser cutter for cutting cloth, tile, cardboard, paper, leather, PU leather,trademark embroider, plastic, rubber etc.If you want to buy laser cutter machine, please choose laser cutter manufacturer Jinan Dekcel.

Quantity:
  • DEK-1812J
  • DEKCEL
  • 096

china laser cutter manufacturer

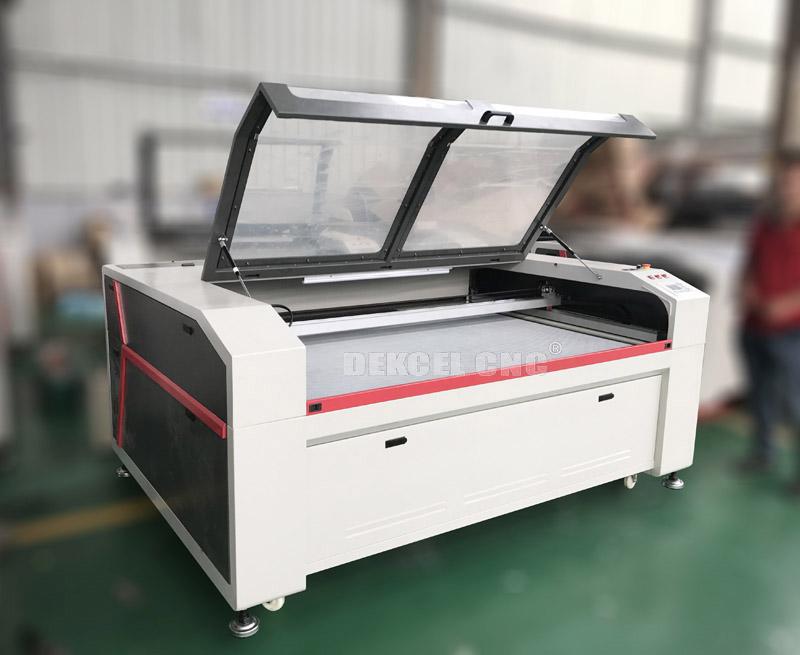

laser cutting cloth

Features of china laser cutter for cutting cloth

All the equipment parts are mouldedly made to ensure high precision and stability:Imported lens and mirror, Best square rail, and 3M belt ensures high precision at high speed. Extra auxiliary parts such as exhaust fan, air compressor are all first-level parts.

Advanced water cooling system, water short-supply alarm.

Laser Type: Famous brand Beijing Reci laser tube.

Best controller: Reader control card + USB 2.0 +Lasercut5.3

Unique honey comb platfrom suitable for cutting soft material,like cloth,fabric,paper,leather etc

High speed USB offline control system. On this series of machine, framework Interally designed, working stablly, economic and practical type machine widely used.

New Software completely compatible with AutoCAD,Corel Draw etc. CAD. CAM and various photo processing software, originally photo output directly.Supported format: PLT, DST, DXF, DWG, AI, LAS etc

If you need engraving cylinder glass cup, bottle,we can install rotary device for you.

Technical Parameter of china laser cutter

Laser Power

80 W /100W /150W

Supply Voltage

110/220V±10% ,50/60Hz

Working Area Size

1800mmx1200mm

Working table

Aluminum plate

Up and down size

50mm(optional)

Table control mode

Manual

Max engraving Speed

500mm/s

Max cutting speed

100mm/s

Locating Precision

<0.01mm

Min shaping character

Character 2x2mm ,Letter 1x1mm

Resolution

0.0125mm

Cutting thickness

0-15mm

Control Configuration

MINI DSP

Data transfer Interface

USB

System Environment

WINDOWS XP/Win7/8

Graphic file format

BMP,PLT,AI,CDR,DXF

256 Color separation output

NO

360 degree slope engraving

Support

Off line working

NO

Cooling Way

Water Cooling

Operating temperature

5°C-35°C

Water protecting sensor and alarm

Yes


China laser cutter cutting cloth main parts

Name: USB PORT
The upper one is USB Flash driver port,the second one is USB cable to connect PC,the third one is network cable which can direct use to run machine by PC.

Name: Sensor
French Omron Sensor which working lifespan lasts more than 7 years.

Name: mirror
The bracket with a hole facing to the mirror,customer would just need to stick the sticker to the bracket without connecting with the mirror directly,in this way,it will keep mirror clean all the time even when user adjusts the laser beam for different materials

Name: Ruida control card + USB 2.0 +Lasercut5.3
RD system which is compatible with newest system windows 10

cnc laser cutter cutting head

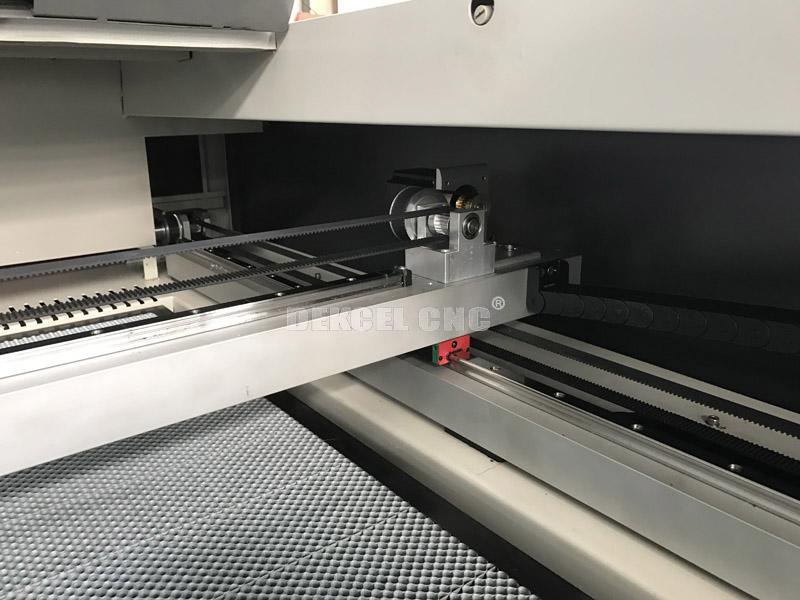

guide rails of china laser cutter

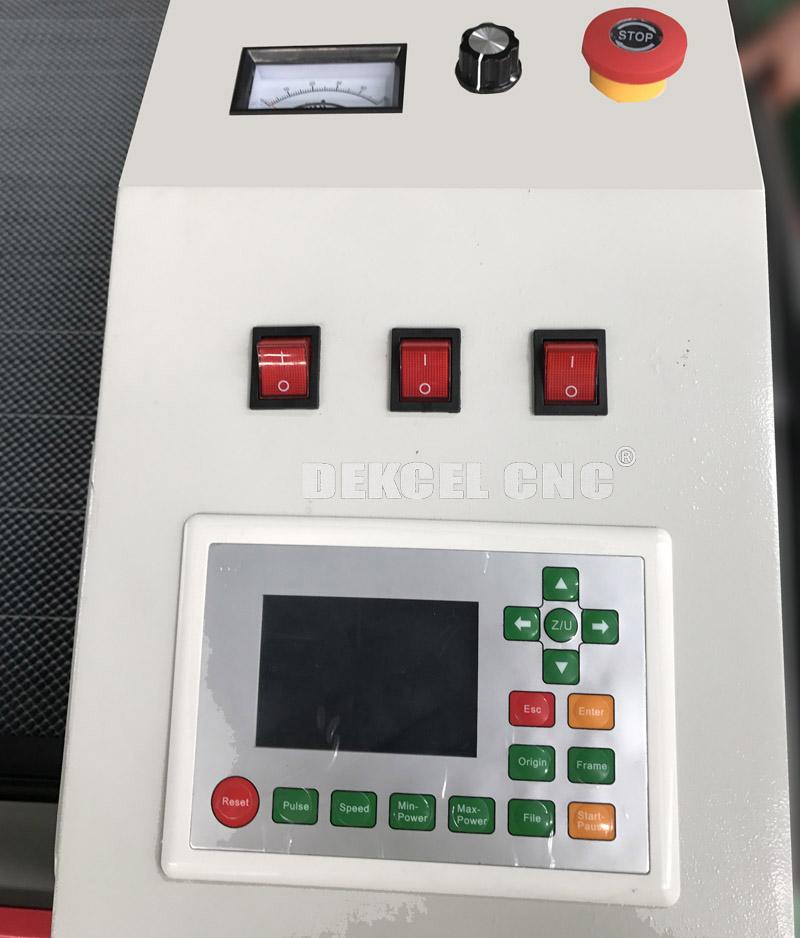

china laser cutter control system

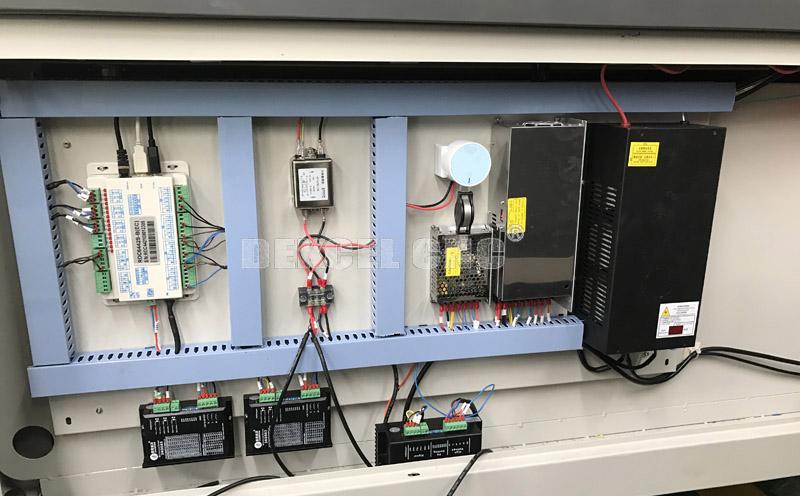

laser cutter machine manufacturer

china laser cutter machine

Packaging details
The normal package is plywood case(Size: L*W*H). If container is too tigher,we will use pe film for packing or pack it according to customers special request.

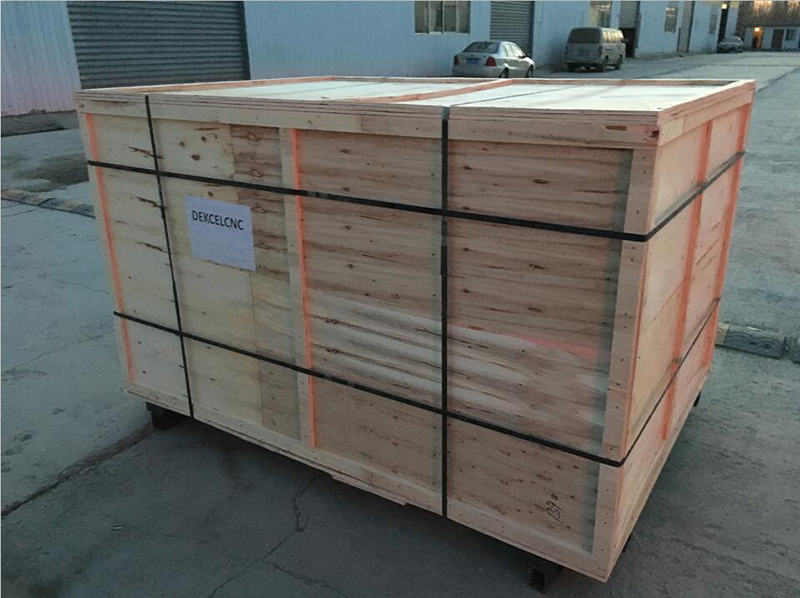

laser cutter packing



Applicable Industry of laser cutter
Cloth, tile, cardboard, paper, leather, PU leather, trademark embroider, plastic, rubber, wood products, wood, organic glass, acrylic, jade, leather, shell, horn, animal sebum, double color boards, bamboo and wood products, ABS board, PVC board, fiber and composite materials etc. Nonmetal materials.Shoes, leather clothing, trademark processing, embroidery, advertisement, decoration, wood processing, packaging and printing, laser knife die, decoration decoration industry, printing tipping template, process gifts industry, electronic industry, model industry (architecture model, aviation and navigation models and wooden toys), etc.

Applicable Material
Maple leaf, Double-color sheet, Plexiglass, acrylic, wood, paper, leather, marble, ceramics,etc.

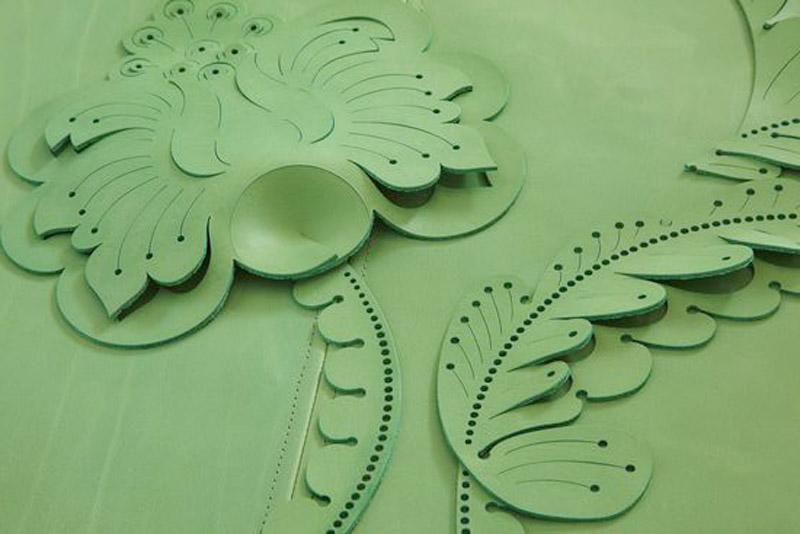

cloth laser cutting machine

wood laser cutter

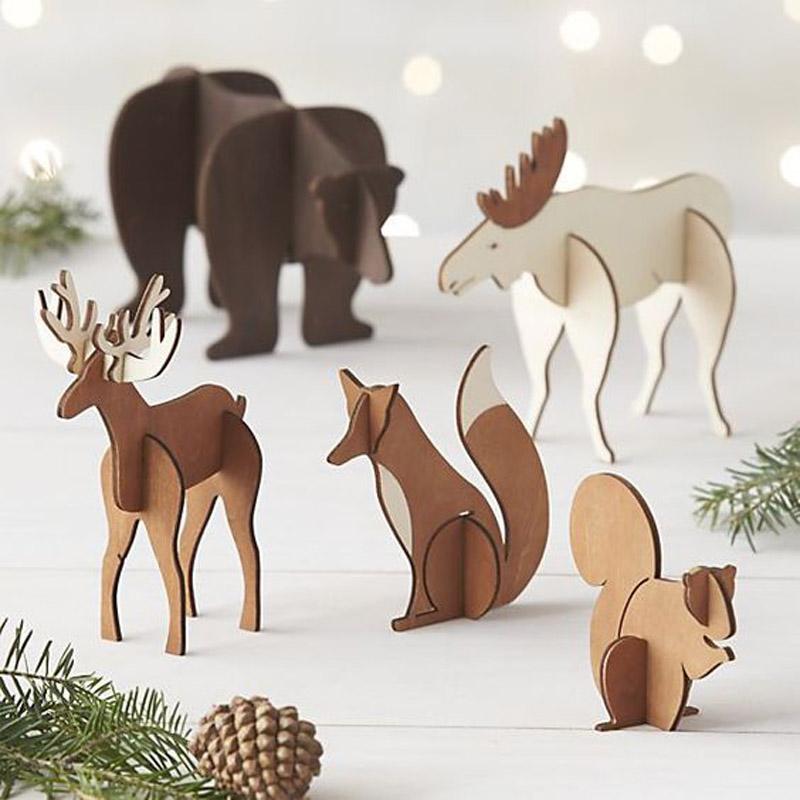

laser cutter cutting wood
