9060 Reci 100w wood arts and crafts co2 laser cutting and engraving machine up and down table

Dekcel cnc 9060 wood crafts laser cutting machine with up and down table,especially designed for users who wants to engrave or cut thick materials,equipped with auto lifting platform.Users can can freely engraving on different thick materials,convenient and quick.

Quantity:
  • DEK-9060J
  • DEKCELCNC
  • 111

9060 Reci 100w wood crafts co2 laser cutting and engraving machine with up and down table

craft laser cutting machine


Features of wood crafts laser cutting machine:

1,Dekcel cnc 9060 art and craft laser cutting machine adopts Top-rated and famous Beijing Reci laser tube, use life more than 8000 hours.

2,Adopts more scientific design and high-strength steel-frame structure,which increase the fuselage strength more than 40% to prevent the machine from distortion during long time work.

3,Advanced DSP control system of Ruida laser wood laser cutting system, with professional motion control chip in it,has the function of consecutively high-speed curve cutting and the shortest path selection,which largely improves you working efficiency.

4,All the machines are equipped with USB offline control system,which makes the operation more convenience and faster.

5.Easy to controll, one person can control more than three machines

6.Running in a high automatization and intellectualization,no pollution

7.Three phase stepper motors and drivers (Servo optional), which make sure machine work high speed and high precision

8. Our arts and crafts cnc laser cutting machine can be customized according to your request.

wood craft laser engraving machine

Optional / spare parts for 9060 arts and crafts laser engraving machine

Up and down work table, it makes the machine worktable moves up and down according to the material's thickness.

Rotary Attachment:
-- Rotary with clips, used to engrave cylinders
-- Rotary with rollers, to engrave bottles.

Usually, the rotary attachment works with the up and down worktable
Honeycomb table with vacuum, for doing some soft materials, such as leather, fabric,paper ,etc.
Red light pointer, the unit makes the laser path visible


Technical Parameters of 9060 arts laser cutting and and engraving machine:

Model

DEK-9060

Work area (mm)

900mm*600mm

 Dimension:

1600*1100*1100 mm

Laser tube power

60w/80w/100w

Engraving speed

<500mm/s

Cutting speed

<400mm/s

Communication interface

USB

Work table

knife blade / Honey comb board

Location  precision

<0.01mm

Power supply

AC110V/220V  ± 10% 50Hz

Drive mode

Stepper motor

Total power

<1250W

Design software

Coreldraw, Autocad

File supported

AI.PLT, DXF, BMP,JPEG, CDR,DWG

Color separation

reaches 256 colors to cut

Cooling system

water cooling

Working temperature

0 -45°C

Working humidity

5-95%  free of condensate water

Net weight

250KG

Optional Parts

Laser Power

Rotary Device

up and down table

Detailed show of 9060 Reci 100w laser cutting machine

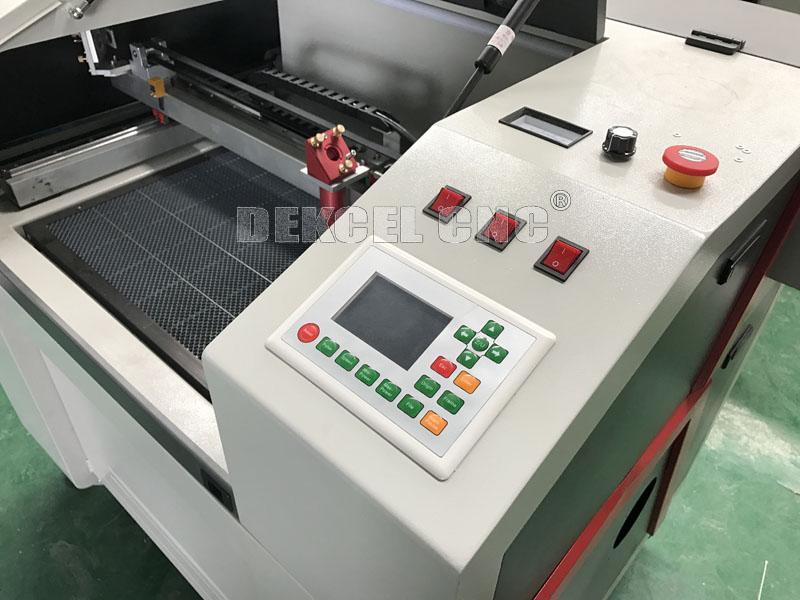

Ruida laser cutting control system
arts and crafts laser control system

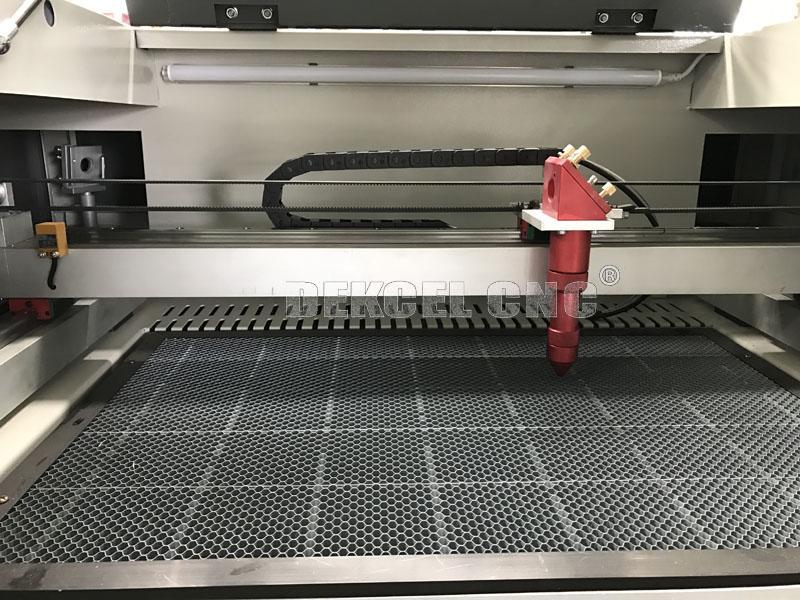

wood laser cutting head and honeycomb worktable of 9060 machine
wood crafts laser cutting head

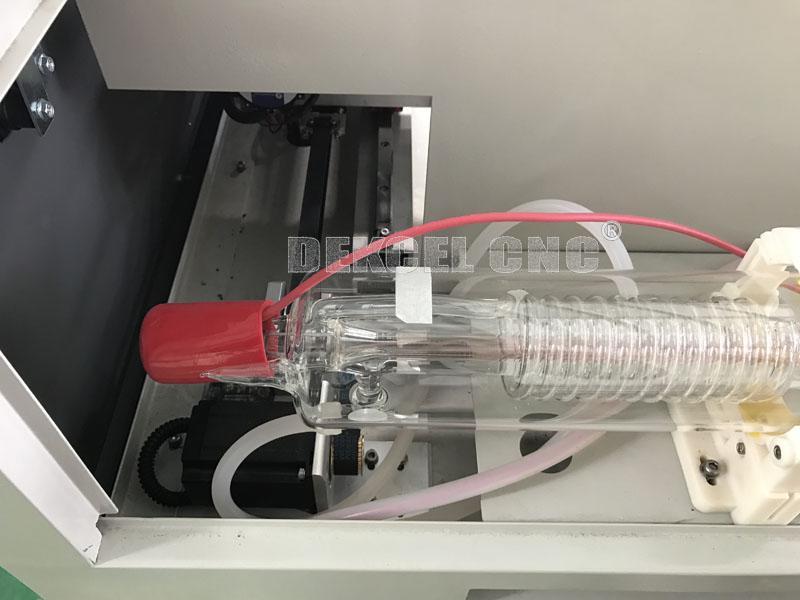

Reci 100w wood crafts laser cutting machine's tube
reci 100w crafts laser cutting tube

Application material of 9060 laser engraving machine
This laser cutting machine suitable forfabric,leather,plexiglass,acrylic,plastic,rubber,tile, wood products,bamboo products,wool,paper materials,ceramics and non-metallic materials.

Application industry of wood crafts engraving machine
This laser cutting machine is widely used in  arts and crafts,clothing,footwear,luggage,computerized  embroidery and clipping,model,electronic appliance,toys,furniture,advertisement decoration,packaging,printing,paper products,handicrafts and other industries.


Smple show of laser cutting arts anf crafts

art and craft laser engraving laser cutting MDF wood
laser cutting acrylic wood crafts laser cutting
laser cutting wood board.jpg

Our Package Advantage

1.Our wooden case is after fumigation treatment.Needn't timber inspection,saving shipping time.

2.All the spare parts of the machine were covered by some soft materials,mainly using pearl wool.

Avoiding all damages that could happen in the delivery process.Then we'll covered plastic wrap out it tightly,make sure intact of the covered soft materials,also avoiding Waterproof and rust proof.

3.The outmost is wooden case with fixed formwork.

4.The bottom of the wooden case has firm iron jack,convenient to Handling and transport.

Warranty and after-sale service

1.12 months guarantee for whole machine free of charge

2.7*24 hours technical support by e-mail

3.Calling or door-to-door service,professional training to your workers

4.Use friendly English software, user manual and detailed Videos/CD

5.Priority to become our agent in your city,we offer you our factory price
