China cloth laser cutting machine manufacturer with good price

China cloth laser cutting machine adopt the auto feeding system worktable, used to cut soft materials in rolls automatically, especially used for cutting leather, cloth, fabric, paper, etc.Choose best price cloth laser cutting machine,from Jinan Dekcel company manufacturer.

Quantity:
  • DEK-1625J
  • DEKCEL
  • 092

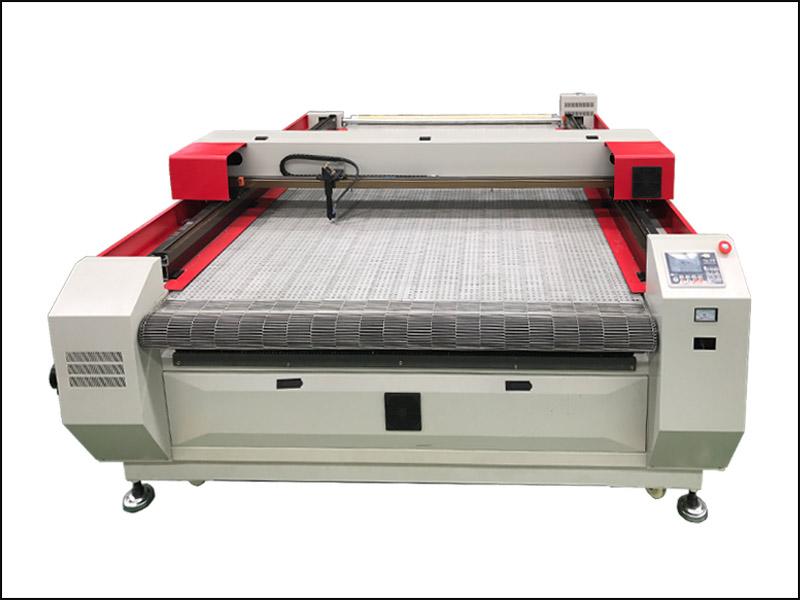

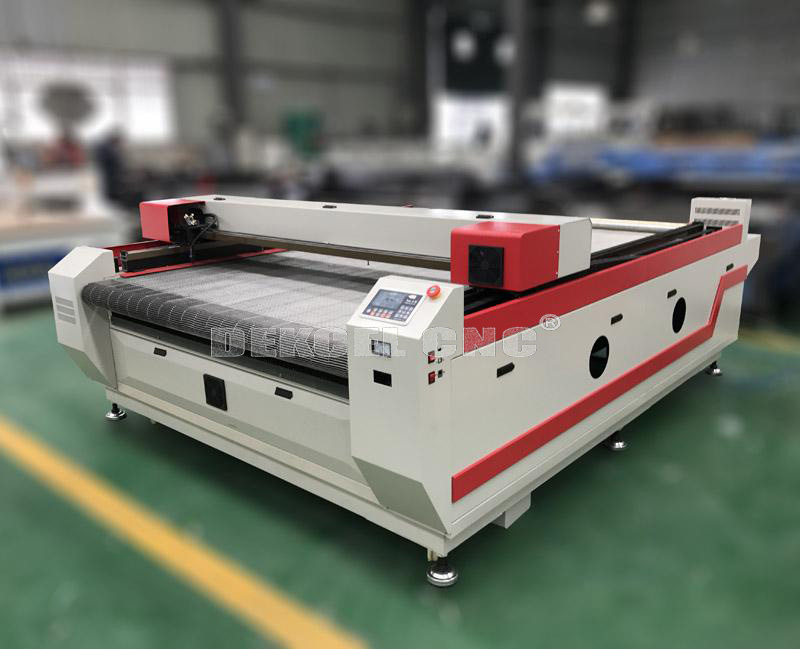

IMG_4501
Features of DEK-1625 cloth laser cutting machine:
China cloth laser cutting machine adopt the auto feeding system worktable, used to cut soft materials in rolls automatically, especially used for cutting leather, cloth, fabric, paper, etc.
The auto feeding laser cutting machine adopts strong lathe, it can assure the machine more stable and precision, we used the square linear guide rail to assure working accuracy.

Main Features
1. All the cloth laser cutting machine parts are mouldedly made to ensure high precision and stability: Imported lens and mirror, Best square rail, and 3M belt ensures high precision at high speed. Extra auxiliary parts such as exhaust fan, air compressor are all first-level parts.
2. Transmission: coupling with spring washer for Y axis automatic correction, and middle transmission of Y axis for uniform stree ensures machinery which make engraving and cutting perfectly. Distinctive laser head design can process about 30mm thickness workpiece without extra updown table.
3. Special professional leveling tool helps to adjust platform level.
4. Unique aluminum knife strip platfrom can be adjusted according to processing features.
5. Best controller: Reader control card + USB 2.0 +Lasercut5.3
6. Individual electrial cabinet is specially designed to improve anti-interference ability and meet work stability.

Technicial Parameters

Parameter DEK-1625J
Working area                                          1600*2500mm
Laser power 80W/100W/130W/150w
Laser type CO2 Laser tube
Feeding speed 1-300mm/s
Cutting Speed 0-200mm/s
Resetting positioning accuracy <0.01mm
Cutting Depth Acrylic 0~25mm
Maximum forming character English:1.5 x 1.5mm
Power supply 220V±10% 50HZ or 110V±10% 60HZ
Software supported ArtCut, CorelDraw, PhotoShop, AutoCAD
Graphic format supported .PLT,DXF,BMP,JPG,GIF,PGN,TIF
Water Cooling Yes
Laser Tube (life hours) 10000 hours
Assistant Equipment Water  pump            Exhaust Fan                              aluminium alloyworktable
Optional spare parts Water cooling system
Recommended Spare Parts/Consumables Laser Tube and Lens
Dimension 3130 x 1860 x 960mm

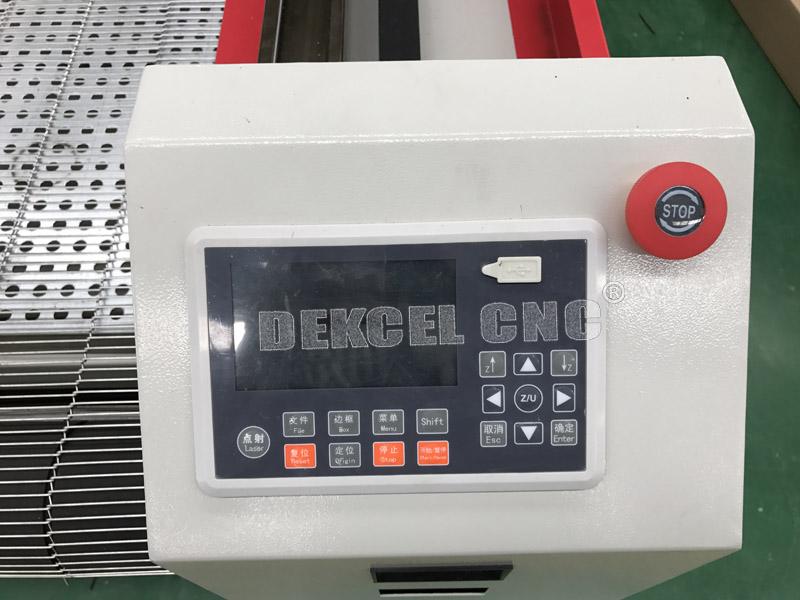

Main parts of this laser cutting machine for cloth control system of cloth laser cutting machine

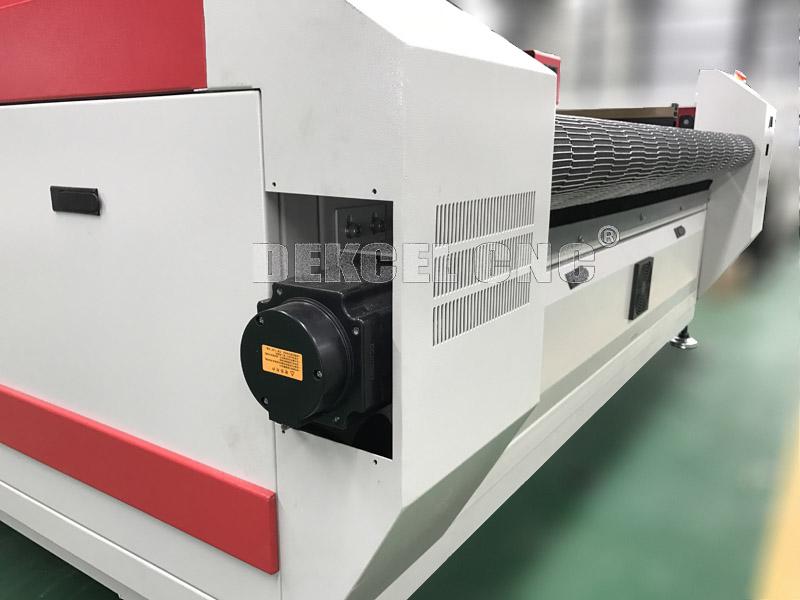

laser cutting machine for cloth motor

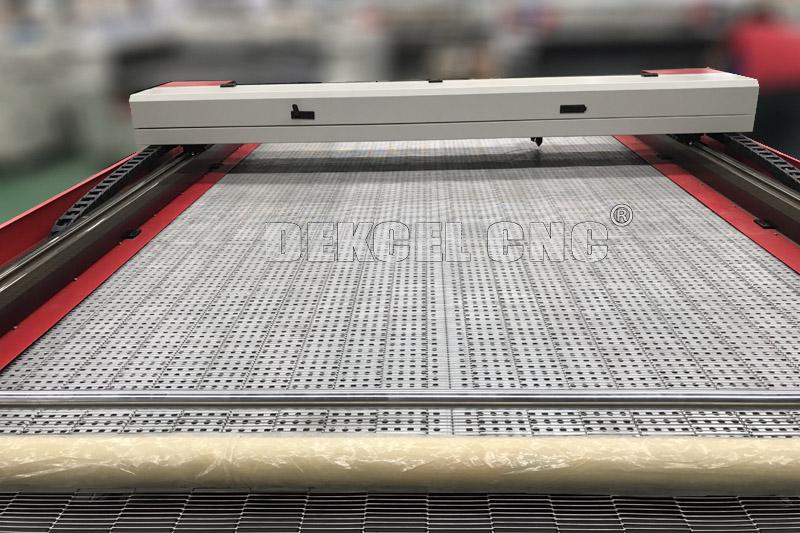

honey comb table for cutting cloth

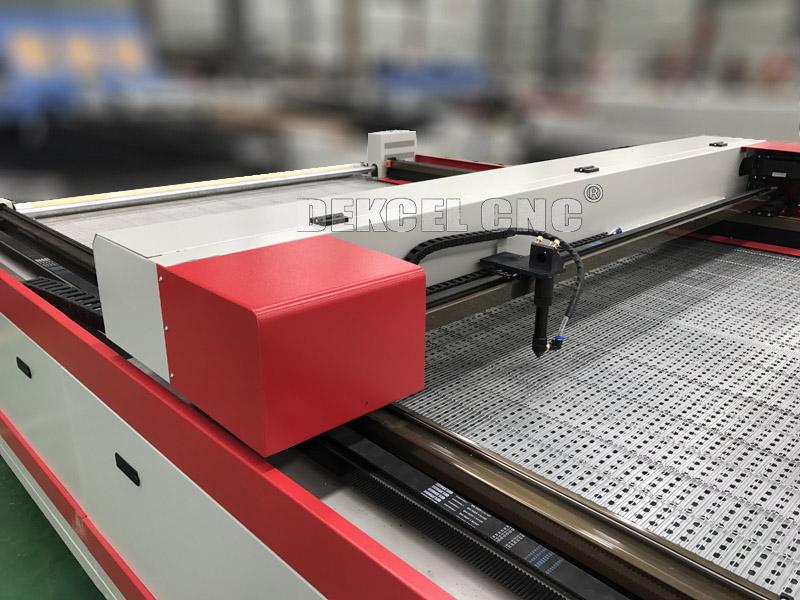

cloth laser cutting machine laser head

control box of laser cutting machine for cloth


Applicable material of china laser cutting machine
Cloth.Filter cloth footwear,textile,garments,industrial fabric,carpets,toys,paper,leather,automotive interiors,car seat covers,pads,furniture seat cover and other nonmetal soft materials.
laser cutting machine for cloth samples

china laser cutting machine for shoes

laser cutting cloth sample

laser cutting leather samples
