Auto feeding fabric co2 laser cutting machine for sale

This kind of auto-feeding CO2 laser cutting machine is designed for cutting fabric, leather,cloth,paper,garment and other soft materials in rolls, which largely enhances the working efficiency and saves time.

Quantity:
  • DEK-1530J
  • DEKCEL
  • 049
Auto feeding fabric co2 laser cutting machine introduction
This kind of auto-feeding laser cutter machine is designed for cutting fabric, leather,cloth,paper,garment and other soft materials in rolls, which largely enhances the working efficiency and saves time.

This auto feeding laser cutter machine can be equipped with one, two or four cutting heads and auto feeding system, two or four cutting heads working at the same time. The feeding system can load materials by itself which can save the labor force and cut the cost.

This machine is especially suitable for the mass processing of textile and garment.The machine can cut any curve fast and consecutively. DSP control system makes users can complete the mass production without the connection to the computer.

We also has other machines of the same type but in different sizes, such as DEK-1390J, DEK-1610J and so on.

Besides,we can make other sizes according to your requirements.

Main features of the auto feeding fabric co2 laser cutting machine
1) The auto-feeding system and the rotating work table ensure that the machine can cut soft materials such as fabric, PU, leather and paper in rolls automatically.
2) Accessories included: water chiller, air pump, exhaust blower, training DVD and User Manual.
3) Being integrated with more concise frame, this machine is more economical but still has the same excellent cutting and engraving effects.
4) Three unique protection functions, i.e. anti-interference function, water-protective function and power cut-off function ensure longer working life, stability.
5) Original Singapore imported lens makes the equipment produce smaller facular and stronger cutting force, greatly improving working efficiency and reducing cost.
6) This machine uses USB port and USB flash disk to transmit data, equipped with large-capacity internal memory, improving working speed and efficiency greatly.

Auto feeding fabric co2 laser cutting machine technical parameter
Name:
Auto feed laser cutting machine
Processing area
1500mm*3000mm
Laser power
80w ,100W,130W 150W
Laser type:
Sealed CO2 glass laser tube
Cooling mode:
Water cooling and protection system
Resetting positioning accuracy:
±0.01mm
Compatible Software:
Laser cut 5.3, CorelDraw  AutoCAD  Photoshop
Whole machine size:
1060mm*1000mm*730mm
Engraving speed
1-6000mm/min
Cutting speed
1-1000mm/min
Cutting thickness
0-15mm acrylic (others determined by materials)
Resolution ratio
≤0.0125mm
Position system:
Red dot
Interface:
USB
Minimum shaping character
letter 0.8mm, Chinese 2mm
Support graphic format
DST, PLT, BMP, DXF
Cooling mode:
Circulation water cooling
Working voltage:
AC 110 - 220V±10%, 50 - 60Hz or depend on customer
Operating temperature
0-45C
Operating humidity:
5-95%
Driving system
stepper
Packing:
wooden box
Guarantee time:
1 year, laser tube 3 months
Option:
Rotary attachment for column materials
Operation:
Video to tell customer how to operate the machine



Detail parts of fabric co2 laser cutting machine
fabric co2 laser cutting machine control system

fabric co2 laser cutting machine cutting head

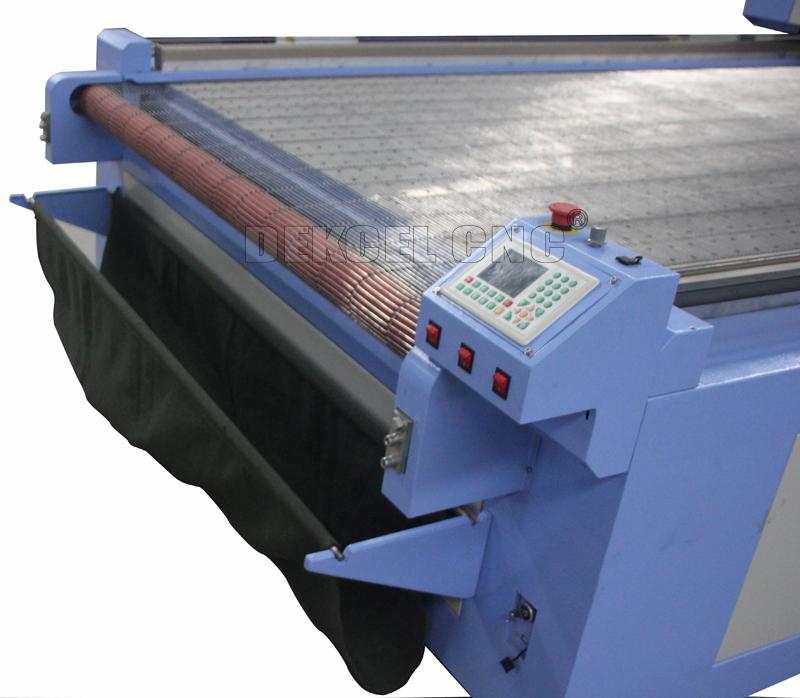

fabric co2 laser cutting machine auto feeding system

auto feeding system of fabric co2 laser cutting machine

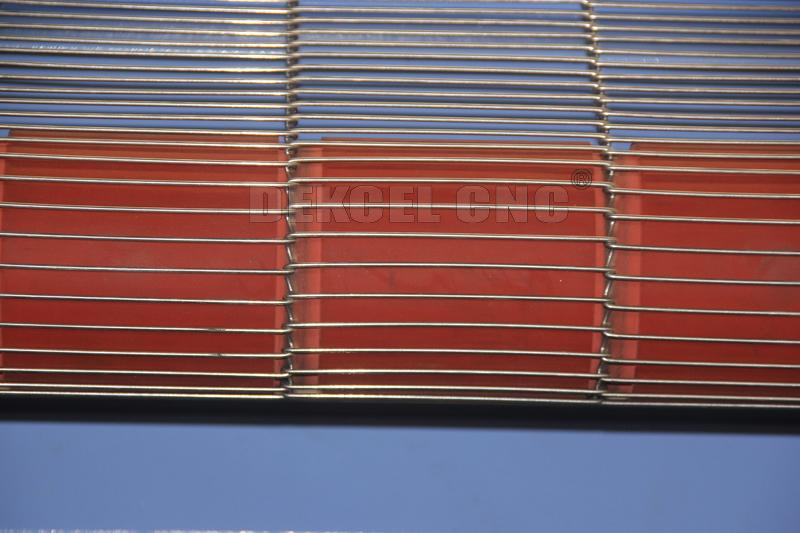

auto feeding co2 laser cutting machine

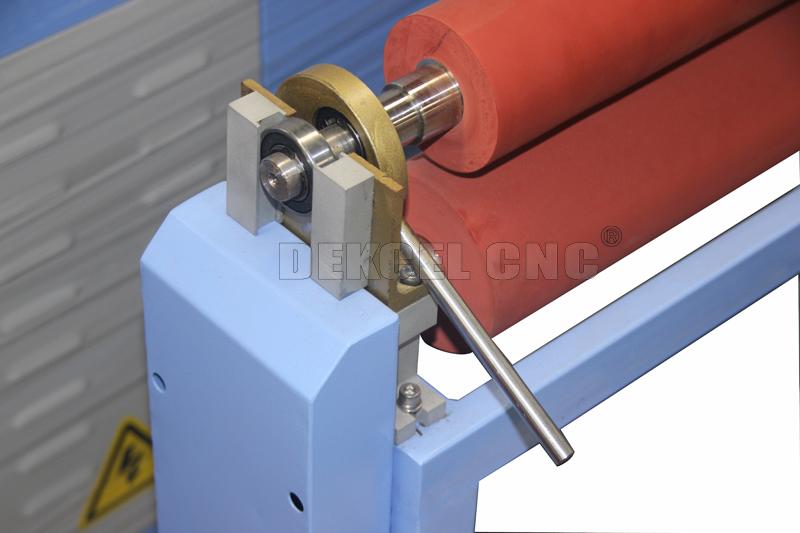

fabric laser cutting machine

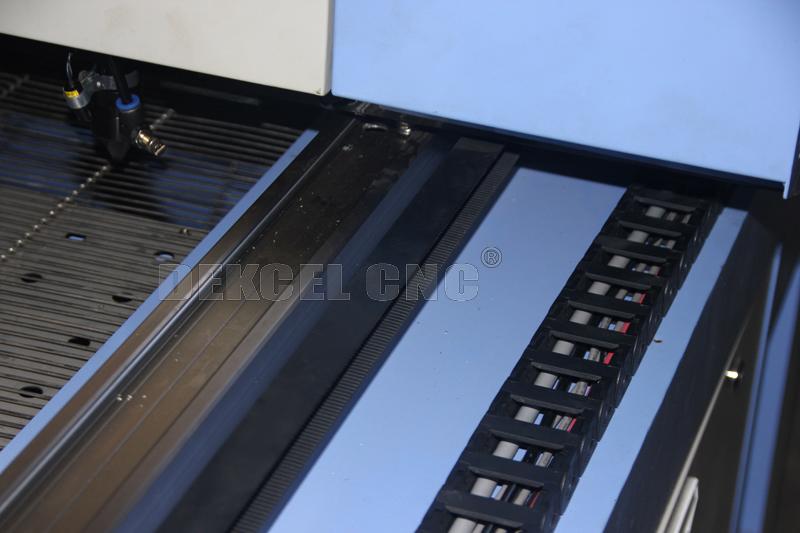

auto feeding fabric co2 laser cutting machine guide rails

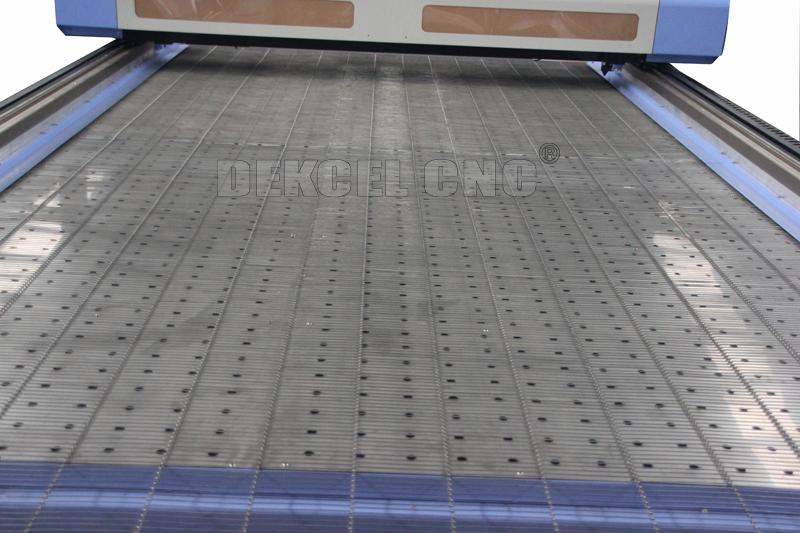

auto feeding fabric co2 laser cutting machine honey comb table


Applicable Materials
This auto-feeding co2 laser cutter machine is suitable for cutting on paper, leather, cloth,fabric, acrylic, garment,wood,rubber, etc.

Applicable Industry
These models apply to cloth, leather, fabric toy, computerized embroidery cutting, electric product..

Auto feeding co2 laser cutting machine samples
fabric laser cutting machine

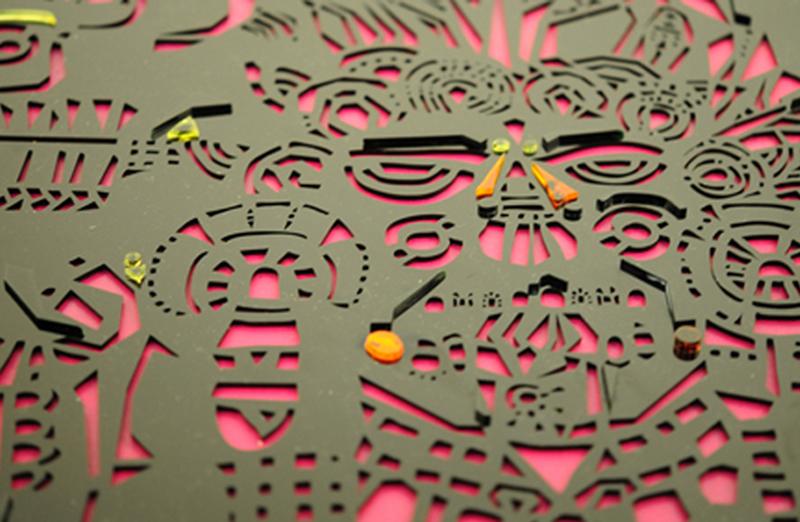

laser cutting fabric

co2 laser cutting fabric

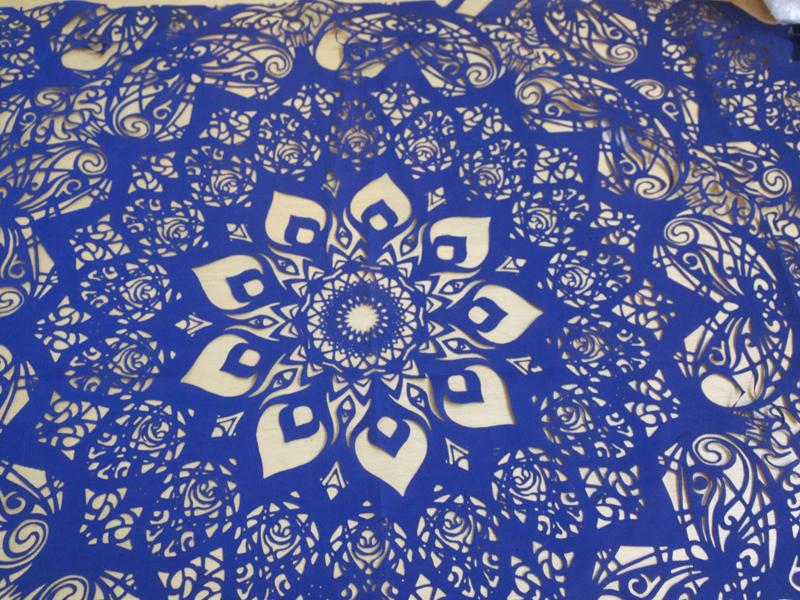

cloth laser cutting machine

leather co2 cutting machine
