DEK-1390J Laser Cutting Machine User and Operation Manual
Best CO2 150w Acrylic Cutting And Engraving Machine for Sale
Main Features for DEK-1390J Laser Cutting Machine Price
1. Our 150w acrylic cutting machine use ball screw rod to make the up and down table, which ensure its long-term using and precision.
2. American IIV reflect mirror and focus lens adopted for acrylic laser cutting machine, which prolong the lifetime of the spare parts.
3. For laser tube, we use the Chinese top brand laser tube, have very stable performance, lifetime can reach 3000 hours. Also, we have another brand laser tube with 10000 hours lifetime if you require, we can use it in our order.
4. For water chiller, we use both CW5000 for single head, and CW5200 for double head laser machine.
5. Red Light Pointer realizes the exact position without laser and auto focus system for option.
6. DEKCEL CO2 metal and nonmetal laser cutting machine with LCD control panel which can quickly change selected program and modify machine operational parameters.
7. Stable light path,industrial chiller to make sure the same output laser power from every site of working platform,high speed and efficiency,stable processing quality.
.8. the transforming belt adopt the famous FULONG brand, it have the metal in the material, so it is fasten and not easy to loosen.
Mian Parts Show of Best 150W Acrylic Cutting Machine
Ruida LCD control panel which is easyly to set the machine processing paramerters.

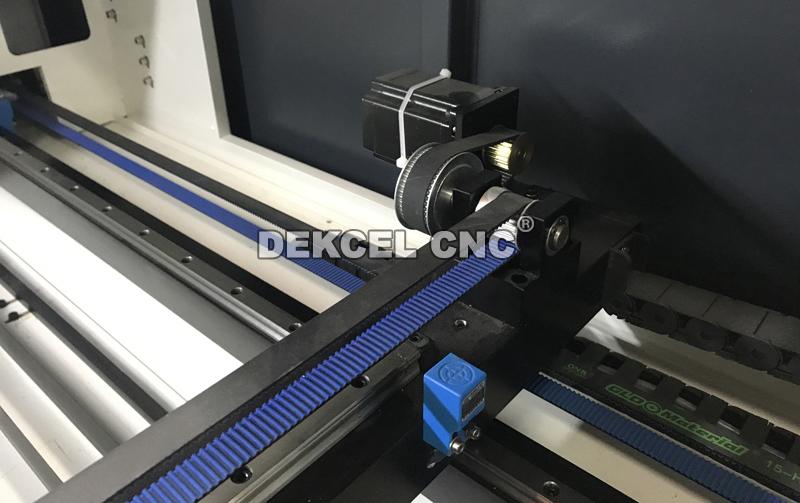

Acrylic laser cutting machine belt transmission and limit device.

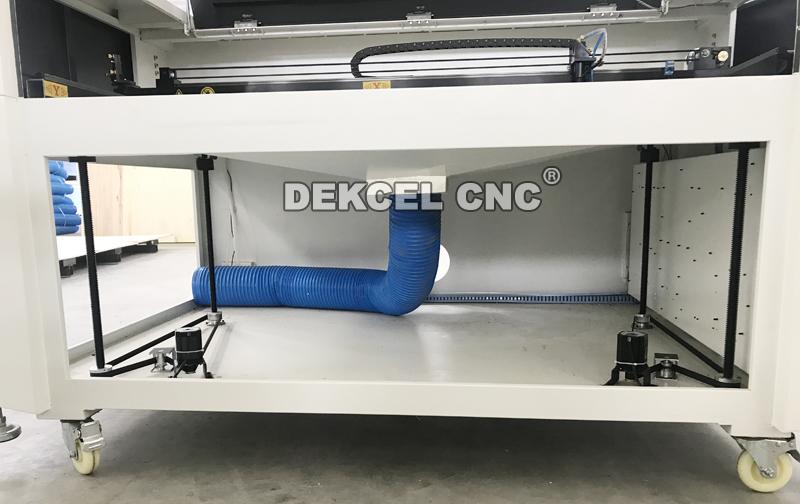

Up and down working table for more cutting more thickness material.

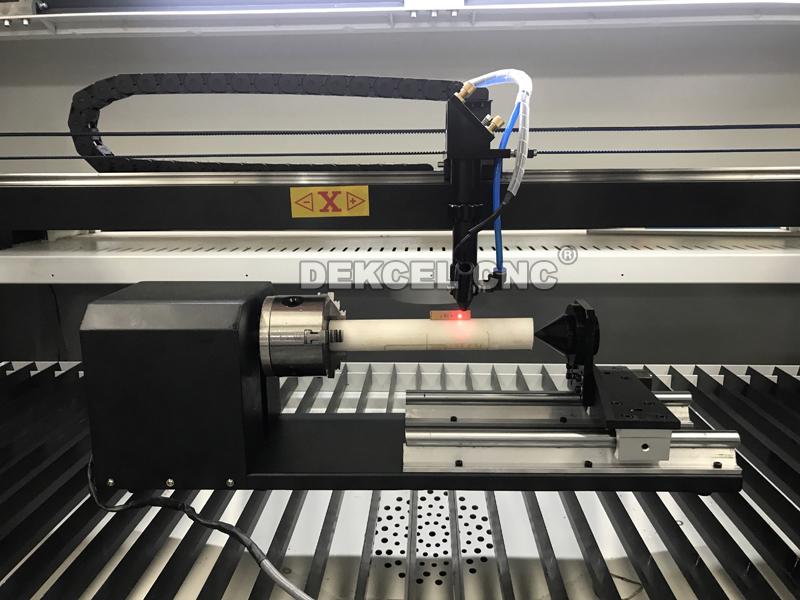

Cost price 150w cutting machine with rotary device for round mateiral processing.

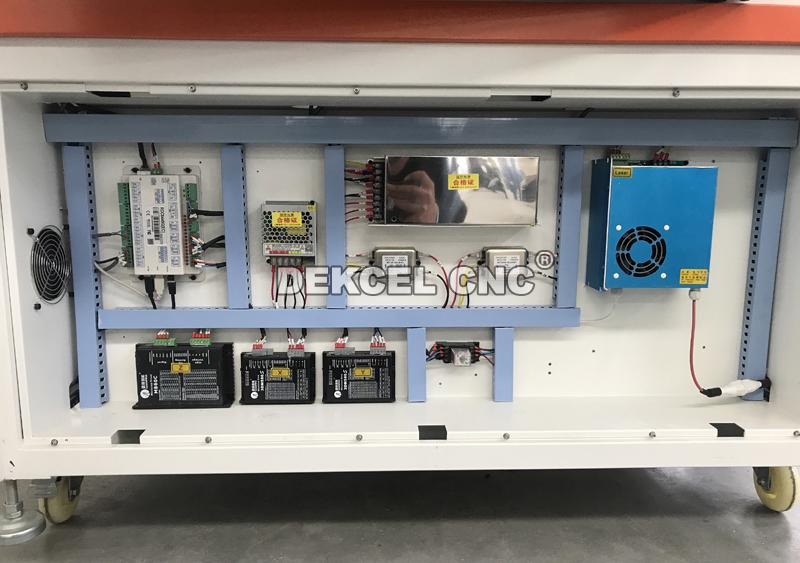

DEK-1390J laser cutting machine controller cabinet.
Machine package and delivery to our customer.
Specifications of 150w Acrylic Laser Cutting and Engraving Machine
# Laser type : Sealed CO2 laser tube, water-cooling, 1064um
# Laser power: 80W/100w/130w/150w/180w(option)
# Machine power: 220 or 110V VAC
# Working area: 1200*900mm, 1300*900mm, 1400*900mm, 1400*1000mm, 1600*1000mm(other size available)
# Max engraving speed: 0-30,000mm/min
# Max cutting speed: 0-24,000mm/min
# Laser output control: 1-100% software setting
# Location precision: less than 0.01m
# Highest scanning precision: 50-1000DPI
# Operating temperature: 0 - 45C
# Operating humidity: 5- 95% non-condensing
# Minimum shaping character: English 1x1 mm
# Driving system: Leadshine step motor and amplifiers
# Cooling mode: CW300/5200 chiller and water flow sensor
# Auxiliary equipment: Vacuum/Exhaust fan, air-exhaust hose, air-assist pump
# Work surface: Iron honeycomb
# Controlling software: Ruida
# Compatible software: TAJIMA, CorelDraw, AutoCAD, Photoshop, ...and more
# File formats supported: JPG, BMP, PLT, DST, DXF, AI...
150w Laser Cutting and Engraving Machine Application
Bet DEK-1390J-150W CO2 laser machine has widely application in acrylic, wood products, paper, leather, fabrics, plexiglas, epoxy resin, wool, plastic, rubber, ceramic tiles, crystal, bamboo products and other non-metallic materials engraving and cutting.
Please offer us your cutting request, we can customized the machine according your request.
150w Acrylic Laser Cutting Machine Package and Delivery
After sales service of best 150w acrylic laser cutting machine for sale
1.one years quality guaranty, the cutting machine with main parts(excluding the consumables) shall be changed free. Or charge if there is any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.We will provide the consumable parts at an agency price when you need replacement.
5.24 hours on line service each day, free technical support.
6.Machine has been adjusted before delivery.
7.Our staff can be sent to your company to install or adjust if necessary.
If you are not sure which machine is suitable, please tell me the following questions:i will recommend the most suitable machine to you.
1). what materials do you want to cut ?
2). what's the max size and thickness of the materials ?
For more machine working videos, please check our CO2 Cutting Machine Videos Gallery .
Dekcel CNC Sincerely At Your Service
