The detailed introduction of the function buttons of wood cnc carving router( first part)

Views:8     Author:Site Editor     Publish Time: 2017-07-11      Origin:Site

The detailed introduction of the function buttons of wood cnc carving router( first part)

Jinan dekcel cnc company provides wood carving cnc router. Many users reflect that sometimes they don’t understand the function of those buttons on the control panel of industria woodworking cnc router. In order to solve this problem, the professionals in Dekcel will give us a detailed introduction of those function buttons of  cnc router machine for wood carving.


1. Start button: when the processing files of cnc carving machines for wood have been loaded, if the system is in the idle state, pressing this button and the system will start running processing procedures; if the system has been in the processing state, pressing this button, the system will suspend the engraving process.


2. Stop button: stopping the current operation. If the system is in the processing state, pressing this button to stop the carving process; if the system is in a floating tool state, pressing this button to stop the action of floating tool.


3. Breakpoint continues button: if the system is in the pause state, pressing this key and the system starts processing at the breakpoint break.


4. Continuous button: switching user data input state into the way of manual continuous


5. Spindle switch: if the spindle is closed, pressing the key to turn on the spindle; otherwise, turn off the spindle of nc wood engraving machine.


6. Return the origin button: pressing this key to return the original workpiece site.


7.Button of  x 1: press this key to set the inching step to 0.01mm.

8.Button of  x 10: press this key to set the inching step to 0.1mm.

9.Button of  x 100: press this key to set the inching step to 1mm.


We will continue to introduce the second part of the button functions of the wood cnc carving router. Please click here to know more.


Hope this article will help you. If you have any questions, please contact us as soon as possible. Jinan Dekcel Cnc Euipment Co., Ltd will always be there for you.

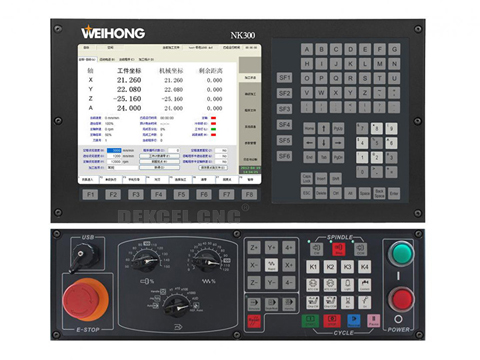

1Weihong control system of wood cnc router for carving.jpg
