Cnc router with rotary for woodworking manufacturer

China Low Cost cnc router with rotary device suitable for used in woodworking industry, also can doing engraving work on round material, like making chair leg, sofa leg etc.

Quantity:
  • DEK-1325M
  • DEKCEL
  • 028
Brief Introduction of cnc router bits for cutting wood
This wood cutting and engraving cnc router machine with rotary is an special order from our costumer, which with 1000mm length rotary type table,machine with 300mm Z(height) working size for the rotary, the Z axis can be more height.

With hard steel structure, the cylinder wood cutting router machine is fit for hard wood working, like cutting and engraving on Rosewood for furniture, indoor decoration, and it is qualified for mass- producing of furniture with the Vacuum holding way and dust collector.

Features of  cnc router with rotary for woodworking and cutting
1,1300*2500mm working area.
2, With rotary device for cylinder object.
3, Vacuum working table. Mechanical fixing small processing materials.
4, 3kw water cooling spindle(top brand in China), It's big strength and higher efficiency,
5, Dust collection system, it can keep a clean, less-dust working surrounding which is helpful to your healthy; also, it can reduce the surface dust of linear guide, ball screw and gear transmission, reducing the maintaining cost.

Cnc router with rotary for woodworking technical parameter

Model

DEK-1325M CNC router for woodworking

X,Y,Z Working Area

1300*2500*300mm

X,Y,Z Traveling Positioning Accuracy

±0.03/300mm

X,Y,Z repositioning Positioning Accuracy

±0.02mm

Lathe Structure

Thick wall square tubes welding bed

X Structure

Taiwan HIWIN square guide rails

Y Structure


Taiwan HIWIN square guide rails

Z Structure

Taiwan HIWIN square guide raiils

Max.Speed

0-15000mm/min

Max.Working Speed

0-10000mm/min

Spindle

3.0KW water cooling spindle
(optional:air cooling spindle)

Spindle Speed

0-24000RPM

Working Mode

Stepper motor and drivers

Working Voltage

380V/3ph
50HZ/60Hz for standard machine

Command Code

G code(*uoo,*nc,*mmg, *plt)

Operating System

DSP control system

Interface

 USB

X,Y Working Delicacy

<0.03mm

Software

Jingdiao software

Running circumstance

Temperature: 0°C~45°CRelative humidity: 30%~75%

Waranty

One year

Delivery time

3 weeks

The detail parts of wood cutting cnc router machine with rotary

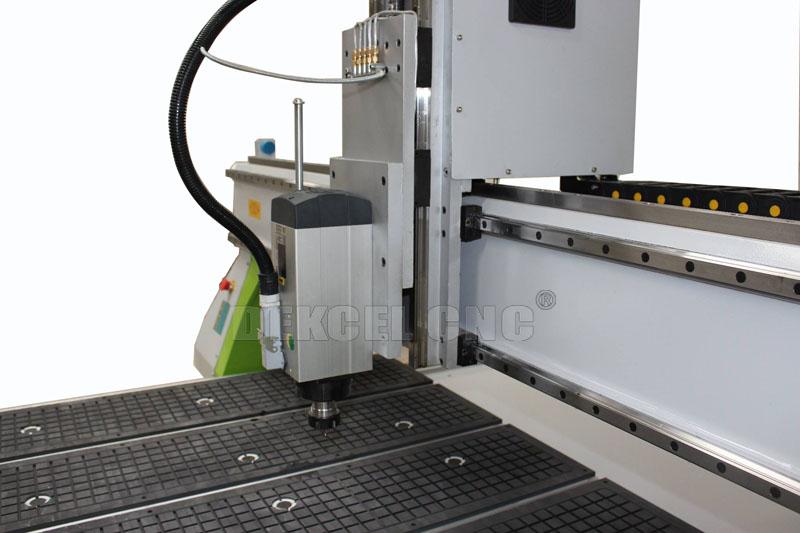

cnc router with rotary machine spindle

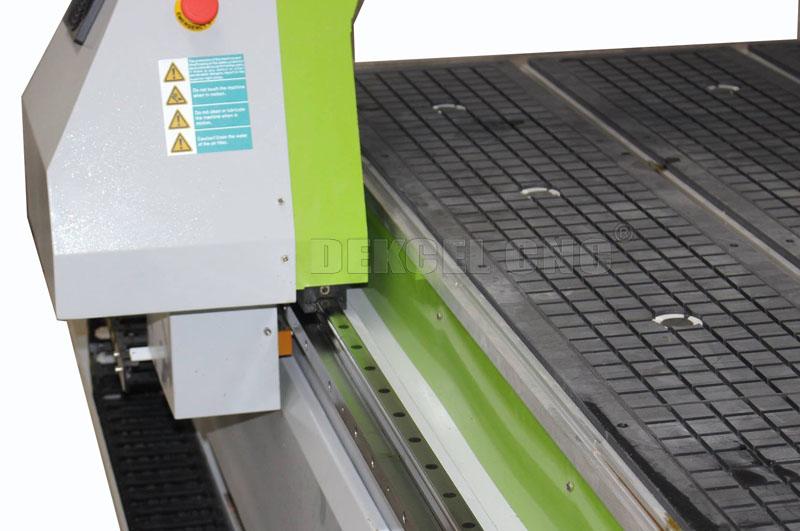

cnc router for woodworking machine guide rail

cnc router with rotary device

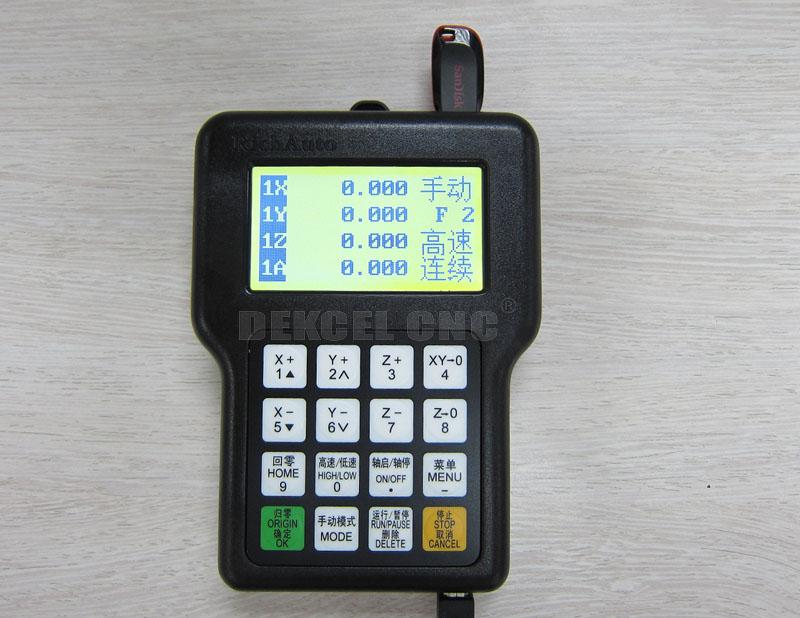

cnc router for woodworking control system

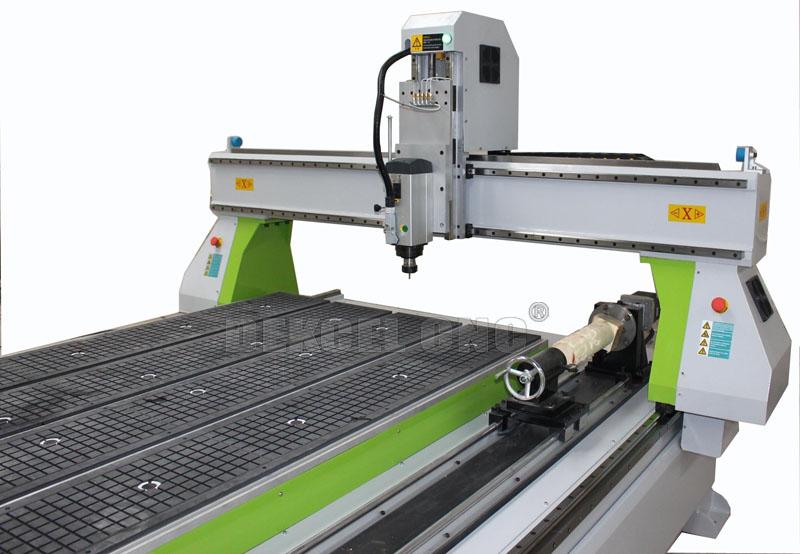

cnc router for woodworking table

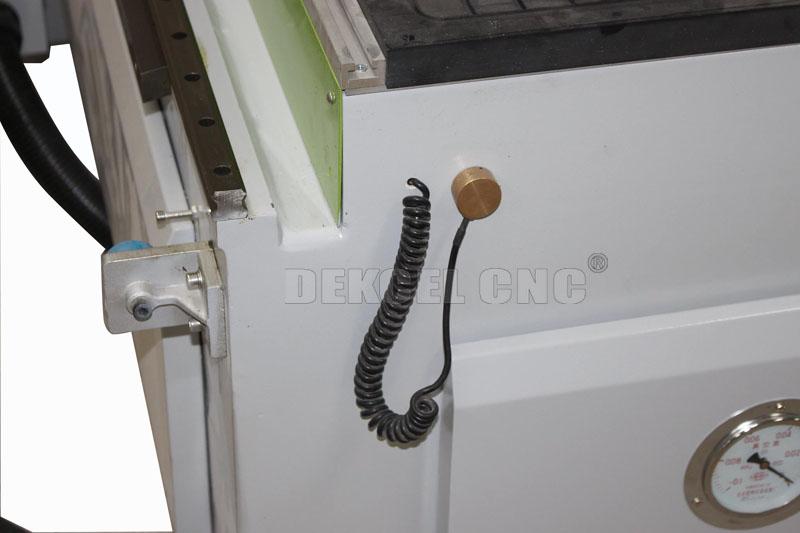

tool sensor of cnc router with rotary

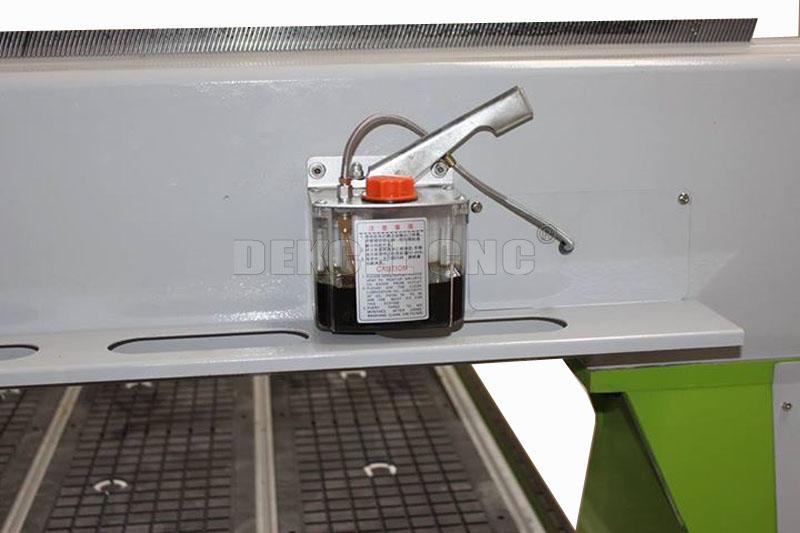

lubrication system of cnc router with rotary




Cnc router with rotary for woodworking and cutting machine application
1.Wood furniture industry:Wave plate,fine pattern,antique furniture,wooden door,screen,craft sash,composite gates,cupboard doors,interior doors,sofa legs,headboards and so on.
2.Advertising industry:Advertising indentification,sign making,acrylic engraving and cutting,crystal word making,blaster molding,and other advertising materials derivatives making.
3.Die industry:A sculpture of copper,aluminum,iron and other metal molds,as well as artificial marble,sand,plastic sheeting,PVC pipe,wooden planjs and other non-metallic mold.
4.Relief sculpture and 3D engraving
5.Cylindrical object.

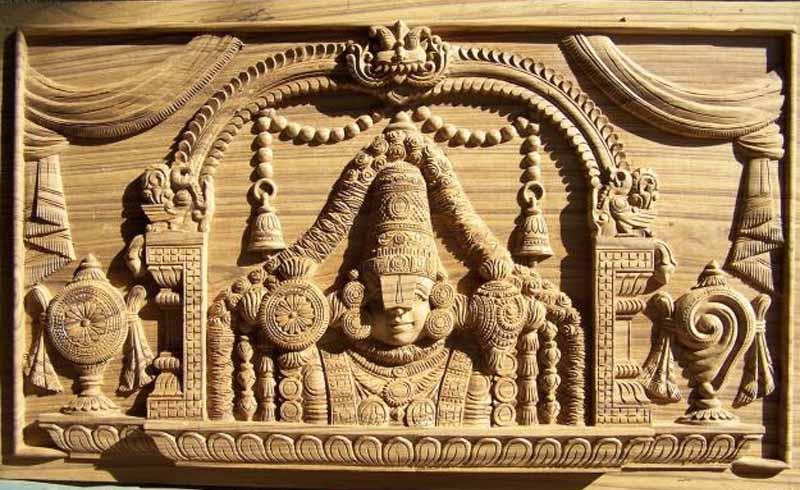

1325 cnc wood engraver router sample

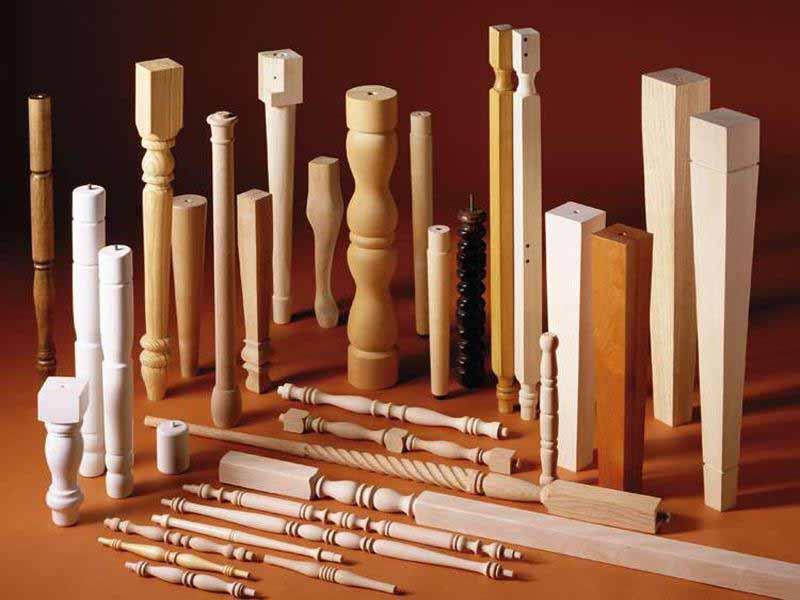

cnc router with rotary device sample

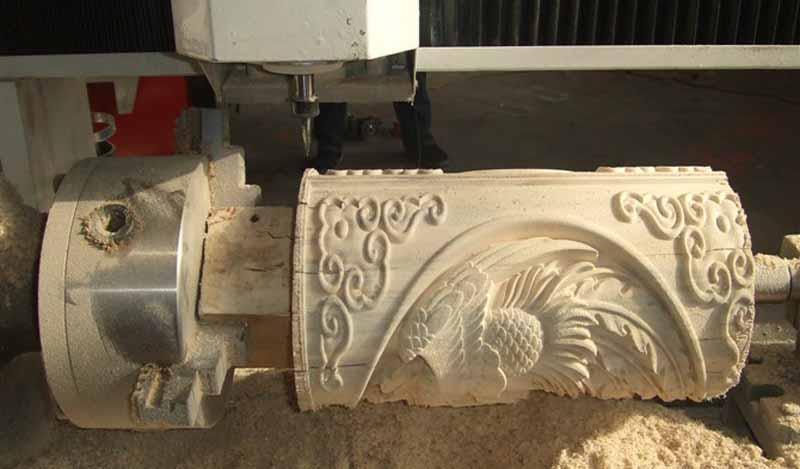

cnc router with rotary for engraving on round material

round material engraving by cnc router with rotary system

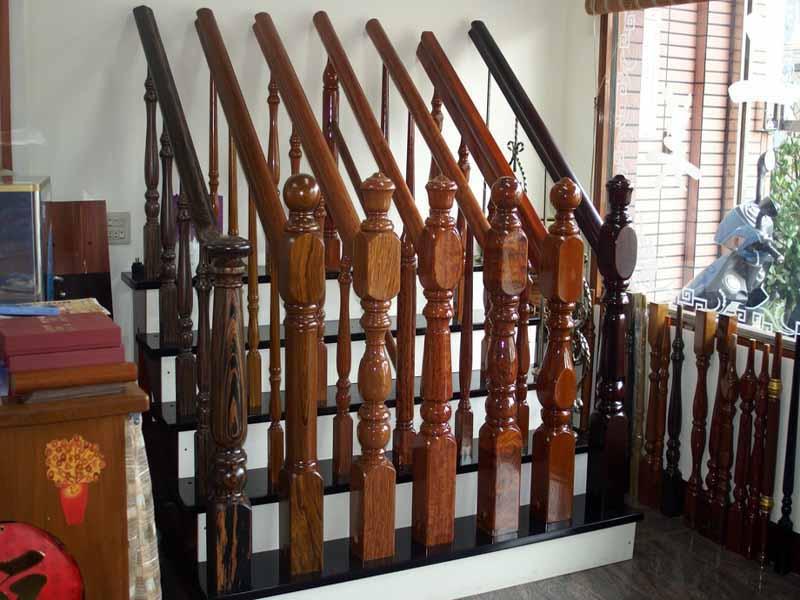

wood column stair rail by cnc router with rotary system
