Woodworking cnc router machine with DSP control system
You are here: Home » Cnc Router » Wood cnc router » Woodworking cnc router machine with DSP control system
Share to:

Woodworking cnc router machine with DSP control system

This type cnc router machine with DSP control system is widely used in woodworking industry,cupboard,craft wood door,process window home furniture product milling form sculpture.Operate more easy for new user.

Quantity:
  • DEK-1325M
  • DEKCEL
  • 090

Dekcel cnc router for wood cutting

woodworking cnc router machine with DSP controller

Technical parameter

Woodworking cnc router machine

DEK-1325M

Working table

Vacuum and T-slot combination  table

Workable size

1300x2500x200mm

Spindle motor

3.0kw Water-cooling spindle

Max. Travel ling speed

32m/min

Max. working speed

20m/min

Spindle Rotation Speed

0-24,000rpm

Operating system

DSP control system  (or NC Studio control system)

Command

G Code

Driver & motor

Stepper motor

X,Y,Z Transmission

Z---Taiwan TBI Ball Screw; X,Y---Rack Gears

X,Y,Z Guide Rail

Taiwan HIWIN Guide Rail

Dust Collecting System

3KW dust collect(Option)

Working Voltage
Motor

380v,50hz,3ph
Leashine motor

NW

1500KG

GW

1700KG


Wood cutting cnc router machine details parts
3.0KW china famous brand water cooling spindle adopt water cooling recycle cooling the spindle, almost no noise, effect good.

cnc router water cooling spindle

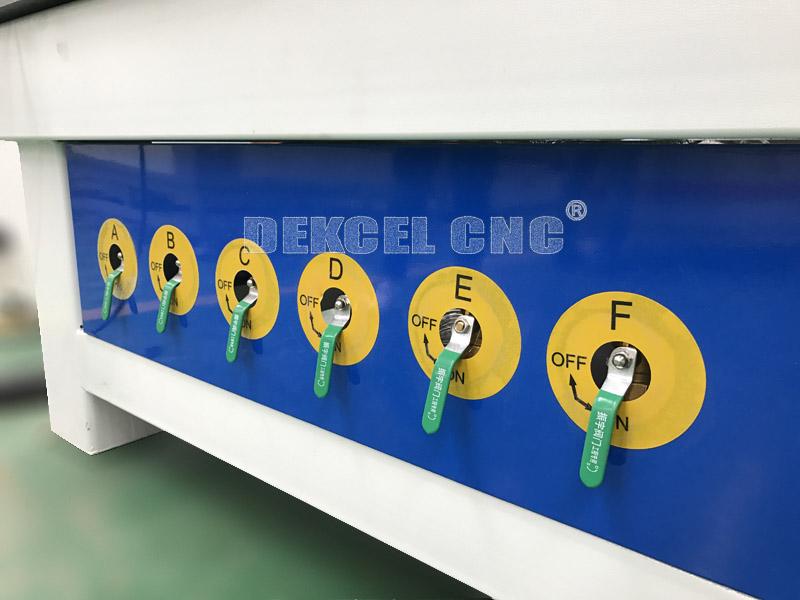

6 vacuum zone valve,T-slot and vacuum table,hold the material automatically.
cnc router vacuum zone control

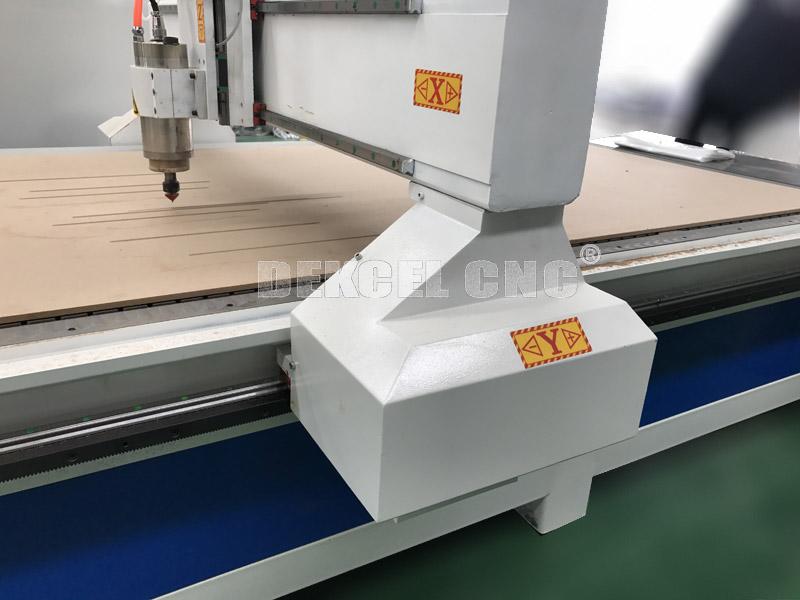

Strong body of wood cutting cnc router machine ,after long time use, not easy to deformation.
heavy body cnc router machine for woodworking

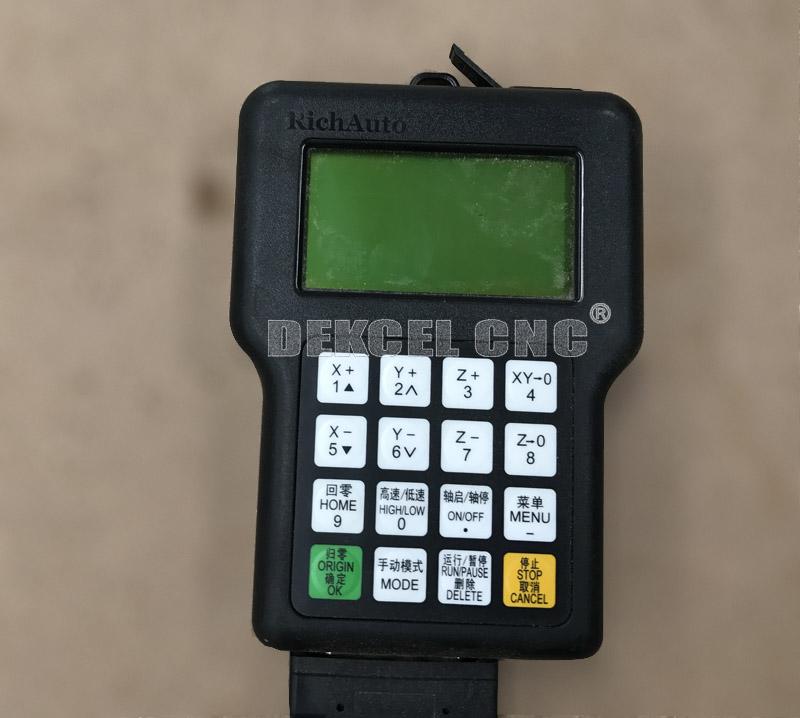

DSP control system, easy to operate and learning, suitable for new user of woodworking cnc router machine.
dsp control system of cnc router machine
Lubricating system,convenient for maintenance the gear and rack
woodworking cnc router lubricating system

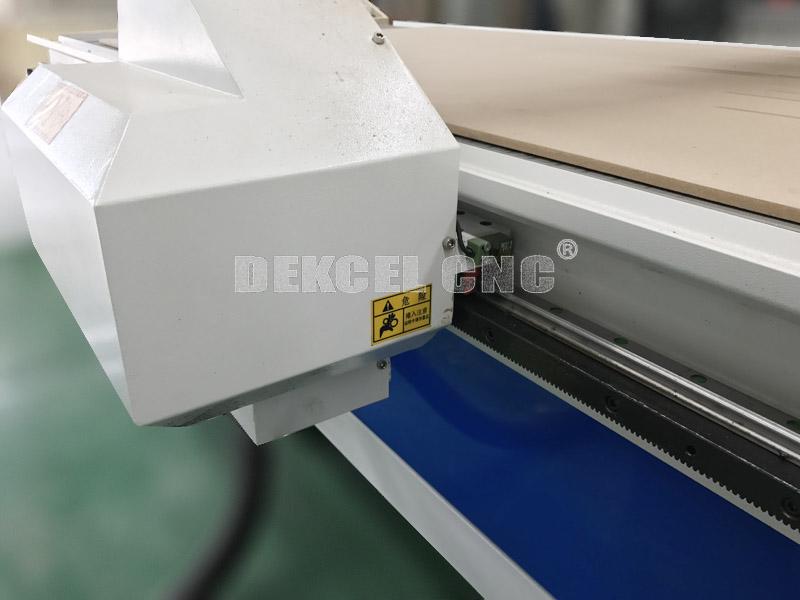

Taiwan Hiwin square guide rails
Hiwin guide rails of cnc router machine

Payment terms
Bank transfer, 30% for deposit, after the machine finished, we will take the testing videos for you to check the machine, then pay the left 70% payment. After received the money we will delivery the machine.

Guarantee
1.18 months guarantee of the whole machine
2.Main parts(excluding the consumables)shall be changed free of charge if there is any problem during the warranty period.
3.Lifetime maintenance free of charge
4.We will provide the consumable parts at an agency price when you need replacement
5.Machine has been adjusted and tested before delivery
6.Our staff can be sent to your company to install or adjust if necessary

After-sale service
1. 24 hours Technical support by Email or Calling.
2. English manual and CD video for machine using and maintaining.
3. Hardware: 18 months for machine (without person damaged).
4. Software: Whole life on update for free.
5. Maintenance and technological support: Whole life.
Application of cnc router for wood cutting

This type cnc router machine for cutting wood is widely used in woodworking industry,cupboard,craft wood door,process window home furniture product milling form sculpture.
Mainly for the production of cupboard door,real wooed,the furniture and so no,also can be used inthe production of MDF cutting.

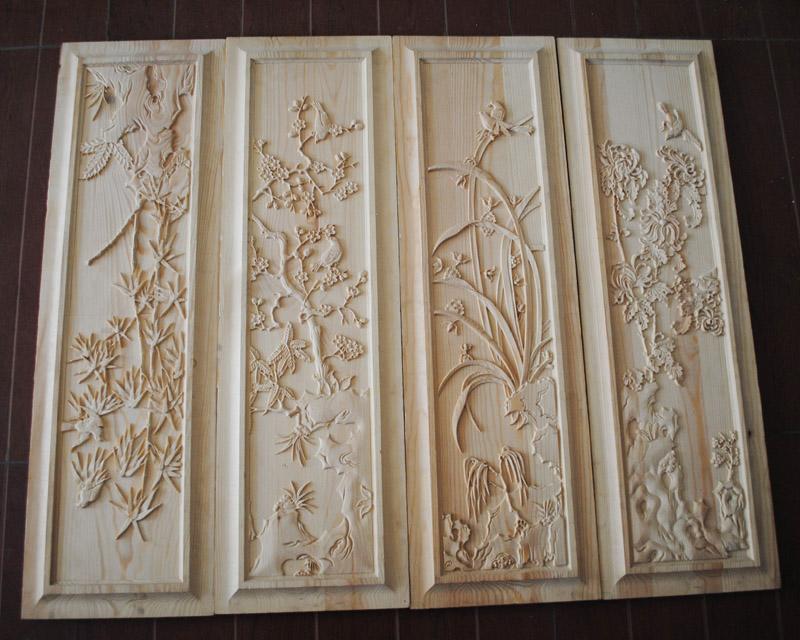

cnc router machine engraving on wood

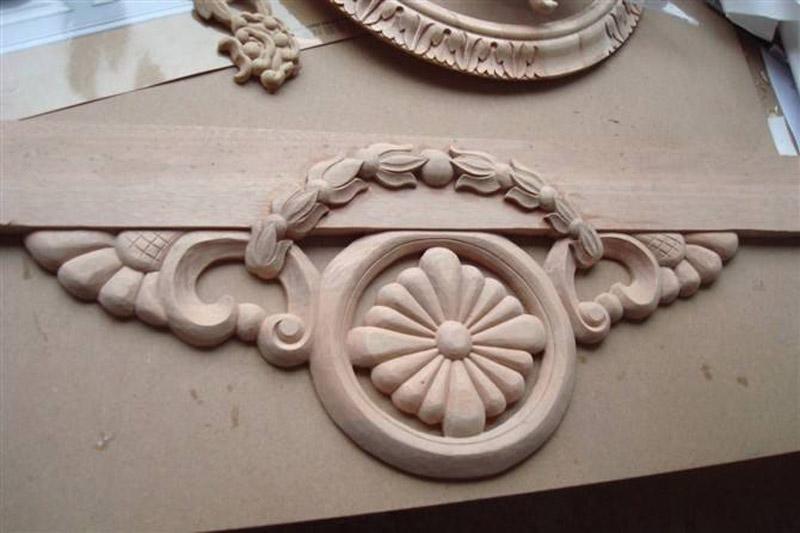

wood cnc router samples

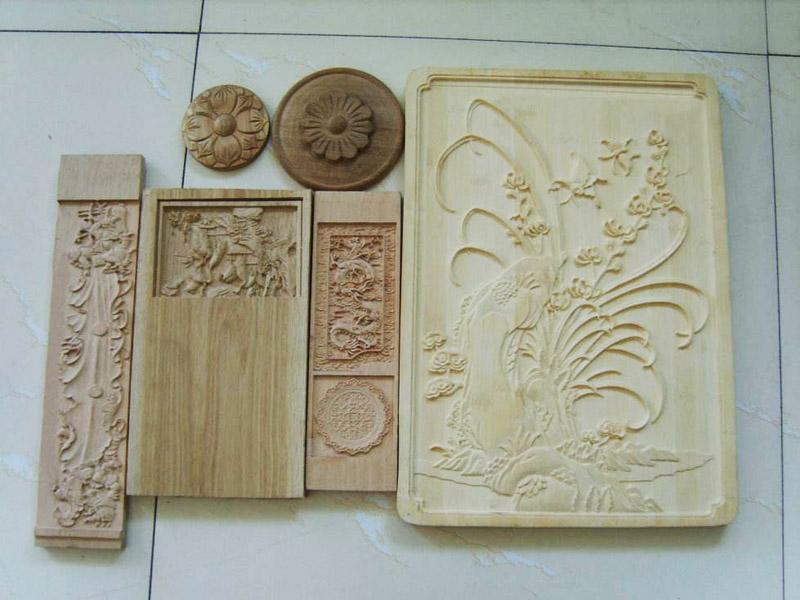

cnc router engraving on wood samples

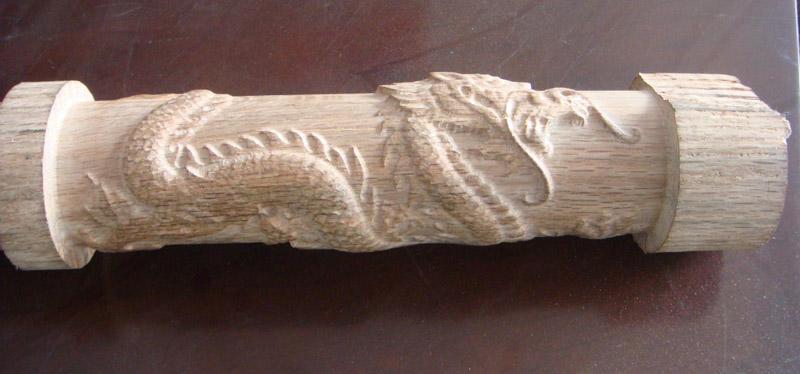

cnc router engraving on round material
