Furniture Cnc router woodworking engraving machine

DEKCEL cnc router woodworking engraving machine suitable used for wood furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

Quantity:
  • DEK-1325M
  • DEKCEL
  • 094
Cnc router woodworking engraving machine features
1. Whole cnc router engraving machine is welded with thick walled steel, after long time use, not easy to be deformed.
2. Three axis adopt Hiwin, Taiwan high precision diameter 20mm linear square guide rail, X Y-axis uses the rack and pinion transmission, fast working, high efficiency, Zaxis uses Taiwan TBI ball screw transmission, with high precision and longevity.
3. Has the function of re-engraving after break point and power failure.
4. Adopting the DSP/NCStudio control system , also has the hand for remote control, very conveinet.
5. China 3.0kw/5.5kw water coooling spindle, more powerful, good performance.
6. Advacned design of the machine makes sure strong cutting and guarantee the engraving precision.
7. Well software compatibility: CAD/CAM designing software, such as Artcam, Type3, Ucancam, JDPaint, Castmate

Technical parameter
Model DEK-1325 CNC router
Working Area 1300x2500mm
Working Table T-slot table
Framework Welded Steel body
Spindle Motor 3.0kw water cooling spindle
Rotating Speed 2,4000RPM
Working Mode Stepper
Guide Rails Taiwan HIWIN linear guide rail
Drive Mechanism Z axis ball screw transmission
Repositioning Accuracy ± 0.03mm
Max Motion Speed 32,000mm/min
Max Engraving Speed 20,000mm/min
Dictate Formate G code,*uoo,*mmg,*plt
Interface USB
Operating Voltage AC220V/380V 50/60HZ
Control System DSP Control System
Support Software UCanCAM /Type3/ArtCAM for optional
Net Weight 900KGS
Gross Weight 1100KGS
Packing Size 3100*2050*1550mm
Packaging Standard Plywood Case for Export
Delivery Time  7-15 Working Days
inverter Fuling

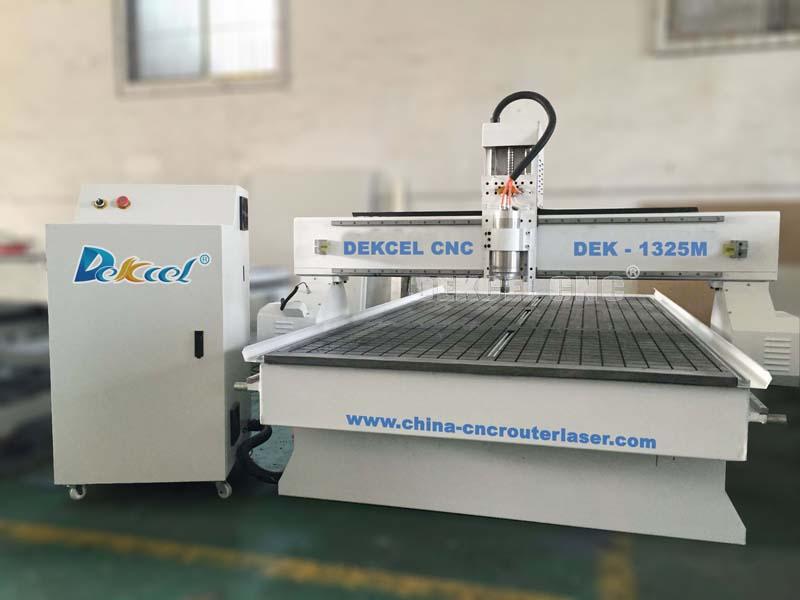

cnc router engraving machine for furniture

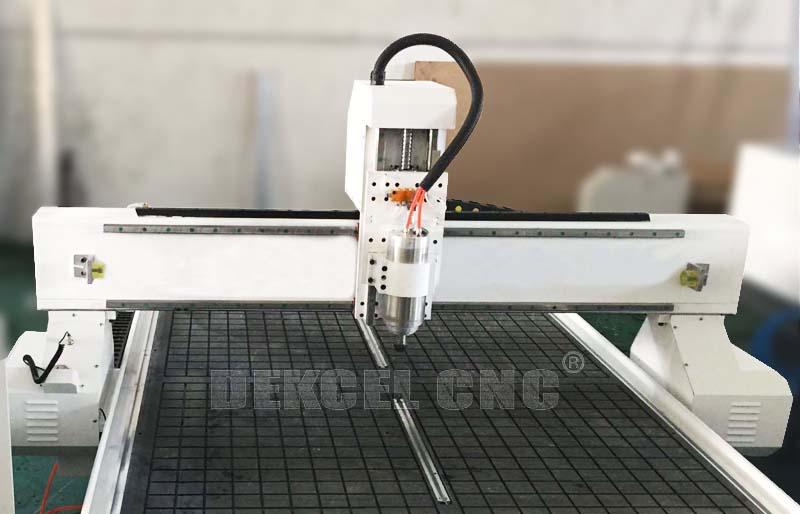

vacuum table cnc router engraving machine

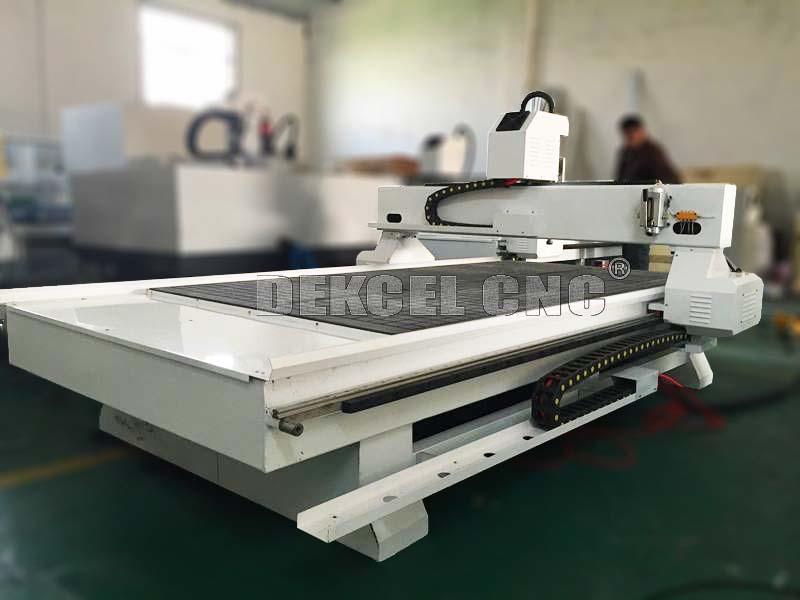

heavy body cnc router engraving machine

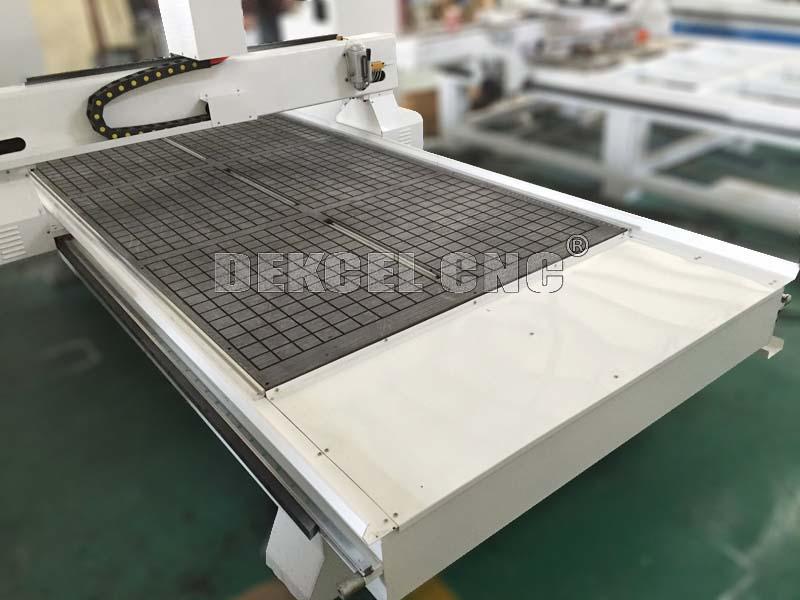

high precision square rails for cnc router

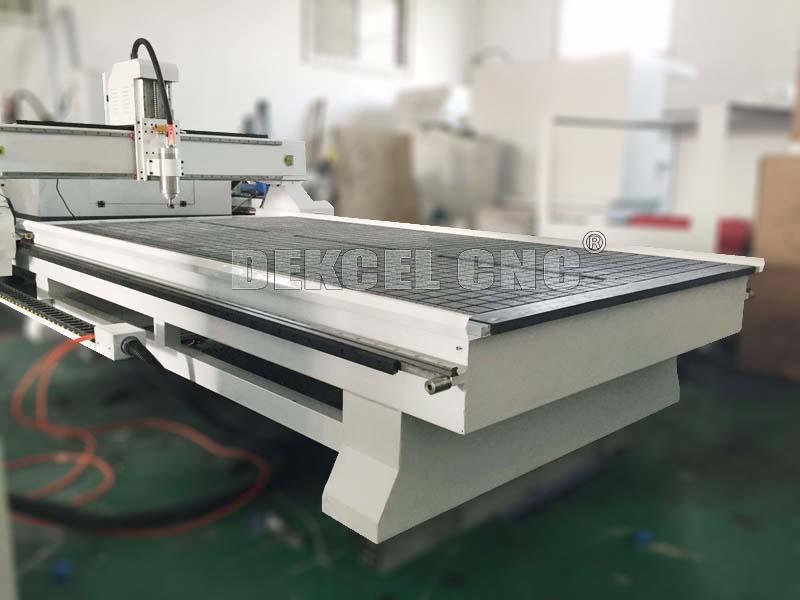

Furniture cnc router engraving machine

Best after services for cnc router engraving machine
1, Within 7 days since your local customs clearance: if the cnc router’s any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8. Machine will be adjusted before it is delivered, operation disk/CD was included.
Applicable Industry
Wood furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
Advertising industry: Advertising identification, sigh making, Acrylic engraving and cutting,
Crystal word making, blaster molding, and other advertising materials derivatives making.
Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.relief sculpture and 3D engraving.
cnc router engraving machine

furniture engraving router machine

cnc router machine engraving furniture

woodworking cnc router engraving machine
