Cylinder cnc router engraving machine for round material

Name: Cylinder cnc router engraving machine for round material
Brand: DEKCEL
Rating: 5.0 (17 reviews)

Special designed cylinder cnc router engraving machine only with rotary system length 2000mm, diameter 200mm, The Z axis is 300mm. Water cooling spindle, stepper motors, DSP control system.

Quantity:



Inquire

Model:
DEK-0220M
Brand:
DEKCEL
Code:
034

Advantage features of cylinder cnc router engraving machine

1.integrally welded lathe bed , solid and stable, high rigidity and long service time.

2.imported high accuracy Taiwan TBI ball screw ensures more stable movement and high accuracy.

3.aluminum decorated appearance , beautiful shape and magnificent looking.

4.water-cooling brushless spindle, low noise, vigorous cutting strength and long time mass processing

5.Dismountable machine, lathe bed and supporting stand can be separated. easier for transport.

6.5mm wall thick Aluminum working table with strong bending strength and loading capacity.

7.the machine’s running smoothly at fast speed, high accuracy and with returning precision of <0.05mm.

Features of cylinder cnc router engraving machine

1. Heavy duty machine body with good rigidity

2. Taiwan imported linear guide rails with high precision

3. Big stepper motor and diver to ensure it's running powerful and stable.

4. 2.2KW brush less water cooling spindle with low noise

5. Advanced DSP control system,save time.

6. Two--way position rail high precision.

7. We can make cylinder---engraving machine with all specifications to meet users.

Technical parameter of cylinder cnc router engraving machine

Items	Description	Optional
Rotary axis diameter	200mm	From 80mm to 300mm
Effective working length	2000mm	From 900mm to 3000mm
Materials	Square steel tube machine bed, cast aluminum gantry	Whole cast iron
Guide rail	Linear square guide rail
Transmission	Rack for X Y-axis,ball screw for Z-axis
Driving mode	Stepper motor	Or servo motor
Spindle motor	3.0kw water cooling	2.2kw/5.5kw or air cooling
Spindle speed	0-24000rpm/min
Empty traveling speed	0-60000mm/min
Engraving speed	0-25000mm/min
Voltage	AC 220V 50/60Hz or AC 380V 50/60Hz
Resetting accuracy	0.05mm
Control system	DSP	Or Nc-studio or MACH3
Carving Instructions	G code Uoo mmg *plt HPGL
Software environment	Windows 2000 / XP
Running environment temperature	0-45°C
Relative humidity	30%-75%
Packing size	185012001900mm
Gross weight	650kg

Detail parts of cnc cylinder engraving machine

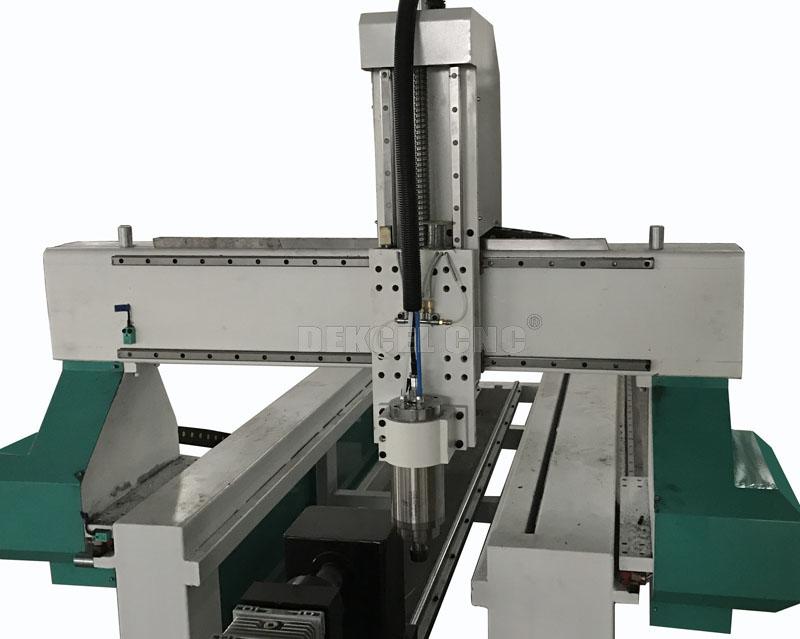

cylinder cnc engraving machine spindle

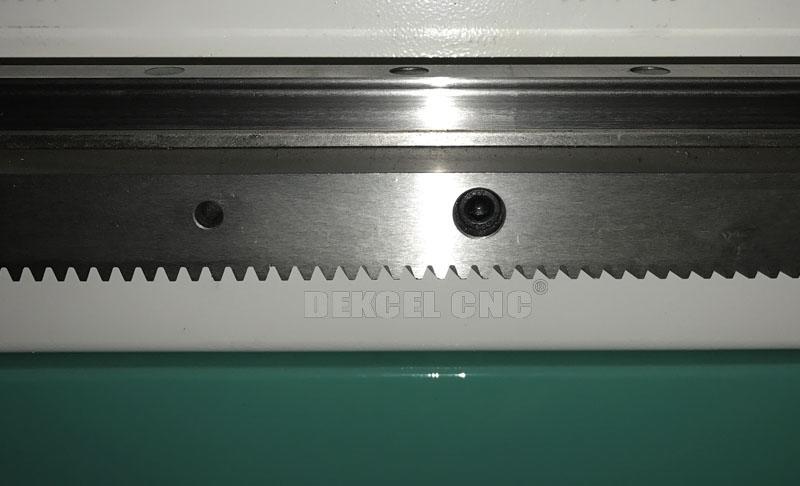

cylinder engraving machine hiwin guide rails

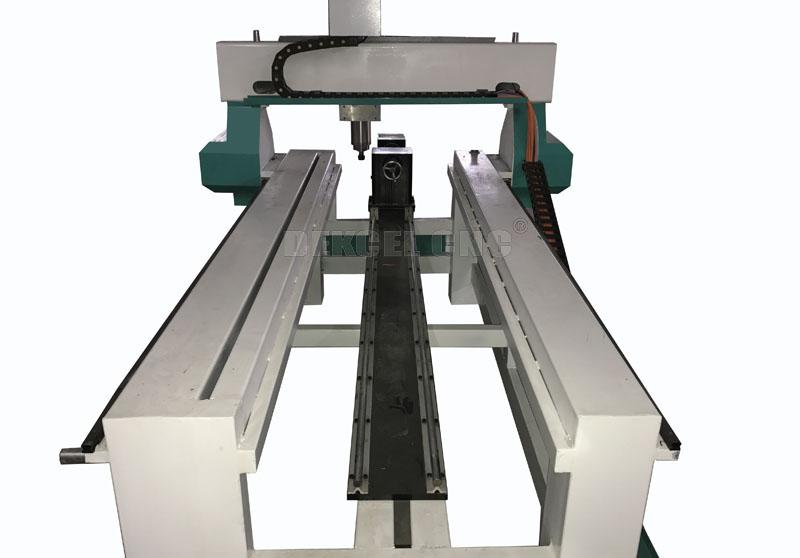

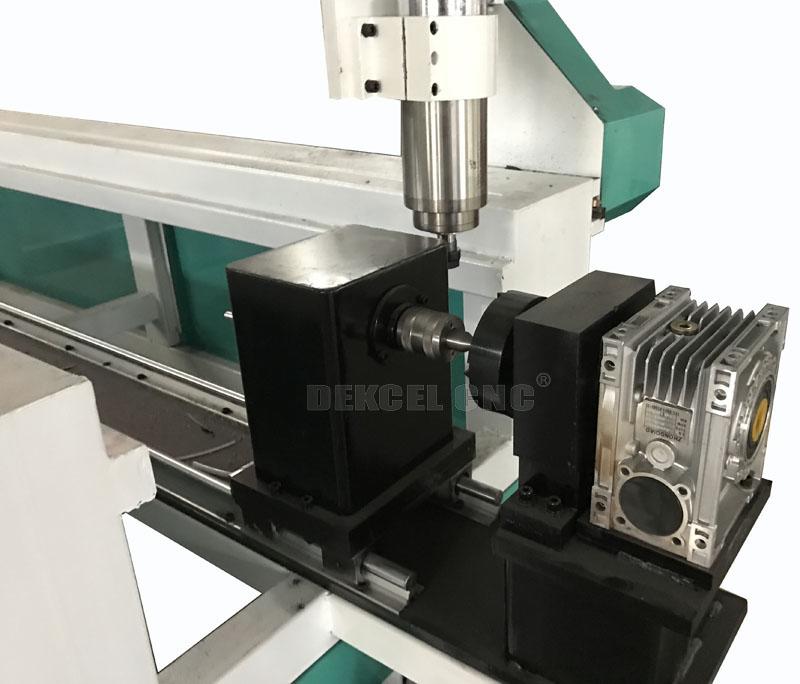

cylinder cnc engraving machine rotary device

Cylinder cnc router Cylinder cnc router engraving machine Cylinder cnc router for round material cnc router for round material cnc router engraving machine
