Metal and nonmetal co2 laser cutting machine

Dekcel CNC CO2 Grave Stone Laser Engraver Machine for Funeral This type laser engraver can adopts hollow structure under laser head, can be moved up to big and heavy stones for engraving It can be moved easily on big stones to engrave Therefore it works with any size of materials

Quantity:
  • DEK-1325M
  • DEKCEL
  • 017



Features of co2 metal and nonmetal laser cutting machine

1.Mixed-cut:metal-Stainless steel, carbon steel and non-metal-acrylic, board

2.High precision:Imported servo motor with imported ball screw tansmission greatly improve the response speed and cutting precision of equipment,  extend the time of using.

3.Constant light system: The machine uses the constant light, achieving high precision cutting of the whole area.

4.High precision and Good stability :With precision ball screw transmission mechanism and optimized the nc system control,it can meet the precision parts processing,stable dynamic performance,also can work for long hours.

5. The cutting section with good quality:Mechanical follow-up cutting head system,

cutting head always follows the material to keep the cutting point location unchanged, which insures smooth cutting section without processing again. It can adapt to flat or curved surface sheet cutting.

6.Adopt sealed co2 laser tube , main consumable items are electric energy,watercooling, auxiliary gas and laser light.

7. Sample structure, easy operation, stable laser device and low maintenance cost.



Capability of co2 metal and laser cutting machine

#.Carbon steel :     0-2.5mm;

#.Stainless steel:   0-1.5mm;

#.Acrylic :       0-28 mm;

#.Wood :         0-25 mm.



Technical parameter of co2 metal and nonmetal laser cutting machine

Model DEK-1325J
Working area 1300*2500mm
Laser power 150W glass laser tube
Laser type CO2 laser tube,water-cooling
Engraving speed 0-40000mm/min
Cutting speed 0-20000mm/min
Power supply 220V/50HZ , 110V/60HZ
Position accuracy 0.01mm
Repetition accuracy 0.02mm
Graphic format supported BMP, PLT, DST, DXF, AI
Guide rail  Hiwin from Taiwan
Transmission method  Belt transmission
Software supported CorelDraw, PhotoShop, AutoCAD,TAJIMA
Driving system Stepper motor and Leadshine driver
Net Weight 900kg
Optional part Partial up-down work table, USB Port, Autofocus

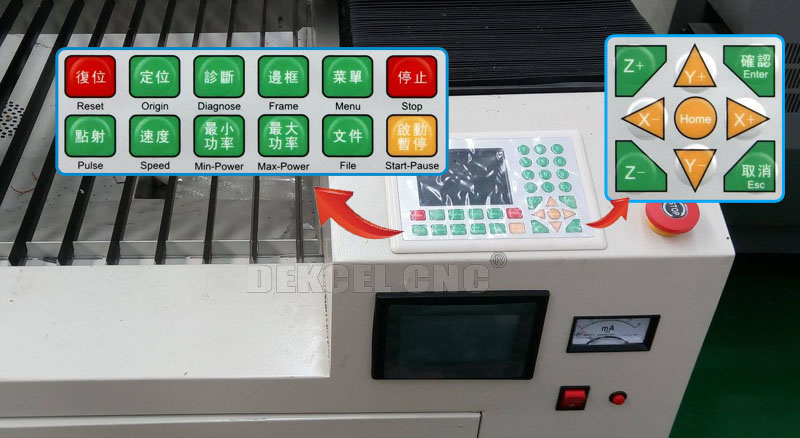

co2 150w metal laser cutting machine control panel

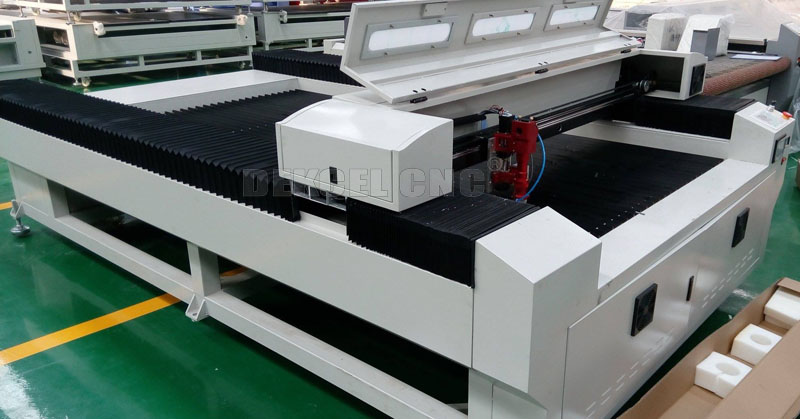

Reci CO2 150W metal auto-follow cutting heads

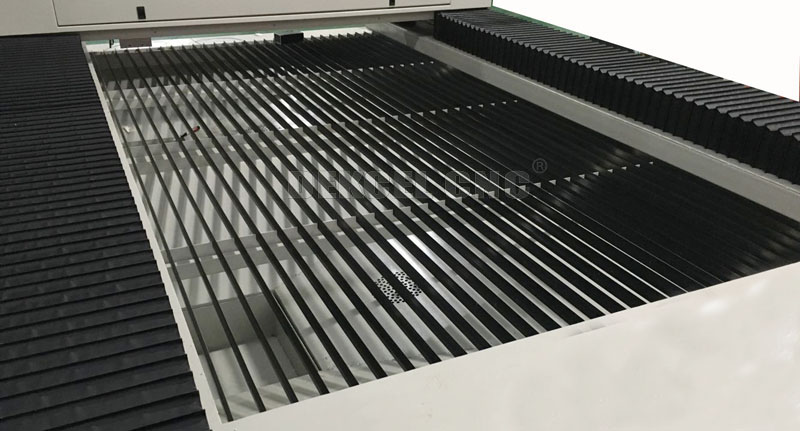

Reci CO2 150W auto-follow metal cutting machine knife blade

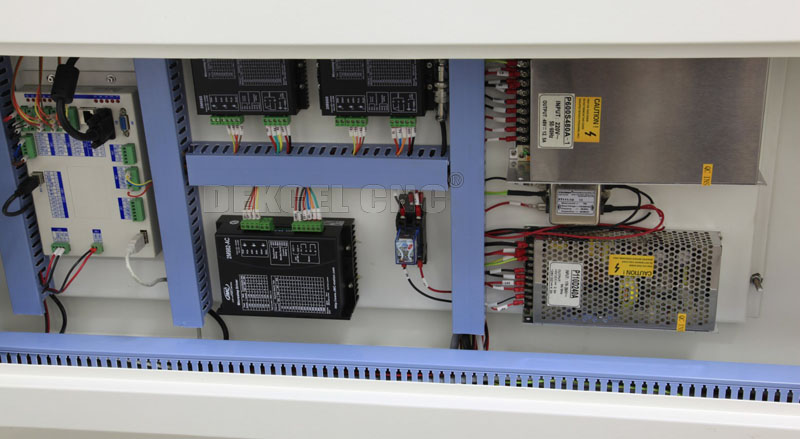

Reci CO2 150W auto-follow metal cutting machine control cabinet

Reci CO2 150W auto-follow metal cutting machine air filter

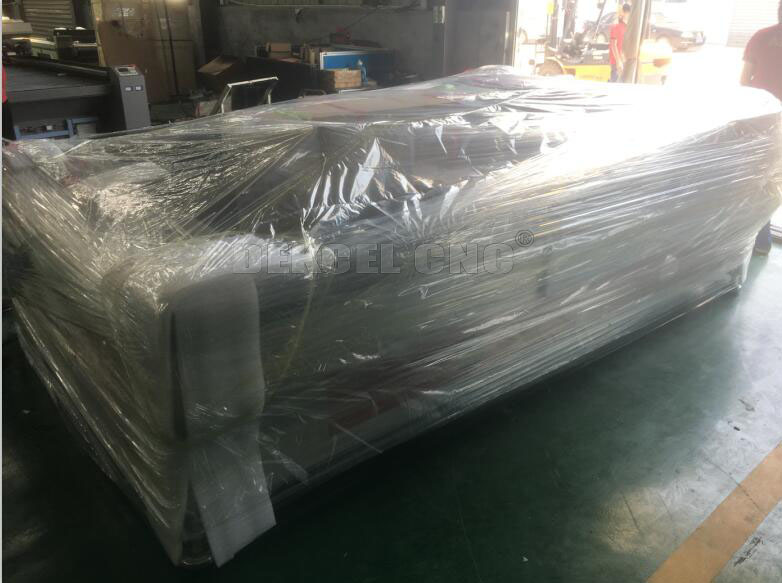

co2 metal laser cutting machine sample





Co2 metal and nonmetal laser cutting machine

Application materials:

Bamboo piece, double-color planks, boulder, horns, leather, crystal, wood, organic plastic, paper, film, canvas, acrylic, plastic,iron ,carbon steel ,stainless steel etc.



Applicable Industry:

Co2 laser cutting machine mainly used for the engraving and cutting on acrylic, wood, variety of plastic, Fabrics (silk fabrics, cotton fabrics, decorative fabrics, polyester fabrics, synthetic fabrics,), leather (leather, artificial leather, decorative leather, packaging leather, soft-leather), cardboard and other supplies, and all kinds of non-metal material.

20MM MDF 150W laser cutting machine sample

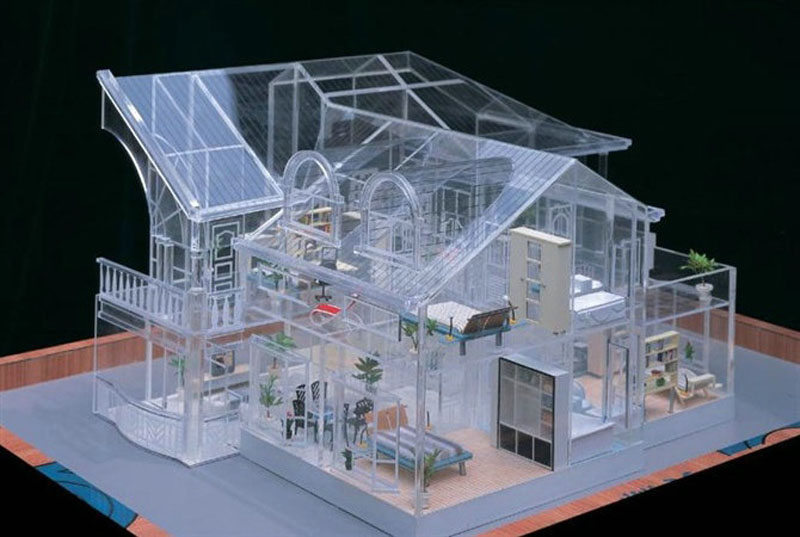

acrylic cutting by 150w metal laser machine

co2 150w metal laser cutting machine for decoration industry

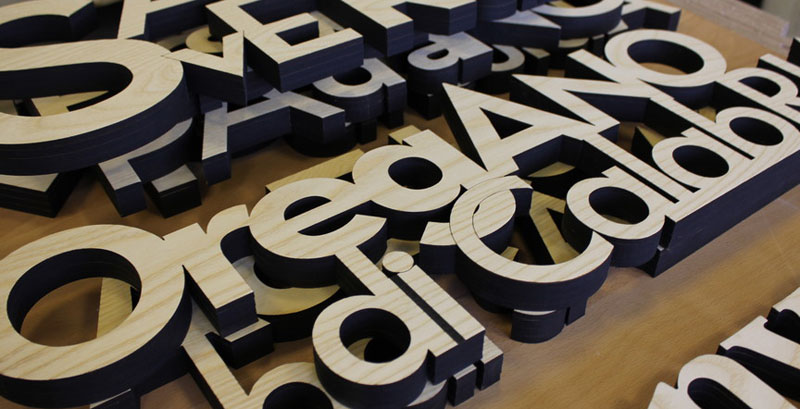

die boad letter cutting by 1325 150w laser cutting machine

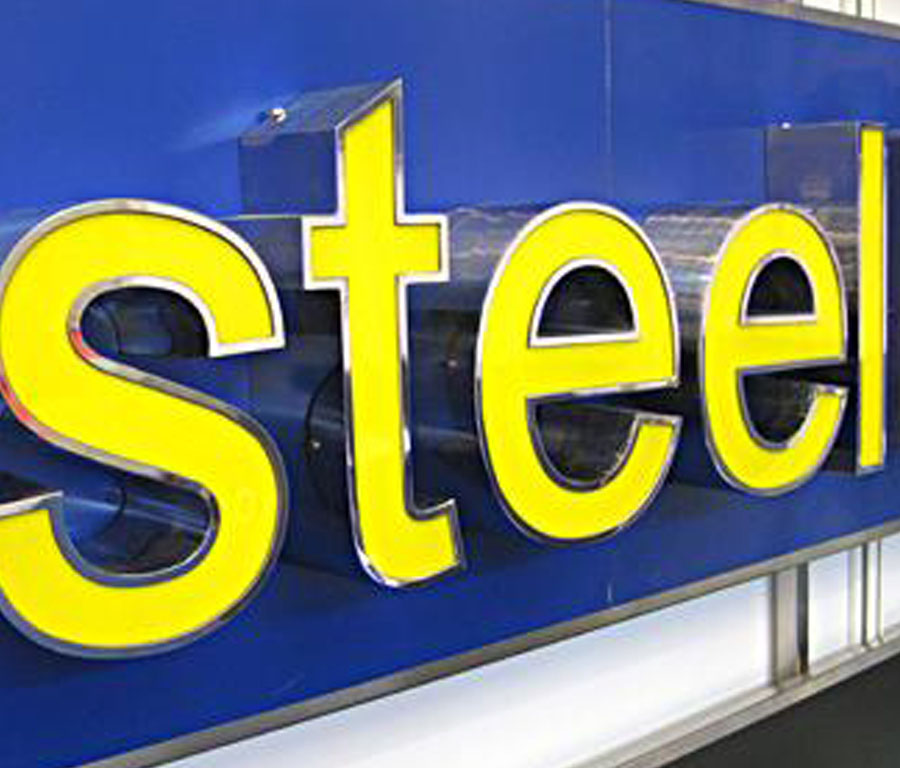

co2 metal laser cutting machine samples
