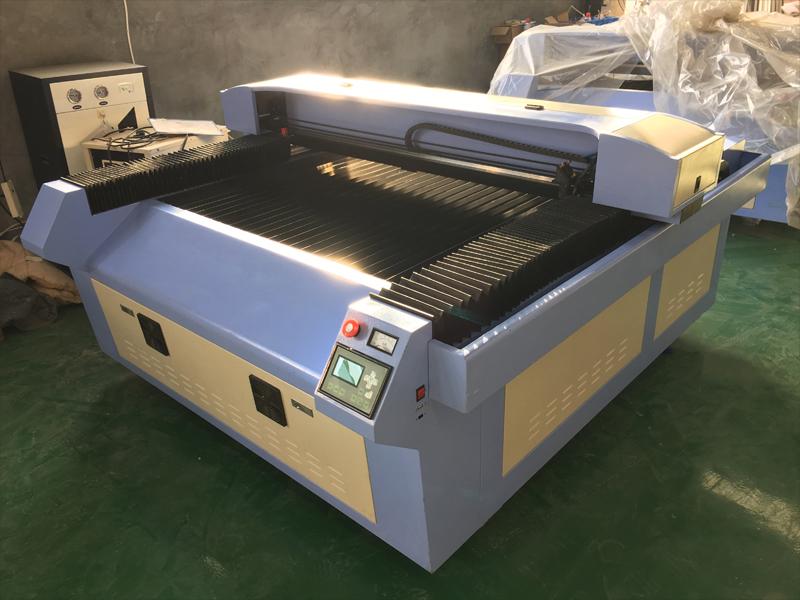

The cnc laser cutting machine is an affordable Laser work platform. Ideal for any size shop requiring a compact machine to run small engraving&cutting jobs or to be used as an educational tool. The Laser machines features digital DSP control panel, HIWIN rails, the machine can be matched to AutoCAD, Corel DRAW CAD and all other graphics processing software for outputting original graphics. This series machines firstly use USB port data interface which supports hot-plugging and momentary data transmission to realize high efficiency without accounting computer resource. The LCD controlling panel brings friendly computer-human interface and easy operation.
Advantages of cnc laser cutting machine
1).The "front" and "back" of our laser machine can be open, suitable for super-length material process.
2).Exclusive no water warning and automatic protection system, to protect the working life of laser tube effectively. The power control system has exclusive automatic protection equipment to ensure the stability and safety of the machine to the best.
3).LCD control panel in English, convenience of operation control.
4).Import liner bearing with high engraving precision
5).offline control system which can not only work without computer, but also connect to U disk, USB communication
6).Imported metal mirrors, with good ability of reflection and focusing, long working life.
7).Red dot position system realizes the exact position without laser.
8).Auto Focus technology, realize "easy focus & high efficiency" in real, not only a word.
Technician parameter of cnc laser cutting machine
Total power | <300W |
Laser power | 80W-150W |
Laser type | cnc laser cutting machine |
Power supply | AC 220V/110V |
Working area | 1300*900 mm |
Engraving depth | 0-10 mm (different material differ) |
Cutting depth | 0-10 mm |
Engraving speed | 0-600mm/s |
Cutting speed | 0-600mm/s |
Lifting platform | 0-250 mm Honeycomb/Blade Worktable |
Locating precision | <0.01 mm |
Min shaping character | Character: 2*2mm, Letter: 1*1mm |
Working temperature | 5ºC-45ºC |
Working humidity | 5%-95% |
Resolution ratio | ≤1000dpi |
Data transfer interface | USB 2.0 (offline) |
System environment | Windows XP / Win 7 / Win 8 |
Cooling | Water Cooling and protection system with chiller |
Graphic Format Supported | The Files which CorelDraw & WinsealXP can identify |
(BMP,JPEG,PLT,CDR,AI,) TIFF,PCX,DIB,TIF | |
Compatible software | CorelDraw,WinsealXP |
Color separation | NO |
Sloping engraving | NO |
Protection | Emergency stop buttom and Stop working when water broken |
What kind of materials can cutting / engraving?
Acrylic | Cork | Leather | Paper | Styrene |
Anodized Aluminum | Crystal coated metal | Marble | Plastic | Tile |
Anodized metal | Fabric | Matte board | Polyester | Veneer |
Bamboo | Fiberglass | Melamine | Polyester film | Vinyl |
Carbide | Foam | Mylar | Pressboard | Wood |
Cardboard | Glass | Nylon | Rubber | |
Ceramics | Kevlar | Painted metals | Silicon | |
Composites | Laminated plastic | Painted materials | Stone |

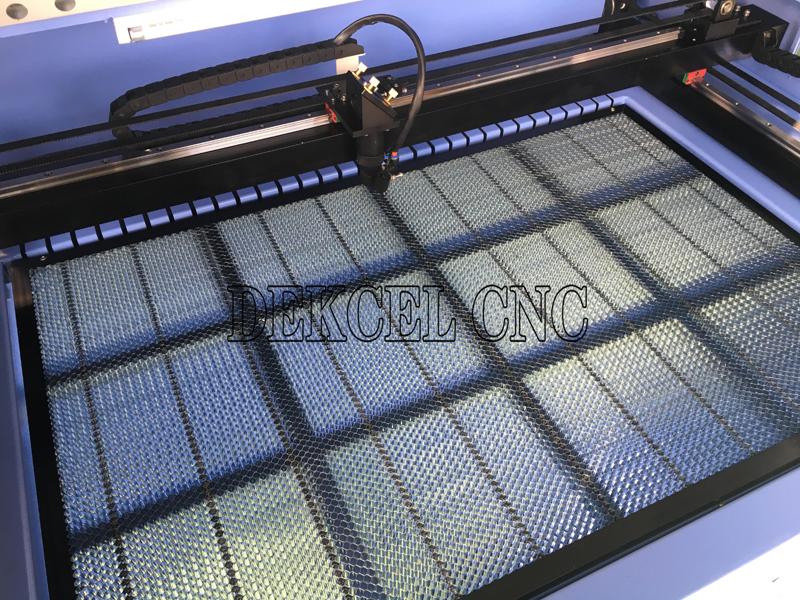

Cnc laser cutting machine with double table

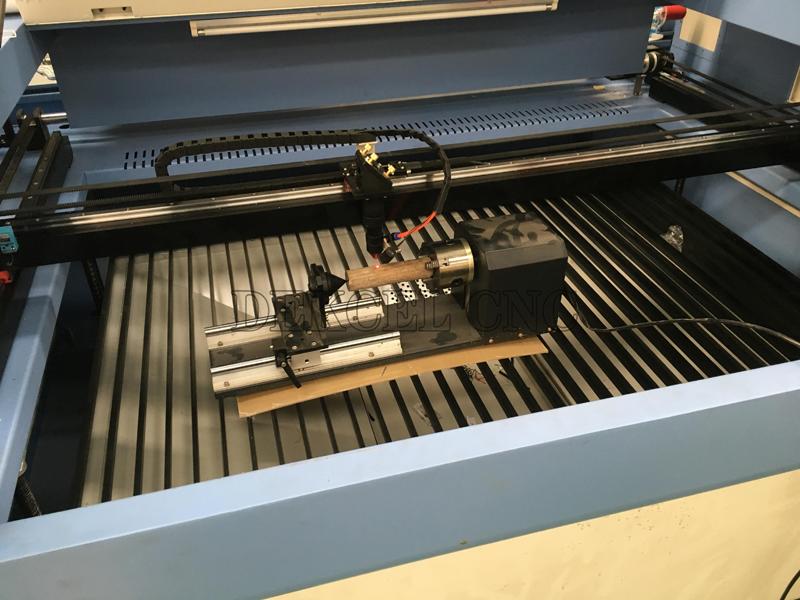

Option rotary system

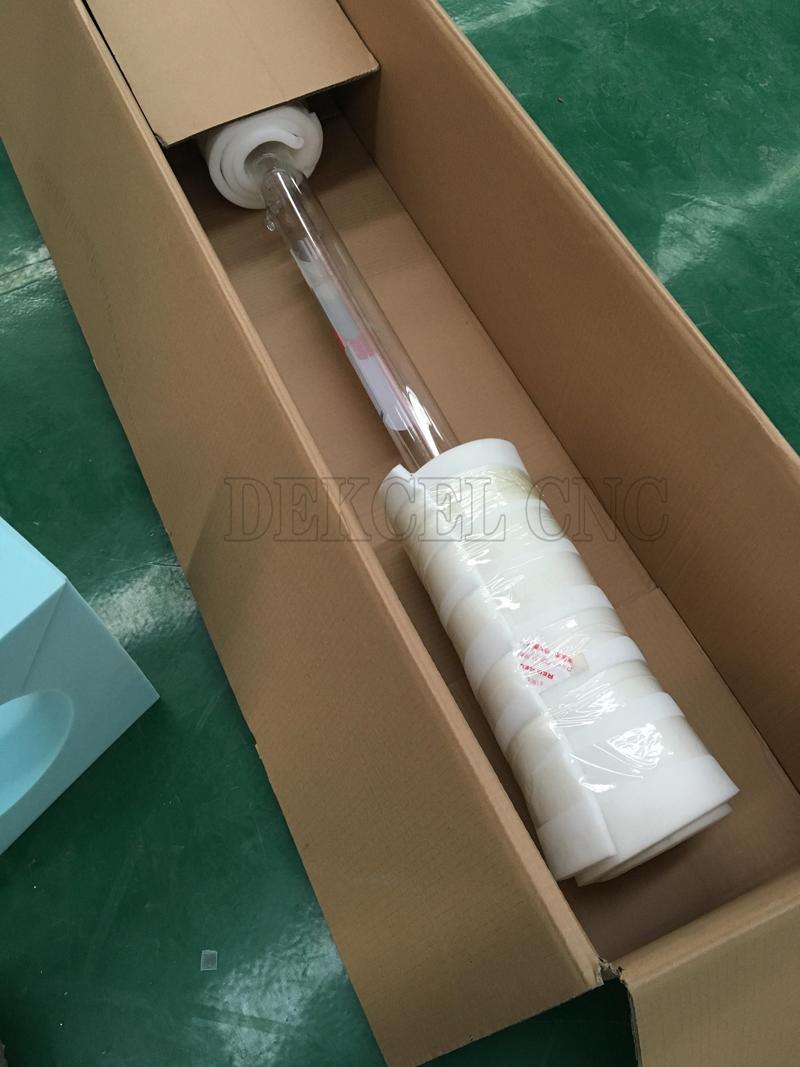

Beijing Reci laser tube

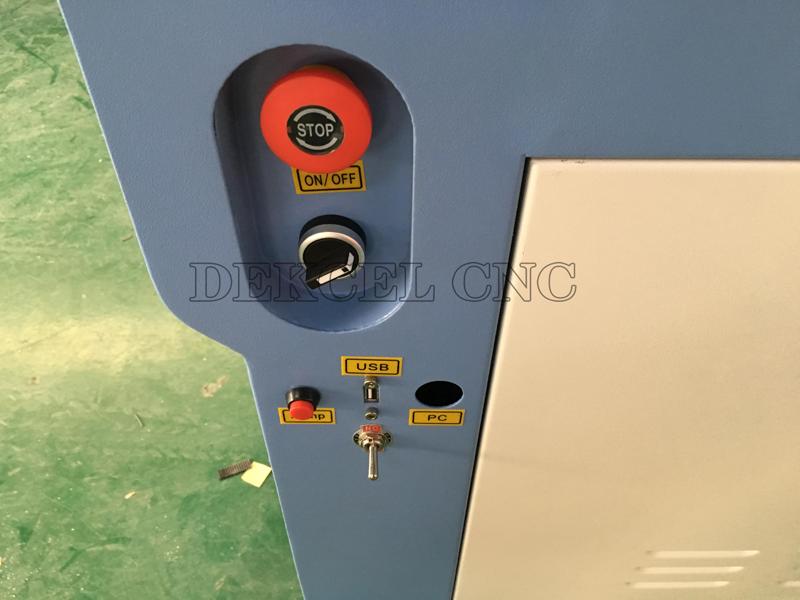

PC and USB connection

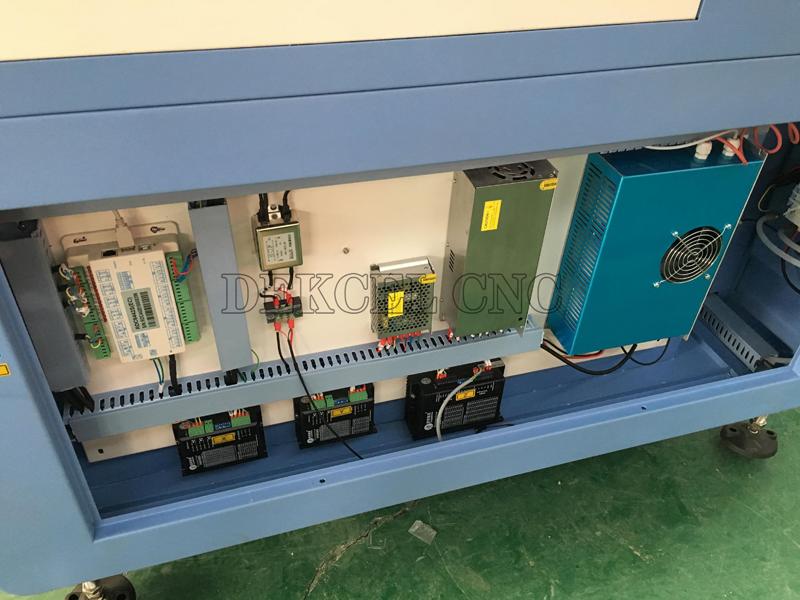

Cnc laser cutting machine control box
Packing
The cnc laser cutting machine is an affordable Laser work platform. Ideal for any size shop requiring a compact machine to run small engraving&cutting jobs or to be used as an educational tool. The Laser machines features digital DSP control panel, HIWIN rails, the machine can be matched to AutoCAD, Corel DRAW CAD and all other graphics processing software for outputting original graphics. This series machines firstly use USB port data interface which supports hot-plugging and momentary data transmission to realize high efficiency without accounting computer resource. The LCD controlling panel brings friendly computer-human interface and easy operation.
Advantages of cnc laser cutting machine
1).The "front" and "back" of our laser machine can be open, suitable for super-length material process.
2).Exclusive no water warning and automatic protection system, to protect the working life of laser tube effectively. The power control system has exclusive automatic protection equipment to ensure the stability and safety of the machine to the best.
3).LCD control panel in English, convenience of operation control.
4).Import liner bearing with high engraving precision
5).offline control system which can not only work without computer, but also connect to U disk, USB communication
6).Imported metal mirrors, with good ability of reflection and focusing, long working life.
7).Red dot position system realizes the exact position without laser.
8).Auto Focus technology, realize "easy focus & high efficiency" in real, not only a word.
Technician parameter of cnc laser cutting machine
Total power | <300W |
Laser power | 80W-150W |
Laser type | cnc laser cutting machine |
Power supply | AC 220V/110V |
Working area | 1300*900 mm |
Engraving depth | 0-10 mm (different material differ) |
Cutting depth | 0-10 mm |
Engraving speed | 0-600mm/s |
Cutting speed | 0-600mm/s |
Lifting platform | 0-250 mm Honeycomb/Blade Worktable |
Locating precision | <0.01 mm |
Min shaping character | Character: 2*2mm, Letter: 1*1mm |
Working temperature | 5ºC-45ºC |
Working humidity | 5%-95% |
Resolution ratio | ≤1000dpi |
Data transfer interface | USB 2.0 (offline) |
System environment | Windows XP / Win 7 / Win 8 |
Cooling | Water Cooling and protection system with chiller |
Graphic Format Supported | The Files which CorelDraw & WinsealXP can identify |
(BMP,JPEG,PLT,CDR,AI,) TIFF,PCX,DIB,TIF | |
Compatible software | CorelDraw,WinsealXP |
Color separation | NO |
Sloping engraving | NO |
Protection | Emergency stop buttom and Stop working when water broken |
What kind of materials can cutting / engraving?
Acrylic | Cork | Leather | Paper | Styrene |
Anodized Aluminum | Crystal coated metal | Marble | Plastic | Tile |
Anodized metal | Fabric | Matte board | Polyester | Veneer |
Bamboo | Fiberglass | Melamine | Polyester film | Vinyl |
Carbide | Foam | Mylar | Pressboard | Wood |
Cardboard | Glass | Nylon | Rubber | |
Ceramics | Kevlar | Painted metals | Silicon | |
Composites | Laminated plastic | Painted materials | Stone |
Cnc laser cutting machine with double table
Option rotary system
Beijing Reci laser tube
PC and USB connection
Cnc laser cutting machine control box
Packing
Application of cnc laser cutting machine
Meet the demand of professional requirements of cutting and scanning on large size garment, fabric, leather, furniture, packing, printing, advertising, decoration, construction, paper, template and other industries.
Suitable materials:
Fabric, leather, paper, wood, organic glass, acrylic,rubber, plastic and synthetic materials.
Application of cnc laser cutting machine
Meet the demand of professional requirements of cutting and scanning on large size garment, fabric, leather, furniture, packing, printing, advertising, decoration, construction, paper, template and other industries.
Suitable materials:
Fabric, leather, paper, wood, organic glass, acrylic,rubber, plastic and synthetic materials.
