DEK-1390J
DEKCEL
036
NO. | Model | DEK-1390J |

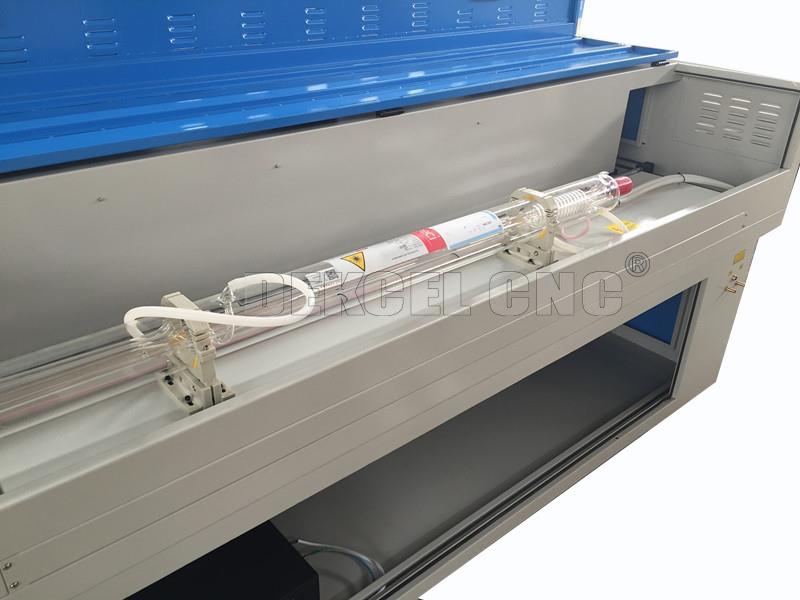

1 | Laser medium | CO2 |
2 | Working area | 1300*1900mm |

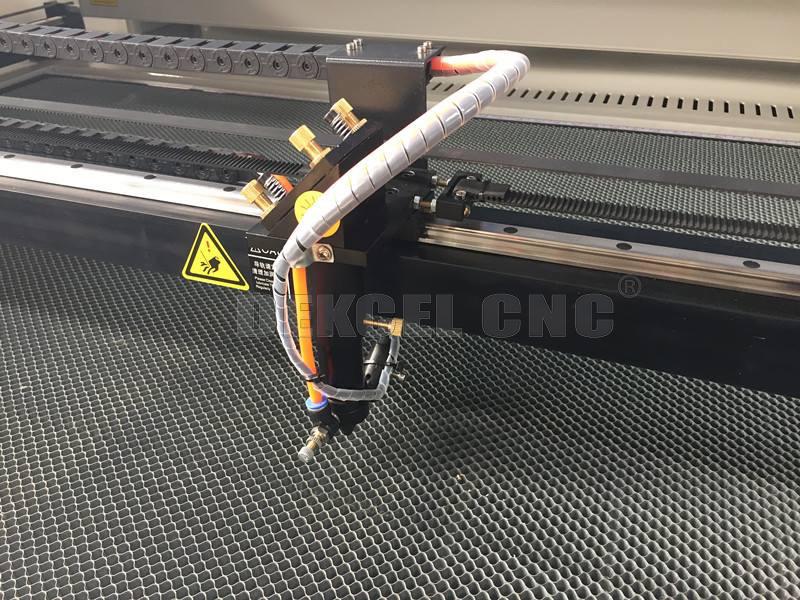

3 | Working table | Blade table |
4 | Laser power | 80W-150W |
5 | Power Supply | 380v/ 220V/50Hz, 110V/60Hz |
6 | Min line width | ≤0.15mm |
7 | Positon accuracy | 0.01mm |
8 | Repetition accuracy | 0.02mm |
9 | Cutting speed | 200 mm/s |
10 | Guide rail | Hiwin from Taiwan |
11 | Transmission method | Single Belt Transmission for Y axis. Double belt for X aixs |
12 | Drive system | Leadshine driving system and stepper motor. Z axis professional auto height adjust system |
13 | Cooling system | Water-cooling |

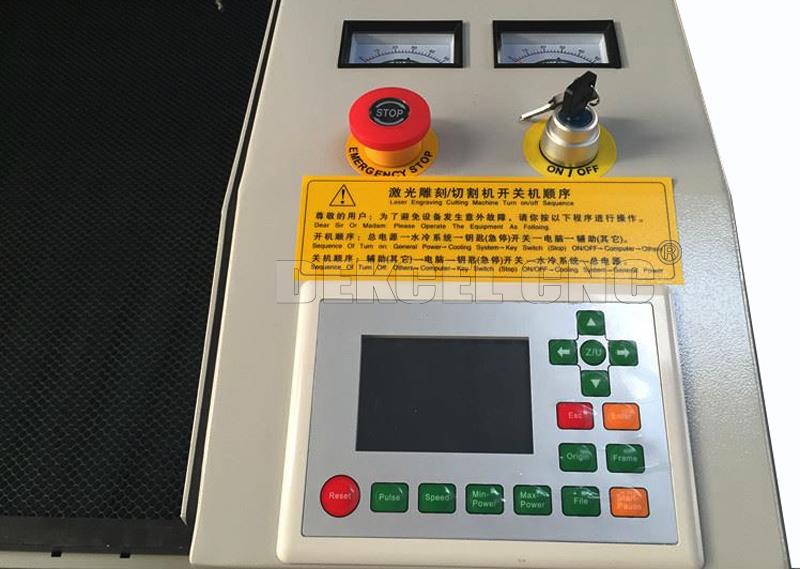

14 | Control system | Ruida controller |
15 | Control software | Coreldraw, Photoshop, AutoCAD, Tajima |
16 | Graphic format support | PLT, DXF, BMP, JPG ,AI ,ect |
17 | Working environment | 0-45ºC, |
18 | Operating Humidity | 5-95% |
19 | Net weight | 450kg |
20 | Gross weight | 600kg |
NO. | Model | DEK-1390J |
1 | Laser medium | CO2 |
2 | Working area | 1300*1900mm |
3 | Working table | Blade table |
4 | Laser power | 80W-150W |
5 | Power Supply | 380v/ 220V/50Hz, 110V/60Hz |
6 | Min line width | ≤0.15mm |
7 | Positon accuracy | 0.01mm |
8 | Repetition accuracy | 0.02mm |
9 | Cutting speed | 200 mm/s |
10 | Guide rail | Hiwin from Taiwan |
11 | Transmission method | Single Belt Transmission for Y axis. Double belt for X aixs |
12 | Drive system | Leadshine driving system and stepper motor. Z axis professional auto height adjust system |
13 | Cooling system | Water-cooling |
14 | Control system | Ruida controller |
15 | Control software | Coreldraw, Photoshop, AutoCAD, Tajima |
16 | Graphic format support | PLT, DXF, BMP, JPG ,AI ,ect |
17 | Working environment | 0-45ºC, |
18 | Operating Humidity | 5-95% |
19 | Net weight | 450kg |
20 | Gross weight | 600kg |
