Cylinder cnc router engraving machine for sale Machine advantages
1.Precision mould casting, high rigidity and small accumulated error.
2.Large power spindle engraving easily and quickly.
3.High speed (curve and straight line shares same speed, and curve line is more smooth. ), high efficiency. Running speed is reaches to 15 m/min.
4.Two motor-driver with distinctive double rack transmission, making it work steadily for a long time.
5.Continue to engrave after point-break and bits/knife-breaking. Hold more than 9 points.
6.Professional engraving software. Such as CorelDraw, Type3, Art cam, Cast mate, Proe, Art cut and other CAD/CAM software
Specification of cylinder cnc router engraving machine
#DSP controlling system for 4 rotary system.
#Stepper motors ( servo motors for option), widely used stable performance.
#3.0KW water cooling spindle ( best brand of china) ( Air cooler spindle for option) faster speed.
#200 diameter for rotor. can make 3d engravings.
#Multi spindles improve working efficiency.

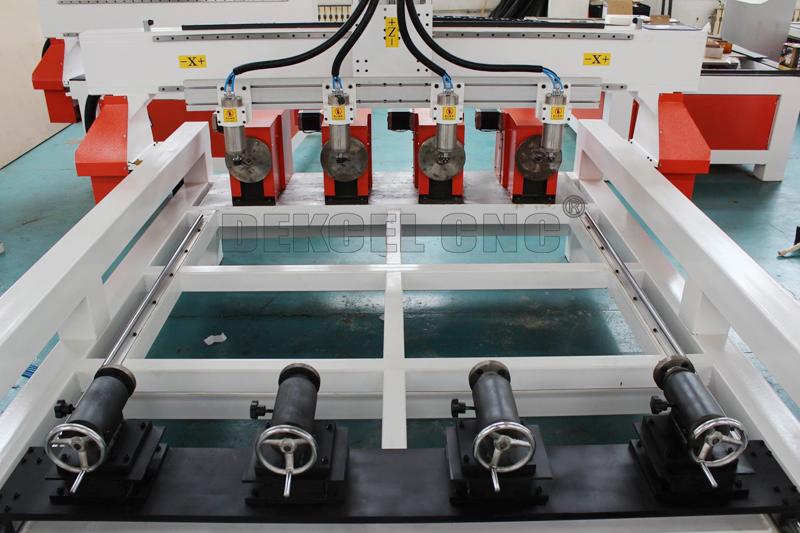

#4 indenpendent heads , more stable.
Parameters of cylinder cnc router engraving machine
| Description | Parameter |
1 | Working Area | 1300*2500*300mm |
2 | Table size | 1800*3300mm |
3 | X,Y,Z Repositioning Accuracy: | ±0.03mm |
4 | Table Surface | PVC aluminum T slot table |
5 | Frame | Big Steel Welded Structure |
6 | X, Y Structure | Rack and Pinion Drive,Hiwin Rail Linear Bearings |
7 | Z Structure | Hiwin Rail Linear Bearings and PMI Ball Screw |
8 | Max. Power Consumption | 4.Kw (Without Spindle) |
9 | Max. Rapid Travel Rate | 30000mm/min |
10 | Max. Working Speed | 10000mm/min |
11 | Spindle Power | 3.0KW water cooling spindle |
12 | Spindle Speed | 24000RPM |
13 | Drive Motors | steeper motors ( servo motor optional) |
14 | Working Voltage | AC380V/50/60Hz,3PH (Option: 220V) |
15 | Command Language | G Code |
16 | Operating System | Mach 3/DSP/ Ncstudio |
17 | Computer Interface | Ethernet,CF card |
18 | Flash Memory | 512M |
19 | Collet | ER20 |
20 | X,Y Resolution | <0.03mm |
21 | Software Compatibility | Artcam software(Option:Type3 software ) |
22 | Running Environment Temperature | 0 - 45 Centigrade |
23 | Relative Humidity | 30% - 75% |
24 | Packing Size | 2100*4500*1900 |
25 | N.W. | 1100KG |
26 | G.W. | 1200KG |
27 | Rotor diameter | 200mm |
Cylinder cnc router engraving machine for sale Machine advantages
1.Precision mould casting, high rigidity and small accumulated error.
2.Large power spindle engraving easily and quickly.
3.High speed (curve and straight line shares same speed, and curve line is more smooth. ), high efficiency. Running speed is reaches to 15 m/min.
4.Two motor-driver with distinctive double rack transmission, making it work steadily for a long time.
5.Continue to engrave after point-break and bits/knife-breaking. Hold more than 9 points.
6.Professional engraving software. Such as CorelDraw, Type3, Art cam, Cast mate, Proe, Art cut and other CAD/CAM software
Specification of cylinder cnc router engraving machine
#DSP controlling system for 4 rotary system.
#Stepper motors ( servo motors for option), widely used stable performance.
#3.0KW water cooling spindle ( best brand of china) ( Air cooler spindle for option) faster speed.
#200 diameter for rotor. can make 3d engravings.
#Multi spindles improve working efficiency.
#4 indenpendent heads , more stable.
Parameters of cylinder cnc router engraving machine
| Description | Parameter |
1 | Working Area | 1300*2500*300mm |
2 | Table size | 1800*3300mm |
3 | X,Y,Z Repositioning Accuracy: | ±0.03mm |
4 | Table Surface | PVC aluminum T slot table |
5 | Frame | Big Steel Welded Structure |
6 | X, Y Structure | Rack and Pinion Drive,Hiwin Rail Linear Bearings |
7 | Z Structure | Hiwin Rail Linear Bearings and PMI Ball Screw |
8 | Max. Power Consumption | 4.Kw (Without Spindle) |
9 | Max. Rapid Travel Rate | 30000mm/min |
10 | Max. Working Speed | 10000mm/min |
11 | Spindle Power | 3.0KW water cooling spindle |
12 | Spindle Speed | 24000RPM |
13 | Drive Motors | steeper motors ( servo motor optional) |
14 | Working Voltage | AC380V/50/60Hz,3PH (Option: 220V) |
15 | Command Language | G Code |
16 | Operating System | Mach 3/DSP/ Ncstudio |
17 | Computer Interface | Ethernet,CF card |
18 | Flash Memory | 512M |
19 | Collet | ER20 |
20 | X,Y Resolution | <0.03mm |
21 | Software Compatibility | Artcam software(Option:Type3 software ) |
22 | Running Environment Temperature | 0 - 45 Centigrade |
23 | Relative Humidity | 30% - 75% |
24 | Packing Size | 2100*4500*1900 |
25 | N.W. | 1100KG |
26 | G.W. | 1200KG |
27 | Rotor diameter | 200mm |
Applications of cylinder cnc router engraving machine for sale

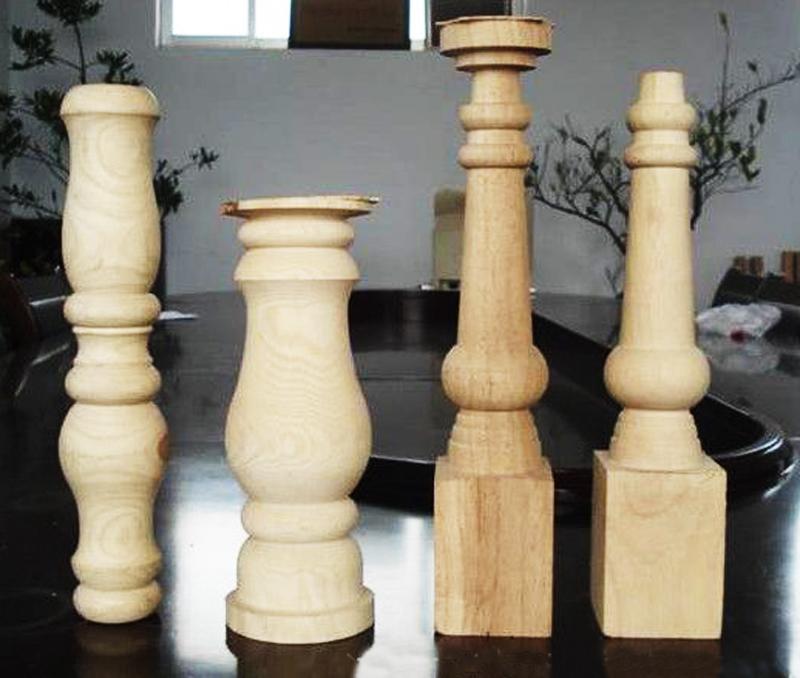

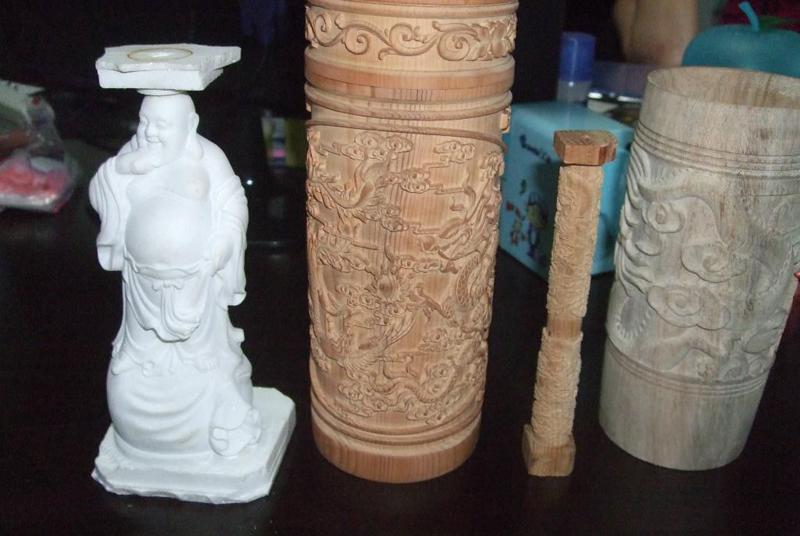

1.Be applicable to the 3D engraving of the sculptures of Buddha, manikin, stair railing, archaized blackwood furniture and European style marble pillar.
3D processing of wood and plaster products. Artwares engraving like pencil vase, brush pen and other 3D engraving.
2.Simple and complex wood relief engraving, hollowing out, punching etc.
Woodworking: Engraving of archaistic furniture, blackwood furniture, solid wood furniture, wood decorative material, wood artware, MDF board, paint-free door and cabinet door.
Applications of cylinder cnc router engraving machine for sale
1.Be applicable to the 3D engraving of the sculptures of Buddha, manikin, stair railing, archaized blackwood furniture and European style marble pillar.
3D processing of wood and plaster products. Artwares engraving like pencil vase, brush pen and other 3D engraving.
2.Simple and complex wood relief engraving, hollowing out, punching etc.
Woodworking: Engraving of archaistic furniture, blackwood furniture, solid wood furniture, wood decorative material, wood artware, MDF board, paint-free door and cabinet door.
