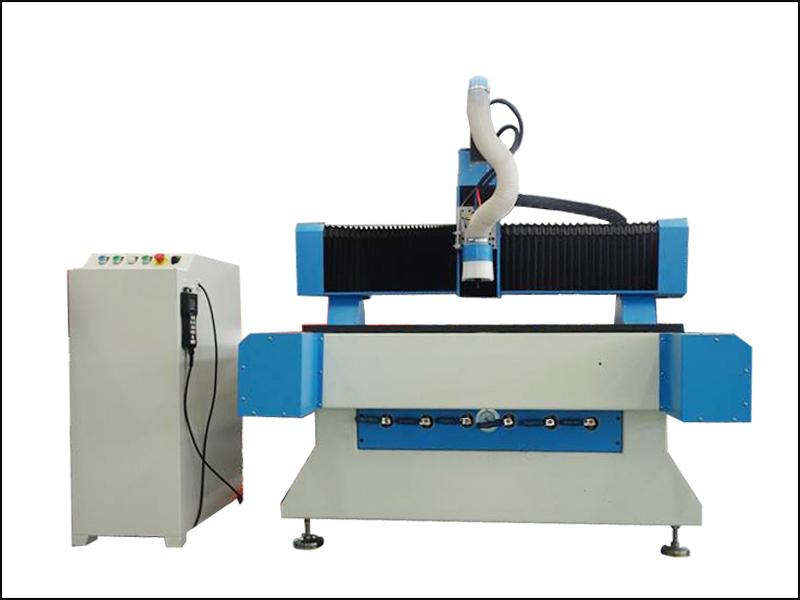

Features of cnc wood carving machine in china.
1,DEK-1325M is an economic processing cnc wood carving machine, with heavy duty welded structure.The work table is international leading vacuum adsorption.It can adsorb different size materials.
2,Optional wheels help move the machine,more convenient. Optional air gun help clean the worktable.
3,With DSP control system, It can support offline operation.
4,HIWIN/PMI linear rail from Taiwan for 3 axes, more stable and precise,low noise,and its lifetime is 10 times longer than common rail way.
5,Standard configured with water cooling spindle, high power and efficient. Very famous brand,has after-sale service all over the world. Matched with Taiwan DELTA inverter.
6,Helical rack gear transmission,which can ensure faster speed,higher efficiency,stronger power,longer lifetime,and it makes the machine more stable.
7,Standard configured with stepper drivers,very powerful. For option,we can change toJapan YASKAWA servo or Taiwan DELTA servo motors and drivers.
Cnc wood carving machine technical parameters
Machine Model | DEK-1325M |
Table Size(X Y) | 1450mmx3050mm |
X Y Z Traveling Area | 1300mmx2500mmx200mm |
Table Structure | Vacuum table/Aluminum T-slot |
X Y Axis Transmission | High precision rack gear |
Z Axis Transmission | Germany NEFF ball screw |
X Y Z Axis Guide | Taiwan imported HIWIN square rail |
Spindle Power | 3.0KW, water cooling |
Max. Spindle Speed | 24000R/min |
Max. Traveling Speed | 32000mm/min |
Max. Working Speed | 20000mm/min |
Processing Accuracy | ±0.01mm |
Preposition Accuracy | ≤0.01mm |
Driving System | Powerful steeper motor |
Command Language | HPGL, G-Code |
Operation System | DSP (Ncstudio is optional) |
Auto Lubrication System | With |
Working Voltage | AC380V 50HZ or 220V 50HZ |
Net Weight/Gross Weight | 1120KGS/1260KGS |
Package Dimension | 3170mm*2080mm*1660 mm |
Heavy body cnc wood carving machine

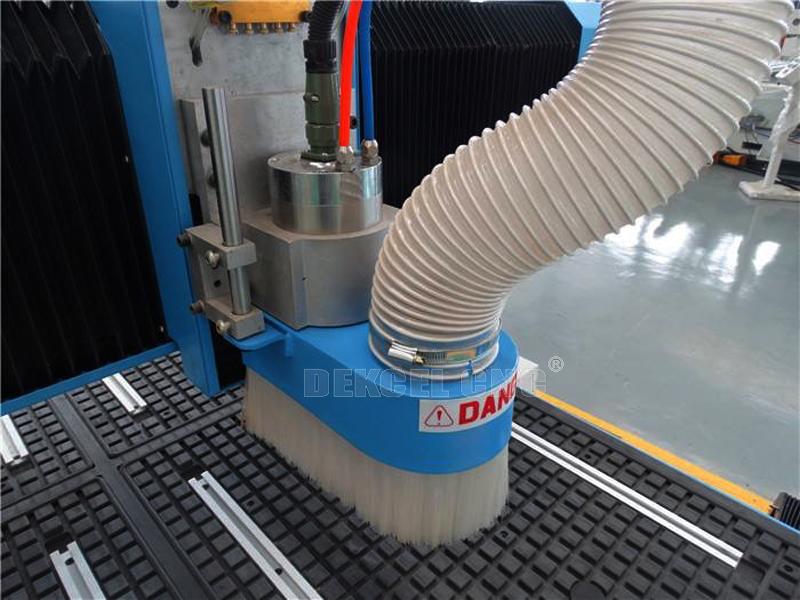

3.0KW water cooling spindle with dust cover

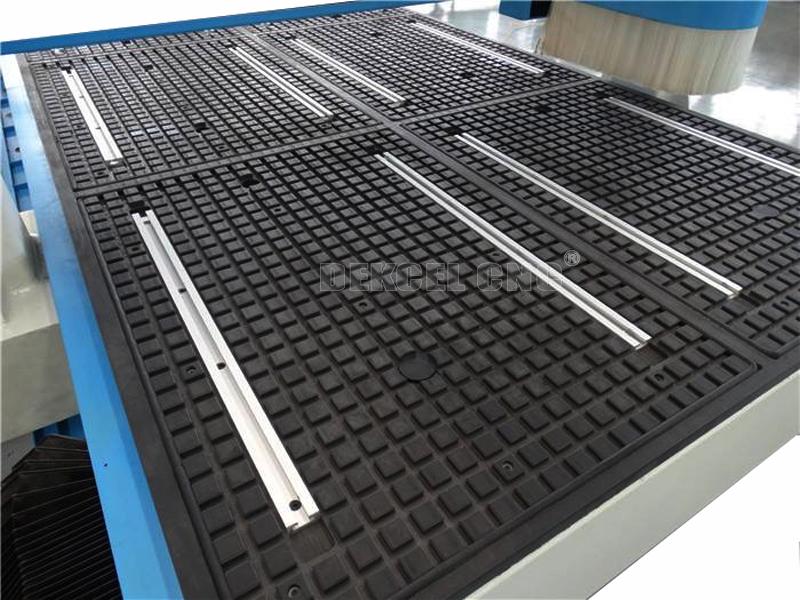

Vacuum table and vacuum pump,can absorb the material automatically.
Tool sensor

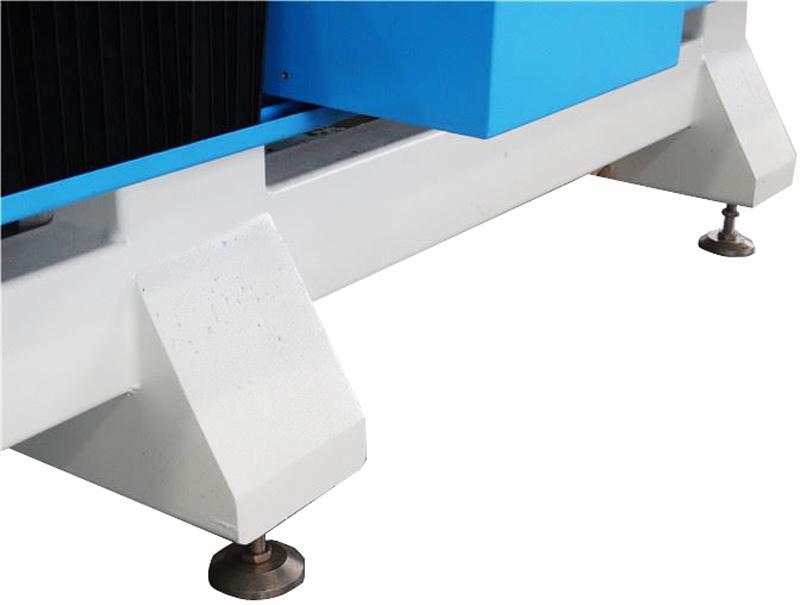

Stable cnc wood carving machine body
Features of cnc wood carving machine in china.
1,DEK-1325M is an economic processing cnc wood carving machine, with heavy duty welded structure.The work table is international leading vacuum adsorption.It can adsorb different size materials.
2,Optional wheels help move the machine,more convenient. Optional air gun help clean the worktable.
3,With DSP control system, It can support offline operation.
4,HIWIN/PMI linear rail from Taiwan for 3 axes, more stable and precise,low noise,and its lifetime is 10 times longer than common rail way.
5,Standard configured with water cooling spindle, high power and efficient. Very famous brand,has after-sale service all over the world. Matched with Taiwan DELTA inverter.
6,Helical rack gear transmission,which can ensure faster speed,higher efficiency,stronger power,longer lifetime,and it makes the machine more stable.
7,Standard configured with stepper drivers,very powerful. For option,we can change toJapan YASKAWA servo or Taiwan DELTA servo motors and drivers.
Cnc wood carving machine technical parameters
Machine Model | DEK-1325M |
Table Size(X Y) | 1450mmx3050mm |
X Y Z Traveling Area | 1300mmx2500mmx200mm |
Table Structure | Vacuum table/Aluminum T-slot |
X Y Axis Transmission | High precision rack gear |
Z Axis Transmission | Germany NEFF ball screw |
X Y Z Axis Guide | Taiwan imported HIWIN square rail |
Spindle Power | 3.0KW, water cooling |
Max. Spindle Speed | 24000R/min |
Max. Traveling Speed | 32000mm/min |
Max. Working Speed | 20000mm/min |
Processing Accuracy | ±0.01mm |
Preposition Accuracy | ≤0.01mm |
Driving System | Powerful steeper motor |
Command Language | HPGL, G-Code |
Operation System | DSP (Ncstudio is optional) |
Auto Lubrication System | With |
Working Voltage | AC380V 50HZ or 220V 50HZ |
Net Weight/Gross Weight | 1120KGS/1260KGS |
Package Dimension | 3170mm*2080mm*1660 mm |
Heavy body cnc wood carving machine
3.0KW water cooling spindle with dust cover
Vacuum table and vacuum pump,can absorb the material automatically.
Tool sensor
Stable cnc wood carving machine body
Applications of cnc wood carving machine

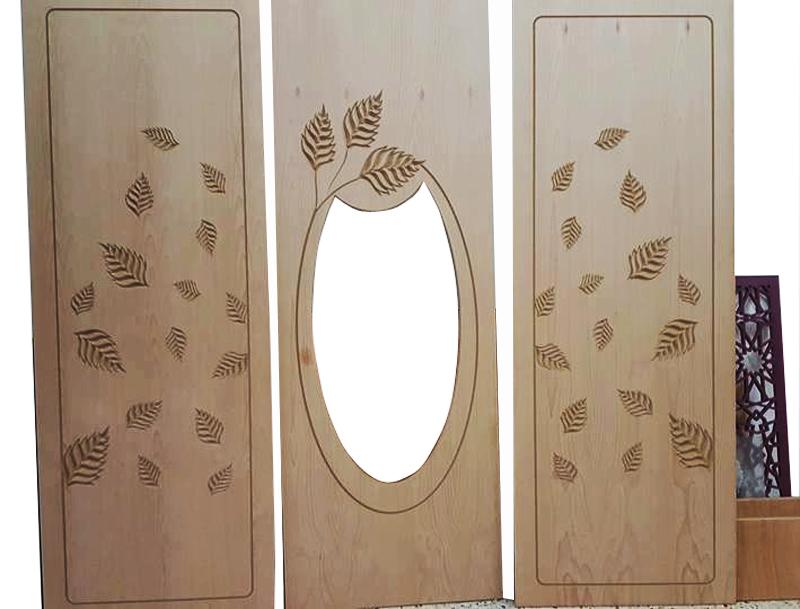

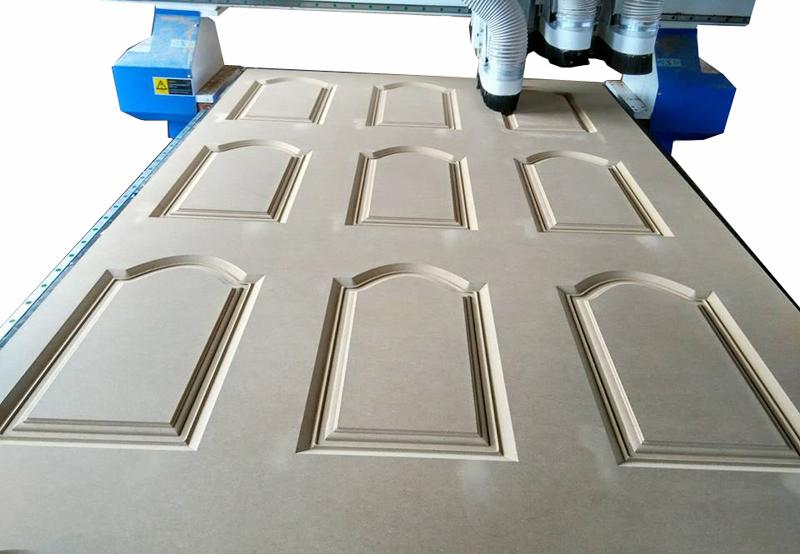

WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

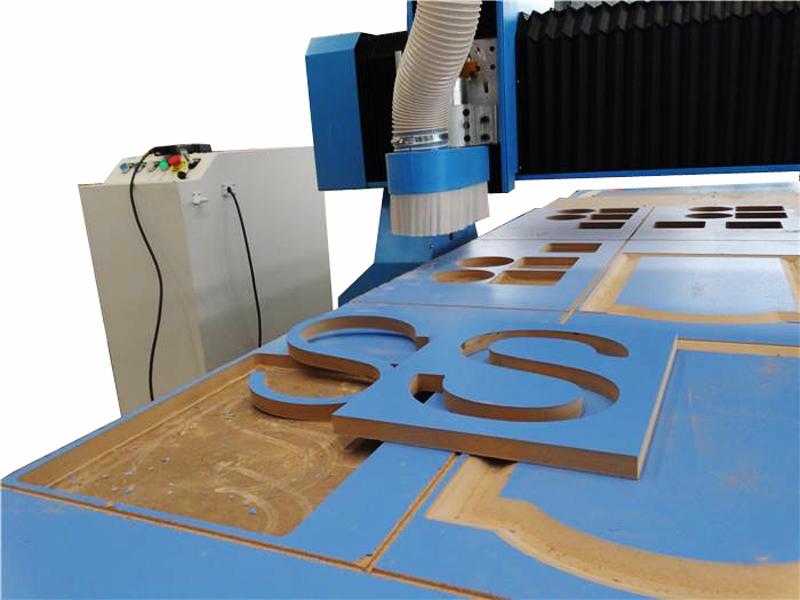

Advertising Industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making,blaster molding, and other advertising materials derivatives making.
Die Industry:A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand,plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
Applications of cnc wood carving machine
WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
Advertising Industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making,blaster molding, and other advertising materials derivatives making.
Die Industry:A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand,plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
