Cnc wood router carving machine for sale
You are here: Home » Cnc Router » Wood cnc router » Cnc wood router carving machine for sale
Share to:

Cnc wood router carving machine for sale

Cnc wood router carving machine for sale widely used in furniture industry(2D & 3D), furniture decoration industry, carpenter decoration, instrument industry, wooden handicraft industry, large plate plane carving, wood furniture carving etc.

Quantity:
  • DEK-1325M
  • DEKCEL
  • 075
Features of cnc wood router carving machine
---DSP control system, More stable
---Big power spindle: 3.0KW water cooling spindle
---3.7kw Fuling Inverter
---Double 450B stepper motor with leadshine 860H driver
---#20 Taiwan Hiwin square guide rail for 3 axis
---X/Y rack and pinion drive, Z Taiwan TBI ball screw

Advantage of cnc wood router carving machine for sale
1.Strong steel structure, good rigidity, non-forming, durable.
2. High precision makes it suitable for the arts and crafts advertising industry.
3.Design: interface use of international standard G code instructions, carving compatible at home and abroad, easy to operate it. high quality with reasonable price , economic.
4.High speed driver and stepper motor could enhance work efficiency.


Techinical parameter

lathe bed welded by industrial steel tube
working area 1300*2500*200mm
spindle 3.0kw water-cooling spindle
inverter Fuling inverter 3.7kw
motor stepper motor
drive  Leadshine 860
transsion X Y axis adopt rack and pinion,
Z axis adopts ball screw
control system DSP control system
table surface Aluminum T-slot
max travel speed 30000mm/min
max working speed 20000mm/min
positioning accuracy ±0.03mm
repositioning accuracy ±0.03mm
computer interface USB
command language  G code
software compatibility Type3/Artcam/Artcut/Ucancam/JDpaint et
collet ER20
method of clamping by clamps
oil injection system automatic oil injection system
working voltage 220V 50/60HZ
working environment 0-45 centigrade
relative humidity 30%-75%
weight 1000kg
color black


The cnc router wood carving machine for sale adopts 3.0kw water cooling constant power spindle with high speed and low noise ,which has great cutting strength and is not easy to break.
water cooling spindle cnc wood router

The Y axis of the wood cnc router carving machine for sale adopts helical rack ,whose most obvious advantage is its high speed. Z axis adopts high precision ball screw to ensure the can work precisely for a long time.

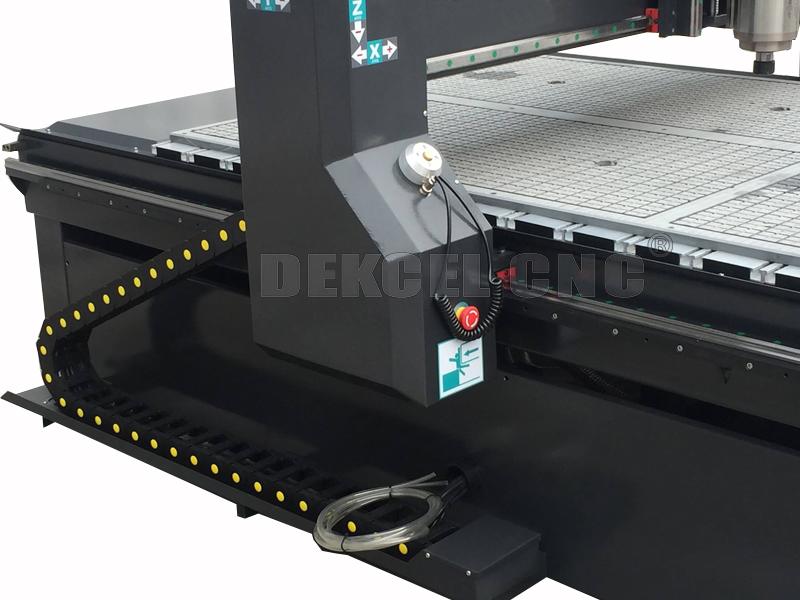

gear transmission of cnc wood router


guide rails of cnc wood carving machine
The wood cnc router carving machine for sale adopts advanced DSP system with USB connection, which can be operated with the handle, it makes the operation convenient. Our engraver can completely work off-line and do not take any computer resources.
dsp control system of cnc wood carving machine

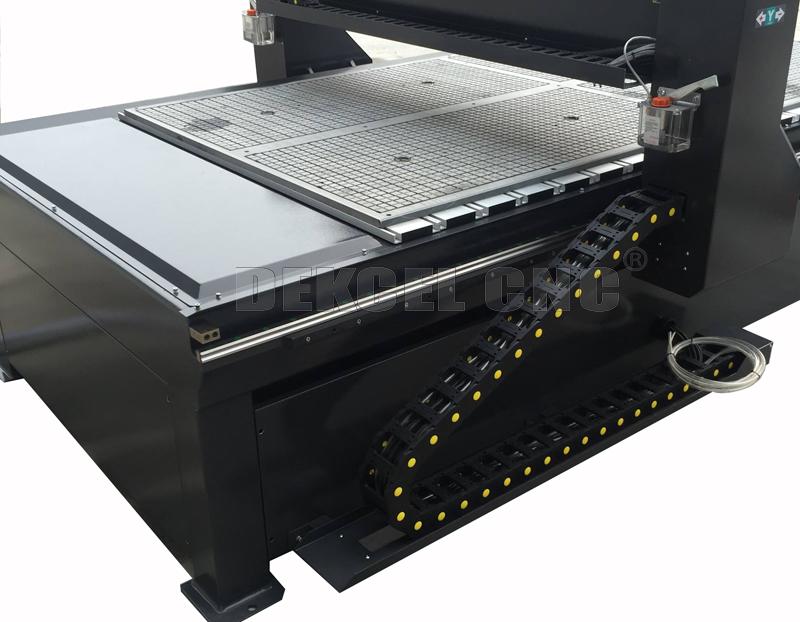

vacuum pump of cnc wood router

Application of wood cnc router carving machine for sale
Widely used in furniture industry(2D & 3D), furniture decoration industry, carpenter decoration, instrument  industry, wooden handicraft industry, large plate plane carving, wood furniture carving,density plate  etc, window and door carving and so on.

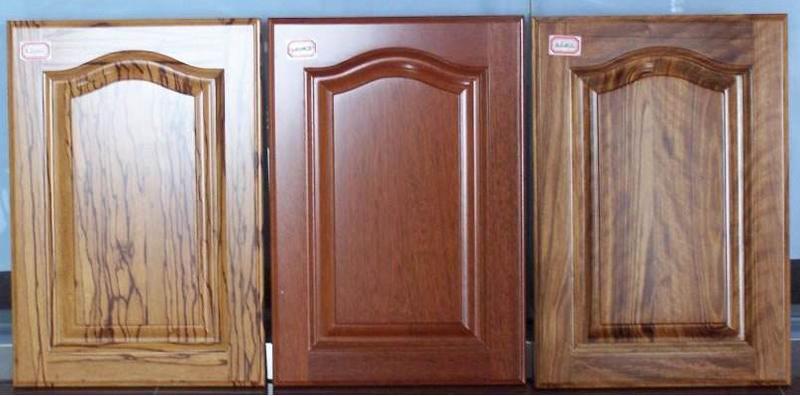

cnc wood carving machine samples

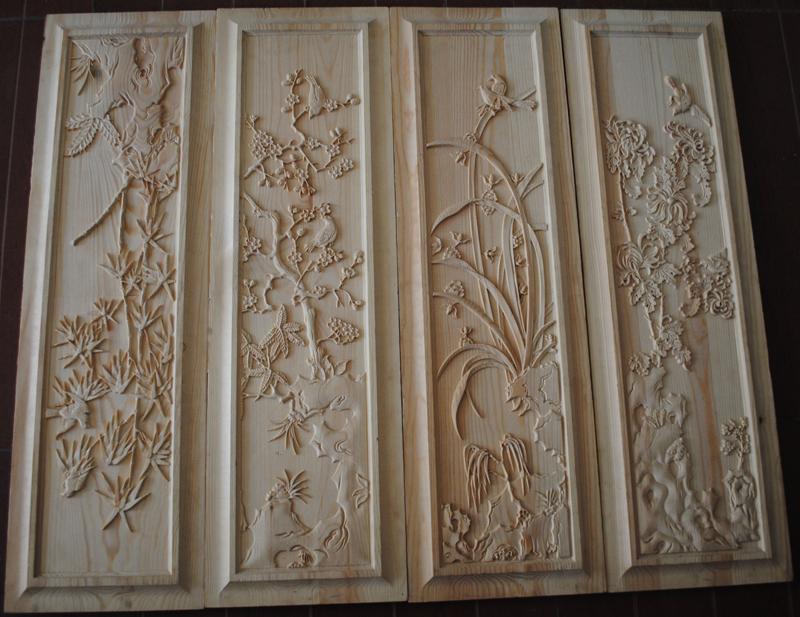

cnc wood carving machine
