 Brand of DEKCEL, CNC router, CNC laser, CNC parts manufacturers and suppliers in china. Supply different types of cnc routers machine used in different industries.
 |
| Quantity: | |
|---|---|
DEK-1325E
DEKCEL
001
Wood cutting cnc router machine Features
1) Vacuum & T-slot Combined Table for wood cutting cnc router: Small-scale processing by using material holder,
eliminating the need for a vacuum pump electricity; large processing by adsorption, simple,convenient and efficient.
2) Water cooling spindle, with high precision, long life time, steady working, easy to start up.
3) Taiwan Hiwin linear square guide rail, self-lubricating sliding block. It ensures equal
force in all directions and accuracy and strength of the machine.
4) Y axis uses double-motor in-phase drive that ensure the machine equality and smoothly running.
5) DSP controller system with USB interface,working without connecting with computer
during working and easy to control.
Manufacturing process of cnc router machine for wood cutting
1. The engineers design the wood cutting cnc router according to your needs.
2. The purchasing department carefully select and buy the machine parts.
3. The skilled workers make the machine.
4. The quality control department supervise the whole manufacture process.
Technical parameter of wood cutting cnc router machine
| Specifications: | Model | DEK-1325M wood cnc router |
1 | X,Y,Z Working Area | 1300x2500x200mm |
2 | Table Size | 1680×3060mm |
3 | X,Y,Z Traveling Positioning Accuracy | ±0.05/300mm |
4 | X,Y,Z Repositioning Positioning Accuracy | ±0.05mm |
5 | Table Surface | Bakelite Vacuum Table (Option:T-slot table) |
6 | Frame | Welded structure |
7 | X, Y Structure | Rack and Pinion Drive,Hiwin Rail Linear Bearings |
8 | Z Structure | Ball Screw, Hiwin Rail Linear Bearings |
9 | Max.Power Consumption (Without spindle) | 3.0Kw |
10 | Max.Rapid Travel Rate | 50000mm/min |
11 | Max.Working Speed | 25000mm/min |
12 | Spindle Power Motor | 3kw or 4.5kw water cooling or HSD for choice |
13 | Spindle Speed | 0-24000RPM |
14 | Drive Motors | Stepper system(Option:Servo System) |
15 | Working Voltage | AC220V/50/60Hz,1PH (Option: 380V 3PH) |
16 | Command Language | G Code |
17 | Operating System | DSP System (Option: Mach3 PC Software) |
18 | Interface | USB |
19 | Flash Memory | 128M(U Disk) |
20 | Collet | ER25 |
21 | X,Y Resolution | <0.02mm |
22 | Software Compatability | Type3 software,Ucancam software(Option:Artcam software) |
23 | working temperature | 0ºC~45ºC |
Wood cutting cnc router control box
NK-105 DSP Control system for wood cutting router bits machine
China Water cooling spindle

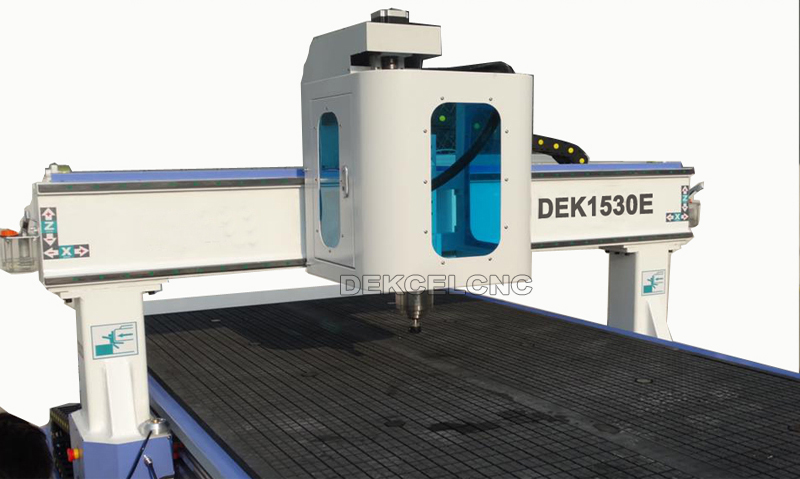

Vacuum table of wood cutting cnc router

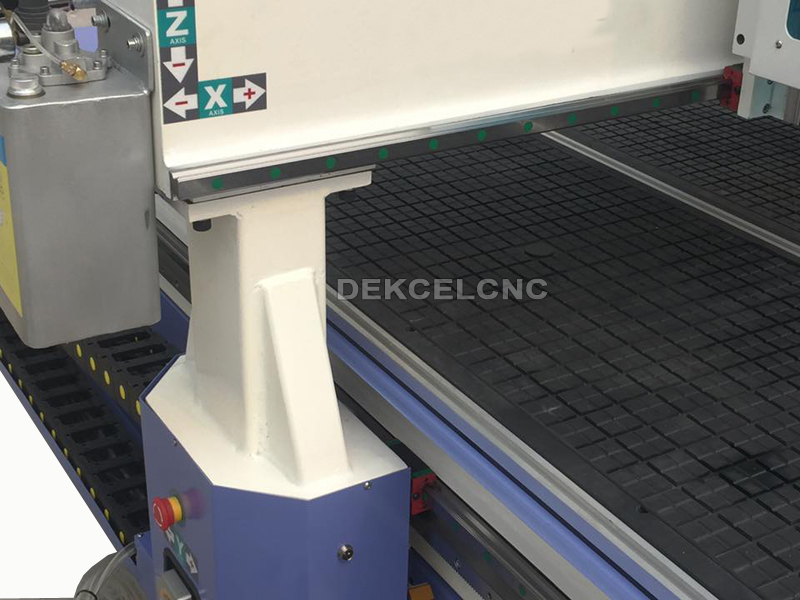

Stronger gantry
