Features of cnc wood cutting router machine

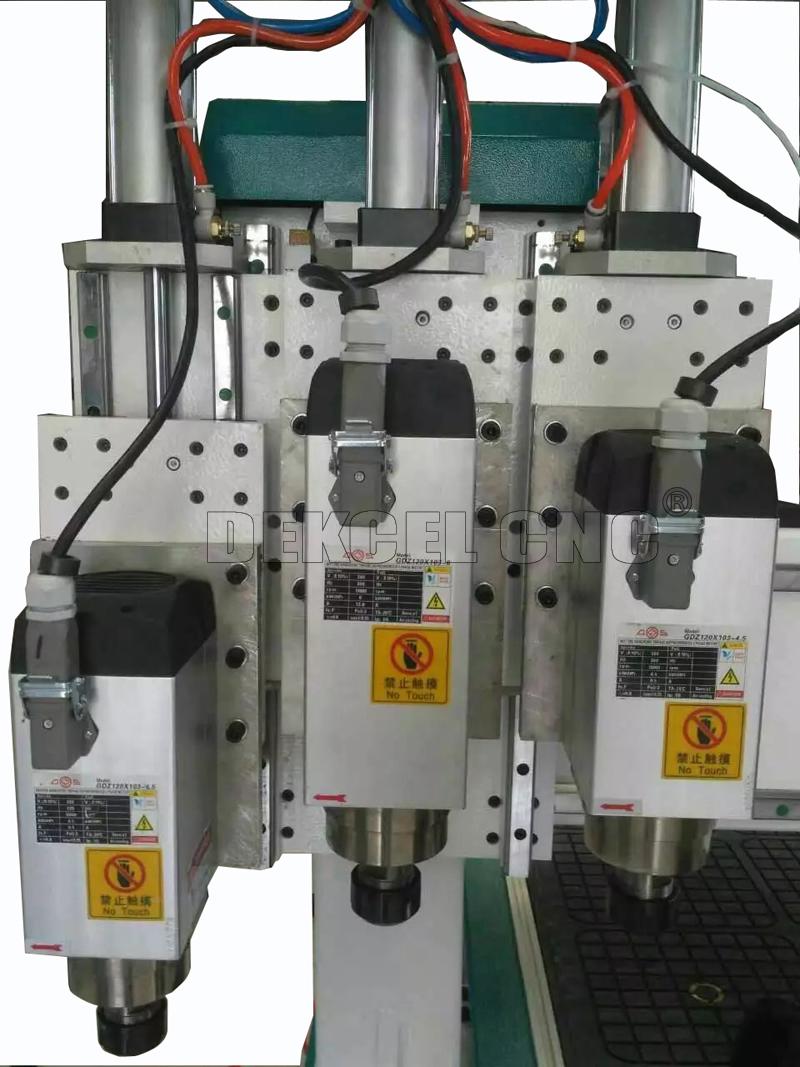

-- Spindle: 4.5kw air cooled spindle, auto change
--Vacuum table, connect with vacuum pump
-- 5 pieces air cylinder, convenient for positioning material
-- loading roller, convenient for loading material
--Driving system, servo motor
--Transmission: X Y axis rack&pinion, Z axis ball screw transmission
--Guide:linear bearing
-- pushing material device, Function 1) pushing material
Function 2) dust suction
-- dust system with air cylinder controlled, ensures the dust suction.
-- NC-studio control system supporting pushing material, big control room with the place to put computer main frame.
Technical Parameters
| Model | Best cnc wood cutting router machine |
| Working Stoke | 1300*2500*200mm |
| Spindle Power | 4.5KW air-cooling spindle*3 |
| Spindle Rotational Speed | 18,000 rpm/min (or 24,000 rpm/min for water-cooling spindle motor) |
| Engraving Tool | Φ3.175 /4 /6/ 12.7 mm |

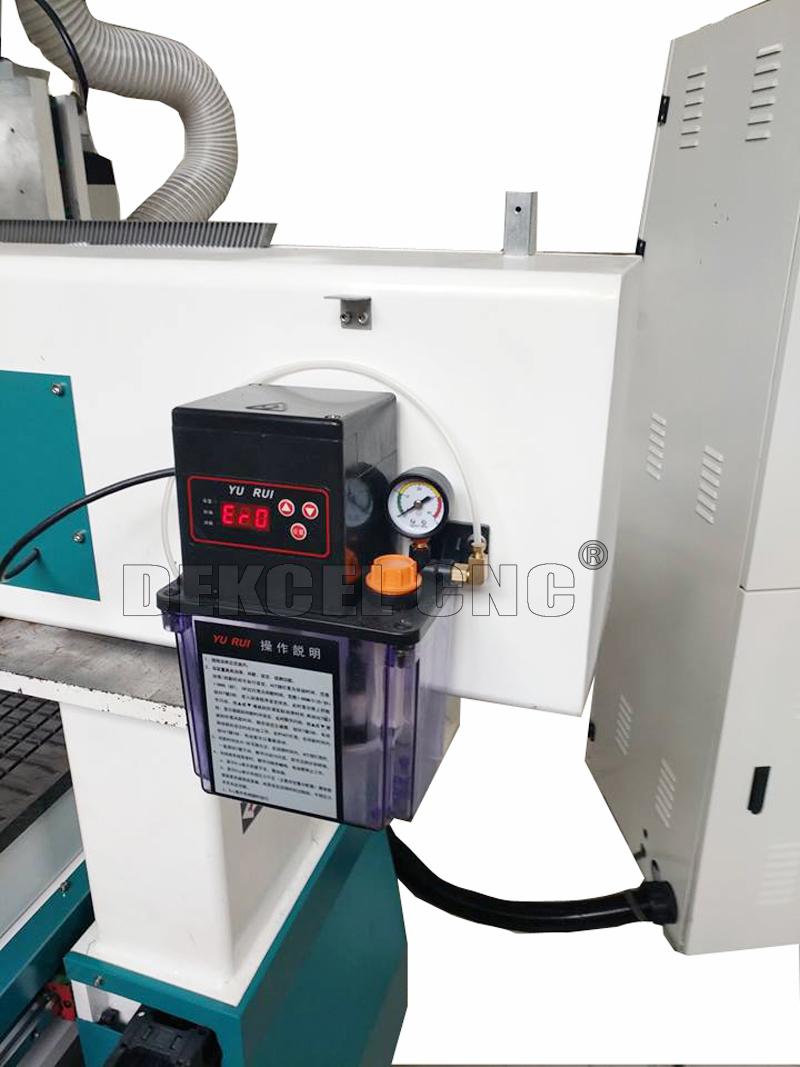

| Lubrication System | manul |
| Operation System | NC-studio 95A |
| Drive System | servo motor and driver(Leadshine, Delta or YASKAWA for optional) |
| Transmission | X.Y, rack & pinion and Z axis Taiwan TBI ball screw |

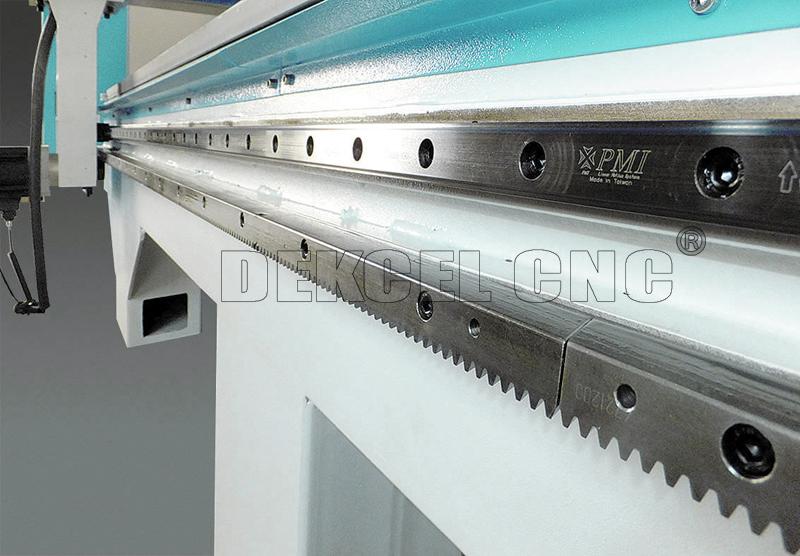

| Guide Rail | Taiwan PMI square guide rail |
| Vacuum Adsorption | 7.5KW Vacuum Pump |
| Max Motion Speed | 30 m/min |
| Max Proceeding Speed | 25 m/min |
| Dictate Format | G-Code |
| Resolution | 0.01mm |
| Voltage | 220V/380v,50Hz/60Hz |

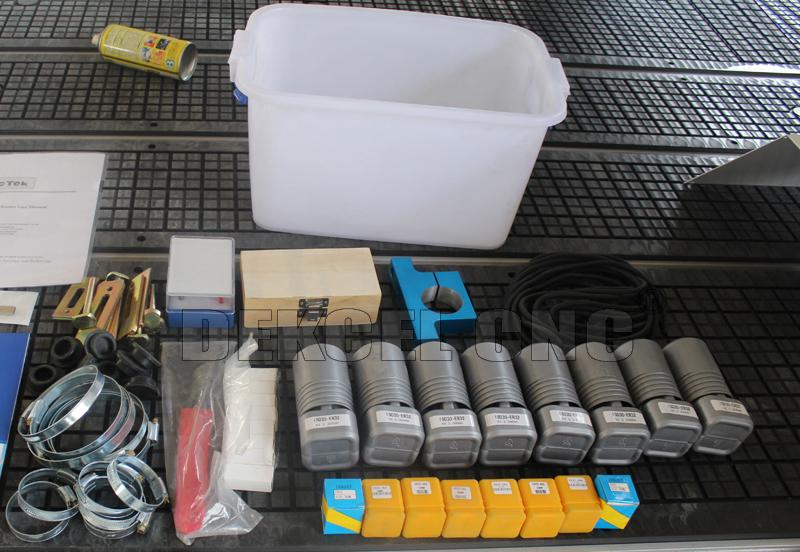

Cnc wood cutting router machine parts
Features of cnc wood cutting router machine
-- Spindle: 4.5kw air cooled spindle, auto change
--Vacuum table, connect with vacuum pump
-- 5 pieces air cylinder, convenient for positioning material
-- loading roller, convenient for loading material
--Driving system, servo motor
--Transmission: X Y axis rack&pinion, Z axis ball screw transmission
--Guide:linear bearing
-- pushing material device, Function 1) pushing material
Function 2) dust suction
-- dust system with air cylinder controlled, ensures the dust suction.
-- NC-studio control system supporting pushing material, big control room with the place to put computer main frame.
Technical Parameters
| Model | Best cnc wood cutting router machine |
| Working Stoke | 1300*2500*200mm |
| Spindle Power | 4.5KW air-cooling spindle*3 |
| Spindle Rotational Speed | 18,000 rpm/min (or 24,000 rpm/min for water-cooling spindle motor) |
| Engraving Tool | Φ3.175 /4 /6/ 12.7 mm |
| Lubrication System | manul |
| Operation System | NC-studio 95A |
| Drive System | servo motor and driver(Leadshine, Delta or YASKAWA for optional) |
| Transmission | X.Y, rack & pinion and Z axis Taiwan TBI ball screw |
| Guide Rail | Taiwan PMI square guide rail |
| Vacuum Adsorption | 7.5KW Vacuum Pump |
| Max Motion Speed | 30 m/min |
| Max Proceeding Speed | 25 m/min |
| Dictate Format | G-Code |
| Resolution | 0.01mm |
| Voltage | 220V/380v,50Hz/60Hz |
Cnc wood cutting router machine parts

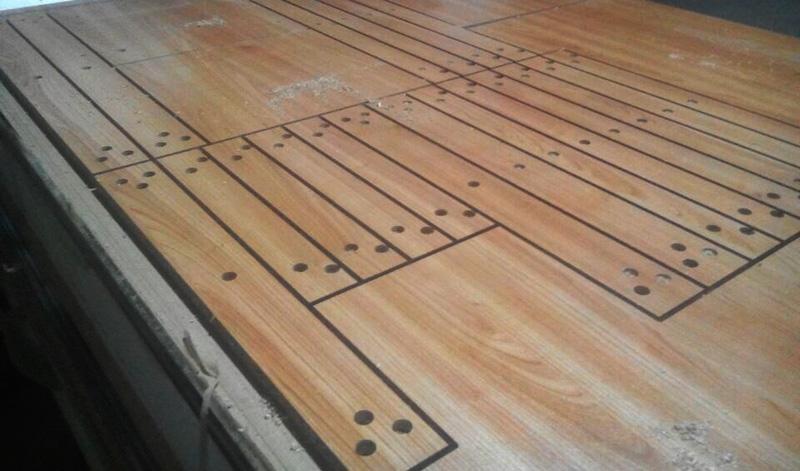

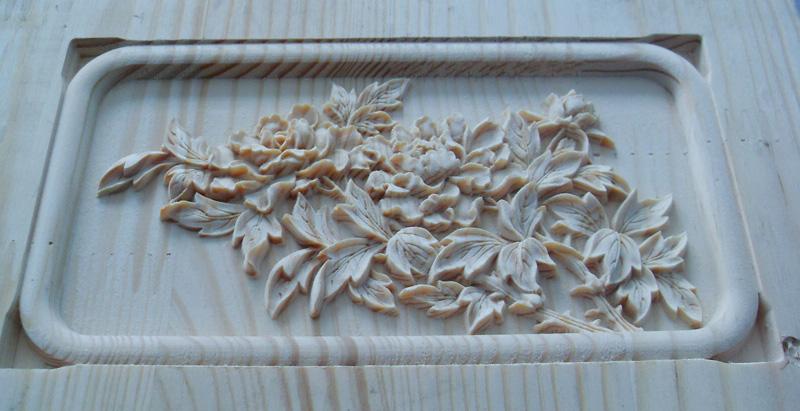

Application scope of cnc wood cutting router machine
1. Wooden door and furniture decoration industry: Solid wood door, compound door, cupboard door, large area plank plane carving, wood carve designs, board type furniture engraving,
archaize annatto furniture engraving, solid wood art mural engraving and so on.
2. Wooden crafts processing: Clock frame, picture frame, calligraphy plaque, electrical counter face, sports equipment, thin aluminum board cutting and engrving.
3. Electronic product industry: Circuit board, insulation materials, the LED display, home appliance (color TV sets, washing machines, refrigerators) shell or model engraving and cutting.
4. Instrument industry: Engraving instruments 3D surface, Appearance cutting, such as cello, violin panel and head; guitar,erhu 3D surface engraving and cutting.
5. EVA processing industry: EVA packing materials lined engraving and cutting for tool equipment,medical equipment, electronic products, glass vessel.
6. Other industries: The building model, the block, aviation block, propellers, car foam mold.
Application materials
Cnc cutting router machine is suitable to work on aluminum, wood, MDF, acrylic, artificial materials, etc, such as classical furniture, relief, doors, advertising products, wooden products, computer
Application scope of cnc wood cutting router machine
1. Wooden door and furniture decoration industry: Solid wood door, compound door, cupboard door, large area plank plane carving, wood carve designs, board type furniture engraving,
archaize annatto furniture engraving, solid wood art mural engraving and so on.
2. Wooden crafts processing: Clock frame, picture frame, calligraphy plaque, electrical counter face, sports equipment, thin aluminum board cutting and engrving.
3. Electronic product industry: Circuit board, insulation materials, the LED display, home appliance (color TV sets, washing machines, refrigerators) shell or model engraving and cutting.
4. Instrument industry: Engraving instruments 3D surface, Appearance cutting, such as cello, violin panel and head; guitar,erhu 3D surface engraving and cutting.
5. EVA processing industry: EVA packing materials lined engraving and cutting for tool equipment,medical equipment, electronic products, glass vessel.
6. Other industries: The building model, the block, aviation block, propellers, car foam mold.
Application materials
Cnc cutting router machine is suitable to work on aluminum, wood, MDF, acrylic, artificial materials, etc, such as classical furniture, relief, doors, advertising products, wooden products, computer
