Dual Head Wood Board CNC Cutting and Engraving Router Machine

Name: Dual Head Wood Board CNC Cutting and Engraving Router Machine
Brand: DEKCEL CNC
Rating: 5.0 (72 reviews)

Dekcel cnc dual wood cutting and engraving router is suitable for mass processing cabinet door,wooden door,solid wood furniture,panel wood furniture,windows,tables and chairs,etc.Well suited for processing panel insulating materials,plastic,expoxy resin.carbon mixed compound,etc.

Availability:

Quantity:



Inquire

Model:
DEK-1325M-2
Brand:
DEKCEL CNC
Code:
145

Product Description

Dual Head Wood Board CNC Cutting and Engraving Router Machine
Dual Head Wood Cutting and Engraving Router Machine.jpg

Machine Features of Dual Head CNC Wood Cutting Router

1.The distance between heads can be adjusted according to the working pieces being processed.

2.equipped with 2 or 3 heads; the machine one time can complete the works done by several machines, to save cost and improve the working efficiency.

3.it is possible to start any one of the heads only.

4.spindle power is selected according to customer's requirements.

5.rotary attachment is optional, which enable the machine to engrave on column work pieces like table leg

6.especially firm structure and special design on details make the machine to achieve the best performance results.

Configurations of Multi Heads Wood CNC Router:

# 1300*2500mm*200mm effective working area

# Double separate heads with 2 pieces 3kw Italy HSD spindle

# Vacuum & T-slot working table

# 5.5kw Taiwan DELTA inverter

# Z axis with Taiwan TBI Ball screw transmission

# X,Y axis with high precision helical rack gear transmission

# X,Y,Z axis with Taiwan #25 HIWIN Linear Guide

# DSP control system ,Original type

# Stepper motor and driver

# Double motors for Y axis

# Tool calibration sensor

# Oil lubrication system

# Switch: Japanese OMRON Switch

# Cable: Highly flexible towline; fire-resistant double-sheathed cable.

# Artcam /Type 3 software

# Voltage: 380V, 3 phase, 50/60HZ (220v,1phase or 3phase for your option)

Technical Paramerter of Dual Head Cutting Router

Items	Basic configuration
working area	1300*2500mm
Material	Welded steel pipe machine holder and machine bed
Moving way	Gantry moving
Working table	aluminium T slot working table
Guide way	XYZ-axis linear square guide rail
Driving mode	XY rack gear, Z ballscrew
Z-axis working area	200mm ( can be customized )
Max traveling speed	25000mm/min
Engraving speed	12000mm/min
Mechanical precision	0.05mm
Driving method	Stepper motor
Spindle	3.2kw water cooling
Spindle speed	0-24000rpm
Collet type	ER 20
Tools diameter	3.175mm, 4mm, 6mm,8mm,10mm,12.7mm
Control system	PCI NCStudio
Compatible design software	Artcam, Type3, Ucancam, JDPaint, MasterCAM
Command	G code ,U00, mmg nc,etc
Voltage	AC 380V,50/60Hz
Accessories	Water pump, tools, NcStudio card, USB line, brush, spanner, collet, fixtures, user manual CDs.
Other optional items	Mach3 or DSP control, water cooling spindle, dust colletor, auto oiling system,vacuum table,japan yaskawa servo motor and driver,rotary axis, wirelesshandwheel

Details of 2 Head Wood Cttting CNC Router

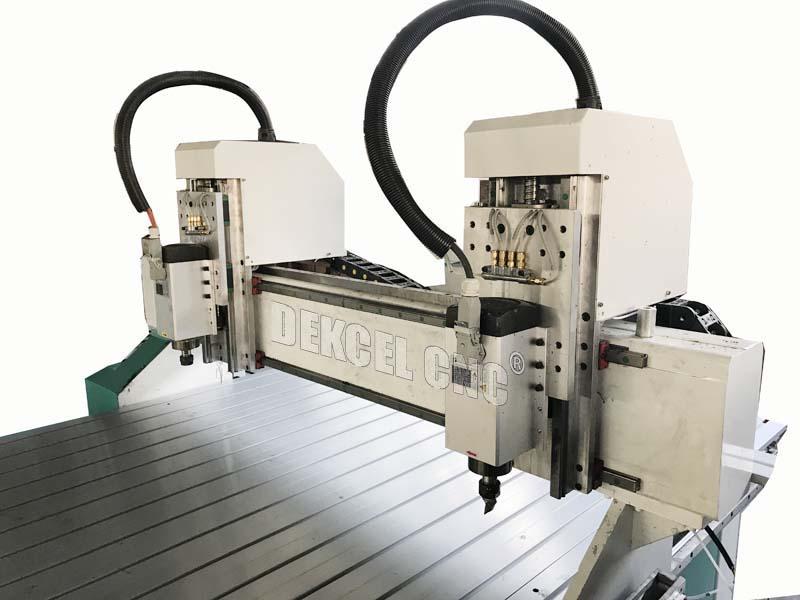

3.5kw air cooling Wood CNC Cutting and Engraving Router spindle

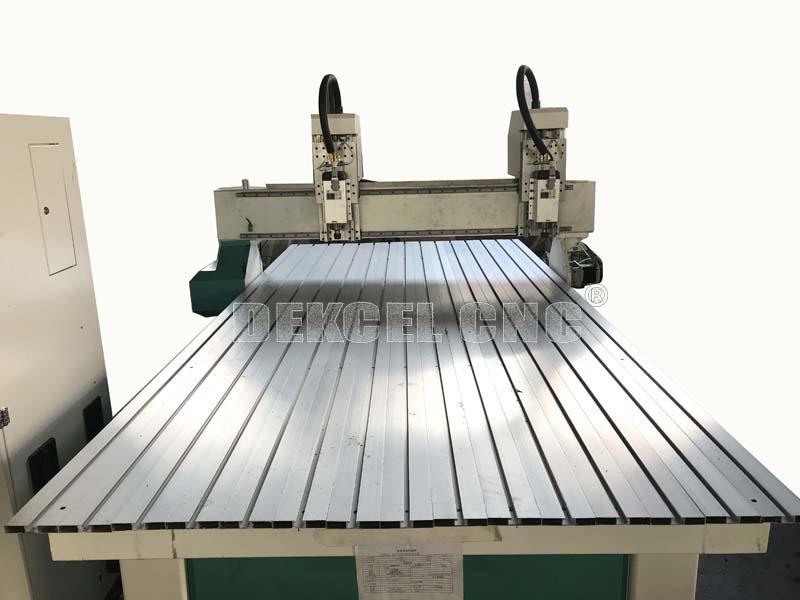

T-slot working table for Wood CNC Cutting and Engraving Router.jpg

T-slot working table for Wood CNC Cutting and Engraving Router

3.5kw air cooling Wood CNC Cutting and Engraving Router spindle.jpg

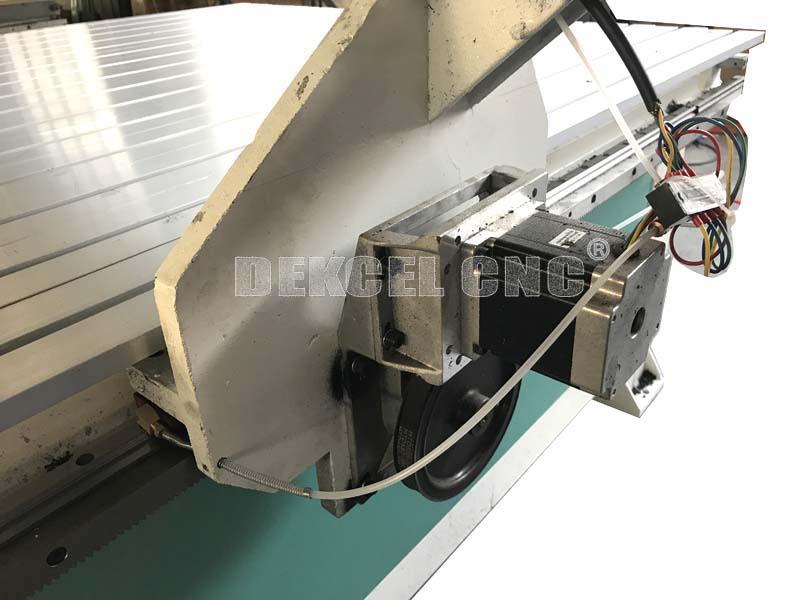

Dual Head Wood Board and Engraving Router stepper motor

Dual Head Wood Board and Engraving Router stepper motor.jpg

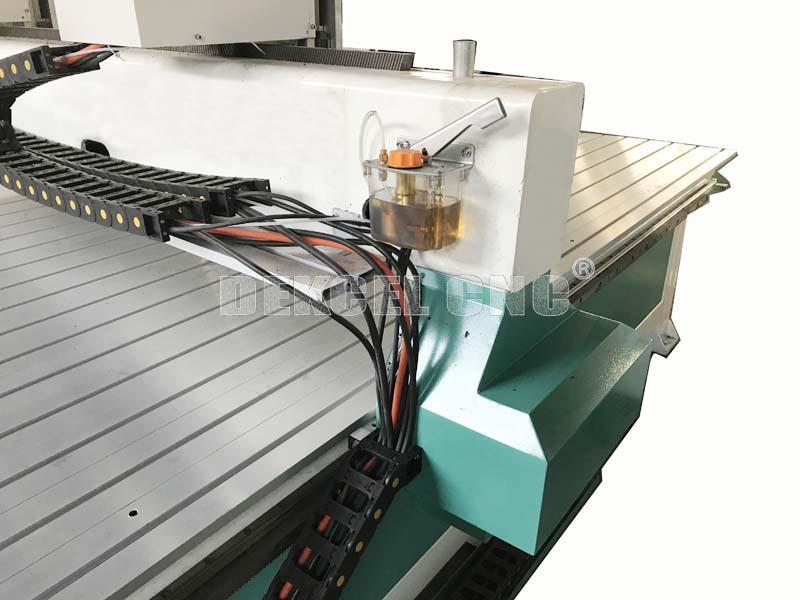

Wood Board CNC Cutting and Engraving Router Machine lubrication system

Wood Board CNC Cutting and Engraving Router Machine lubrication system.jpg

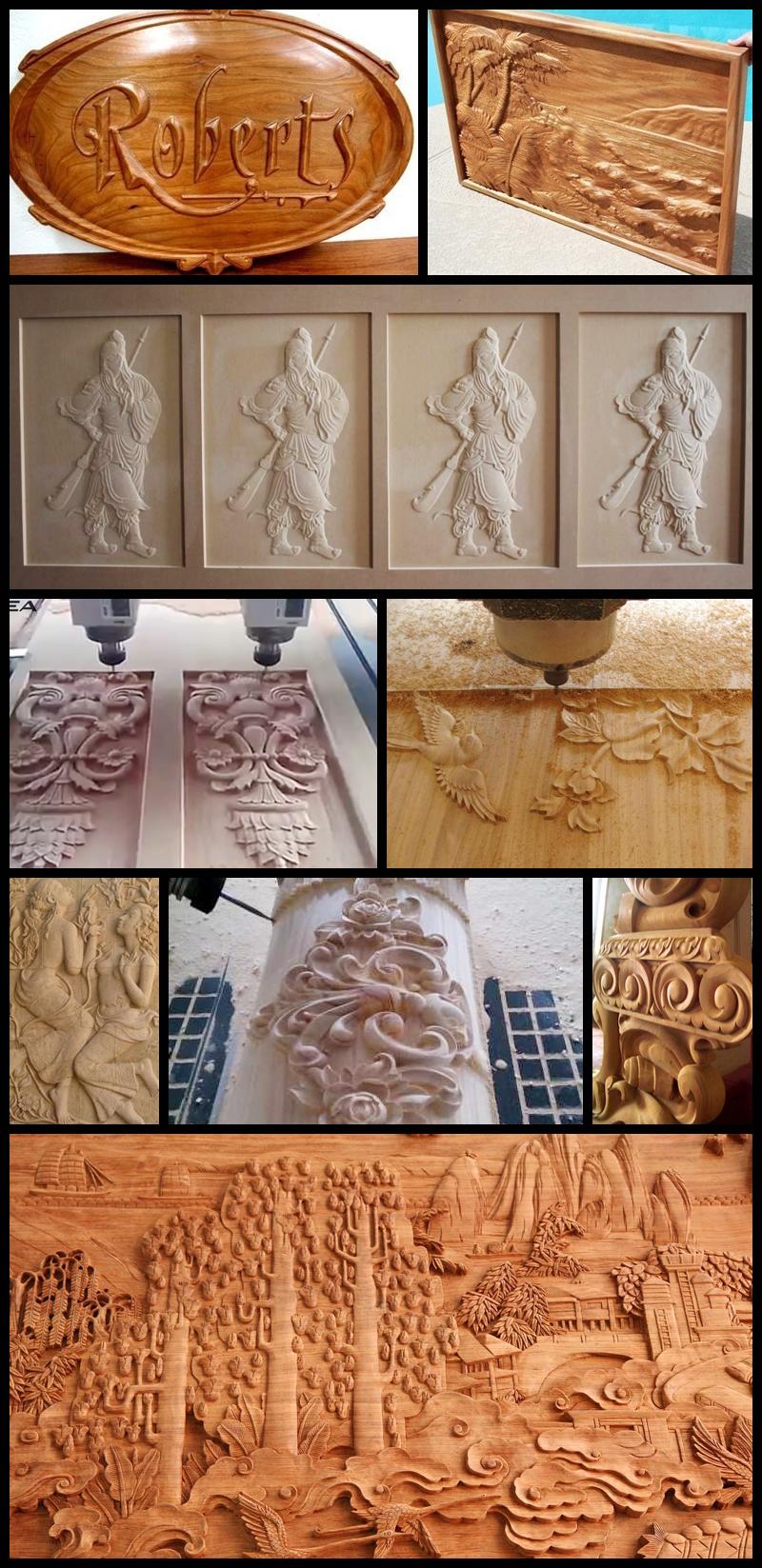

Applications

1.Wood working: Solid wave board process,door of cabinet,wooden door,artistic wooden door,no-paint door,avoid wind
process of the artistic window,shoes cleaning machine,the cabinet of the playing machine and the board,mahjong table

2.Advertising: Advertising board,Label design,Acrylic cutting,model, of the multi material decoration products.

3.Model industry: It can engrave on the metal materials such as copper, aluminum ,iron etc and non-mental materials such as man-made marble, sand, plastic board PVC materials, wood board etc.

4.Other field: It can engrave many image, embossment,and widely used in artistic industry.

dual head wood cutting and engraing cnc router sample.jpg
