China best advertising woodworking cnc router with vacuum table

Dekcel cnc wood router is mainly applied in woodworking industry, furniture produce industry,furniture decoration,wooden door and window frame processing, and wooden handcraft making industry, manufacturing sewing machine table and cabinet panels, etc

Quantity:
  • DEK-2040M
  • DEKCEL CNC
  • 141

China best advertising woodworking cnc router with vacuum table
China best advertising woodworking cnc router with vacuum table.jpg

Machine Features of China Best Wood Router
1)DSP control system, with U disk available and not need computer ( can be completely off-line operation. ), provides high independence and great convenience for operation.
2)Taiwan TBI balls screws, HIWIN square guide rails, high precision, large load bearing and stable running.
3) Using Professional Dust Collecting System (for Cutting Wood) and Vacuum System (for absorbing objects)
4) Y axis use servo/stepper motor drive, select matching to ensure smooth movement.
5) Auto seeking original point system, a good way to improve the working effeciency.
6) Large compatibility of drawing software, such as Type3, artcam and some other CAD or CAM.
Parameter of woodworking router machine
X,Y,Z working area 2000*4000*200mm
Motor and Drive Stepper motor and Yako drive
Table size 2200*4540mm
Spindle  Italy HSD spindle/ watercooling spindle 3kw, or 4.5kw
Inverter Taiwan Delta frequency inverter
Machine table Bakelite table(vacuum table with T-slot, $500 optional)
X, Y, Z Travelling Potioning Accuracy ±0.05/300mm
X, Y, Z Travelling Repositioning Accuracy ±0.05mm
Frame Steel Square Tubes up to 8mm
X, Y structure Rack and pinion drive, Hiwin square rail linear bearing
Z axis structure Ballscrew and Hiwin square linear rail
Max Rapid Travel Rate 25,000mm/min
Max working speed 15,000mm/min
Working voltage AC380V(220V)/50Hz
Command languages G code
Control system DSP control system
Software Artcam English version
Limit stop Hard limit stop and Solenoid limit
Package In wooden box
Option
- 4.5kw water cooling spindle,with high strength.

- Dust collector:

- Rotary attachmnet

Details of woodworking router machine with vacuum table

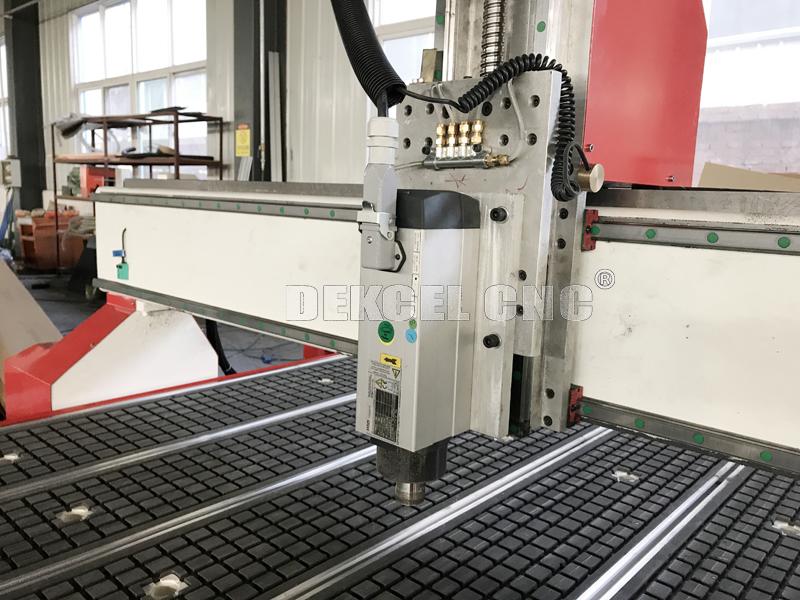

3.5kw air cooling spinde for wood engraving router

3.5kw air cooling spinde for wood engraving router.jpg

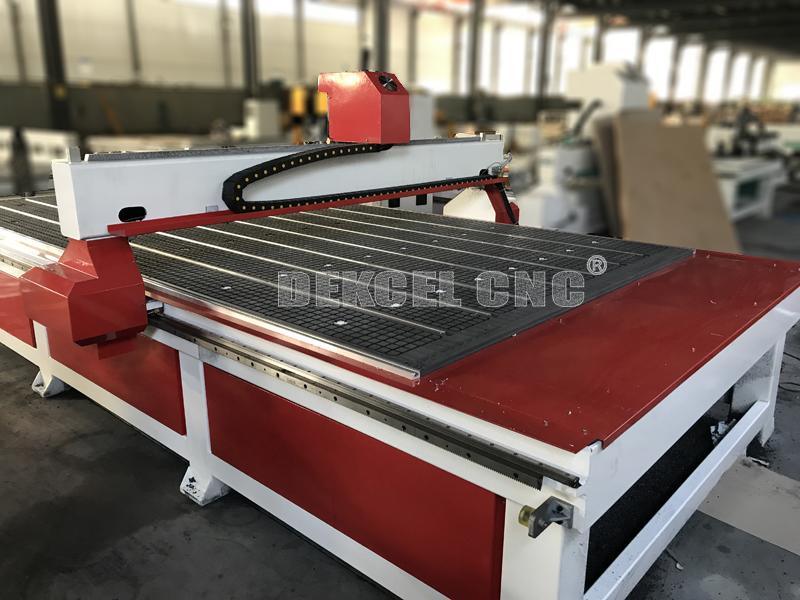

China best wood router machine table and body

China best wood router machine table and body.jpg

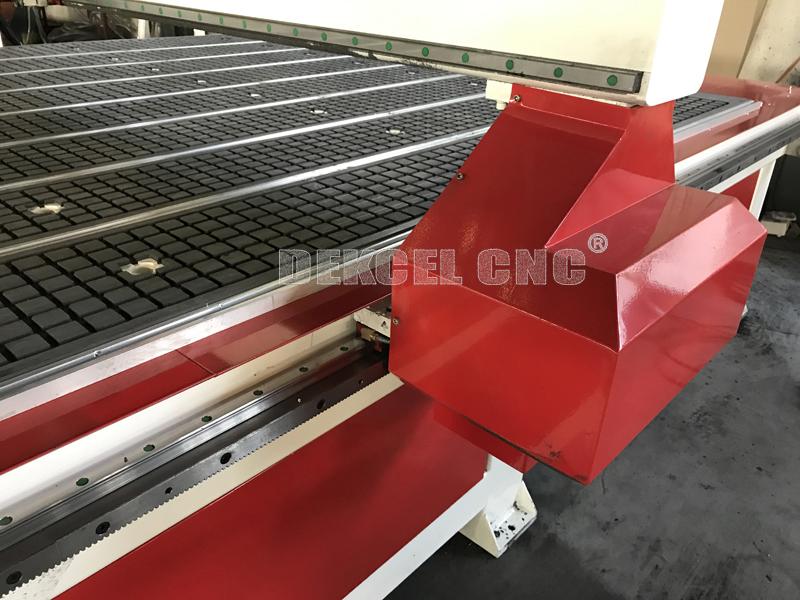

Taiwan hiwin guide rail with high precision

Taiwan hiwin guide rail with high precision.jpg

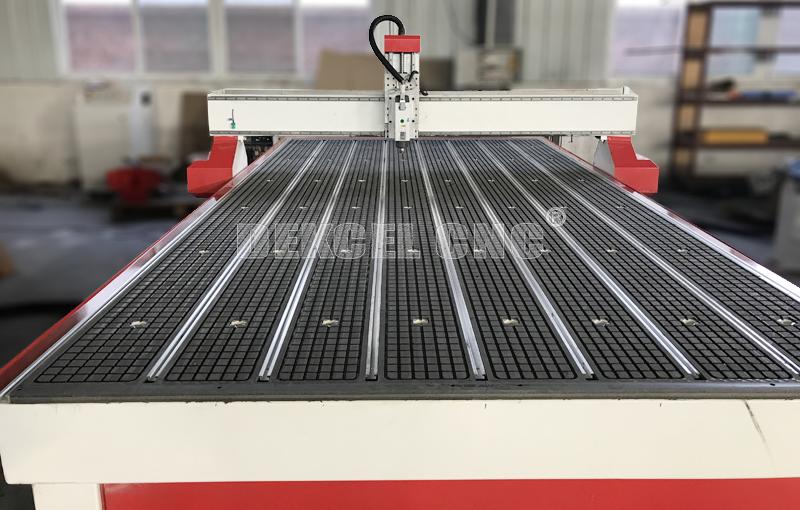

T-slot and vocuum working table for woodworking cnc router

T-slot and vocuum working table for woodworking cnc router.jpg

Application of advertising wood router
1. Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising Industry: Advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die Industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.

china best wood router engraving samples.jpg
