China 2030 Wood Acrylic Board Engraving CNC Cutter Router Machine

China DEKCEL 2030 acrylic engraving cnc router suitable for processing cabinet door,wooden door,solid wood furniture,panel wood furniture, windows, tables and chairs, etc.Well suited for processing panel.insulating materials, plastic, expoxy resin, carbon mixed, compound,etc.

Quantity:
  • DEK-2030M
  • DEKCEL CNC
  • 134
Features of China 2030 Wood Acrylic Board Engraving CNC Cutter Router Machiner :

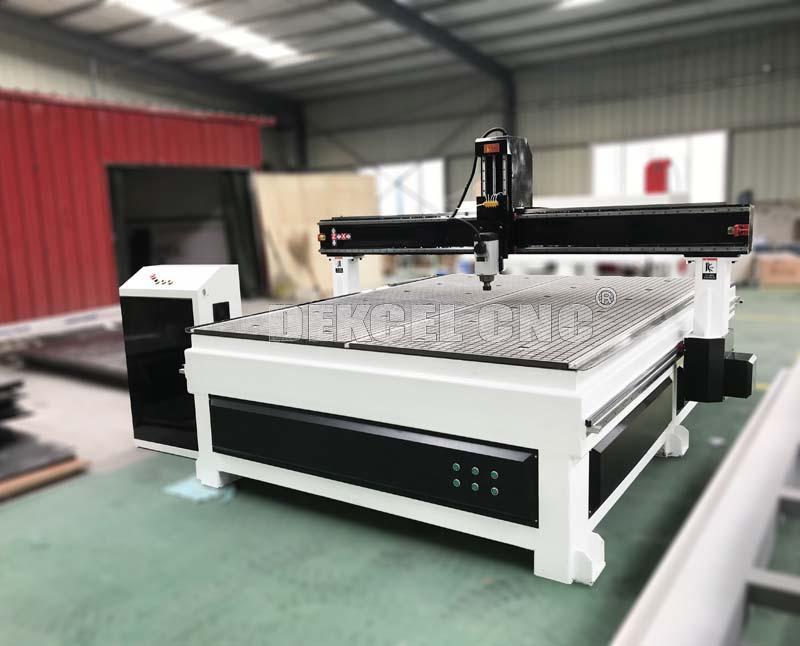

china 2030 vacuum table engraving cnc router
# Working area:2000*3000*300mm
# Spindle: Italy HSD 3.0kw air cooling spindle
# Control system:Mach3 controller with USB port
# Drive system: Leadshine stepper motor and driver
# Transmission:XY axis by gear, Z axis by ball screw
# Rail guide: square rail guide from Taiwan
# Table: T-slot table with clam & vacuum table
# Inverter: Fuling inverter
# Tools sensor
# Water cooling vacuum pump
Optional Parts:
1.Vacuum table with 5.5kw/7.5kw vacuum pump
2.125*2000mm rotary device .
3.Leadshine Hybrid / Yaskawa servo motor .
4.Taiwan Delta servo motor and drivers .
5.Taiwan Linear square rail guide .

6. 4.5kw/5.5kw/6.0kw/9.0kw spindle for option .

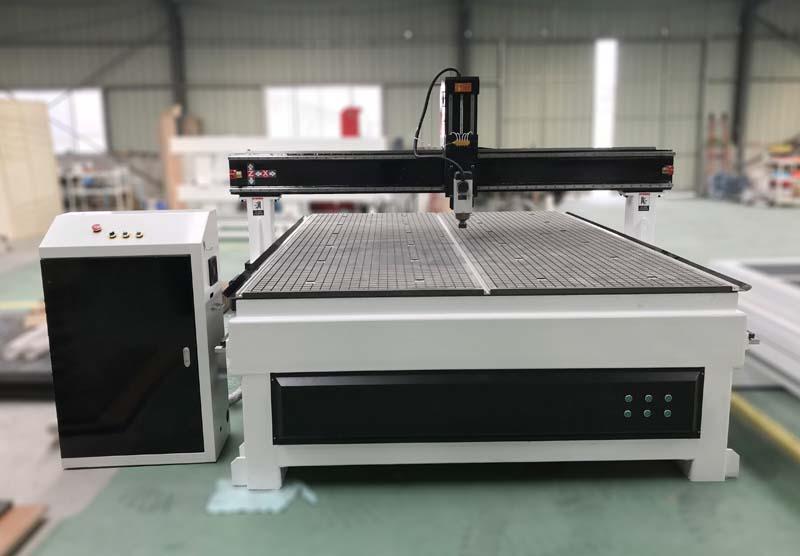

china 2030 engraving cnc router machine

China Engraving CNC Router Technical Parameter

Model

DEK-0609M

DEK-1212M

DEK-1325M

DEK-2030M

X,Y,Z Working Area

600x900x200

1200x1200x200

1300x2500x200

2000x3000x300

spindle power

1.5kw water cooling spindle

3kw Italy HSD air cooling spindle

Spindle speed

0-24000RPM

0-18000RPM

Max. Rapid Travel Rate

9000mm/min

45000mm/min

Max. working speed

6000mm/min

30000mm/min

Table Surface

T-slot PVC working table

Vacuum & T-slot combined table

X,Y,Z Traveling

Positioning Accuracy

±0.01/300mm

±0.03/300mm

X,Y,Z Repositioning

Accuracy

±0.01mm

±0.03mm

Controlling system

NCSTUDIO control system

( DSP for optional)

DSP control System

(Option: SYNTEC, NCSTUDIO)

Working Voltage

AC 220V,1 PH,50/60HZ

AC380V/50Hz/60Hz 3Ph

(Option:220V 1ph or 3Ph)

Frame Structure

Cast Iron lathe bed

Heavy Duty Welded Steel tube structure

Transmission

Taiwan TBI Ball Screw

Driver Motors

Stepper system (Delta servo or Japan YASKAWA servo for option)

Software Compatibility

Type3 Software  (Option: Art cam Software )

Details Show of 2030 Engraving CNC Router

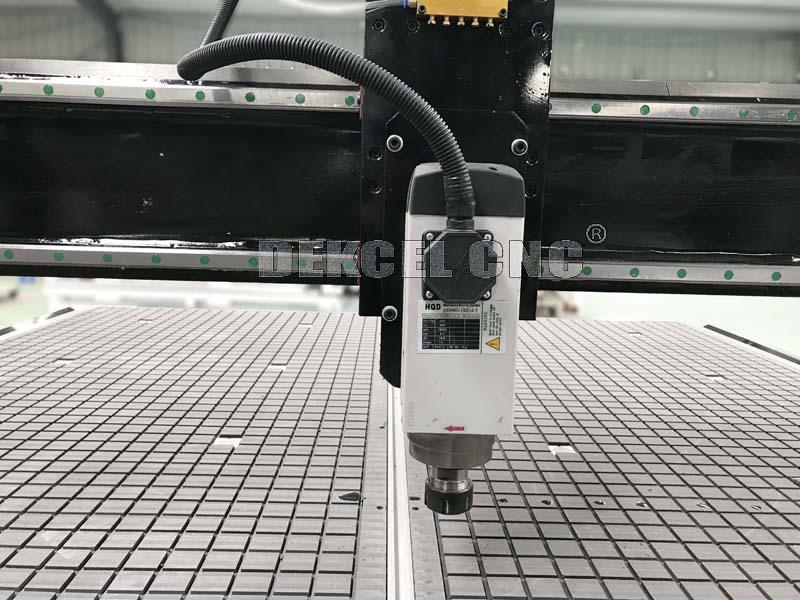

1. 3.0kw Italy HSD air cooling cnc router engraving spindle

3.0kw Italy HSD air cooling wood engraving cnc router spindle.jpg

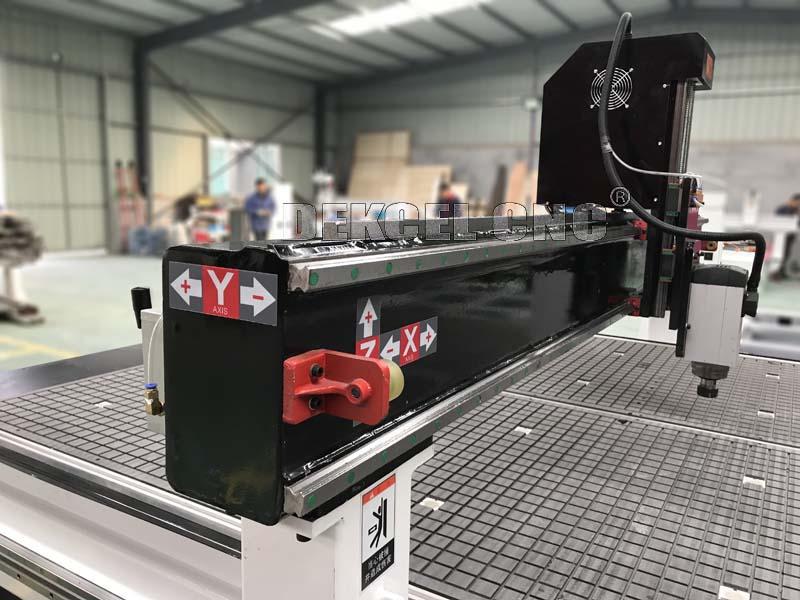

2. 2030 acrylic engraving router with hiwin guide rail,offer high cutting precision for you.

2030 acrylic engraving router with hiwin guide rail

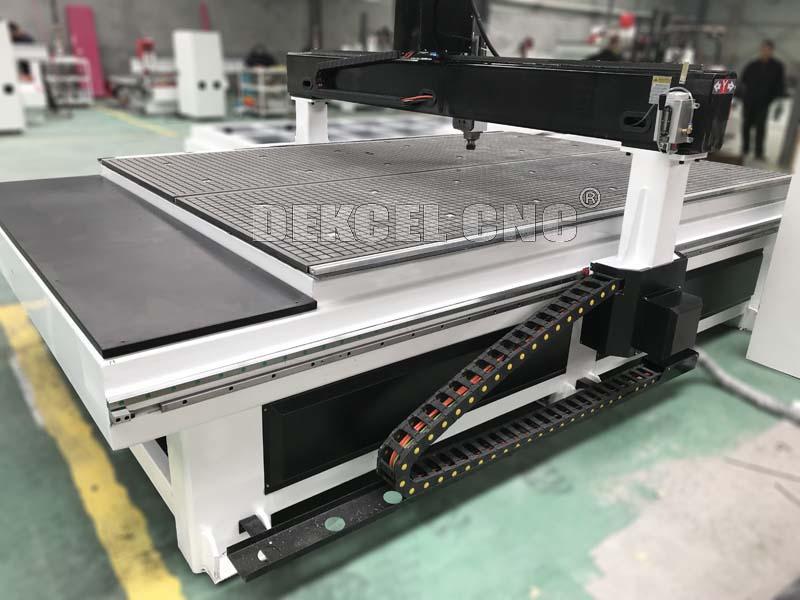

3. Machine with vacuum engraving table and T-slot table

2030 engraving cnc router with vacuum working table.jpg

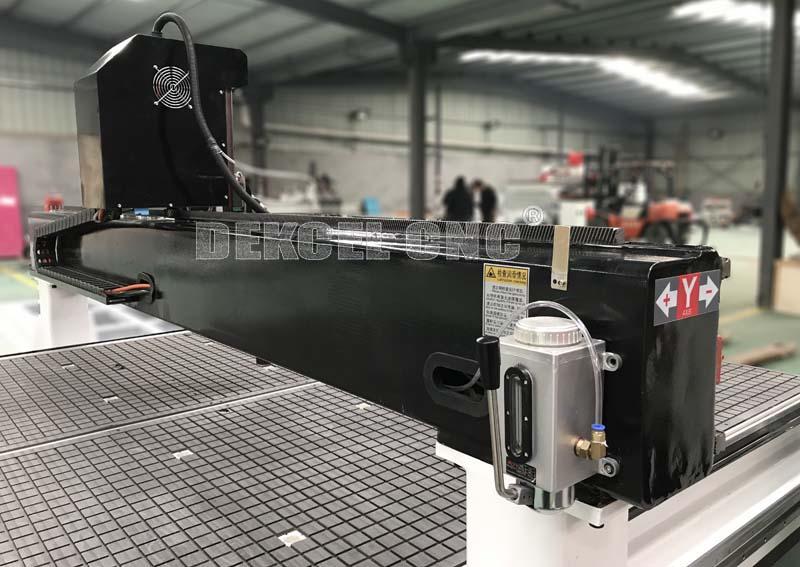

4. Wood acrylic cutter router machine lubrication system

wood acrylic cutter router machine lubrication system.jpg

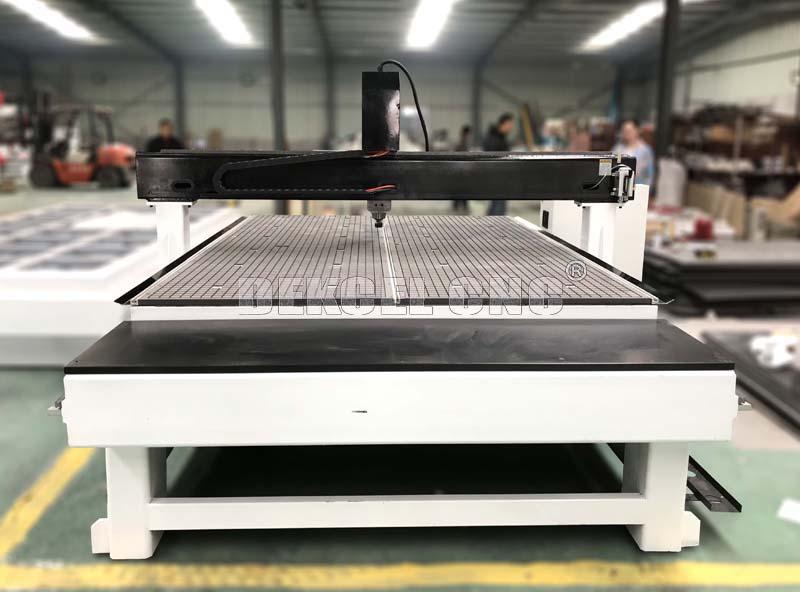

5. 8mm thickness tube welding heavy duty frame for engraving cnc router

heavy duty acrylic engraving cnc router.jpg

Application of China Wood Engraving CNC Router :

china acrylic wood engraving machine samples.jpg
Woodworking Industry:
furniture decoration, musical instruments,wooden crafts, solid wood furniture,MDF paint-free door, wood composite door,wardrobes, bedside cabinets, windows and doors etc.
Decoration industry:
 Art model, Wall Art, screen relief engraving and cutting,decoration processing, gifts wrapping, waved plate,electrical cabinets panels, sports equipment, and other wooden industrial products.
Advertisement Industry:
Acrylic, PVC, ABS board, aluminum plate, density board, artificial stone, organic glass, soft metals like aluminum and copper, cut matrix,character, signs, trademark etc.
