Pneumatic Polyethylene Foam EVA Rubber Package Oscillation Cutter Machine

Dekcel cnc pneumatic oscillation foam cutter machine use the knife blade for cutting.The cutting thickness from 0.5mm to 100mm.If the thickness of the foam that you want to cut is more than 100mm,we can customized the machine for you.Our pneumatic polyethylene foam oscillation cutter drive by high accuracy Japan YASKAWA servo motor and driver,fast cutting speed and high precision.
  • DEK-1625


  • 158

50MM Polyethylene Foam Pneumatic Oscillation Knife Cutter Video

Pneumatic Polyethylene Foam EVA Rubber Package Oscillation Cutter Machine

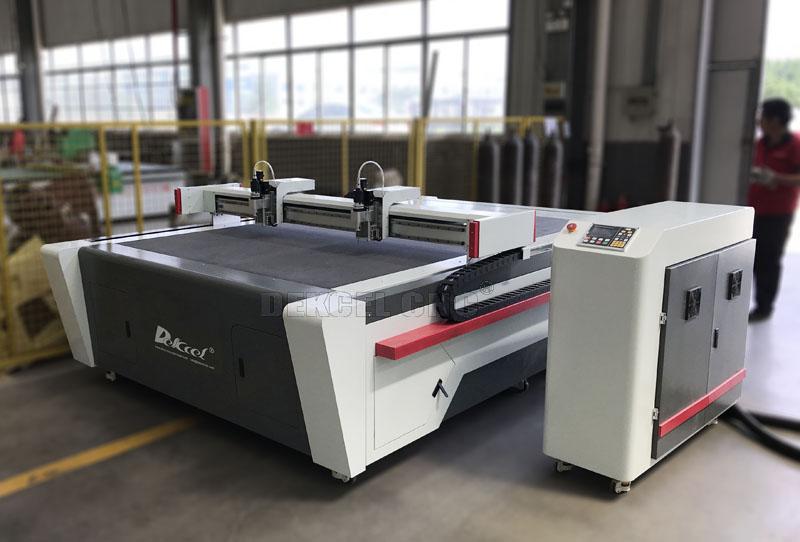

foam package pneumatic knife cutting plotter

The Pneumatic Oscillating Tool is an air-driven tool particularly well suited for cutting tough, dense materials but can also handle soft, thicker ones. Digital pneumatic oscillation foam cutter machine is the fastest, cleanest and easiest way to cut polyethylene foam, and other types of foam.According the difference thickness of the material,choose different kinds of knife cutting blade.

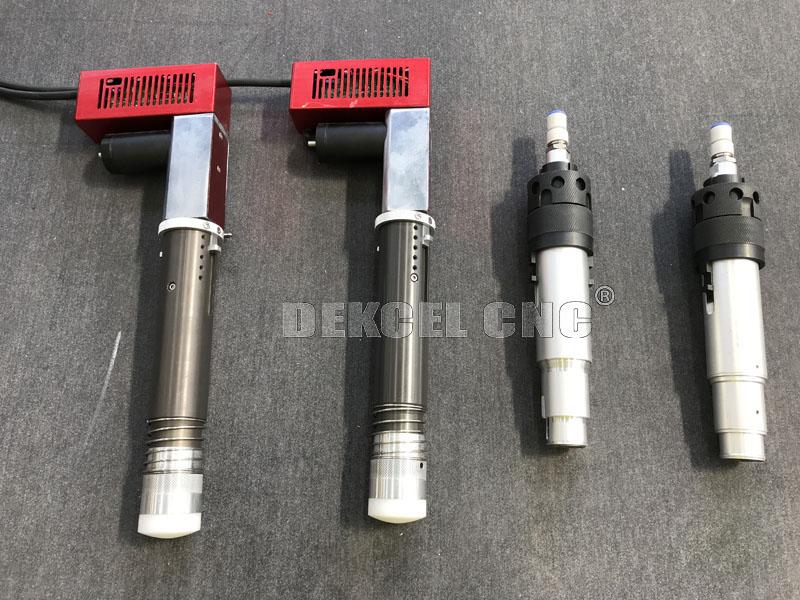

oscillation and pneumatic oscillation cutting plotter Tool

Advantages of Pneumatic Oscillating Tool Knife Cutting Machine:
Max. cutting speed: 1200mm/s
Dekcel Pneumatic Oscillation Tool Foam cutter machine is 3 to 5 times faster than traditional manual cutting.
2. Material Saving
Dekcel foam oscilaltion knife cutting machines are computerized.
Accurate and material saving.
3. Compatible
Our cutting machines support any design software which can output files in DXF or PLT format.Eg: AutoCad, Coreldraw, AI, etc.
4.User friendly
All the sharp turnings can be controlled on the machine.
A free training is supported at our company or on your site. We assure you can operate the machine.
Technical Parameter of Foam Pneumatic Oscillating Tool Cutter
Model                   DEK-1625 DEK-1530 DEK-2030
Multi Cutting Head (option) Oscillating knife,V-cut,Circular knife,Punching,CCD camera,
creasing wheel,cross red laser,pen etc.
Control System TrocutCAD Oscillation Cutting Software - TC6828
Moving Speed Max. 2000mm/s
Cutting Speed Max. 1000mm/s(please set the speed according to the material)
Material Applicable Corrugated paper, PVC, KT board, foam, blanket, leather ect
Cutting Depth Max 50mm (depends on the material)
Material Fixing Method Strong power vacuum absorption and intelligence Partition
Accuracy Max 0.01mm
Mechanical Precision Max 0.02mm
Drive System Japan Yaskawa AC servo motor. Linear guide rail
Working Table  Vacuum plate table /auto feeding plate optional
Operation Mode worktable + data output control software
Display English LCD touch screen
Buffering Capacity Standard--4GB
Rated voltage AC380V±10%,50-60Hz
Option Device Auto feeding system
CCD camera visual cutting device
oscillation knife cutting machine can be customized according to your request

Details of Polyethylene Foam Cutter Machine

- Our foam oscilaltion and pneumatic cutter machine use replaceable tool base,you can choose the suitable cutter tool according the materials.

POT and EOT oscillation Cutting Tool

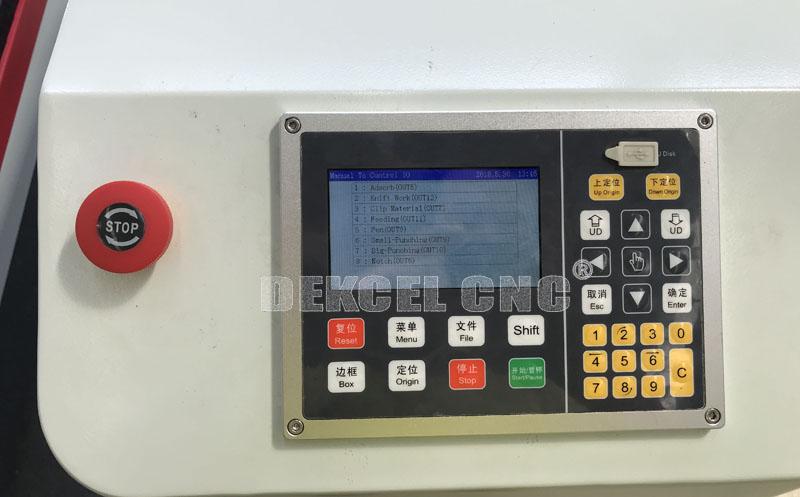

-TrocutCAD conreol system

foam package pneumatic cutting machine

-Pneumatic Oscillation Tool for foam cutting,cutting thickness from 0.5mm-100mm.or we according your request custized the machine for you.

pneumatic oscillation knife cutting machine

- 9kw-11kw vacuum pump,material can sucked tightly on the working table.

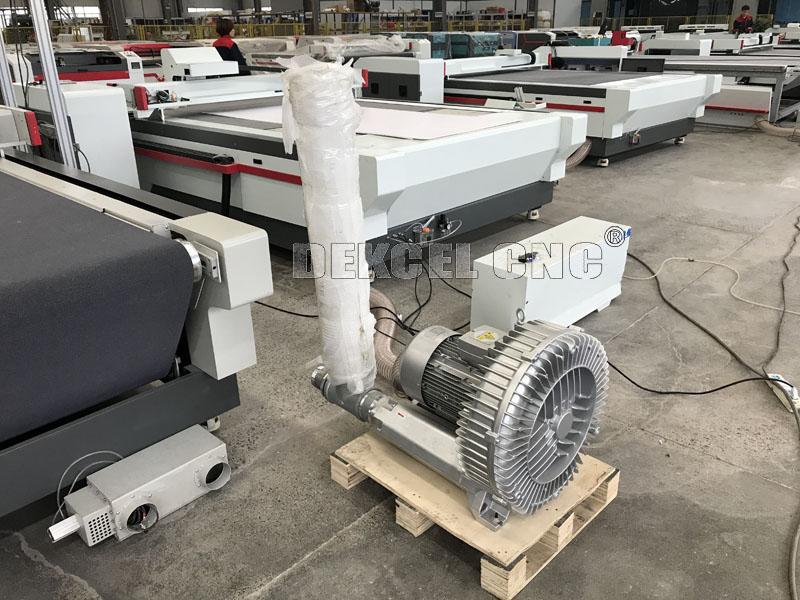

vacuum pump for foam cutting plotter machine

-Machine use Jpan YASKAWA servo motor and driver,fast cutting speed and high precision.

foam oscillation cutting machine controller

Application of Foam Oscilaltion Knife Cutter Machine
Besides polyethylene foam,EVA foam, Dekcel digital Pneumatic Oscillating Tool foam cutter machine can cut many types of foam, such as closed cell foam, rubber foam, foamex, foam core, KT board, EPE foam, polyethylene foam, PE foam, PVC foam, etc. It's widely used for packaging protection, advertising display, termal insulation, model & mock up making, puzzle and pattern cutting, etc.

50mm foam oscillation pneumatic cutting machine

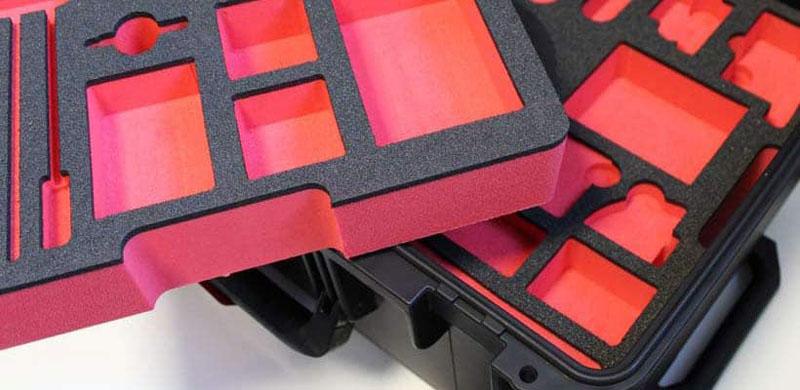

foam package oscillation cutting machine

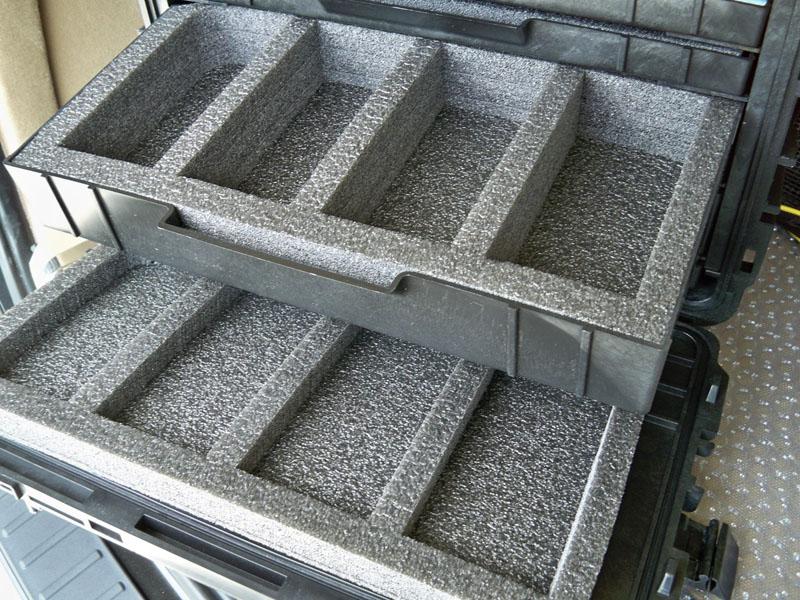

foam package oscillation knife cutting machine

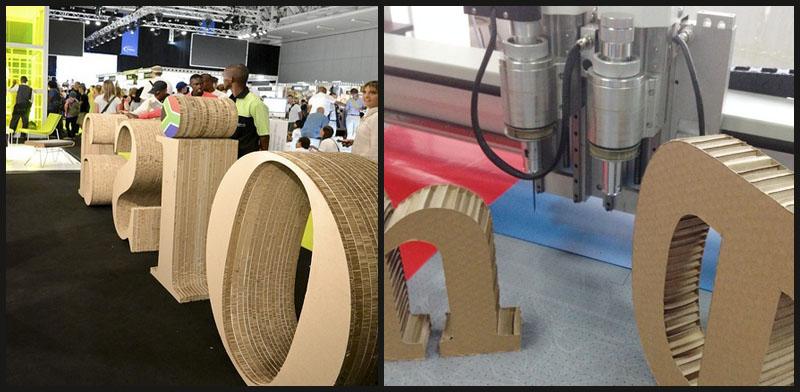

corrugated board oscillation cutting plotter
