Brand of DEKCEL, CNC router, CNC laser, CNC parts manufacturers and suppliers in china. Supply different types of cnc routers machine used in different industries.
 |
| Quantity: | |
|---|---|
DEK-1625M
DEKCEL CNC
192
Printed Foamed PVC Board CCD Camera Vision Cutting Machine
| Model No. | DEK-1625M | DEK-1630M | DEK-2030M |
| Cutting speed | 200-800mm/s(depends on the kind of material) | ||
| Moving Speed | 100-2000mm/s | ||
| Cutting Depth | 35mm-70mm (depends on the kind of material) | ||
| Min.Cutting Diameter | 6 mm | ||
| Cutting Media | Corrugated Paper, Cardboard, Grey cardboard, Plastic board,Foam,EVA,Rubber, Fabric,Leather,Gasket,PVC,Paper,Nylon, Composite fiberglass material, etc. | ||
| Multi-function Tool Head | Electric Oscillating Tool ,Pneumatic oscillating Tool, Creasing Wheel,V-cutter,Camera Vision System,Punching Tool,Spindle,Mark Pen,Kiss-cut Tool, Drag Tool | ||
| Safety Devices | Safety devices use infrared sensing, safe and reliable | ||
| Fixture Device | Individual section vacuum suction | ||
| Repeat Cutting Precision | 0.1mm | ||
| Cutting thickness | 50mm-70mm Other thicknesses can be customized according to the material | ||
| Transmission port | Network port | ||
| Control system | Zhongrui control system | ||
| Control Panel | Kinco LED Touch Screen | ||
| Support file format | AI、PLT、DXF、CDR etc | ||
| Transmission System | Japan YASKAWA servo driver ;Taiwan Guide Rail;Synchronous belt | ||
| Power Supply | 380V / 220V , 50Hz-60Hz | ||
| Working Environment | Operating environment Temperature 0-40, Humidity 20%-80%RH | ||
| Package Size | 4310mm*2280mm*1440mm | ||
| Package Weight | 1420KG | ||
Application

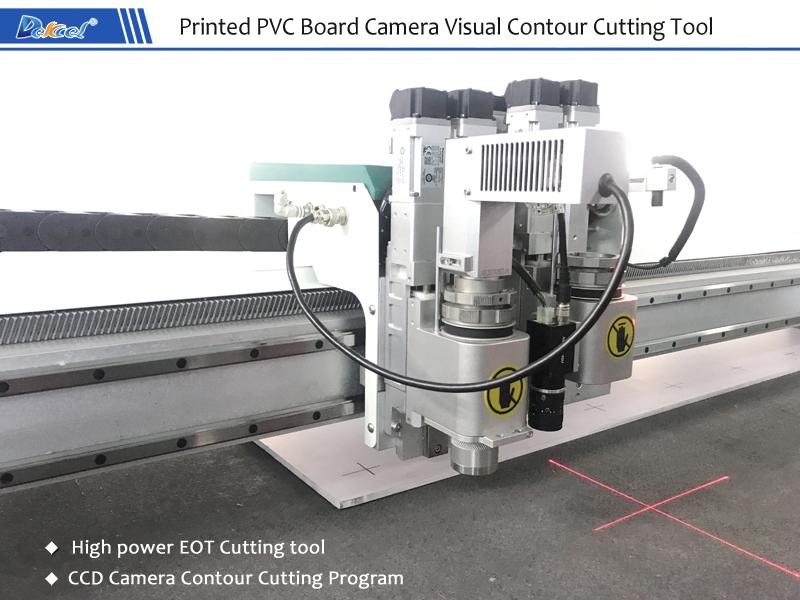

DEKCEL CNC digital printed foam pvc cutting machine equipped with electric oscillating tool and CCD camera contour cutting system,specially used for contour cutting printed pvc board, foamed board, advertising KT board, carton board,stand display, corrugated printing board ect.
Our DEK-1625M cnc knife cutting machine which cuts by knife blade, no burn or black for the cutting edge, which also have good cutting effect for foamed PVC board stand display, printed PVC banner, outdoor advertising sign, super marked display, screen printed patterns ect.
With the automatic CCD camera vision contour cutting program, this model also can be used for cutting printed carton package, cardboard, corrugated board knife cutter machine, paper board, vinyl sticker, leather, fabric, gasket, rubber, foam ect.
After sales service of CCD Camera Vision Knife Cutting Machine
1.one years quality guaranty, the Oscillating knife cutting machine with main parts(excluding the consumables) shall be changed free. Or charge if there is any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.We will provide the consumable parts at an agency price when you need replacement.
5.24 hours on line service each day, free technical support.
6.Machine has been adjusted before delivery.
7.Our staff can be sent to your company to install or adjust if necessary.
If you are not sure which machine is suitable, please tell me the following questions:i will recommend the most suitable machine to you.
1). what materials do you want to cut?
2). what's the max size and thickness of the materials?
For more machine working videos, please check our CNC Knife Cutting Machine Videos Gallery .
Dekcel CNC Sincerely At Your Service
