Vinyl Leather Cutting Machine | Fabric Punching Pen Drawing Knife Plotter Cutter Machine

Dekcel cnc leather oscillating knife cut,punching, pen drawing plotter machine with auto feeding conveyor system special for cutting soft material like fabric,leather,garment,fur,textile,plush material ect, mainly used for cloth industry.Machine fixed with replaceable tool base, you can easily change the cutting tool according the materials.
  • DEK-1625M/DEK-1630


  • 186

Leather Oscillating Knife Cut ,Punching,Pen Drawing Plotter CNC Machine

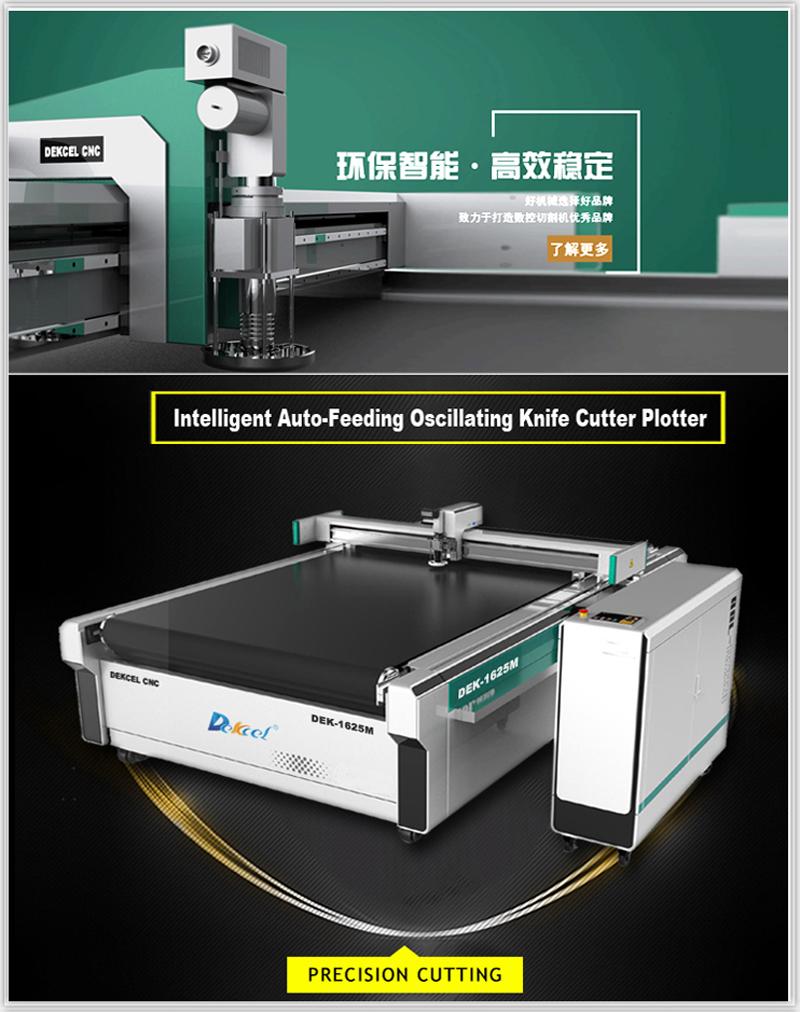

cnc auto feeding fabric leather oscillating cutter plotters

Dekcel cnc oscillating cutter plotter machine mainly focuses on the intelligent cutting of non-metallic material in different graphics, it can quickly complete various processes such as full-cutting,half-cutting,milling, punching,creasing,pen drawing etc.Our oscillating plotter adopt Japan YASKAWA servo driver by gear & rack transmission system,fast cutting speed and high precision performance,improving production efficiency and save cost.

Machine advantage of Leather Oscillating Cut Plotter Machine

1. Dekcel cnc oscillating plotter equipped with a variety of amplitude tools for different materials,ensure high-speed,high-efficiency,high-quality production and processing of various types of non-metallic flexible materials,by selecting different angles cutting blades such as 45°, 26°, 16 for cutting different thicknesses materials.
2. Our oscillating plotter choose replaceable tool base,you can quickly change the tools for different kinds of material.
3. Full range of tools: milling router, oscillating knife, V-cut tool, drag tool, creasing tool, kiss-cut tool, plotting pen, etc.Different tools are applied for different materials.
4. Aluminium alloy platform with vacuum absorption,strong suction easily for absorbing material.
5. Adopting Zhongrui high performance multi-axis motion control system, which is convenient and economical to maintain and provides personalized development service.
6.The Anti-collision and the built-in auto-sensing devices ensure the security of the intelligent digital?

Technical Parameter of Leather Cutting Punching Plotter

Technical parameter DEK-1625M DEK-1630M
Effective working area 1600x2500mm 1800x3000mm
Multi-function tool Oscillating knife full cut, semi-cutting cut, indentation, drawing mark, cursor positioning,
camera positioning edge cutting, high power active round knife
safety devices Safety devices use infrared sensing, safe and reliable
Cutting speed 200-2000mm/s
Cutting thickness ≤50mm Other thicknesses can be customized according to the material
Applicable materials Knitting, woven, fur (sheep shearing), PU leather, oxford cloth, canvas, sponge, imitation leather,
cotton linen, blended fabric etc. All kinds of clothing, bags, sofa fabrics and carpet fabric etc
Material fixing method Vacuum partition adsorption
Transmission port Network port
Transmission system Yaskawa servo motor, linear linear guide, timing belt, lead screw
rated power 11kw
Rated voltage 380V±10%/220V±10% Optional
Control System Zhongrui LCD touch screen
Operating environment  Operating environment Temperature 0-40°C Humidity 20%-80%RH
Support file format AI,PLT,DXF,CDRetc
 Overall size 3570x2290x1165mm


Details of Leather Cutting,Punching,Drawing Plotter

1.Multi-function tool head : EOT tool, punching tool, plotter pen

cnc oscillating cutter plotter tools

2.Gear and rack for transmission,stable performace,fast cutting speed and hing cutting precision.

cnc oscillating knife plotter transmission

3.Japan YASKAWA servo motor and driver,

cnc oscillating knife cutter motor

Sample of Leather Cutting,Punching,Pen Marking Machine

Dekcel CNC digital oscillating knife cut plotter is equipped with advanced tool module quick replacement, which is strongly universal, easy, convenient and handy.
Leather----Foot pad, automative cushion,trunk mat, leather seat cover,steering wheel cover---- Oscillating knife.
PVC---Foot pad, trunk mat---- Drag tool
Fabric----Seat cover---- Wheel-cut tool
Plastic loop----Foot pad, trunk mat---- Oscillating knife
Plush material----Foot mat, trunk mat---- Oscillating knife
EVA----Trunk mat---- Oscillating knife
XPE----Trunk mat---- Oscillating knife
Blended material----Seat cover, foot mat---- Drag tool

Cashmere material computer cutting machine----foot pad trunk box----vibration knife

oscillating knife cut plotter samples

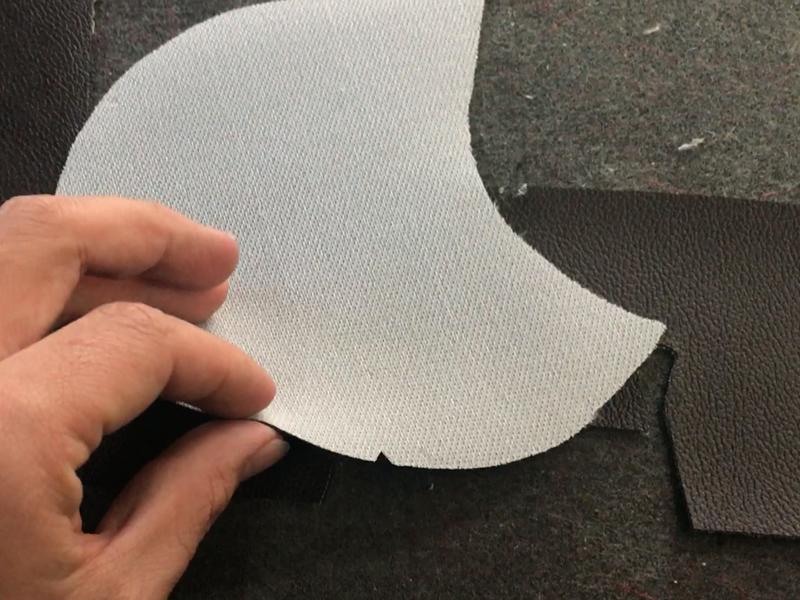

leather punching plotter machine

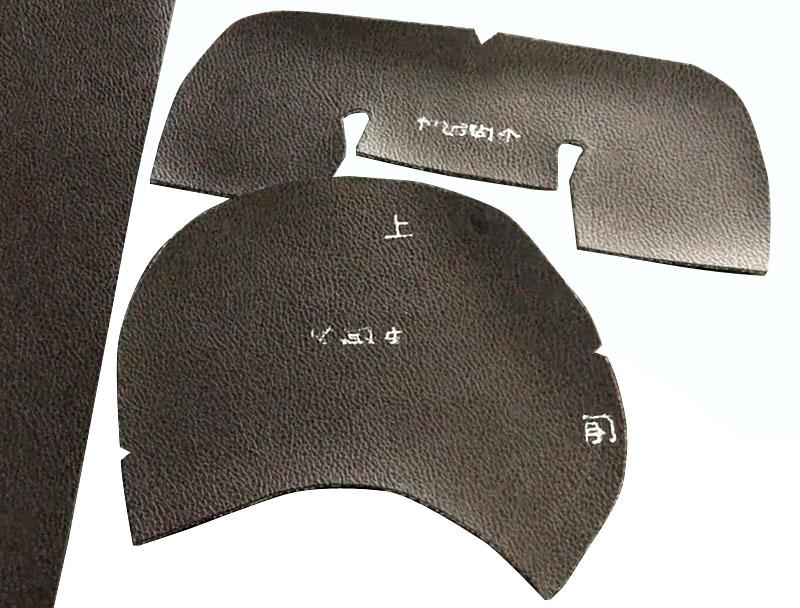

leather punching and oscillating cut plotter
