DEK-1625
DEKCEL CNC
157

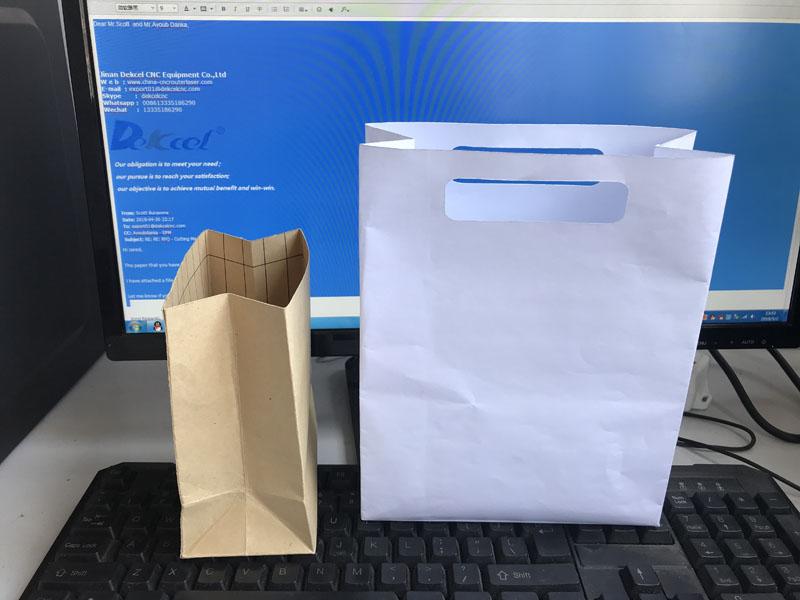

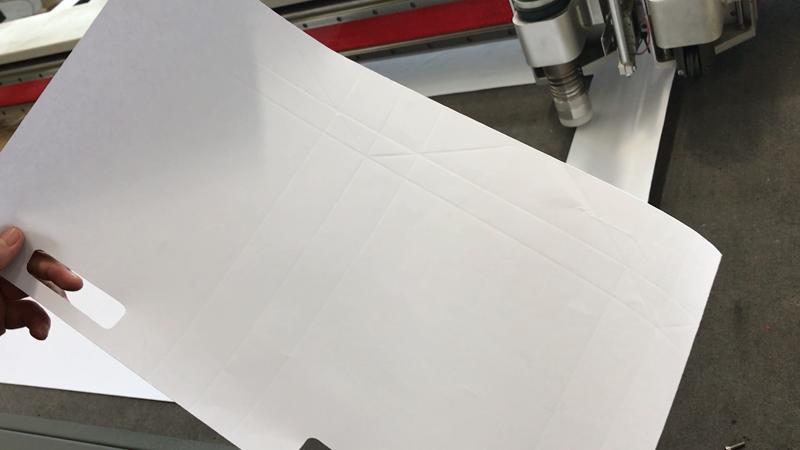

KFC/Starbucks Take Away Package Bags Oscillation Cutting and Creasing Machine
Take Away Paper Bags Package Box Creasing Oscillation Drag Knife Cutting Plotter Machine
Model | DEK-1625 / DEK-1825 / DEK-2030 | ||
Our Advantage | 1.A whole piece aluminum platform 2.Welding stable machine structure 3.Servo motor and driver 4.Safety device 5.Fast and convenient tools changing. | ||
Effective working area | 1450mm*2500mm | ||
Cutting speed | 0-1200mm/s | ||
Applicable thickness | 0.5mm-25mm (can be up to 60mm according to your materials) | ||
Cutting Materials | Cloth, textile, fabric, PVC, PU, Car mats etc. | ||

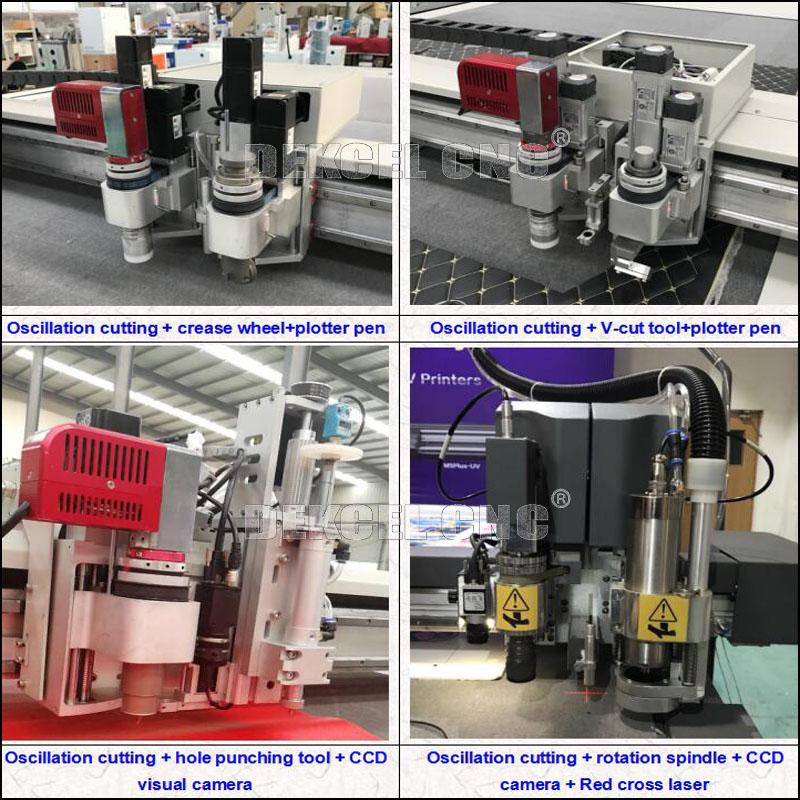

Tools | Oscillating cutting tool | ||
Drag knife cutter, millin knife, creasing wheel, punching tool. (optional) | |||
Marking pen | |||
Material fixing method | Divisional vacuum absorption | ||
Mechanical resolution | 0.07mm | ||
Software resolution | 0.025mm, 0.01mm, 0.1mm (optional) | ||
Interface of transmission | Net port | ||
Command system | HP-GL and GP-GL compatible formats | ||
Digital Control Panel | Liquid crystal display and touching button | ||
Transimission Materials | Combine use of screw rod, aluminum rack and imported synchronous belt to guarantee higher accuracy and durability. | ||
Motor | Japan YASKAWA Servo motor | ||
Vacuum pump power | 9.0KW - 11KW | ||
Machine Working Voltage | AC 220V ± 10%, 50HZ | ||
Air Pump working Voltage | AC 380V ± 10%, 50 HZ |
Details of Bag Box Cutting Plotter Machine

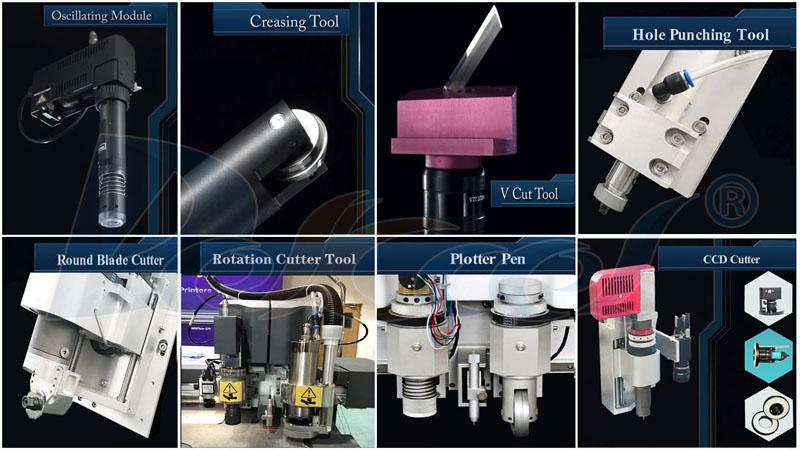

1.Different material need different cutting tools,please tell me all your request,we will offer you the best machine configuration with favorable price.

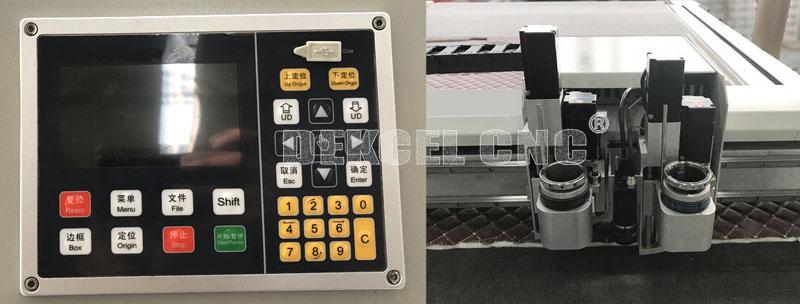

2.TrocutCAD control panel and replacable cutting tool base.You can change the tool according the material manually, very easy and convenience.

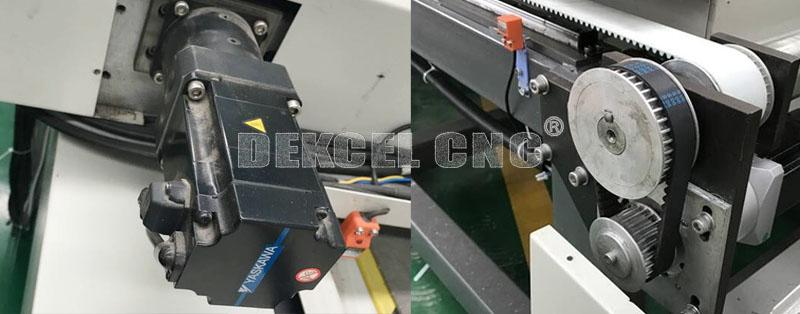

3.Japan YASKAWA servo motor with belt for transmission,with fast cutting spped and high precision .

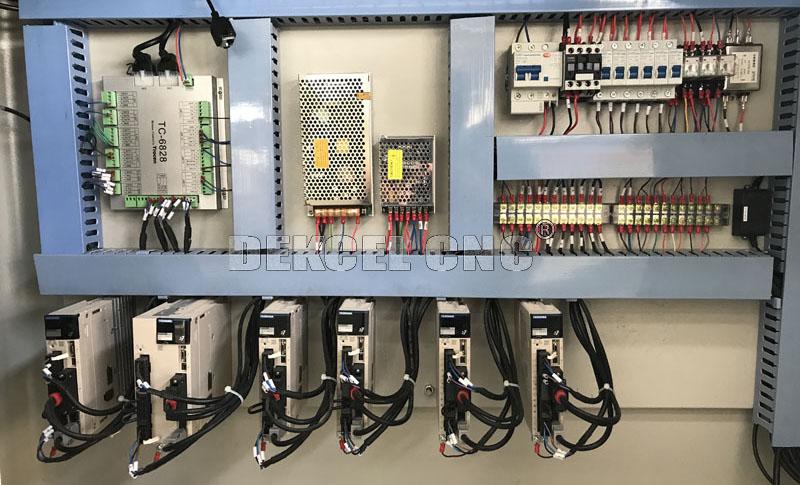

4.oscillation knife cutter plotter controller
5.Our vacuum pump is 9kw-11kw,the vacuum pump feature according to your country voltage,
- if your country power is 380v-50Hz, the pump is 9.0 kw
- if your country power is 380v-60Hz, the pump is 1.1kw.
( note : the vacuum pump will change the output automatically according the voltage hertz. )
Applicable industry of Oscillation Knife Cutter Plotter
adverticing industry, apparel industry,suitacase and purse making, packaging and printing indystry, car inner decoration industry, plush cutting industry ect.
Cutting materials as follows:corrugated cardboard,grey cardboard,coated paper, PVC, PET,PP, acrylic,glass fabric,leather, foam,rubber, etc.
