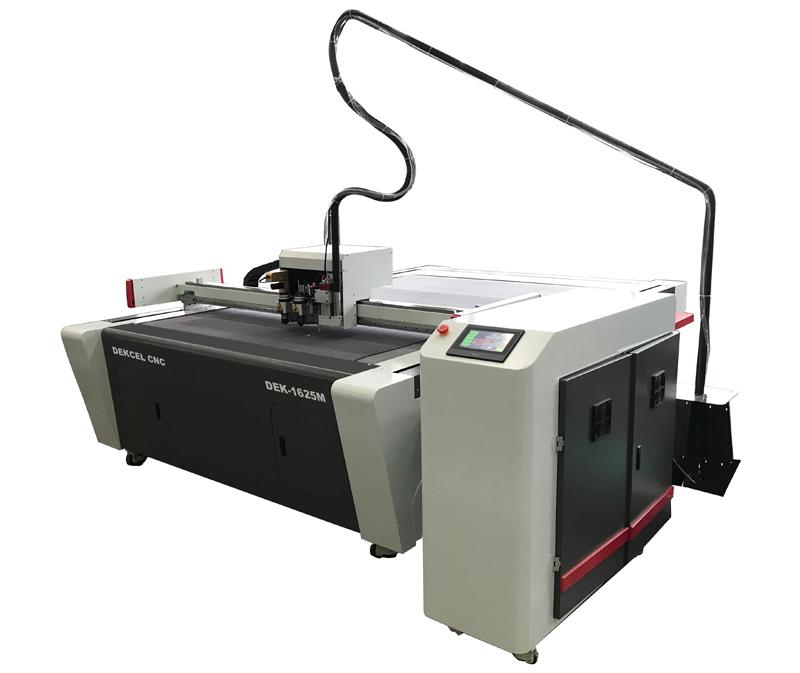

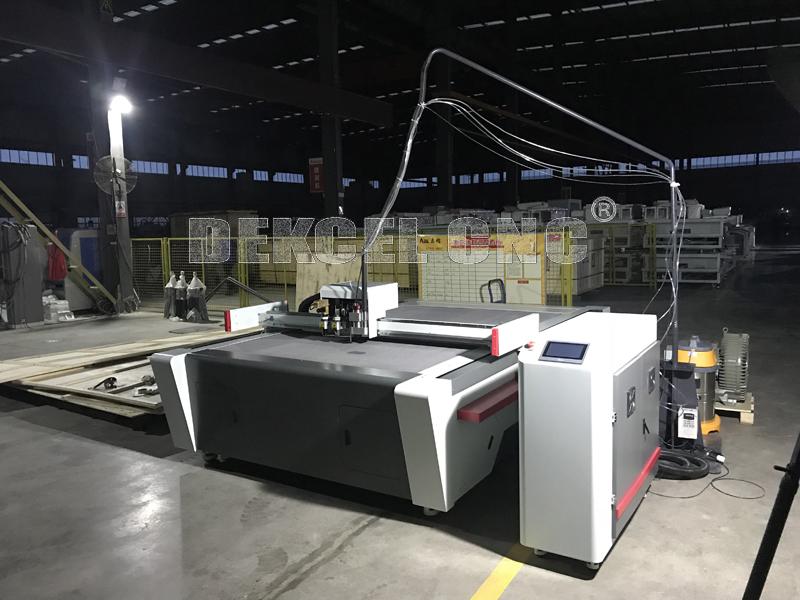

China DEKCEL CNC digital multi-function router modules oscillating knife cutter plotter machine is new design to meet the different customer's request. This router module oscillating knife cutting plotter machine can cut hard material like aluminium sheet, MDF wood board, plastic sheet, composite material ect. Also can cut soft material like fabric, leather, foam, rubber, carton board, gasket ect.
Quantity: | |
---|---|

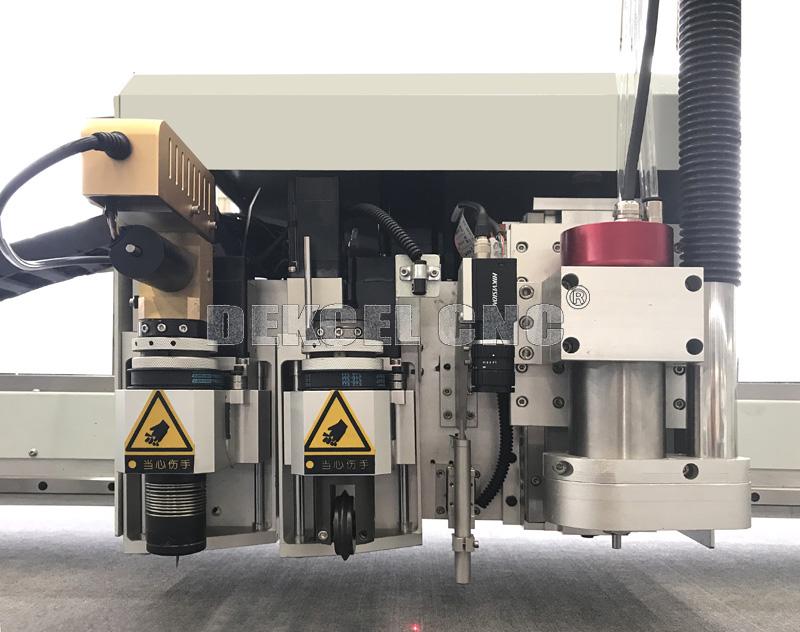

Dekcel CNC DEK-1625M router module oscillating knife cutter plotter machine equipped with EOT( electric oscillating tool ),creasing wheel,plotter pen,CCD camera vision system and 800w router spindle with 60000RPM.
- The high precision oscillating knife cutting machine can induce draft separately and easily cuts small pieces.
- The anti-collision and the built-in auto-sensing devices ensure the security of oscillating knife cutting machine.
- High efficiency can be realized without making a high-cost knife model.
- Save on costs with fast cutting speed and accuracy.
Model | DEK-1625M | DEK-1825M | DEK-1825M | |
Working area | 1600*2500mm | 1800*2500mm | 2100*2500mm | |
Multi head | Japan ASK spindle,EOT tool,POT tool,CCD vision camera,ceasing wheel,plotter pen | |||
Safety device | Infrared sensors, responsive, safe and reliable | |||
speed | 200-2000mm/s | |||
Thinkness | ≤50mm (according to different cutting material) | |||
Cutting Materials | Glass fiber, cotton, carbon fiber, carbon fiber frlt, boron fiber, aramid fiber, composite fiber, PVC, leather, sponge,composite skin, XPE material,foot pad, leather, soft glass,rubber materials and other composite flexible materials | |||

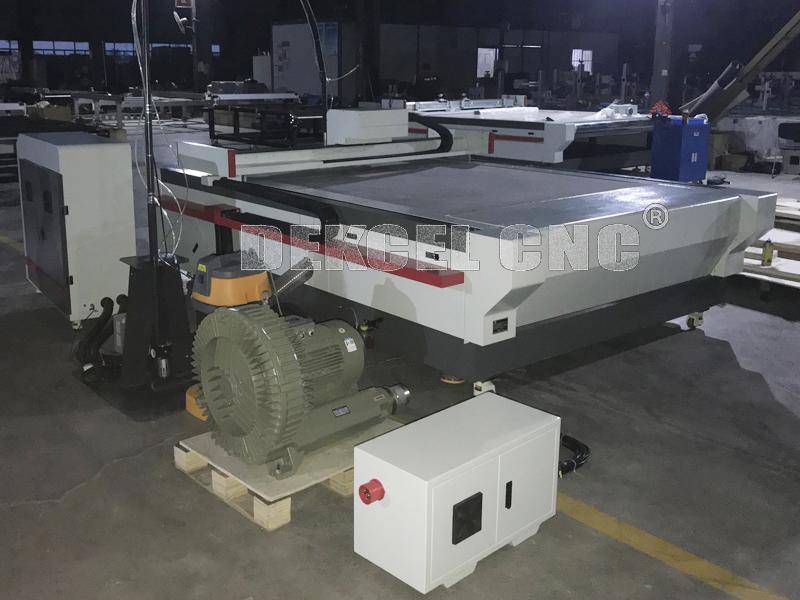

Fixed mode | Vacuum suction table( auto feeding table for optional) | |||
Transimission system | Network port | |||
Rated power | 11KW | |||
Voltage | 220V/380V±%,50Hz-60Hz | |||
Control system | Kinco LCD touch screen | |||
Working Environment | Temperature 0-40 degree, humidty 20%-80% RH | |||
Software | Automatic market software, template entry software (for optional) | |||
Support file format | AI, PLT, DXF, CDR etc. | |||
Machine size | 3570*2290*1165mm | 3570*2500*1165mm | 3570*2800*1165mm |

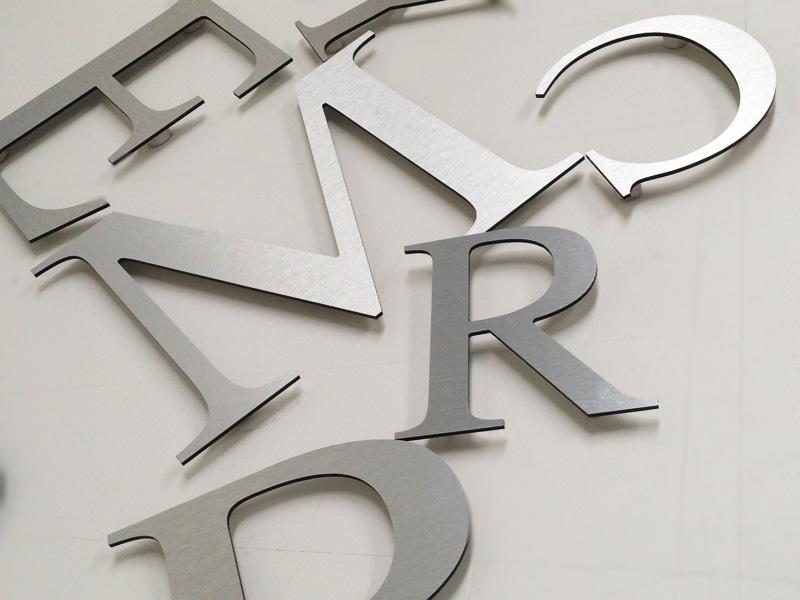

This router modules oscillating plotter machine can cut materials like acrylic board,MDF board,wooden board,aluminium sheet,plastic,composite material, paper board, Corrugated Cardboard / honeycomb board, fabric, leather,rubber, gasket,foam,KT board,PVC board and more materials.

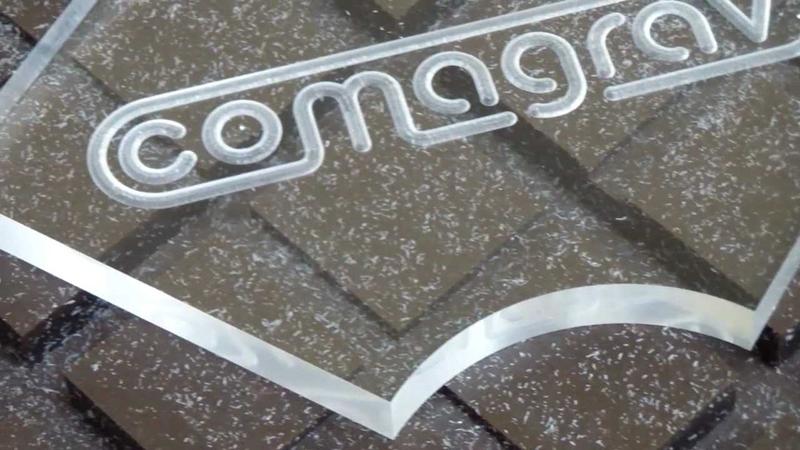

Plastics Materials,Acrylic,Hard-foam,thermoplastic boards,Polycarbonate,Polypropylene

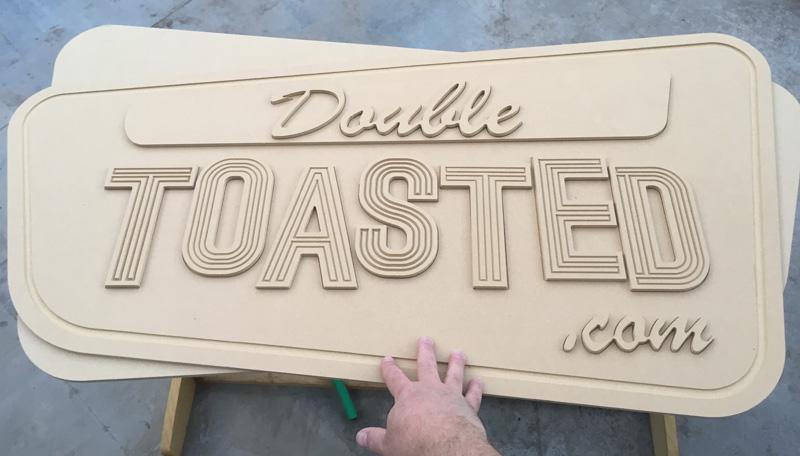

Wood Materials,MDF-boards,Press board,Ply wood,Laminated fibre,Inlay,Wooden materials
