Oscillating knife cutting machine for cardboard/carton box/corrugated board

Dekcel Oscillating knife cutting machine can cut many types of foam, such as closed cell foam, rubber foam,foam core, KT board, EPE foam, polyethylene foam, PE foam, PVC foam, etc.It's widely used for packaging protection, advertising display, termal insulation, model & mock up making, puzzle and pattern cutting, etc.

Quantity:
  • DEK-1825
  • DEKCEL
  • 025

Oscillating knife cutting machine for cardboard/carton box/corrugated board

Oscillating knife cutting machine feature

1. Multi-functional oscillating knife cutting machine that can be quickly changed to adapt to different materials.

2. It has an IC control system that offers high-performance and convenient Ethernet with high speed.

3. The DEK Series digital cutter plotter has an English and Chinese LCD touch screen panel and a massive

storage volume system.

4. The DEK Series oscillating knife cutting machine has the functions of making dotted lines, partial and whole

disconnections, perfect backfins, laser positioning and accurate plotting.

5. The platform detection device regulates the knife pressure automatically, enabling a level platform and perfect cutting.

6. It can induce draft separately and easily cuts small pieces.

7. The anti-collision and the built-in auto-sensing devices ensure the security of the oscillating knife cutter.

8. High efficiency can be realized without making a high-cost knife model.

9. The DEK Series oscillating knife cutting plotter is designed for production with small quantities and can save on costs while maintaining speed and accuracy.



Characteristics

1.Cutting function of oscillation tool

It can cut many different materials (such as corrugated paper, cardboard, offset  paper, grey board, rubber, honeycomb board, PP,PE,PVC, gasket, leather ,carpet and mat )

2.Folding function

It can fold corrugated paper, card paper and offset board into perfect folding line.

3.Function of dotted line

It is used to fold them after half cutting corrugated paper and grey card paper, and to cut dotted line.

4.Location

Location with laser.

5.Drawing function

Oscillating knife cutting machine can draw various high precision drawing cutting materials:Corrugated board, foam, PVC, styrene, Coroplast, Celtec,magnetic film, adhesive vinyl, leather, rubber, fabrics, high intensity reflective films, paper, cardboard, polystyrene, magnetic films, vinyl etc.




No.

Name

Application

Note

 1


16 degree knife

Used to cut materials between 10mm to15mm thick.Cutting materials:
Corrugated board, paper board, kraft paper, grey board, offset board,
Honeycomb board, KT board and compound materials, etc.


2


20 degree knife

Used to cut materials between 7mm to10mm thick.Cutting materials:
Corrugated board, paper board, kraft paper, grey board, offset board,
Honeycomb board, KT board and compound materials, etc.


3

26 degree knife

Used to cut materials between 5mm to7mm thick.Cutting materials:
Corrugated board, paper board, kraft paper, grey board, offset board,
Honeycomb board, KT board and compound materials, etc.


4

Drag knife

Used to cut materials within 3mm thick.Cutting materials:Paper board,
Kraft paper, grey board, offset board, self-adhesive paper and compound materials etc.


5

Special knife

Used to cut materials within 2mm thick.Cutting materials:Paper board,
Kraft paper, grey board, offset board and self-adhesive paper etc.


6


Double edge knife

Mainly for the thick and hard material such as grey board, PP etc.

Option

7

30 degree knife

Mainly for the hard material such as carbon gasket, gasket, rubber,
Grey board, PP etc.

Option




No.

Name

Application

Note

1

3mm creasing wheel

Creasing thickness:Between 3mm and 5mm corrugated board.


2

5mm creasing wheel

Creasing thickness:Between 5mm and 7mm corrugated board.


3

7mm creasing wheel

Creasing thickness:Between 7mm and 10mm corrugated board.


4

2mm creasing wheel

Creasing thickness:Within 2mm,such as corrugated board, paper
Board, kraft paper, grey board, offset board and compound materials etc.


5

PVC creasing wheel

Used foe PVC, plastic box, PVC corrugated etc.

Option




No


Name

Application

Note

1


Pen

Drawing



Technical parameter


Model

DEK-1825

Working area

2500×1600mm

Machine size (mm)

3450×2300×1250

Rated power

11KW

Fixed mode

flat plate table

Multifunctional head

Swiss imported knife: with vibration full cutting, vibration half cutting and cursor
 location function.

Tool configuration

Multiple cutting knives

Safety device

 Using infrared sensors,  responsive, safe and reliable.

translational velocity

800-1200mm/s

Cutting speed

200-800mm/s(according to different cutting materials)

Cutting thickness

≤22mm(according to different cutting materials)

Cutting materials

Leather, all kinds of clothing flexible material, Sponge composite leather, PVC,
soft glass, Silicon, rubber

 Repeated accuracy

≤0.1mm

Capacity

2GB

Transmission system

imported(Digital servo motor, linear guide, synchronous belt, ball screw)

Instruction system

HP-GL compatible format

Voltage

380V±10%

Other configuration

Japanese Yaskawa servo motor,Germany imported conveyor belt, vacuum table,
auto feeding, Taiwan Hiwin rail, 7.5kw vacuum pump

Oscillating knife cutting machine parts detail

Control panel

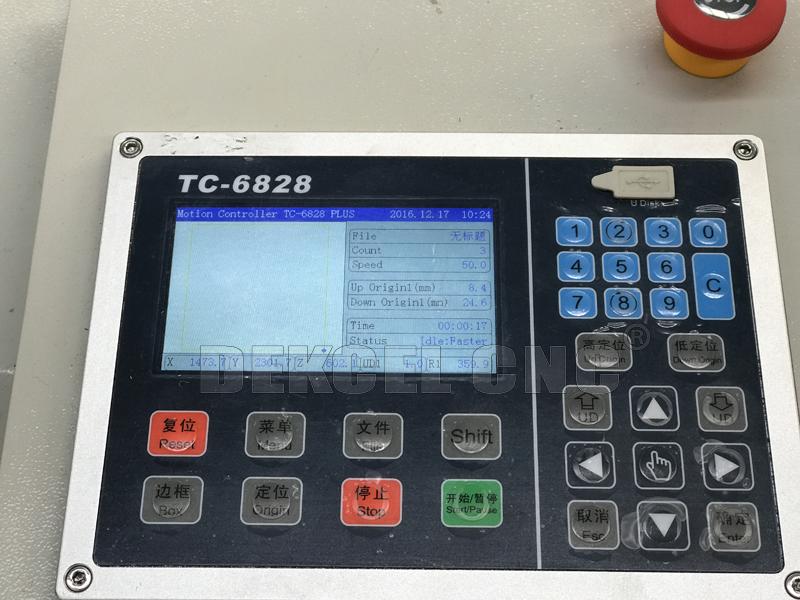

oscillating cutter plotter machine control system

Cutting head

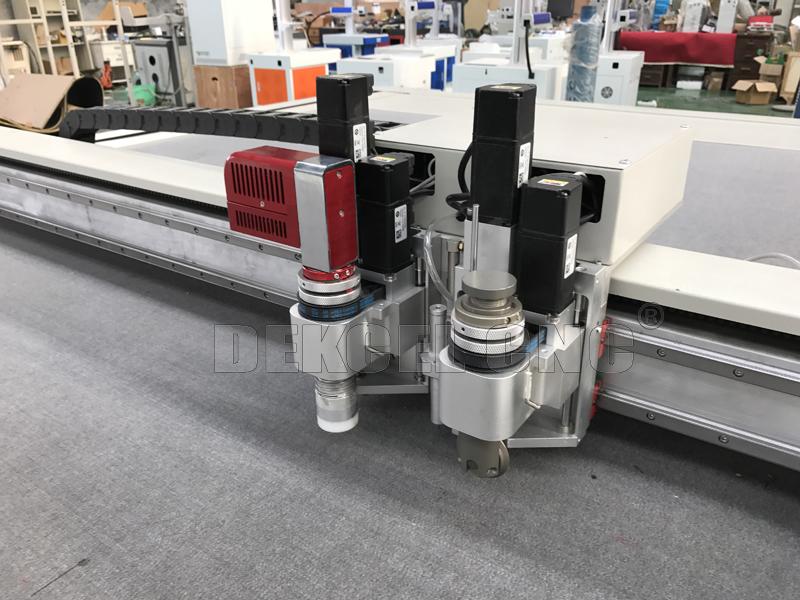

dekcel cnc oscillating knife cutter head

Knife tools
cnc oscillation knife cutter plotter machine tools

X frame

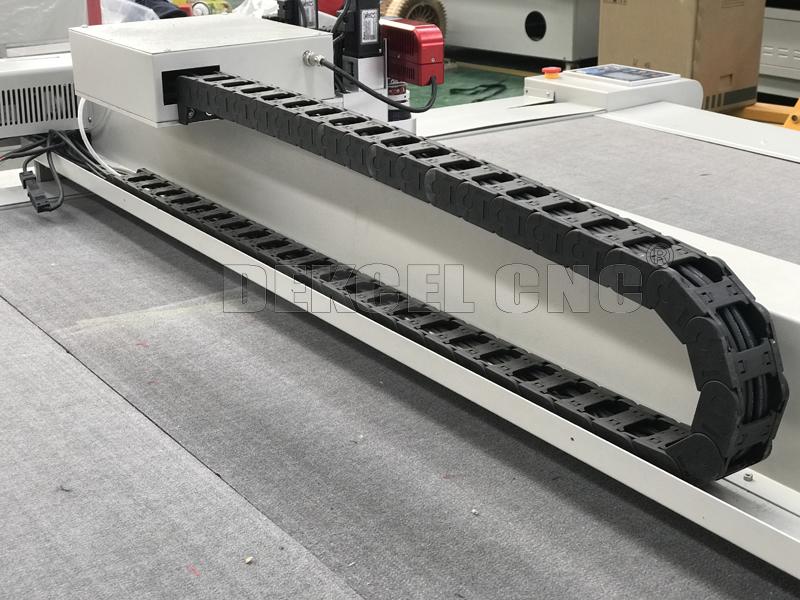

cnc oscillating cutter machine X frame

 Protection device

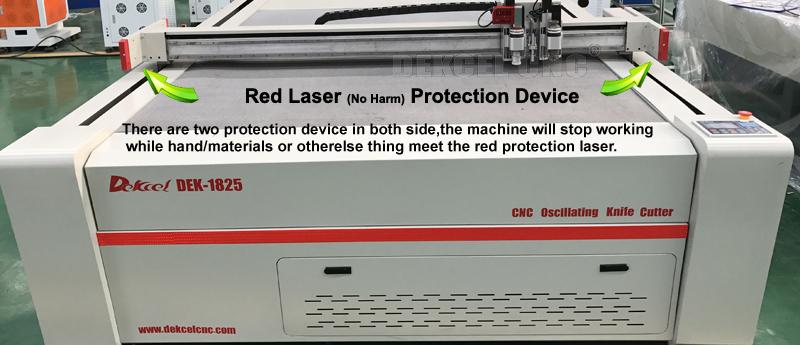

oscillating knife cutter machine protection device

Vaccum working table

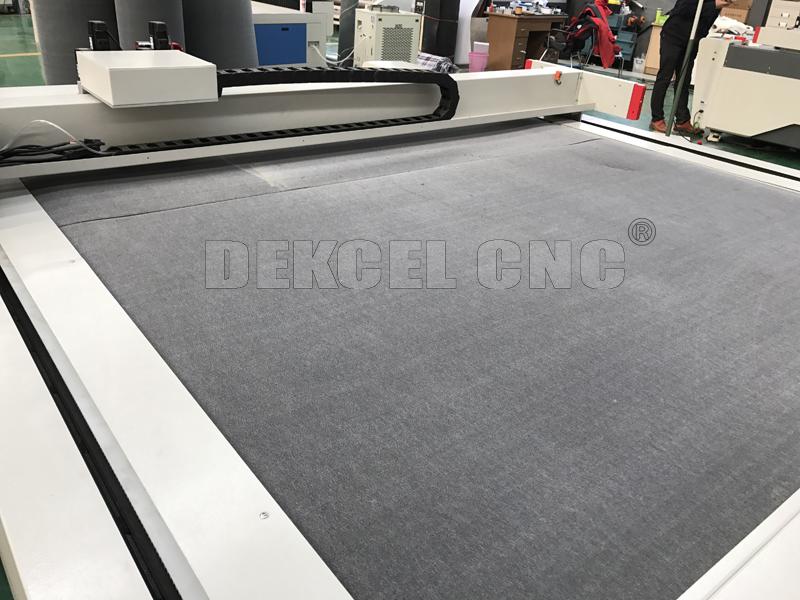

oscillating plotter cutter vaccum working table

Hiwin square rails
oscillating plotter cutter transmission belt and Hiwin rail

Transmission system

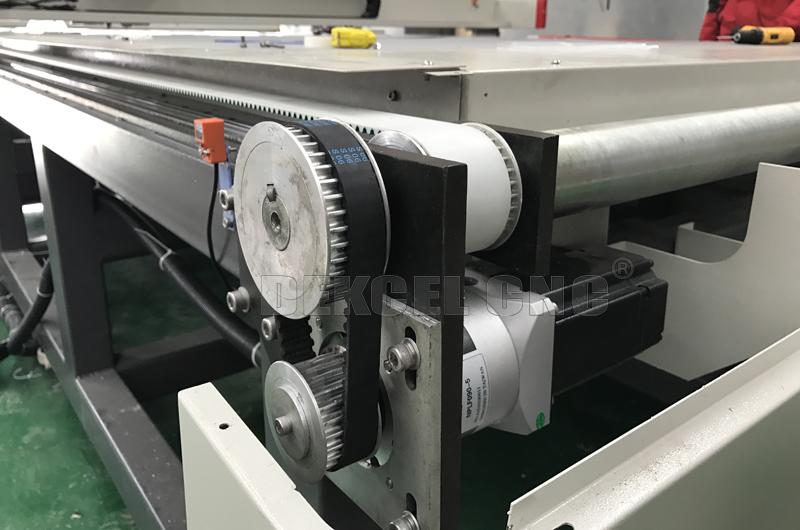

carton box cutter plotter transmission system

Vacuum fan
cnc oscillation knife cutter machine vaccum fan




Oscillating knife cutting machine applicable industry

Dekcel Oscillating knife cutting machine can cut many types of foam, such as closed cell foam, rubber foam, foamex, foam core, KT board, EPE foam, polyethylene foam, PE foam, PVC foam, etc.It's widely used for packaging protection, advertising display, termal insulation, model & mock up making, puzzle and pattern cutting, etc.



Using cnc knife cutting technology, our digital cutter machine has no burning and totally environmently.It's equipped with plotting pen, oscillating cutting tool, creasing tool, and drag knife tool to meet customers' different requirements.The heavy duty drag knife tool is available for special materials of the sign making industry.


car dust proof mat making by oscillating knife cutter

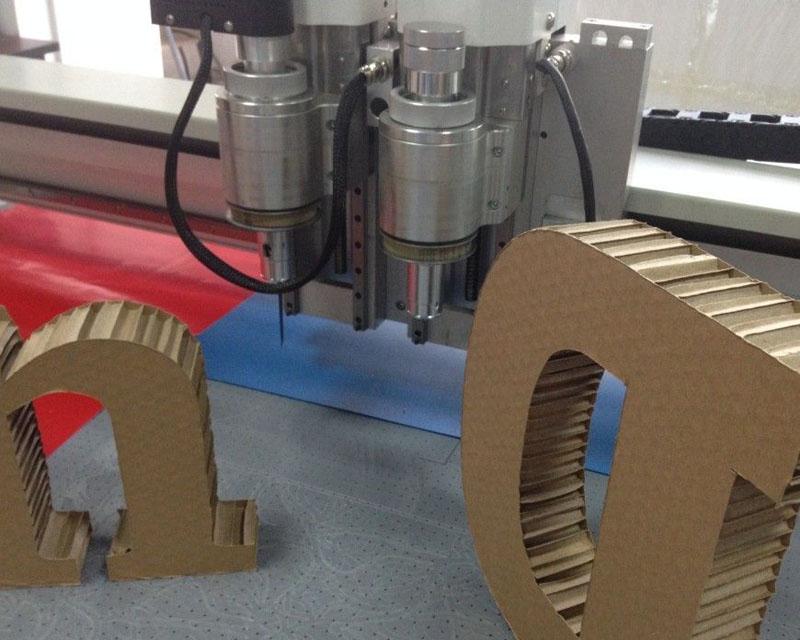

cnc cutter plotter sample of corrugated board

corrugated cardboard making board oscillation cutter sample

fabric oscillating kife plotter cutter sample

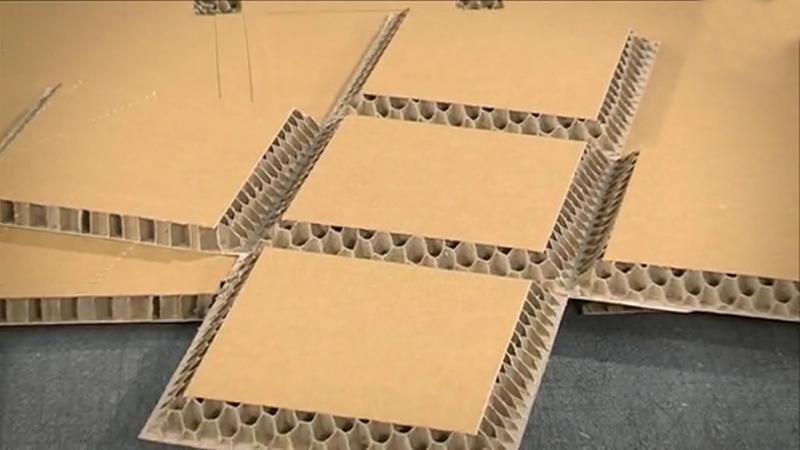

honey comb board knife cutter plotter machine sample

oscillating cutter machine carton box making sample

oscillating plotter cutter machine leather cutting sample

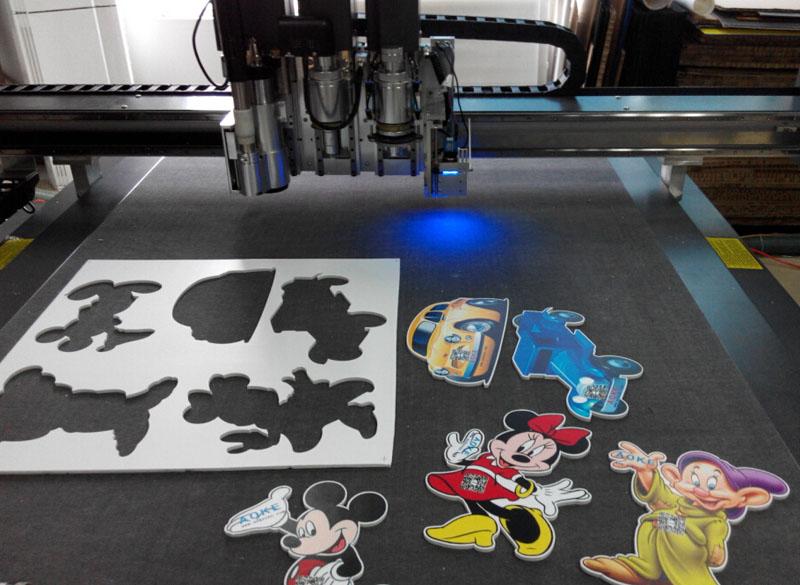

Print foam board cutting by oscillating knife cutter
