Dekcel CNC ® PVC foam fabric digital auto feeding oscillating knife cutter cnc machine
You are here: Home » Cnc Router » Oscillating knife cutting machine » Dekcel CNC ® PVC foam fabric digital auto feeding oscillating knife cutter cnc machine
Share to:

Dekcel CNC ® PVC foam fabric digital auto feeding oscillating knife cutter cnc machine

Using oscillating knife cutting technology, Dekcel cnc digital oscillating cutter machine has no burning and totally environmently. It's equipped with plotting pen, oscillating cutting tool, creasing tool, and drag knife tool to meet customers' different requirements.Machine cutting with knife blade,no burning and no smoke,it is harmless to person.

Quantity:
  • DEK-1825-A
  • DEKCEL CNC
  • 101

PVC foam fabric digital oscillating knife cutter cnc machine

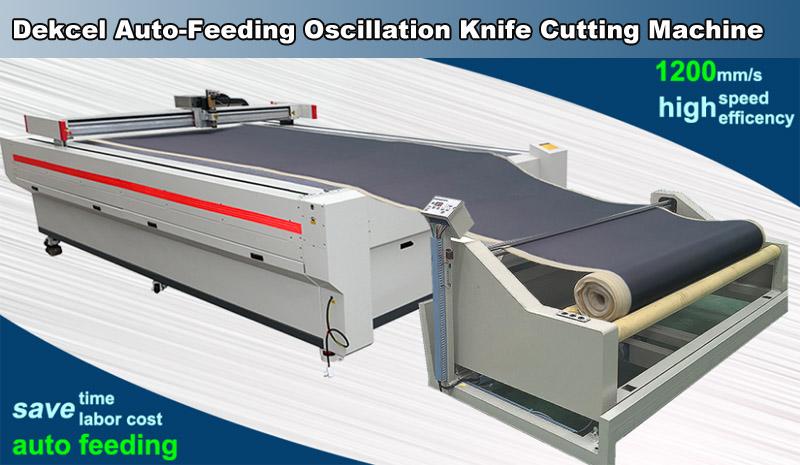

auto feeding system oscillation knife cutter machine

Video Show

Features of auto feeding oscillating cutting machine

1. High Efficiency

The highest speed of Dekcel cnc auto feeding system fabric oscillating cutting machine can reach 1200mm/s,so that it can

achieves high efficiency.

2. Save Time and Labor Cost

Dekcel cnc fabric cutting machine adopts automatic feeding system to liberate the workforce,assistant persons are don't need to arrange process materials,thus it can save both time and labor cost.

3.Good for Health and Environment

Our auto feeding knife cutting machine adopt cnc knife cutting technology, our digital cutter machine has no burning and totally environmently.No smoke would be produce in the process,so it is harmless to person.

Technical Parameters of auto feeding fabric oscillating knife cutter

Model

DEK-1825

Working area

1800×2500mm

Machine size (mm)

3450×2200×1250

Rated power

11KW

Multifunctional head

Swiss imported knife: with vibration full cutting, vibration half cutting and cursor location function.

Tool configuration

Multiple cutting knives

Safety device

Using infrared sensors,  responsive, safe and reliable.

Translational velocity

800-1200mm/s

Cutting speed

200-800mm/s(according to different cutting materials)

Cutting thickness

≤22mm(according to different cutting materials)

Cutting materials

Leather, all kinds of clothing flexible material, Sponge composite leather, PVC, soft glass, Silicon, rubber and ect.

Repeated accuracy

≤0.1mm

Capacity

2GB

Transmission system

imported(Delta Servo Motor,HIWIN 20 linear guide, synchronous belt, ball screw)

Instruction system

HP-GL compatible format

Voltage

220V±22V, 50Hz/60Hz

Other configuration

Japanese Yaskawa servo motor,Germany imported conveyor belt, vacuum table, auto feeding, Taiwan Hiwin rail, 7.5/9KW vacuum pump

Details of  cnc auto feeding knife cutter machine

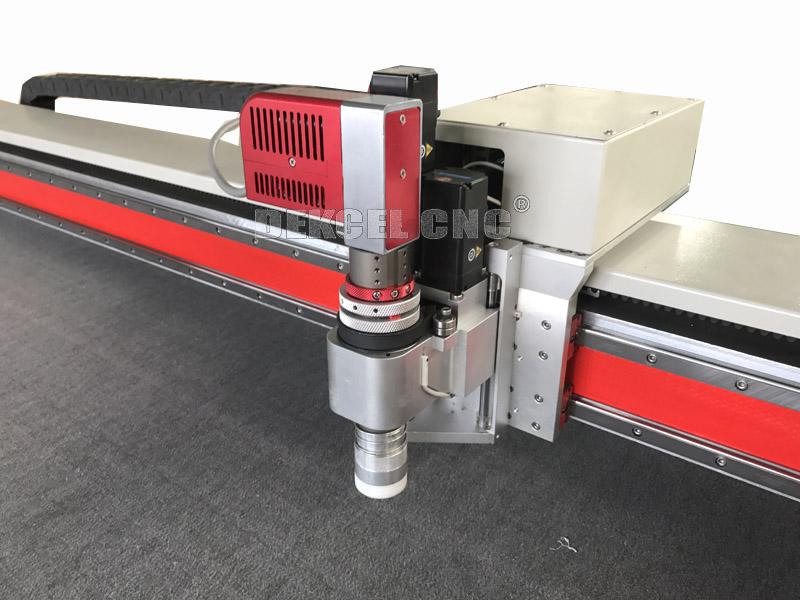

1.High speed oscillation cutting head
auto feeding oscillation knife cutter head

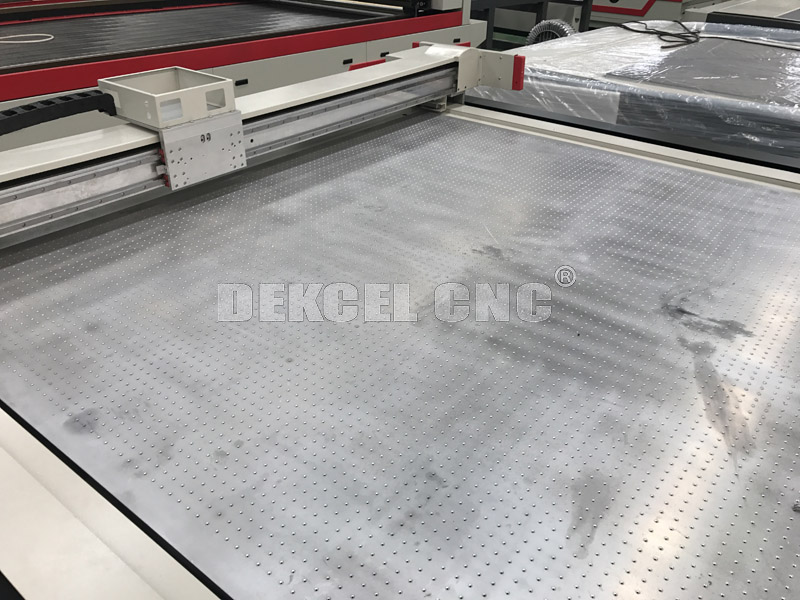

2.oscillating knife cutter machine aluminium workingtable

oscillating knife cutter machine workingtable
3. Auto feeding system of knife cutter

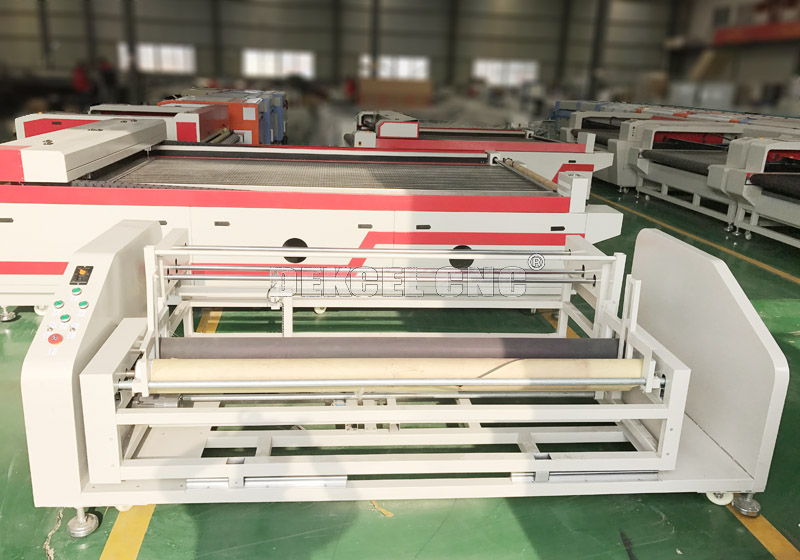

leather auto feeding system of knife cutter

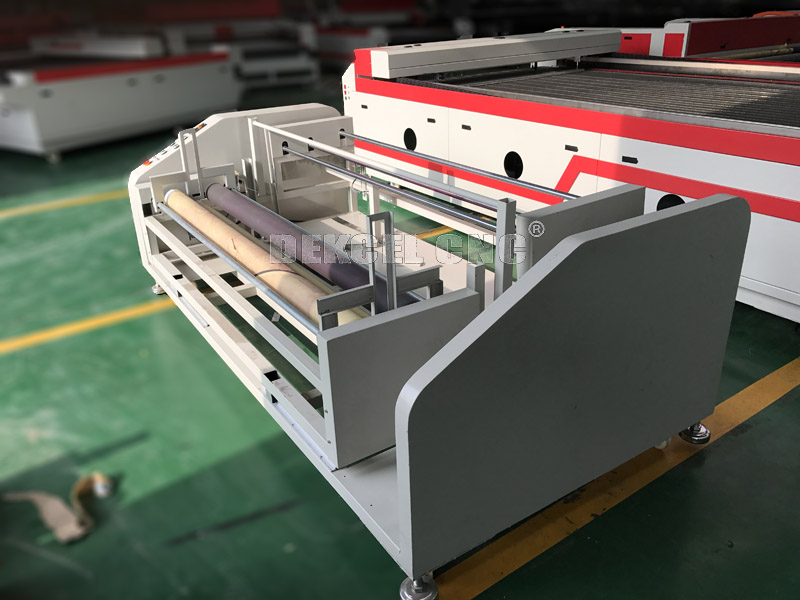

leather oscillation cutter feeding system




Application of auto-feeding oscillating knife cutter

Oscillation cutter for carpet

foot mat oscillating cutting machine


Our dekcel oscillating knife cutter can cut on fabric, leather, cardboard, plastic, paper, rubber, EVA foam, and it can cut many types of foam, such as closed cell foam, rubber foam, foamex, foam core, KT board, EPE foam, polyethylene foam, PE foam, PVC foam, etc. It's widely used for packaging protection, advertising display, termal insulation, model & mock up making, puzzle and pattern cutting, etc.

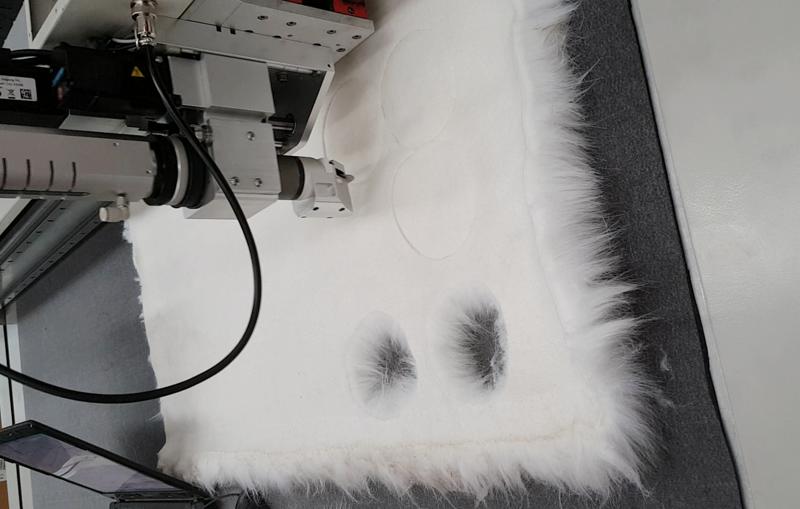

Oscillation cutting machine for plush toy manufacture

stuffed cloth toy oscillating knife cutter

Foot mat oscillation knife cutter

car mat cutting machine

Carpet cutting by oscillation cnc machine

carpet knife cutting plotter
