Carpet oscillating knife cutter machine for sale

Oscillating knife cuttier machine can cut on carpet,fabric, leather, cardboard, plastic, paper, rubber, EVA foam etc material,now reasonable price for sale from Jinan Dekcel.

Quantity:
  • DEK-1625
  • DEKCEL
  • 064

Carpet oscillating knife cutter machine for sale

Dekcel oscillating knife cutter machines adopt CNC knife cutting technology, our digital cutter machine has no burning and totally environmently.No smoke would be produce in the process,so it is harmless to person.



Features of carpet oscillating knife cutter machine
1. The platform detection device regulates the knife pressure automatically, enabling a level platform and perfect cutting.
2. The high precision CNC oscillating knife carpet cutting machine caaln induce draft separately and easily cuts sml pieces.
3. The anti-collision and the built-in auto-sensing devices ensure the security of oscillating knife cutting machine.
4. High efficiency can be realized without making a high-cost knife model.
5. The high precision oscillating knife cutting machine is designed for production with small quantities and can save on costs while maintaining speed and accuracy.
6. Cutting by knife, no pollution gases.

Technical parameter
Model Number
DEK-1625
Cutting speed
(200-1000)mm/s(according to different cutting materials)
Rated power
7.5KW
Multifunctional head
Swiss imported knife: with vibration full cutting, vibration half cutting and cursor location function.
Tool configuration
Multiple cutting knives
Safety device
 Using infrared sensors,  responsive, safe and reliable.
translational velocity
(800-1200)mm/s
Cutting thickness
≤22mm(according to different cutting materials)
Cutting materials
Cardboard, Leather, all kinds of clothing flexible material, Sponge composite leather, PVC, soft glass, Silicon, rubber
 Repeated accuracy
≤0.1mm
Capacity
2GB
Transmission system
imported(Digital servo motor, linear guide, synchronous belt)
Instruction system
HP-GL compatible format
Voltage
380V±10%
Other configuration
Delta servo motor,Germany imported conveyor belt, vacuum table, Taiwan Hiwin rail, 7.5kw vacuum pump

The detail parts of oscillating knife cutter machine
oscillating knife cutting machine control system

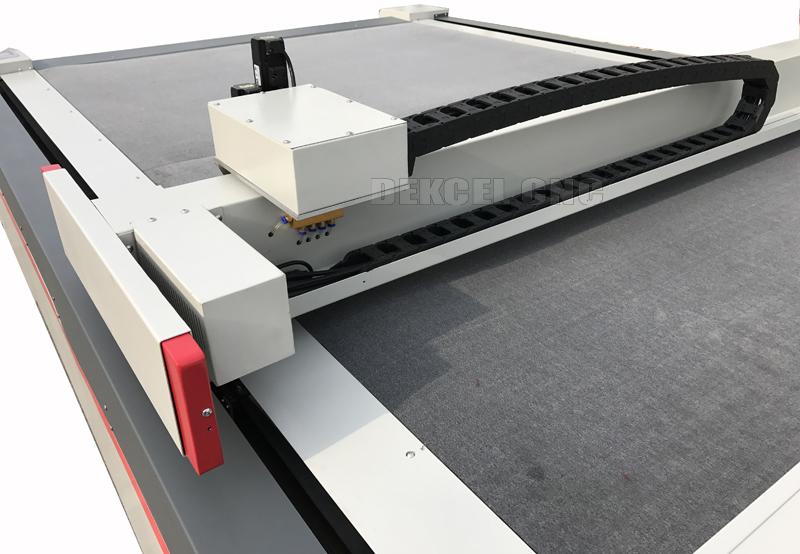

vacuum table of oscillating knife cutting machine

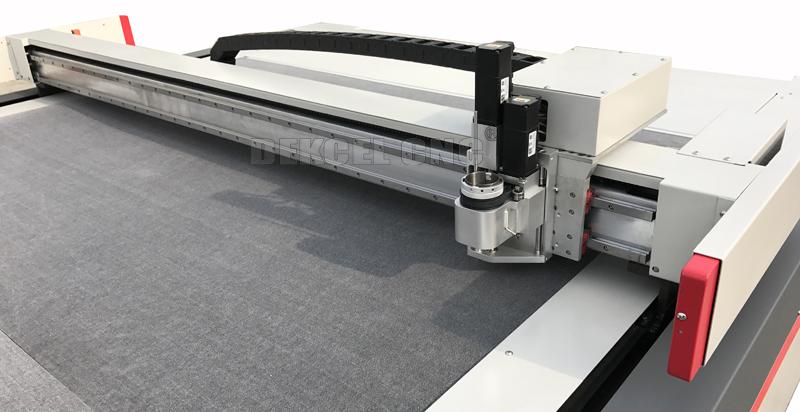

oscillating knife cutting head

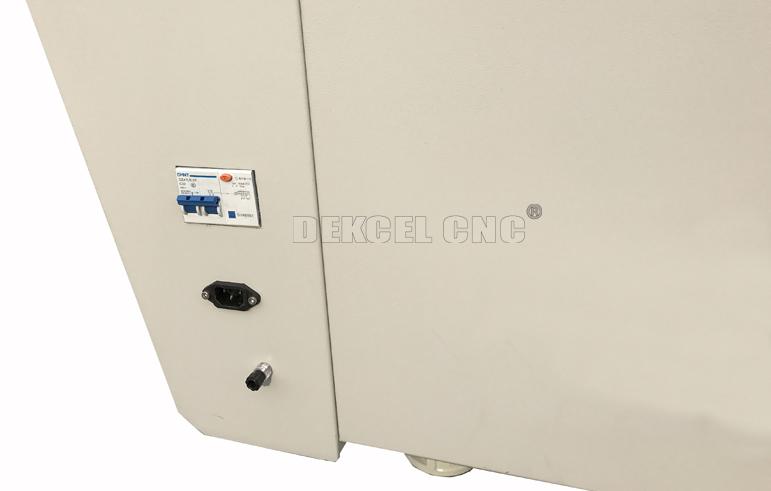

oscillating knife cutting machine

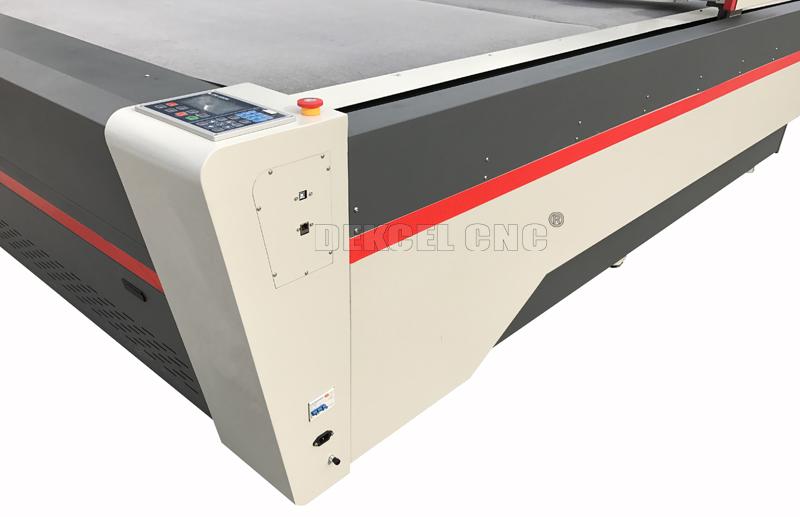

heavy body oscillating knife cutting machine
Multifunction&Multipurpose
1. Dekcel oscillating knife cutter machine is equipped with plotting pen, oscillating cutting tool, creasing tool, and drag knife tool to meet customers' different requirements. The heavy duty drag knife tool is available for special materials of the sign making industry.
2. It can cut on fabric, leather, cardboard, plastic, paper, rubber, EVA foam, and it can cut many types of foam, such as closed cell foam, rubber foam, foamex, foam core, KT board, EPE foam, polyethylene foam, PE foam, PVC foam, etc. It's widely used for packaging protection, advertising display, termal insulation, model & mock up making, puzzle and pattern cutting, etc.
corrugated board oscillating knife cutter machine

oscillating knife cutter machine for carpet

carpet oscillating knife cutter machine
