CCD camera flooring mat carpet rugs oscillation knife cnc cutting plotter machine

Using cnc oscillation knife cutting technology,DEKCEL CNC digital oscillation carpet rugs cutting machine has no burning and totally environmently. It's equipped with plotting pen, oscillating cutting tool, creasing tool, and drag knife tool to meet customers' different requirements. The heavy duty drag knife tool is available for special materials of the sign making industry.
Availability:
Quantity:
  • DEK-1625

  • DEKCEL CNC

  • 149

Floor Carpet CCD Contour Oscillation Cutting Machine Working Video

CCD camera flooring carpet rugs oscillation knife cutting plotter machine

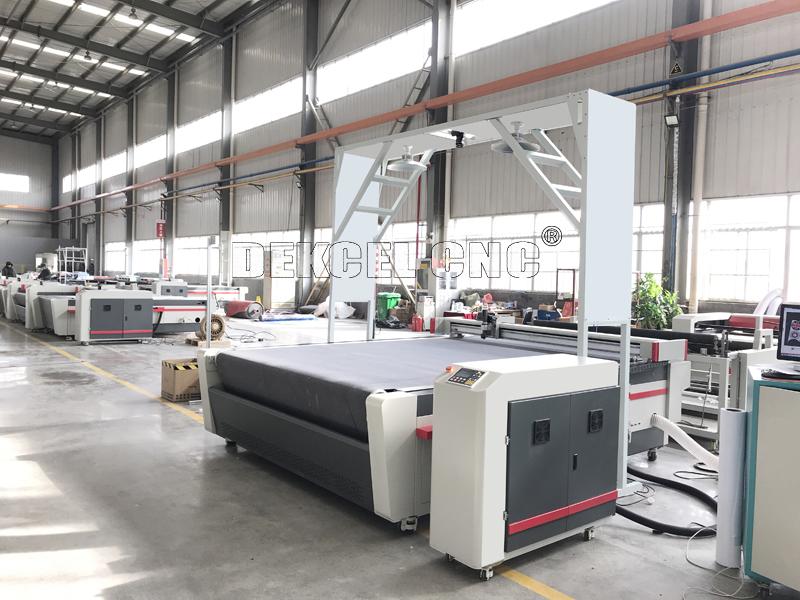

flooring rugs oscillation knife cutting plotter machine

Features of flooring carmet cutting machine
1.Fast
The cutting speed of DEKCEL CNC floor carpet oscillation cutting machine is 3 to 5 times the speed of traditional manual cutting, with maximum cutting speed of 1000mm/s to 1200mm/s.  It's more suitable for the customers who are receiving orders with diverse styles and short lead time.
2. Accurate
All operations of carpet rugs cutter are computerized to simulate the operation process exactly, which rules out the interference from the factors of the workers' mood, knowledge, tiredness and other personal factors happened in traditional cutting, thus avoid hidden waste and ensure the quality of product.
3.Saving
DEKCEL flooring carpet cutting machine is connectable to many CAD software. Customers can make timely correction to the patterns during cutting, thus meeting the fast-changing market demands through quick sample making and error correction. You are supposed to achieve 2-3 days of time advantage over your competitors in terms of correction of the same kind of samples.
4.Smart

Our carpet cutting machine is a computerized CNC cutting machine. All the sharp turnings can be controlled on the machine. The depth can be adapted to your needs. Nesting is more convenient and flexible. The cutting knives can be changed.

Carpet Mat Oscillation Cutting Plotter Machine Parameters

Model

DEK-1625
Working area 1600*2500mm

Rated power

11KW

Fixed mode

Flate plate table /auto feding plate optional
Multifunctional heads optonal

Vibration knife

Circular knife

Punching knife

Oblique knife

Pen

Punch roller

Milling knife

Projector and camera optional

Safety device

Using infrared sensors,  responsive, safe and reliable.

Translational velocity

800-1200mm/s

Cutting speed

200-800mm/s(according to different cutting materials)

Cutting thickess

≤22mm(according to different cutting materials)

Cutting material

Leather, all kinds of clothing flexible material, Sponge leather, PVC, soft glass, Silicon, rubber

Repated accuracy

≤0.1mm

Capacity

2GB

Transmission system

imported(Digital servo motor, linear guide,aynchronous belt, ball screw)

Instruction system

HP-GL compatible format

Control system

TC6828(AOL custom made)

Voltage

380V±10%

Other configuration

Germany imported conveyor belt, vacuum table, Taiwan Hiwin rail, vacuum pum

Carpet Cutting Machine Details Show

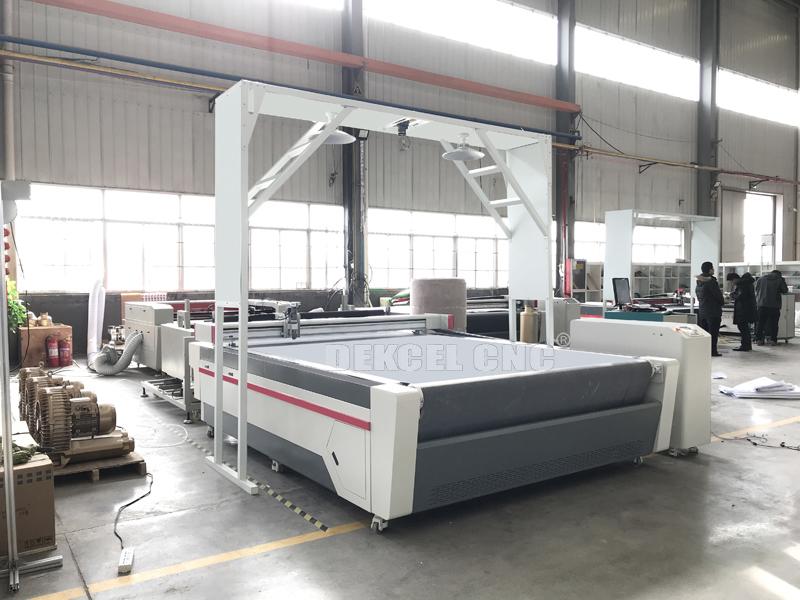

CCD camera carpet rugs oscillation cutting machine

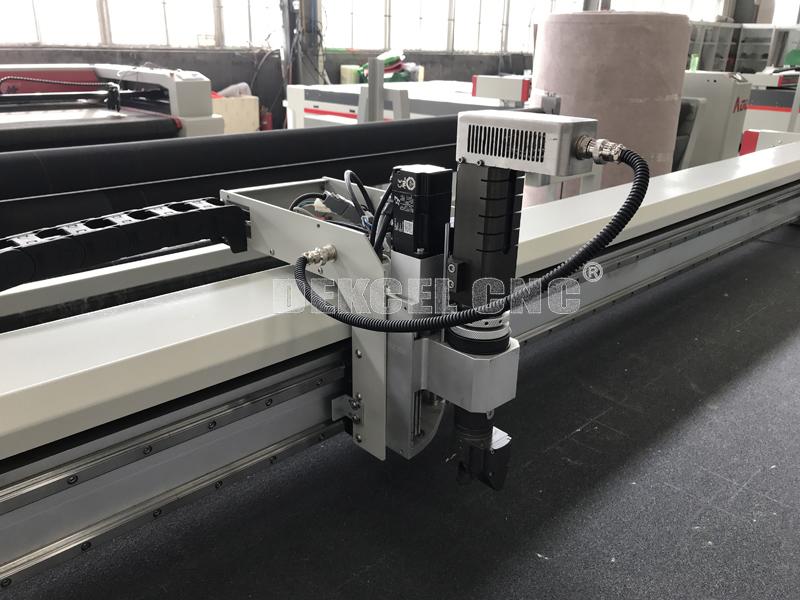

Blade cutting head for flooring carpet cutting machine

flooring carpet cutting machine

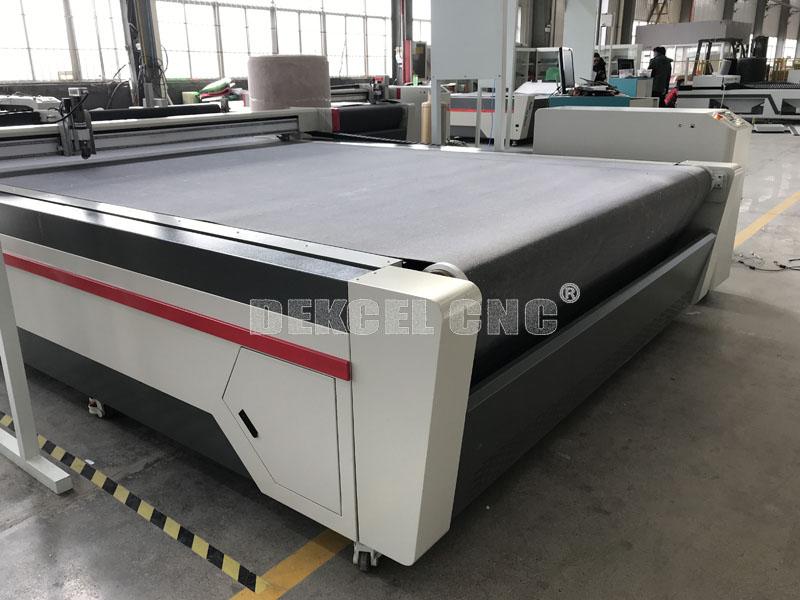

floor carpet cutting machine vacuum working table

floor carpet cutting machine working table.jpg

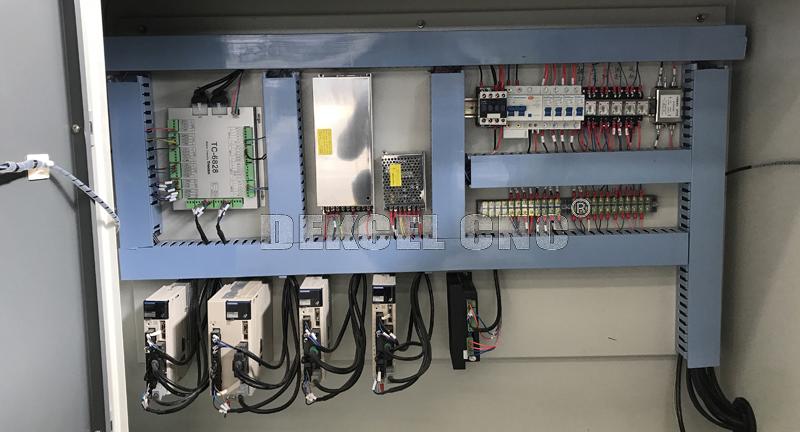

YASKAWA driver for rugs oscillation cutting machine

rugs oscillation cutting machine

carpet cutting machine CCD camera visual system

carpet cutting machine

Option : carpet cutting machine with auto feeding system

carpet cutting machine feeding system

Application of CCD carpet cutting plotter machine

carpet rugs oscillation cutting machine

Applicable for carpet,rugs,Leather, all kinds of clothing flexible material, Sponge composite leather, PVC, soft glass, Silicon, rubber etc.

This digital cutting machine work with your computer by Ethernet cable, you can send any design shape to this cutter for cutting purpose.

artificial grass carpet cutting machine

Below are the samples that cutted by this machine :

· carpet,flooring rugs,flooring mats,garment,cloth .

floor carpet cutting machine

· Phototype box, small mass production box (carton box, cardboard box, color box)
· Cut contour in any shape for POS, POP
· Cut rubber gasket, paper gasket
· Cut foam.EVA
· Cut vinyl sticker

flooring rugs cutting machine
