Blanket Car Foot Mat Oscillation Knife Cutting Machine

Dekcel cnc blanket oscillation knife cutting machine,adopt knife blade cutting technology, our digital oscillation cutter machine has no burning and totally environmental protection.You can cut any pattern,any size,any style by this machine,also the machine size can customized by your request.

Quantity:
  • DEK-1825
  • DEKCELCNC
  • 116

Blanket Car Foot Mat Oscillation Knife Cutting Machine

Advantage of Blanket Cutting Machine

Now days blanket or carpet used in many place,adopt oscillation knife cutting technology,no need make die mold for cutting,save the cost and time of die mold manufacture, management, and storage,thoroughly farewell to the traditional manual knife cutting process,completely breaking through the bottleneck of enterprises' dependence on skilled workers.It is the first time to enter the new era of digital oscillation knife cutting for blanket and carpet.

With Dekcel CNC blanket oscillation cutting machine,can cut some high difficulty and complex pattern which the the die mold can not making,greatly expand the design space,create a new style that can't be copied by hand,make your product more attractive.


car foot mat oscillation cutting machine

How to Choose A Car Foot Mat Cutting Machine?
The car foot mat cutting machine is a kind of cutting equipment specially designed for car foot mat, cushion and seat cover.Because of the use of oscillation knife cutting, it is also referred to as the car foot mat oscillation cutter, foot mat oscillation cutting machine etc.Car floor mat cutting machine with features of stable performance,quick cutting speed,automation processing can meet the demand of individualized and specialized car production.

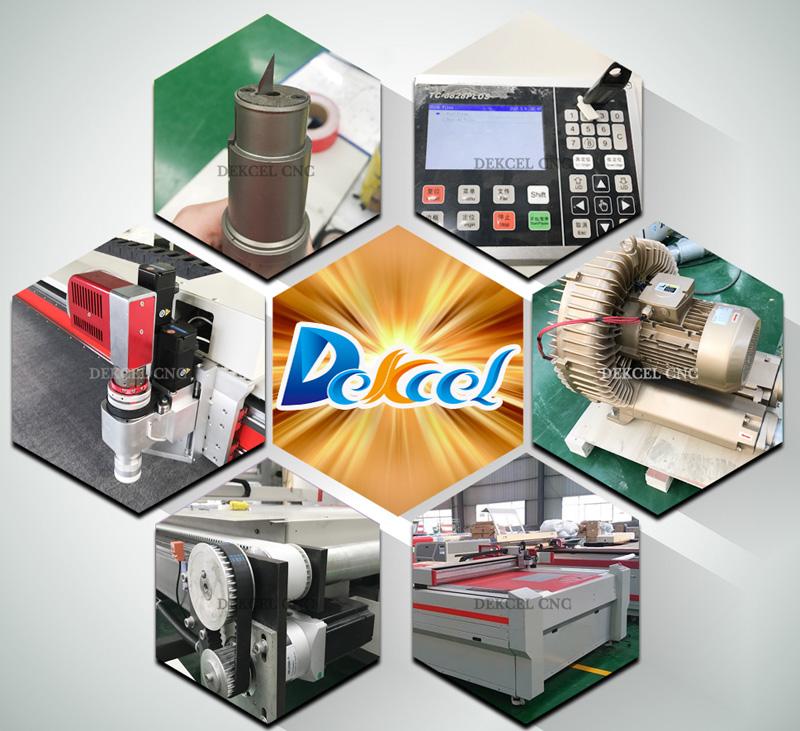

blanket carpet fabric cutting machine.jpg

Feature of Foot Mat Blanket CNC Cutting Machine

1. Head design : Use convenient replaceable head design, according to actual needs of replacement, with different functions tool head.

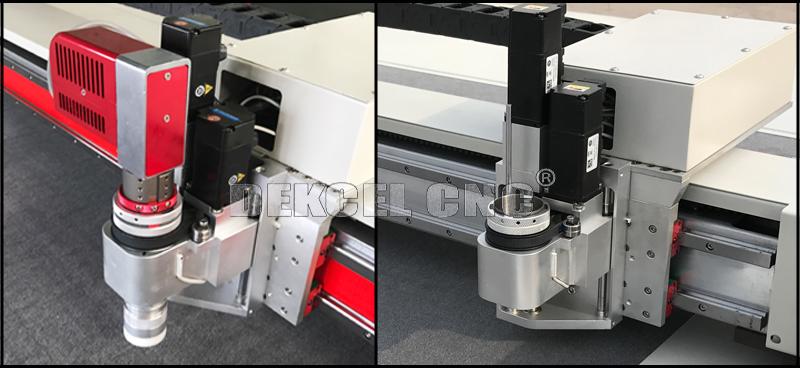

blanket floor mat oscillation cutting machine

2.  Multifunction cutting tool : Dekcel oscillation mat cutting machine equipped with vibration knives, drag knife, drawing tools and various tools such as half-cutters, milling cutters, slotting knives, flying knives, hobs, indentation knives, ultrasonic knives etc., Realize drawing, dotted line cutting ,half-cutting, full-cutting, milling cutter tailor, various materials slotted, the size of pressure wheel indentation, cutting hard materials and so on,
3. Our blanket oscillation cutting machine adopt servo motor drives the screw control , which can preset the knife depth and pressure and speed
4. 10mm Aluminium Table Design: Adopt advanced and mature rolling table design, platform width can be customized size, unlimited theoretical cutting length ; vacuum suction design,software can select eight suction area.

5. Add automatic tool setting function : adjust the cutting depth according to the material's thickness and plate height automatically.

6. Software Features : Software support file formats: AI, DXF, PLT, SVG, etc., while independent hierarchical editing path.

Technical Parameter of Blanket Cutting Machine

Model

DEK-1825

Working area

1800×2500mm

Machine size (mm)

3450×2300×1250

Rated power

11KW

Multifunctional head

Swiss imported knife: with vibration full cutting, vibration half cutting and cursor location function.

Tool configuration

Multiple cutting knives

Safety device

Using infrared sensors,  responsive, safe and reliable.

Translational velocity

800-1200mm/s

Cutting speed

200-800mm/s(according to different cutting materials)

Cutting thickness

≤22mm(according to different cutting materials)

Cutting materials

Leather, all kinds of clothing flexible material, Sponge composite leather, PVC, soft glass, Silicon, rubber and ect.

Repeated accuracy

≤0.1mm

Capacity

2GB

Transmission system

imported(Delta Servo Motor,HIWIN 20 linear guide, synchronous belt, ball screw)

Instruction system

HP-GL compatible format

Voltage

220V±22V, 50Hz/60Hz

Other configuration


Japanese Yaskawa servo motor,Germany imported conveyor belt, vacuum table, auto feeding,
Taiwan Hiwin rail,7.5/9KW vacuum pump



Cutting Effect by Oscillation Knife Blade Cutting Machine
1. Accurate
The cutting machine meets the cutting precision: 0.1mm to 0.5mm.
2. Smooth
The Oscillating Cutting Tool assures our cutting machines cut smoothly. And this cutting effects can hardly be done by laser cutting machine, die cutter or manual workers.
3. Delicacy
With our cutting machine for garment making, you can easily meet the market needs for customized cloth, garment or designs.
4. Multi-layer
This garment plotter machine can cut several layers materials, and very suitable for some customized production.

floor carpet blanket cutting machine.jpg
Applicable Industries by Oscillation Cutting Machines
Advertising,packaging,composite materials,sporting goods,bags,sealing gaskets,textile and
garment,leather,shoes,bags handbags,printing,automotive interior air chairs,lamps and lanterns
design of plastic products,paper products,low thickness of flexible material cutting,etc.
Knife Blade Cutting Oscillation Machine Applicable Materials
Leather,sticker,cardboard,Plastic box,corrugated cardboard,film,foam board,acrylic board,
rebound rubber,rubber cloth,gasket material,garment cloth,footwear material,bags materials,non-woven,fabrics,carpets,sponge,PU,EVA,XPE,PVC,PP,PE,PTFE,ETFE,and composites,whose thickness of above materials is below 25 mm.
