The main introduction and four typs of 1325 wood engraving cnc router for MDF

Views:12     Author:Site Editor     Publish Time: 2017-09-04      Origin:Site

The main introduction and four typs of 1325 wood engraving cnc router for MDF

The main introduction and four typs of 1325 wood engraving cnc router for MDF


MDF, as we all know, can be divided into high density fiberboard, medium density fiberboard and low density fiberboard. Because of its uniform structure, fine material, stable performance, shock resistance and easy processing, MDF is widely used in domestic furniture, decoration, musical instruments and packaging


For example, MDF is mainly used for strengthening doors, walls, furniture etc. For home decoration, MDF is mainly used for the surface treatment of mixed oil process; For furniture, medium MDF is usually used. Because the high density board is easy to crack, so there is no way to make furniture. Normally, the high density MDF is used for indoor and outdoor decoration, office furniture and civilian vehicle interior decorations, can also be used as  antistatic floor in computer room, wall panels, anti-theft door, wall, partition etc.. MDF is also a good material for packing. The future will be used as a base material for the manufacture of laminate flooring.


Jinan Dekcel cnc company produces MDF engraving cnc router. Almost indoor and outdoor decorations are made by wood cnc router. In the following passage, Dekcel is going to share the main introduction and four types of 1325 cnc router for MDF engraving.


Model: DEK-1325

X, Y travel length: 1300 * 2500mm

Z travel length: 200mm

Size: 1400 x 2680mm platform

The maximum operating speed : 25m/min

Max engraving speed: 18m/min

Maximum feed height: 200mm

Resolution: 0.005mm

Repeat positioning accuracy: 0.05mm

Engraving instruction: G code.U00.mmg.plt

Spindle motor power: 3.5kw


The main components and functions of the cnc wood engraving router machine


Bed: steel structure with 8mm welding pipe

Rack: high precision helical rack and straight rack, which match the square rack.

Guide rail: square rail and round rail. Square rail is generally imported from Taiwan. It has high precision and strong wear resistance. It is used in high-end cnc wood engraving machine. The precision of round rail precision is low and the price is cheap.

Ball Screw: generally, Dekcel adopts Taiwan's TBI brand. For cnc router carving machine for advertising industry, XYZ three axis will use ball screw to drive. For cnc wood engraver router cutter with rack transmission, XY axis use rack to drive, and Z axis uses screw.

Spindle motor: be divided into water-cooling spindle motor and air-cooling spindle motor, water-cooled speed of 0-24000rmp, air cooling spindle speed is 0-18000rmp. The speed is adjustable, and match the inverter of wood cnc router engraving machine.

The inverter: Shanghai Fu ling brand, which is used to adjust spindle speed. 1.5/2.2/3.7/5.5/7.5kw inverter’s main function is to receive the controller signal, outputting high speed pulse and adjust the power supply frequency to make the best performance for  wood carving cnc router spindle.

The step motor / servo motor: Chindese brand: Leadshine stepper motor, Leadshine hybrid servo motor, Changzhou Chuangwei stepper motor.

Japan brand: YASKAWA servo motor, Panasonic servo motor.

The driver: it matches the brand of motor. For example, Shenzhen Leadshine 860 or Shenzhen Yankong 2811. Driver has the function of accepting the pulse provided by the controller. The wood engraving cnc router generates a fixed square pulse when it gets a full square wave pulse.

Control system: Weihong NC Studio control (by a computer, online); DSP handle control; Taiwan Synteck etc.

Table: T-Slot table with aluminum profile with PVC or vacuum table for absorption, or the working table which can both absorb and clip.

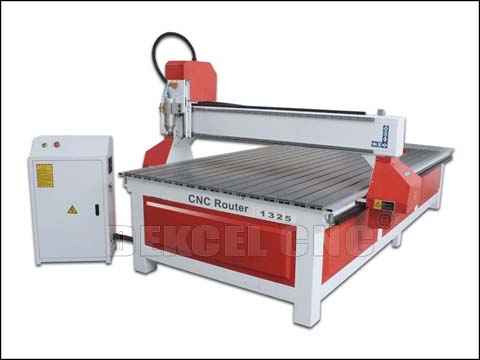

wood cnc router for MDF engraving.jpg

Performance characteristics:


The lathe bed is made of wielding square steel pipe of 8mm, strong enough without deformation and durable life.


The Y axis of wood cnc router engraver adopts double motor driving approach to ensure smooth movement.


Dekcel cnc rotuer for wood engraving adopts rack and gear transmission, and the movement is steady, fast.


Cnc wood engraving router machine adopts imported square linear guide to ensure the accuracy of the machine. In addition, the wood cnc router for carving products is able to bear heavy load.


The excellent mechanical and electrical design of the wood cnc router in China and famous brands of electrical accessories can minimize the failure rate.


Cnc router for wood engraving adopts spindle motor of high power to ensure the materials can be greatly cut.


Dekcel wood cnc router is able to continue cutting or engraving after the break point.

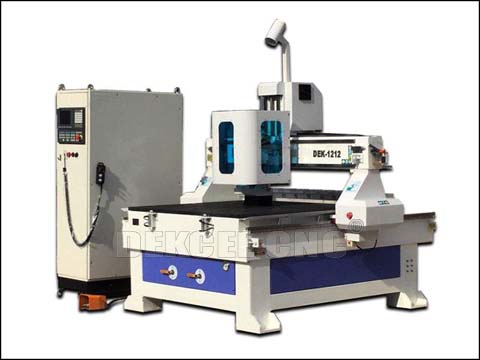

CNC WOOD engraving router for MDF engraving.jpg

Applicable range:


The Dekcel wood cnc router for carving is suitable for producing various woodwork products, advertisement signs, density boards, cutting and hollowing process, and engraving copper, aluminum, plastic board (if engraving metal, a water tank will be needed.)

Large scale furniture embossing engraving work, decorative plate engraving and hollowing etc,


For different demands of MDF engraving, there are four types for industrial cnc router for caving MDF.


The first type cnc wood carving router:


Diagonal gear and rack transmission, Gantry made of steel plate, Legal and original Taiwan Hiwin square rail, 3KW or 3.5kw air-cooling or water-cooling spindle, Shenzhen Sifang or Shanghai Fulign inverter, leadshine driver and stepper motor, Weihong control system of NC Studio or DSP controller. Heavy duty with oiling system.


T-Slot aluminum profile table, which use the press plate with screw to fix plate materials. It is of low efficiency to engrave MDF, but good at advertising industry.


Second type wood engraving cnc router:

Gear and rack transmission, Gantry made of steel plate, Legal and original Taiwan Hiwin square rail, 3KW or 3.5kw air-cooling or water-cooling spindle, Shenzhen Sifang or Shanghai Fulign inverter, leadshine driver and stepper motor, Weihong control system of NC Studio or DSP controller. Heavy duty with oiling system. T-Slot working table uses press roller to fix wood or other materials with the function of saving power and improving high efficiency.


This type of wood cnc router applies to photo frame engraving, MDF engraving, screen engraving and so on.


Third type Cnc router for wood engraving:

Gear and rack transmission, Gantry made of steel plate, Legal and original Taiwan Hiwin square rail, 3KW or 3.5kw air-cooling or water-cooling spindle, Shenzhen Sifang or Shanghai Fulign inverter, leadshine driver and stepper motor, Weihong control system of NC Studio or DSP controller. Heavy duty with oiling system.


Vacuum table, which uses vacuum pump to fix materials. Usually, it has six vacuum areas. And relative valves control the different vacuum zones. It is of high efficiency to engrave MDF, but with a little high consumption of electricity.


This type of wood cnc engraving router photo frame engraving, MDF engraving, screen engraving and so on.


Fourth, If users want to buy an economical cnc router to engrave MDF, the ball screw transmission and round rail will be enough for advertising industry.


Hope this article will help you. If you have any questions about 1325 MDF carving cnc router price and qualities, please contact us as soon as possible. Jinan Dekcel Cnc Euipment Co., Ltd will always be there for you.
