This article will introduce how to maintain the lens and rail of the cnc laser cutting machine. Hoping to it will help you.

1. lens cleaning

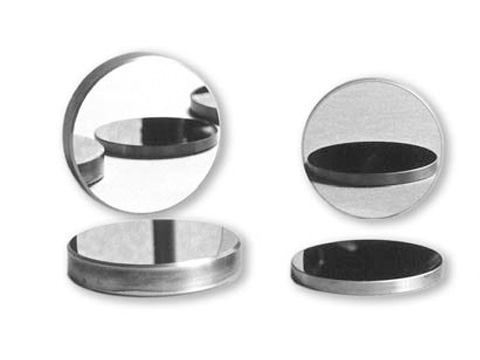

There are three reflect mirror and one focus lens of the cnc laser machine for engraving or cutting nonmetal materials. The first one reflect mirror is in laser emission tube exit, which is the upper left corner of the machine barrel. The second reflect mirror beam is located in the left and the third are located in the top part of the laser head. The fixed focus lens is positioned on the lower part of the laser head can be the regulation is through these lenses. laser reflection is focused laser emitted from laser head. The lens is very vulnerable to dust or other contaminants resulting in the loss or damage of the laser lens. No. one and No. two lens cleaning shall not be removed, only needs wiping paper with dipped cleaning liquid to cleaning lens carefully along the lens center to the edge of rotary cleaning. No. 3 lenses and focus lens need to be removed from the frames and cleaned in the same way. They are packed as they are.

Attention:

1). It is should be wiped gently for lens, not to damage the surface coating

2). It should be handled with care when the processing of wipe to prevent falling

3). Focus mirror installation: please be sure to keep concave down.

2. rail cleaning

It is recommended to clean once every half month.

As one of the core parts of the equipment, the guide rail and the linear axis play the guiding and supporting roles. In order to ensure higher processing accuracy, the guide rail and straight line are required to have higher guidance accuracy and good motion stability. The equipment in the operation process, because of the special processing will produce a lot of corrosive dust and smoke. The smoke and dust based on a large number of long-term deposition on the rails, straight shaft surface, has a great influence on the machining accuracy of the equipment. And in guiding surface corrosion, shorten the service life of the equipment. In order to make the machine work normally and steadily and ensure the processing quality of the products. The daily maintenance of the guide rails and straight shafts should be done carefully.

Caution: clean the guide rail, please prepare dry cotton cloth, lubricating oil

The guide rail of nonmetal Cnc cutting router is divided into linear guide, roller rail. In the YM series, X direction of the use of linear guide, Y direction using roller guide.

Linear guide cleaning: first, move the laser head to the right (or left), found the linear guide with a dry cotton cloth until bright clean and plus a little oil (can use sewing machine oil, do not use the oil), then push the laser head around slowly several times, and let lubricating oil can be evenly distributed.

Roller guide cleaning: move the beam to the inner side, open the machine cover on both sides, find the rail with a dry cloth on both sides of the rail and wheel contact place is wiped clean, and moving beam then clean the remaining part.

Thank you for your reading. And the next time, i will introduce how to fast screw and couplings, and Inspection of light path. Hope to this article can help you. If you are interested in cnc laser cutting machine for nonmetal materials. Please contact Jinan Dekcel Cnc Equipment Co., Ltd as soon as possible.
