Wood cnc router ATC with 9.0kw HSD spindle

Dekcel Wood cnc router with ATC system, mainly function is engraving and cutting on wood, EPS, bamboo, plastic, soft metal etc,it is used in making wood furniture, such as doors, windows, kitchen cabinet.

Quantity:
  • DEK-1325C
  • DEKCEL
  • 059
Features of atc wood cnc router
1.The lathe is founded by welded steel that ensures the high stability and longlife use
2.Equipped with Changsheng air cooling spindle,strong cutting force,long lifetime ,low noise
3.Vaccum adsorption surface made by high strength engineering plastics for ensure the stability and longtime working of machine
4.Auto oil lubricating system is easy to operate and extreamly humanized
5.Large compatibility of software such as,Type3,Artcam,CAD/CAM,Castmate and so on
6.Taiwan SYNTEC servo motors with high working speed,thus the servo is very efficient
7.Taiwan Syntec control system with high quality and very hommization
8.Taiwan HIWIN square guide rails with high accuracy
9.The powerful 5.5kw vaccum pump is used by our router
10.Taiwan TBI ball screws with high precision
11.Using high accurate pinion and rack transmission

Technical Parameters of atc wood cnc router
Model DEK-1325C
X,Y,Z axis working area 1300*2500*300mm
Whole structure Welded Steel gantry structure
Table surface vacuum adsorption table with 5.5KW vacuum pump
X,Y,Z structure Taiwan HIWIN Square linear guide rail with 30mm diameter
X,Y structure Rack and pinion transmission, high speed and more stable;
Y -double motor drive
Z structure Imported ball screw, high precision
Max. idling speed 50m/min
Max. working speed 30m/min
Repositioning Accuracy ±0.05mm
X Y Z working Accuracy < 0.02mm
Spindle 9.0KW HSD spindle
Spindle rotating speed 6000-18000rpm/min
Diameter of tools Φ3.175 -Φ20
Collect size ER 32
Operation language G code (plt, mmg, uoo, bmp)
Driving system Japan Yaskawa servo motor
Operating system Taiwan SYNTEC control system
Working voltage AC380V, 3ph, 50-60Hz
Software UcancamV8 / Type3 / Artcam software (option)


Controller: Taiwan Syntec controller special for ATC wood cnc router, with MPG for high accuracy positioning. It is capable of USB flash drives and is very easy for users to do wiring and can save a lot of time. It supports 4 servo axis + 1 spindle, simultaneously interpolated axes can be 4 axis, and it has power failure protection function.

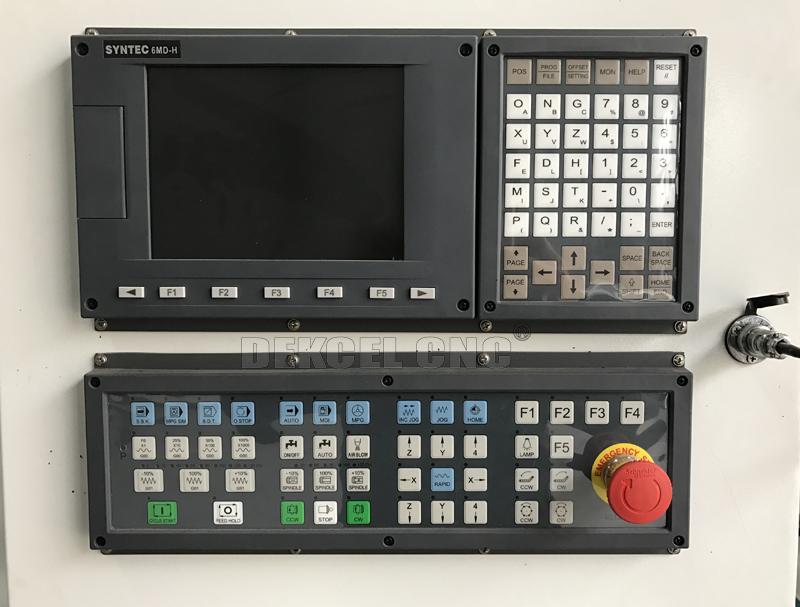

atc cnc router control system

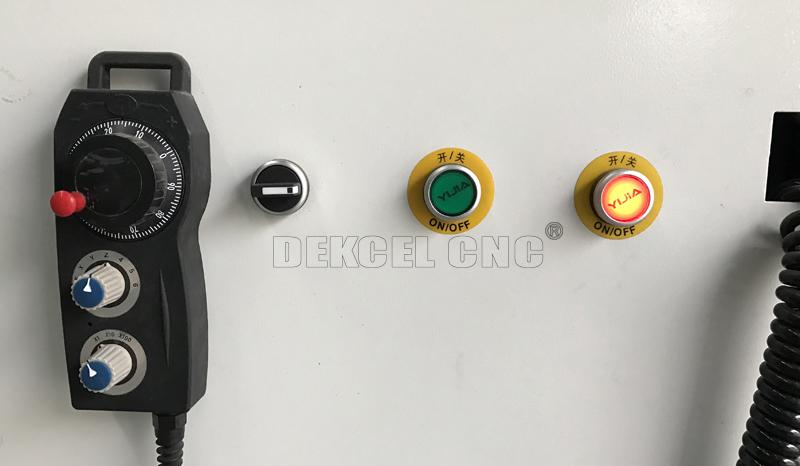

atc wood cnc router hand wheel

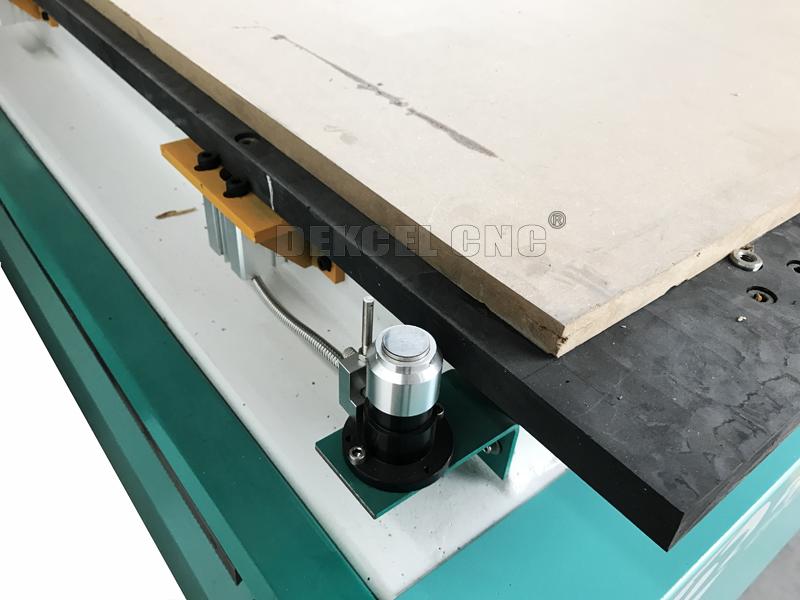

wood cnc router limit switch
ATC Spindle with dust-skirt head: Italy ATC spindle is a leader in engraving wood, aluminum and plastics. The 9KW/12HP spindle is characterized by its' extremely high reliability and fully programmable speeds from 6000 to 18000 RPM, it comes complete with pneumatically retractable vacuum hood, standard ER collets and ISO30/BT30 tool holders. Each mechanical, pneumatic and electronic component undergoes a double testing phase that guarantees optimum quality standards.

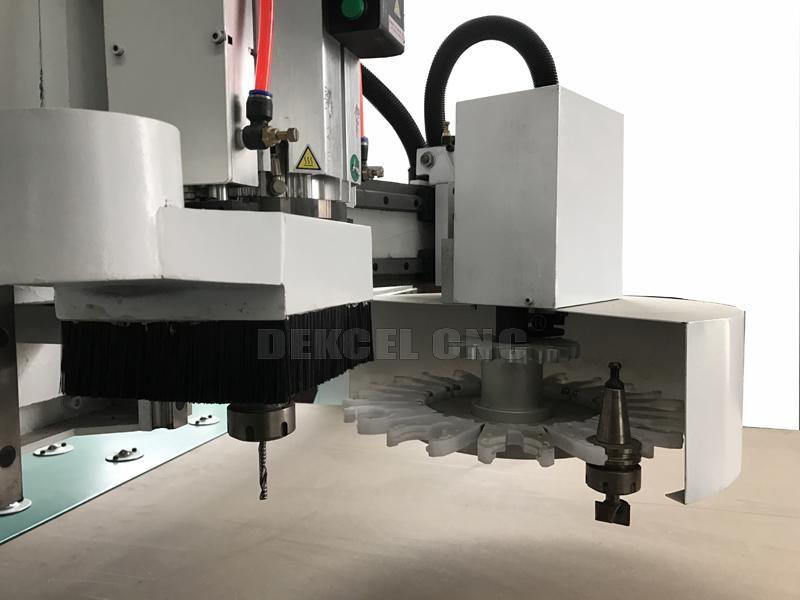

9.0kw HSD spindle wood atc cnc router
Linear Square Guide: Hiwin 30MM linear square guide, it is an ultra-heavy type that achieves a deep grooved raceway with its diameter more approximate to the ball diameter and has high rigidity, vibration and shock resistance, and damping characteristics, which are required for machine tools.

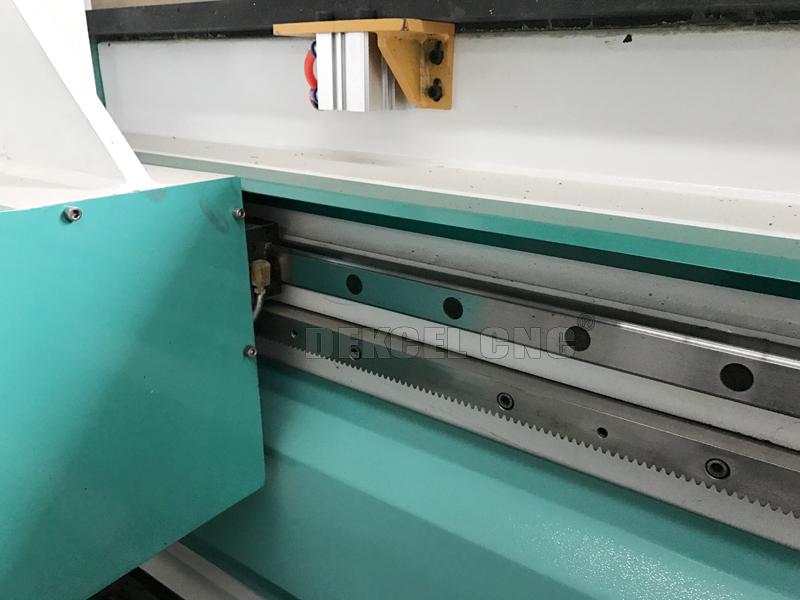

wood cnc router guide rails
Central Oil Lubricator: Easier to lubricate the Guide units regularly, just pull it gently and oil will go when it is needed.

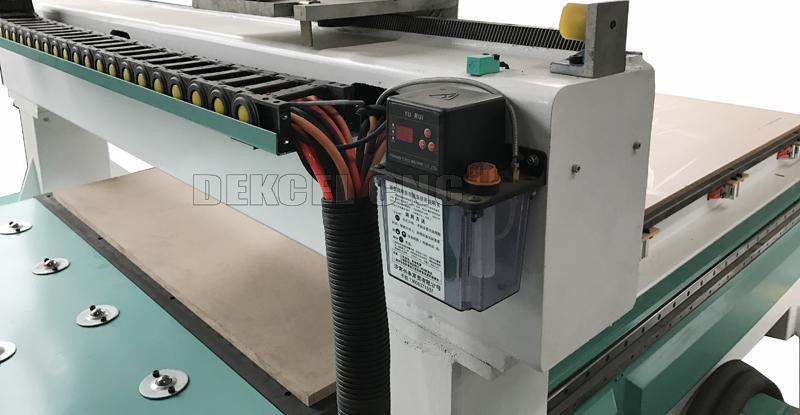

atc wood cnc router injection system
Vacuum table and pump: Fully zoned vacuum table which allows the operator to easily switch from full sheet processing to smaller part processing. Zones can be turned off easily with the switches on the front of the machine. Gaskets can also be routed to accommodate various material sizes and styles. Air cooling vacuum pump offers enough power to hold the material on the vacuum table.

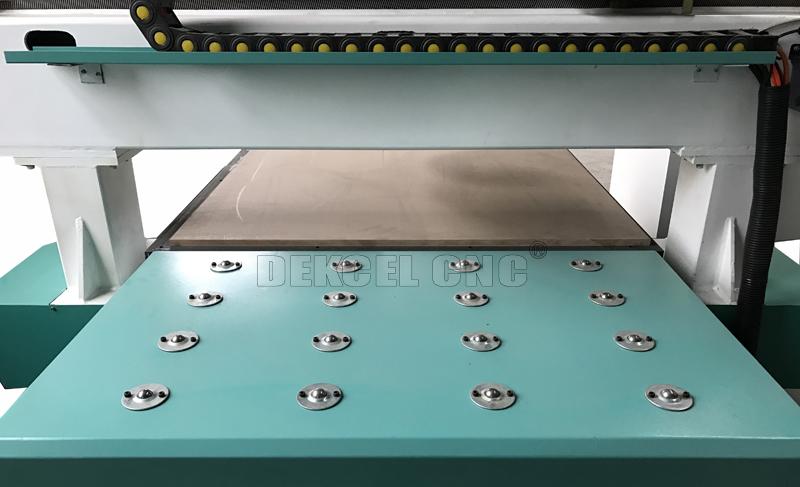

atc wood cnc router vacuum table

Applications of atc wood cnc router
Material: wood, Plywood,PVC, ABS Sheet, acrylic, aluminum, brass etc.
Field: used in making furniture, such as doors, windows, kitchen cabinet, and also can be used to making acrylic letters
atc wood cnc router for furniture

atc cnc router cutting wood

atc wood cnc router carving Stairway
