China cabinet ATC woodworking cnc router with auto load unload system

Our china ATC woodworking cnc router is designed for nested based applications. This cabinet woodworking cnc router integrate with auto load table, two spindles tool changer, auto load unload table and drilling units, for mass production and kinds of patterns.

Quantity:
  • DEK-1325-3M
  • DEKCEL
  • 097
Our ATC woodworking cnc router is designed for nested based applications. This cabinet woodworking cnc router integrate with auto load table, two spindles tool changer, auto load and unload table and drilling units, for mass production and kinds of patterns.
furniture production line cnc router

Feature of china woodworking cnc router
1.The whole woodworking cnc router is welded and the structure with high rigidity, making the machine body not to be deformed.
2.The transmission parts have the helical gear with high precision, Taiwan Hiwin straight and square guide rail are supplemented with the YASKAWA servo motor in Japan and professional Taiwan reducer. Run stably, with high speed, high precision and low noise.
3.Double layers vacuum worktable, there are more 126 suction holes on the worktable, it can hold the wood panel very well.
4.The spindle motor with high power imported from Italy is of minor axial run-out, strong cutting strength, long service life and low noise.
5.The electrical parts with the professional brand and industrial control system have improved functions, stable properties and strong software compatibility.
6.The automatic lift dust absorber has the automatic oil supply system for easy use and simple maintenance.
7.5*4 boring units for drilling holes. Automatic feeding, cutting and optimization, playing vertical hole, automatic cutting coherent, continuous processes, maximize efficiency output;

Technical Parameters

Product name

China cabinet ATC woodworking cnc router with auto load unload system

X,Y,Z Working Area

1300x2500x200mm

X,Y,Z Traveling Positioning Accuracy

±0.05MM

X,Y,Z Repositioning Accuracy

±0.05mm

Table Surface

Vacuum table

Frame

Heavy duty frame welded structure

X, Y axis transmission

Rack and Pinion gear

Z transmission

Ball Screw

MAX traving speed

80000mm/min

Max. Working Speed

25000mm/min

Rail Configuration

25 square rail (Taiwan PMI)

Spindle Power

4.5KW air cooled spindle*2

Spindle rotationg Speed

18000RPM

Drive Motors

JAPAN YASKAWA servo

Working Voltage

AC380V/50Hz,3PH

Operating System

TAIWAN SYNTEC system

Drilling

5*4 boring units

Computer Interface

USB

Command Language

G code, u00, mmg, PLT, HPG

Software Compatibility

Type3,Wentai,Artcut (Option: )

Packing and Size

Wooden case

N.W.

3500KG


ATC Woodworking cnc router main parts

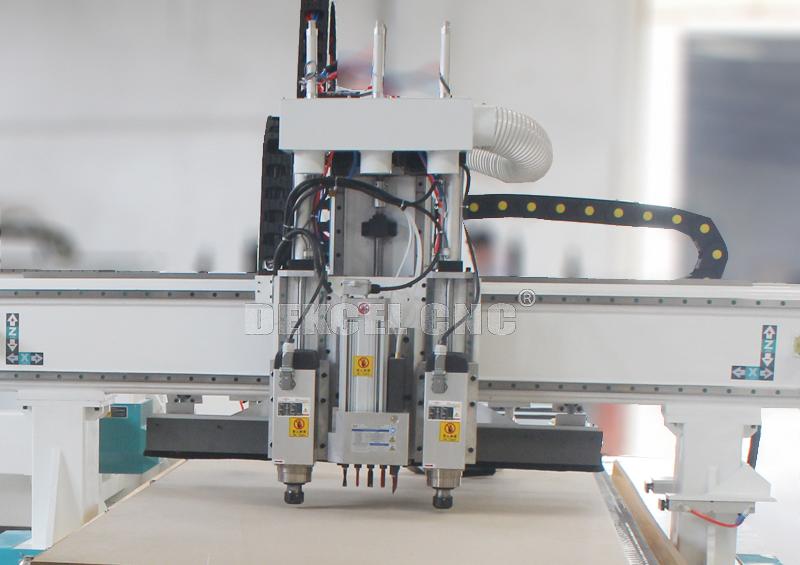

5*4 boring units for drilling holes

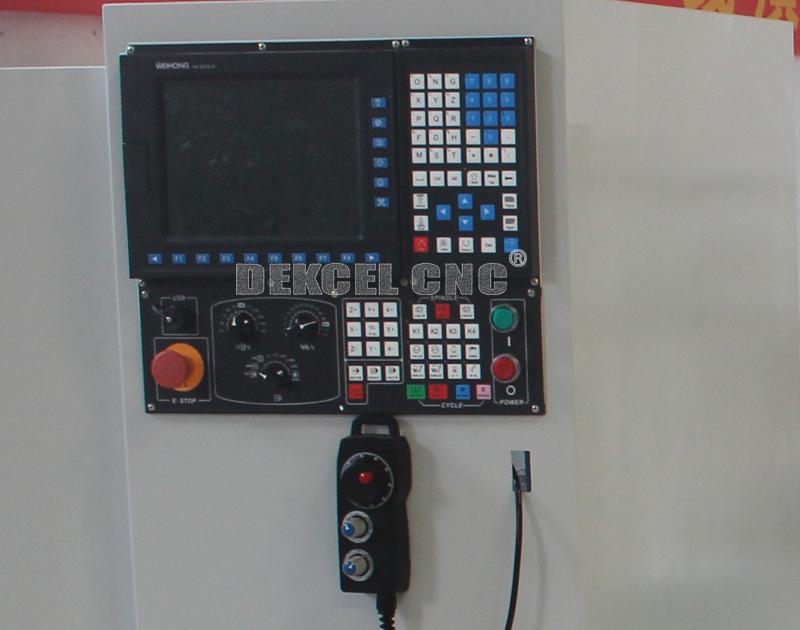

NK300 control system for woodworking cnc router

loading and unloading working table

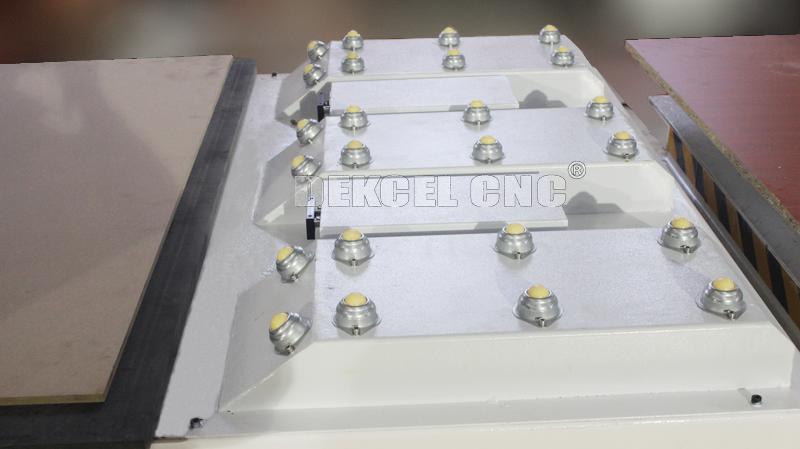

Auto feeding system for material of cnc router

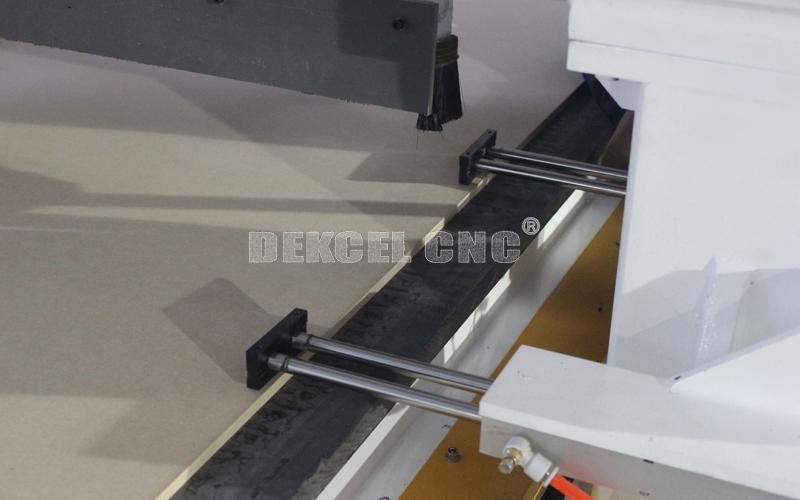

china woodworking cnc router machine

china woodworking cnc router manufacturer
Application for ATC china woodworking cnc router machine
1.Suitable for compound processing pattern milling, sawing and drilling. It belongs to the price and high-efficiency machining equipment.
2.Slab countertops can do the whole board adsorotion processing directly without the preparation of material cutting.
3.The machine's drilling pattern is multi-function drilling. It is equipped with any arrangement combination of vertical drilling, side drilling, single drilling and group drilling, etc.
4.Suitable for processing display counters, artifical stone flow management units, petrochemical PF filter plates, headboard, insulation plates, styrofoam model, yacht bedroom, OA office desktop.
 cabinet ATC woodworking cnc router

 cnc router machine for making customized cabinet

customized cabinet woodworking cnc router machine

customized cabinet ATC cnc router machine
