China ATC Cnc wood carving machine for sale

Dekcel ATC cnc wood carving machine bady is welded structure by thick profiled steel stabilized under high temperature, ensures minimum distortion, excellent rigidity and powerful strength.

Quantity:
  • DEK-1325M
  • DEKCEL
  • 032
Features of china ATC cnc wood carving router machine
 1) Working area: 1300x2500x300mm
 2) Spindle motor : China 9KW air cooling ATC spindle
 3) Servo system: Yaskawa servo motor and driver, with reducer
 4) Inverter: Fuling 11kw inverter
 5) Operating system: Taiwan Syntec system
 6) Rail: Taiwan HIWIN square rails
 7) Taiwan TBI ball screw
 8) Vacuum pump: 5.5kw water vacuum pump
 9) Table: Vacuum Table and T-slot table
10) Helical rack for cnc router wood carving machine
11) Software TYPE3/Artcam etc
12) Tools box (include router bits,collect, clamp, tool sensor,etc)
13) Dual-drum dust collector ,Brush, suction pipe, Vacuuming stents.
14) Change of tools - circular the 10 tools
15) Cable: drag chain specific Cable, anti-jamming, anti-static; with high flexibility, long-term use will not break
16) Overall welding tempered aging treatment, strong and does not distort
17) Beam: steel beam stiffeners
18) Voltage 3PHASE 380V/ 50HZ
19) Oil injection system
20) Packing should be international standard plywood case packing

Techinical parameter of ATC cnc wood carving machine

Working area:

1300*2500*300mm

Spindle type:

Air-cooling spindle

Spindle power

9.0KW

Spindle rotating speed

0-18000rpm

Power (except spindle power)

5.8KW (include powers of: motors, drivers, inverters and so on)

Power supply:

AC380±10,  50 HZ

Worktable:

T-slot and vacuum table combined ,4 vacuum zone with clamps

Locating precision:

<0.01mm

Min shaping character:

Character:2x2mm,letter:1x1mm

Operating temperature:

5°C-40°C

Working humidity

30%-75%(without condensed water)

Working precision

±0.03mm

System resolution

±0.001mm

Control configuration:

Weihong control system /Syntec control system

Data transfer interface:

USB

System environment:

windows 7

Graphic format supported:

G code: *.u00, * mmg, * plt, *.nc

Compatible software

ARTCAM, UCANCAM ,Type3 and other CAD or CAM softwares.

Cutting thickness:

0-40mm also (depends on different material)

Z tool censor:

 yes

packing

Plywood case (veneer wood case for export)

 Optional parts

 1. Vacuum water pump / Vacuum oil-free pump
 2. Double-head or multi-heads
 3.Air cooled type spindle (China or Italian brand air spindle)
 4.Smaller power spindles
 5.Servo motors (China or Japan brand)
 6.Weihong NC Control system ,Taiwan Syntec or DSP control system
 7.Auto tool change system
(this system need other systems accordingly, like LNC control system, servo motors etc)
 8.Mist spay cooling system
 9.Dust collector
10.their features could be customized accordingly


The detail parts of ATC cnc router machine for wood carving

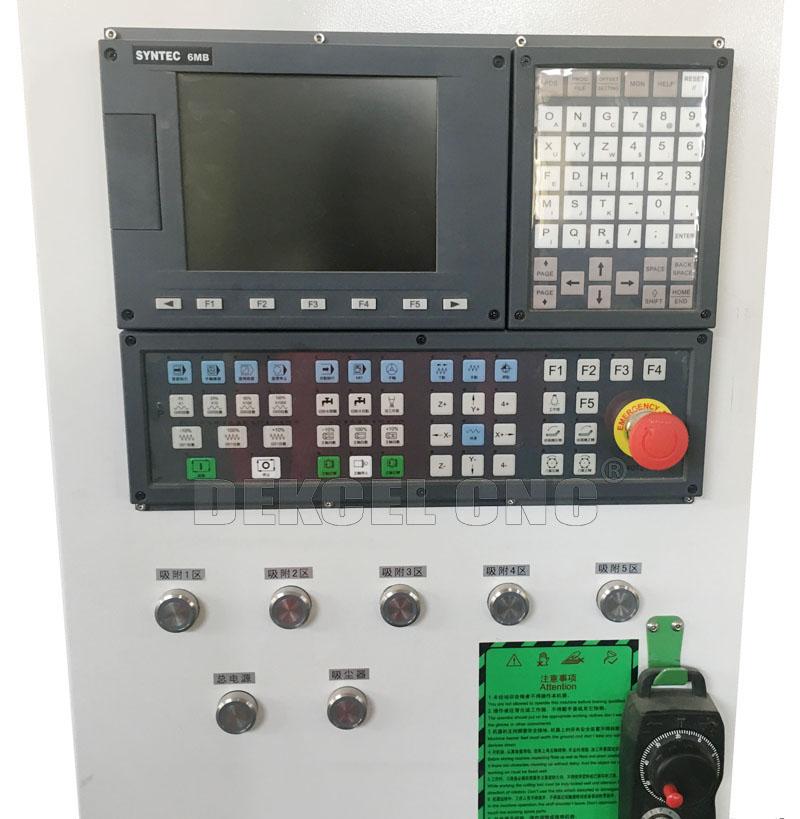

ATC cnc wood carving machine control system

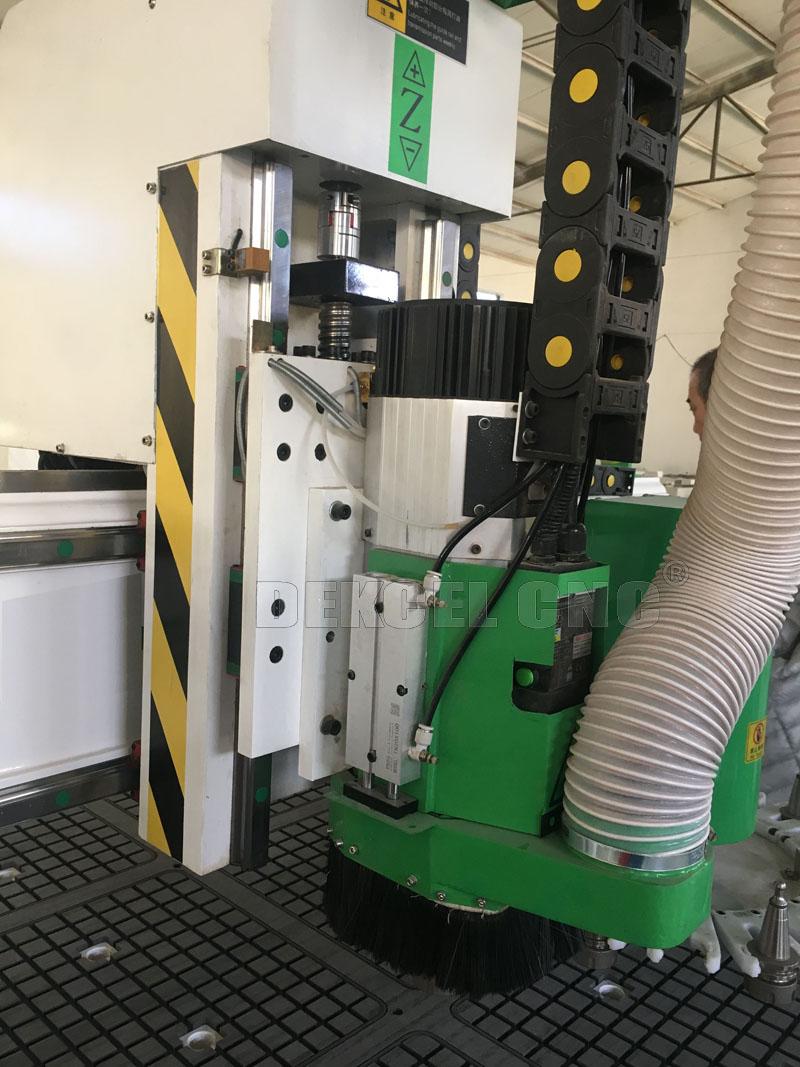

cnc wood carving machine spindle

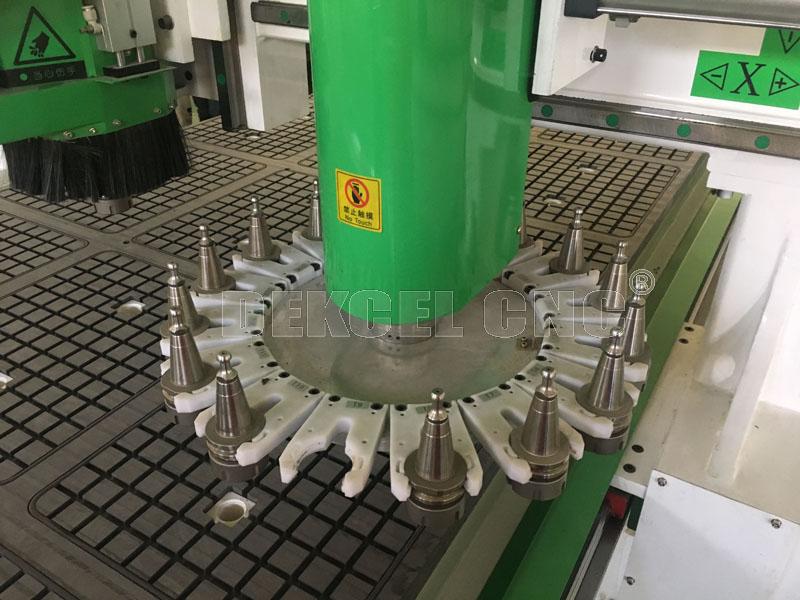

ATC cnc wood carving machine tool change system

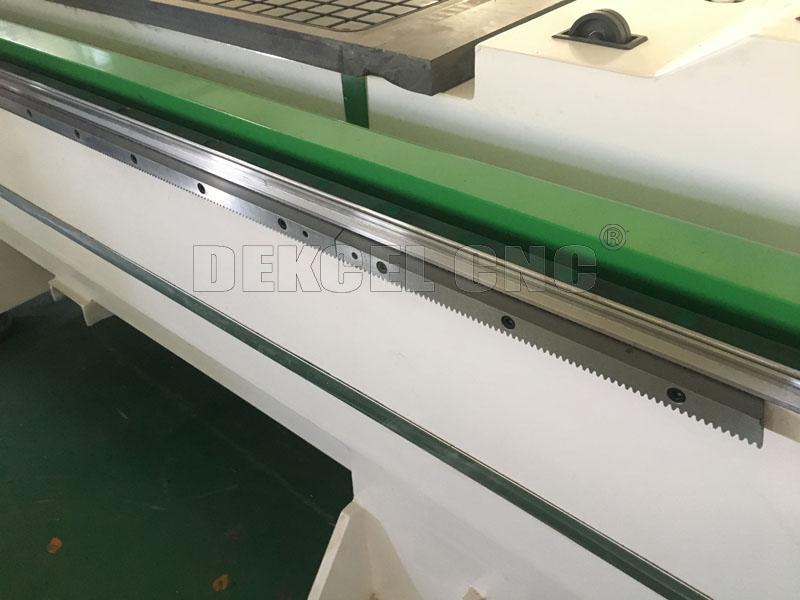

ATC cnc wood carving machine guide rails

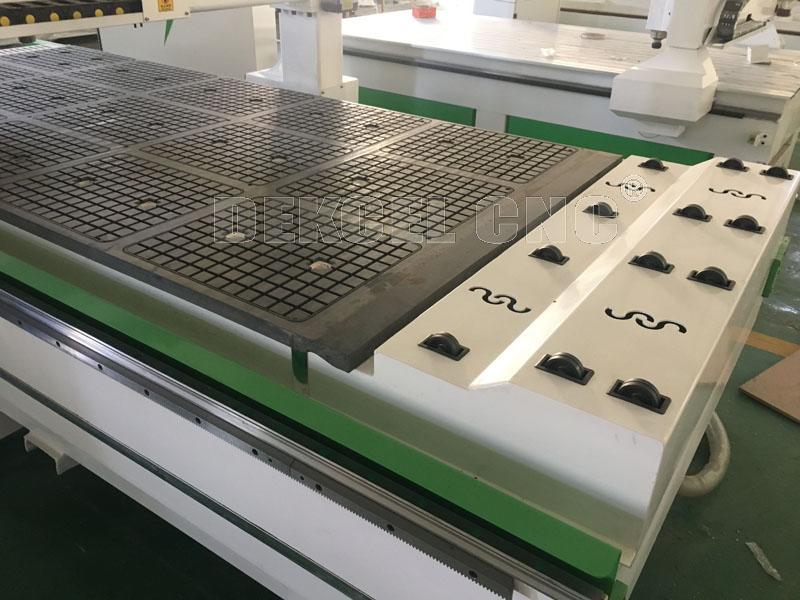

ATC cnc wood carving machine feeding system

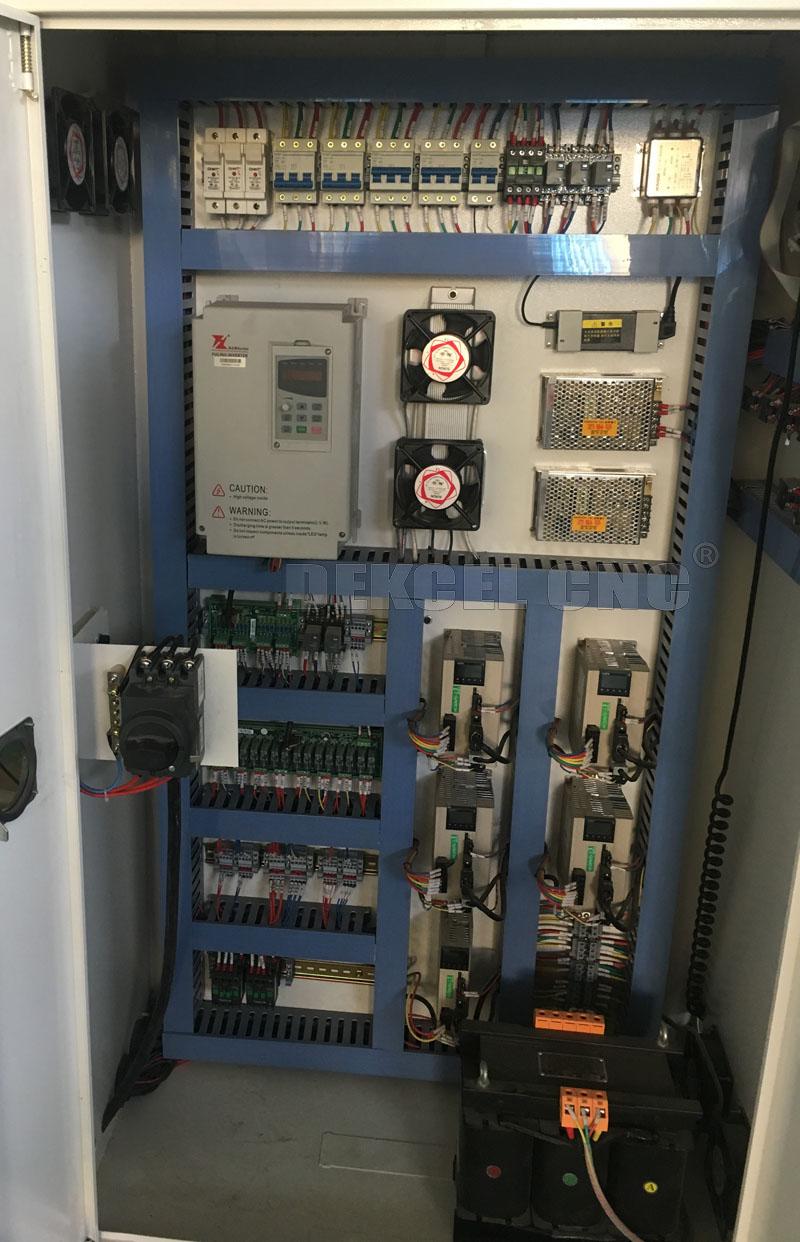

ATC cnc wood carving machine electril control box

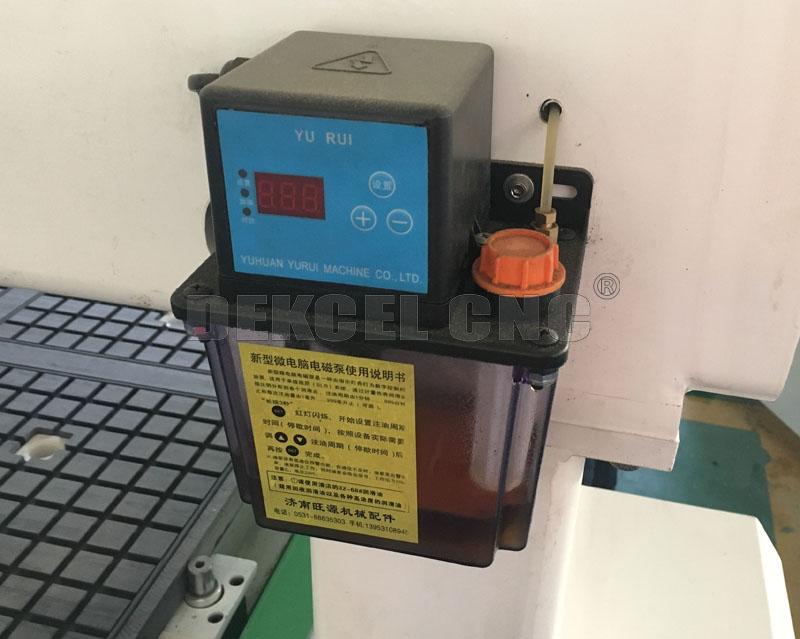

ATC cnc wood carving machine oil injection system


Applications of ATC cnc wood carving router machine
 1). Furniture carving with wood cnc router: plate, office furniture, doors, cabinets.
 2). Wood products: speakers, games cabinets, comfurniture center furniture center puter tables, sewing machines, musical instruments.
 3). Board processing: insulation, plastic chemical components, PCB, car body, bowling track, ABS, PP, PE, etc.
 4). Decoration: Acrylic, PVC, MDF, plastic and soft metals such as copper and aluminum.

cnc wood carving machine sample

atc cnc machine carving on wood

Cnc wood carving machine for wood furniture
