Customized furniture production linear ATC wood MDF cnc engraving router machine

DEKCEL-2040-ATC (Auto Tool Changer) customized furniture production engraving cnc router machine is suitable for wood,MDF,plywood engraving ,cutting ,drilling and milling.As a China professional manufacturer of ATC Wood furniture CNC Router machine with rich experiences, we could supply you with the best quality, affordable price and perfect after-sales service

Quantity:
  • DEK-2040-ATC
  • DEKCELCNC
  • 106

customized furniture production linear ATC wood MDF cnc engraving router machine

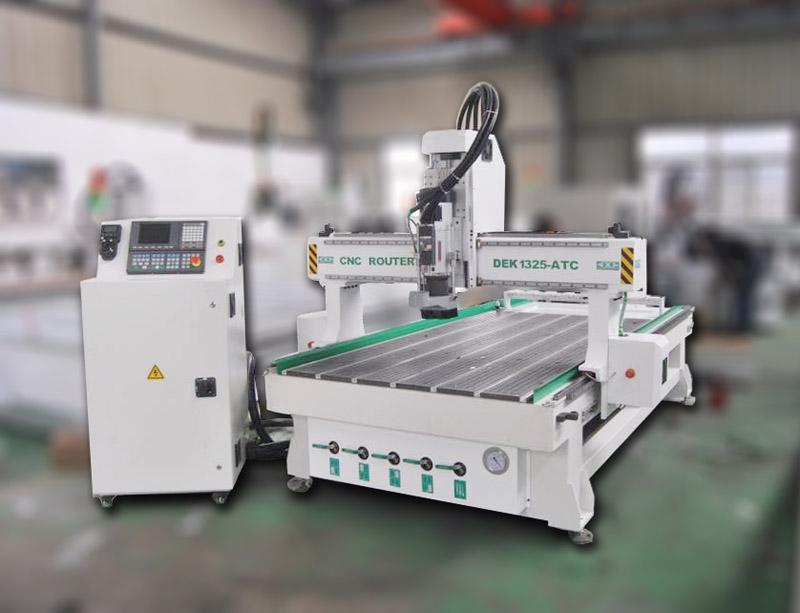

customized furniture production cnc router


Dekcel customized furniture engraving cnc router widely used for production of cabinet door, computer desk, beside cabinet, assembling furniture, Wooden crafts processing and large area and mass engraving on MDF and HDF, wood board, cutting,3D carving,drilling & reliefing and so on.



Dekcel ATC wood furniture production cnc router with Rigid grids vacuum and T-slots working table ,maximizes the vacuum hold-down power and also enables you to clamp the workpiece in place and can adsorb different size materials and has strong suction.



Main features of customized wood furniture production engraving router

1) Big steel square tube structure,by seamless welding and hardening treatment, guarantee it to be strong, reliable and durable, with large bearing capacity and long working life.

2) Top-quality components: high-precision, high-efficiency and long working life guaranteed by HSD spindle, Delta inverter, TBI ball screw, Yaskawa servo motors, Syntec control system and so on.

3) Smooth and High-Precision Transmission:imported high-precision ball screw and Taiwan Hiwin linear square rails, which move smoothly to ensure the machining precision. Strong and thick belt for mechanical transmission. The rack with 1.25 helical tooth mold guarantees the quick and high precise transmission.

4) Humanized and beautiful designing with creativity.

<1> Breakpoint specific memory to keep the carving status when power off, processing time forecast and other functions in case of the accidental power outages.

<2> Emergency Stop Buttons, emergent shutdown during unexpected accidents and do no harm to human.

<3> Colorful machines’ appearances and high-quality paint make the machine beautiful.

5) Perfect details processing technology:every detail is treated very seriously so that perfect machine could be made.

6) Easy and safe operation and low maintenance cost.Easy and popular operation manual to make the user to learn quickly how to operate the machine safely; Free training in our factory will be offered. Less time and less money will be spent on the maintenance because of the top quality of the machines.



ATC furniture engraving cnc router Tecnonical parameters

Model  DEK-1530-ATC customized furniture engraving router machine
X,Y Working Area   1500*3000mm / 1300*2500mm/2000*4000mm
Z Working Area 300mm
Table Size 2200*3400mmmm
Resolution 0.01mm
Lathe Structure Seamless welded steel structure, better than cast iron one
X,Y Structure Rack and pinion, gear drive,
Taiwan Hiwin H25 square guide rails
Z Structure Taiwan TBI ball screw,
Taiwan Hiwin 25 square guide rails
Max. Idling Speed 60m/min
Spindle 9.0 KW air-cooling Italy HSD spindle
Spindle Speed 0-24000r/min, variable speed
Working Voltage AC380V/50Hz
Motor and driver YASKAWA
Working Mode Servo
Command G code (HPGL,U00, mmg, plt)
Operating System SYNTEC control system
Diameter of Cutter φ3.175-φ12.7
Cooling Mode Air-cooling
Dust collect Function Yes
Work Holding By suction or clamp
Tool Magazine Linear-style auto tool changer system with 8 pieces of tools
Net Weight 1500KG

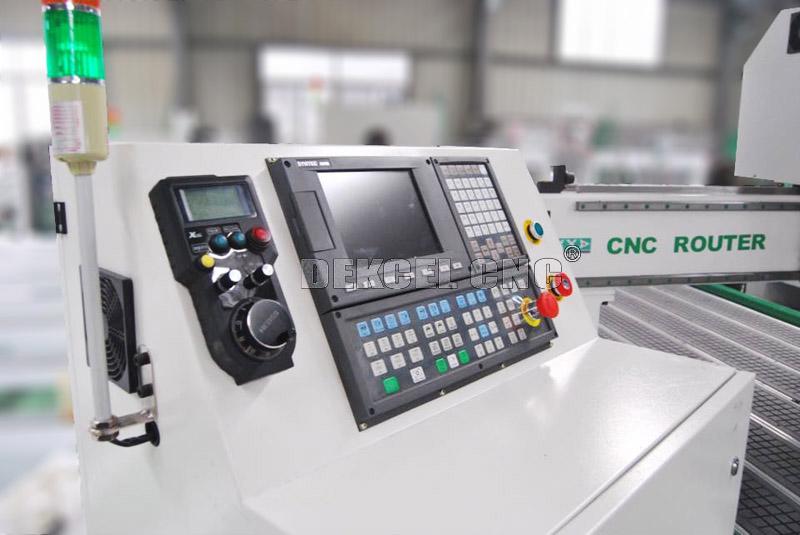

Customized furniture engraving router Syntec contrl system

customized furniture production engraving router syntec system

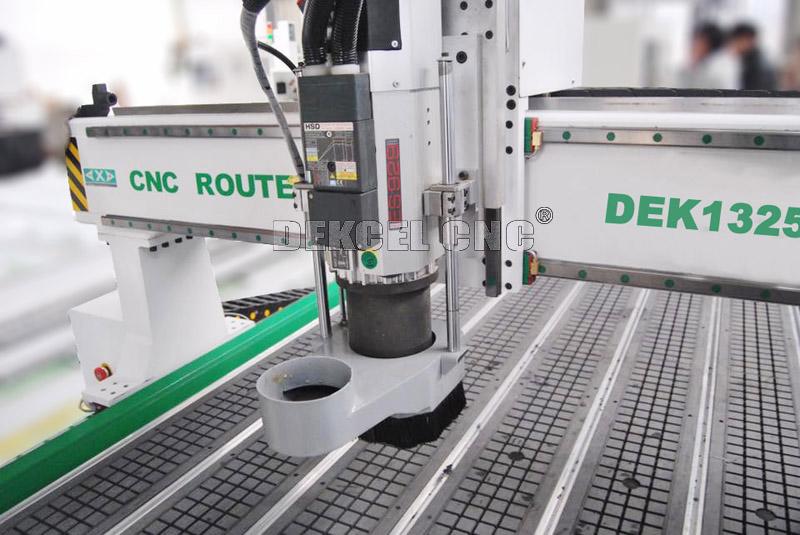

Customized furniture engraving router Italy HSD spindle

customized furniture engraving router HSD spindle

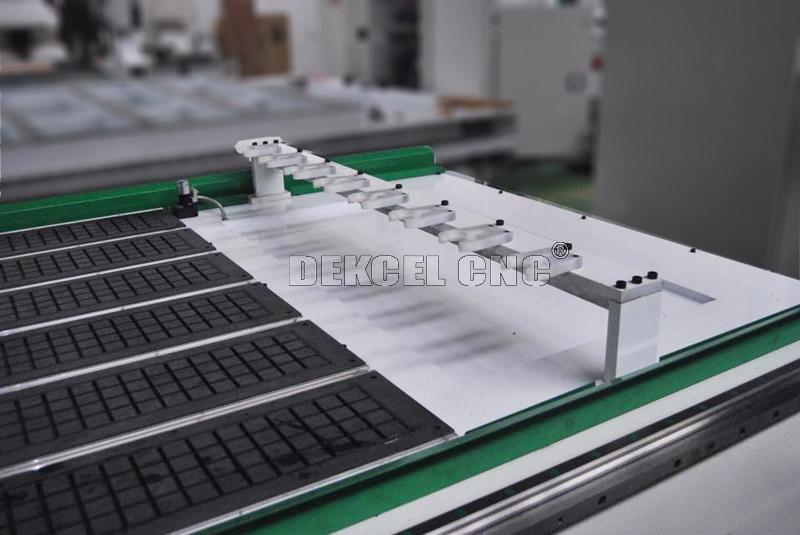

Furniture engraving router linear tool magzine

furniture engraving router ATC tool magzine

Optional accessories:

1) Vacuum pump: Germany Becker brand or Chinese Tongyou brand.

2) Dust collector which could collect the processing dust of the material.

3) Rotary system to process cylinder material

4) Mist cooling system to cool hard material during processing, such as soft metal.

5) HSD boring unit with 9 vertical, 2 pairs of horizontal, and 2 pairs of band saw

6) Carrousel tool magazine loaded on gantry, with Tool holders x 4pcs and Toolholder fork x 8 pcs, effectively improve working efficiency

Customized furniture production  ATC cnc engraving router machine application

customize furniture production router sample

Woodworking,Advertising industry, seal industry, craft and gift, art mould, mould etc.

Applicable material: wood, MDF,plywood,arylic, double-color board, PVC, EVA, ABS board, stone, imitation stone, metal, Aluminum Mold etc.

Major applicationd fields: furniture, furniture decoration, woodworking decoration, musical instrument, wooden handicraft etc.

Woodwork industry: sewing machine table, machine cabinet panel, sporting equipment, wooden door etc.

Mould industry: wooden mould, aviation wooden mould

Musice instrument: three-dimensional wood carving in relief, and profile cutting.
