DSP Linear ATC woodworking Cutting Drilling CNC Router

Dekcel cnc DSP ATC woodworking router machine specially designed for high efficiency working in wood processing,for example furniture carving and cutting,cabinet,office furniture, furnish ,decorative works. It can change 6-8 knives within 15 seconds, highly improve the working speed, and save a lot of human labour force.

Quantity:
  • DEK-1325-ATC
  • DEKCEL CNC
  • 126

DSP Linear ATC woodworking Cutting Drilling CNC Router
5.5kw linear ATC woodworking cutting drilling cnc router.jpg
Features of DSP ATC Woodworking CNC Router

1. Well-known 4.5kw water cooling ATC engraving spindle, high precision, long life time, steady working, easy to start up.

2. Thicken square pipe structure, well welded, no distortion for whole structure.

3. Adopt Taiwan square orbit, double slippers. Bearing heavy, working steadily high precision, and long life time.

4. DSP controller system with USB interface, working without connecting with computer during working and easy to control.

5. Software: CAD/DAM designing software e.g. Type3/ARTCAM/Castmate/wentai etc.

6.Vacuum Table with 6 vacuum zones, which can adsorb different sizes materials.
Options for vacuum pump: vacuum pump made in china or No-oil vacuum pump made in Germany. Auto-oiling system(option).

7.Y-axis adopts advanced dual-axis gear transmission and dual-motor driver system which ensures speed, strength, and accuracy of automatic cutting.

8.Rigid vacuum table with grids and T-slots maximizes the vacuum hold-down power and also enables you to clamp the workpiece in place.

Technical Parameters of ATC CNC Routers

Working Area:

1300x2500x250mm

Spindle Type:

Air cooling spindle ,with automatic circle tool changer function

Spindle Power

4.5KW water cooling spindle

Spindle Rotating Speed

0-18000rpm

Power (except spindle power)

5.8KW (include powers of: motors, drivers, inverters and so on)

Power Supply:

AC380±10,  50 HZ

Worktable:

Vacuum Table and T-slot

Driving Syestm:

Delta servo motors and drivers

Transmission:

X,Y :Gear rack, HIWIN square guide rail,

Z: ball screw TBI and hiwin square guide rail

Locating precision:

<0.01mm

Min Shaping Character:

Character:2x2mm,letter:1x1mm

Operating Temperature:

5°C-40°C

Working Humidity

30%-75%(without condensed water)

Working Precision

±0.03mm

System Resolution

±0.001mm

Control Configuration:

DSP control

Data Transfer Interface:

USB

System Environment:

Windows 7

Spindle Cooling Way:

Air cooling by fan

Inverter:

Delta

Limited Switch:

High sensitivity limited switches

Graphic Format Supported:

G code: *.u00, * mmg, * plt, *.nc

Compatible Software

ARTCAM, UCANCAM ,Type3 and other CAD or CAM softwares….

Cutting Thickness:

0-40mm also (depends on different material)

Z Tool Censor:

 yes

Packing

Plywood case (veneer wood case for export)

 Optional parts

1.auto load with code-spurting system

2.Auto unload conveyor

3.Boring device for drilling

DSP Cutting CNC Router Details

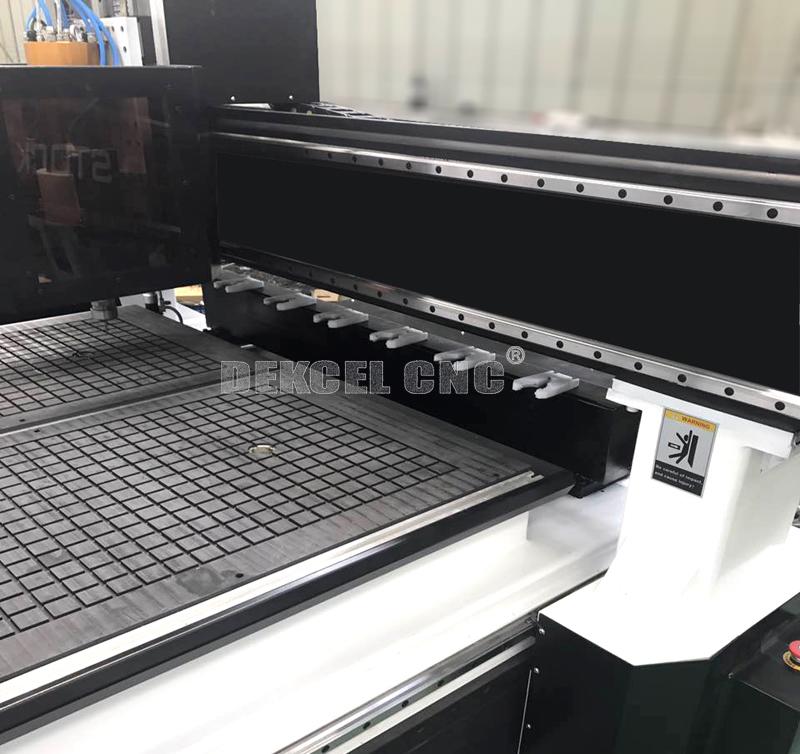

ATC wood working cnc router vacuum table.jpg

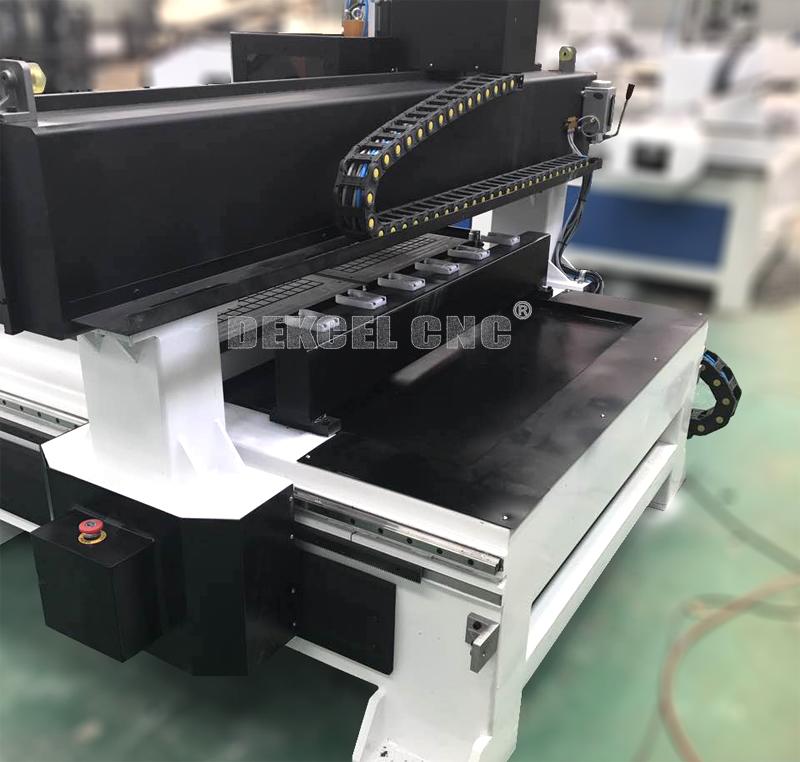

liner atc engraving router.jpg

Applications of DSP Woodworking ATC Router

1. Wood-working industry:
Ideally suitable for furniture decoration, musical instruments, wooden crafts, solid wood furniture, MDF
pain-free door, wood composite door, cabinet, kitchen doors, windows, night table, etc.

2. Decoration industry
Art model, wall art, screen relief engraving and cutting, decoration processing, gifts wrapping, waved plate,
electrical cabinets panels, sports equipment, and other wooden industrial products

3. Advertisement
Acrylic, double color plate, PVC, ABS board, aluminum plate, density board, artificial stone,

organic glass, soft metals like aluminum and copper, cut matrix, character, signs, trademark etc.

DSP atc woodworking furniture engraving.jpg

atc metal milling engraving engraving router.jpg
