DEKCEL CNC Woodworking engraving/router Machine

Dekcel CNC Woodworking engraving/router Machine suitable for used on various Woodworking products,like Solid Wood Furniture and Solid Wood Door,Decorative Panel,Computer Desk,Office Furniture.
Quantity:
Inquire

  • DEK-1530D
  • DEKCEL
  • 080

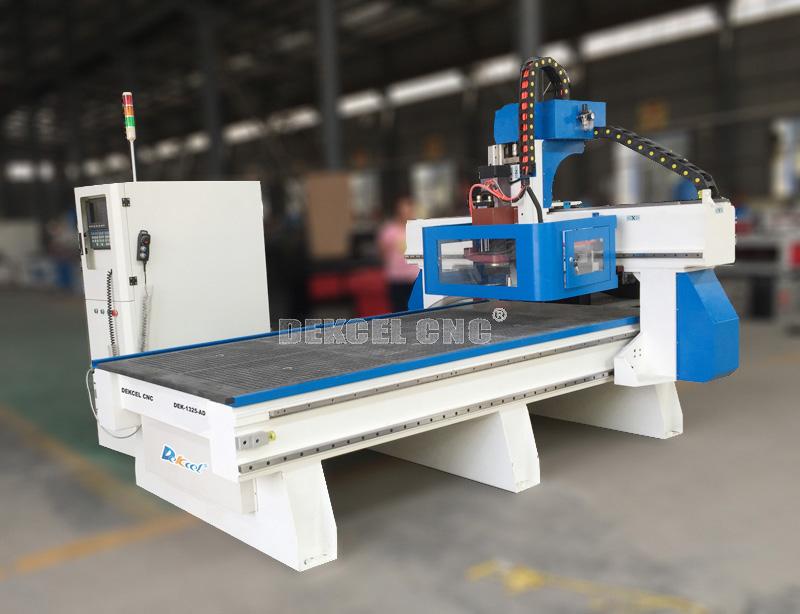

cnc engraving router

Standard configuration of woodworking engraving router machine
9kw Italy HSD air cooling spindle
11KW Taiwan DELTA inverter
Taiwan SYNTEC control system
Japan YASKAWA servo motor and driver
Taiwan HIWIN #25 linear guide for X Y Z axis
Taiwan TBI #2510 ball screw
Vacuum & T-slot combined worktable
France Schneider safety switch
Taiwan SYNTEC MPG handle wheel
Manual lubrication system
Automatic tool sensor calibration
Japan OMRON limit switch for X,Y,Z axis
Shanghai Cardiff Highly flexible towline,fire-resitant double-sheathed cable
Type3 or Art cam software
Rotary device: 300mm diameter with 2400mm working length
3kw double packet dust collector
auto oil mist cooling sprayer
7.5kw air vacuum pump
Japan Shimpo Planetary drive

Optional parts:
Rotary device:Can process cylinder material.
Reducer: Well known Japan Shimpo reducer.
Automatcic Mist Sprayer:During the processing can cool hard the materials.
Dust Collecter: Can collect the pocessing dust of the materials.
Vacuum pump:Working with the vacuum working table

Paramater of cnc woodworking engraving router machine

Working Size

1500x3000*300mm(Can be customized)

Traveling Positioning Accuracy

±0.03/300mm

Repositioning Accuracy

±0.03mm

Table

T-slot & vacuum Table

Frame

Welded Structure

X, Y axis

helical rack, Hiwin 25# Rail Linear Bearing

Z axis

Hiwin Rail 25# Linear Bearing & TBI Ball Screw

Max. Power Consumption

(Without Spindle)  3.2Kw

Max. Rapid Travel Rate

40000mm/min

Max. Working Speed

25000mm/min

Spindle Power

9KW Italy HSD ATC air cooling spindle

Spindle Speed

0-24000RPM

Drive Motors

 Taiwan SYNTEC 6MB control system

Working Voltage

AC380V/50/60Hz,3PH (Option: 220V)

Command Language

G Code

Operating System

Japan YASKAWA servo motor and servo driver

Collet

ISO30

X,Y Resolution

<0.01mm

Software Compatibility

Type3/UcancameV9/Artcam Software

Running Environment  Temperature

0 - 45 Centigrade

Relative Humidity

30% - 75%

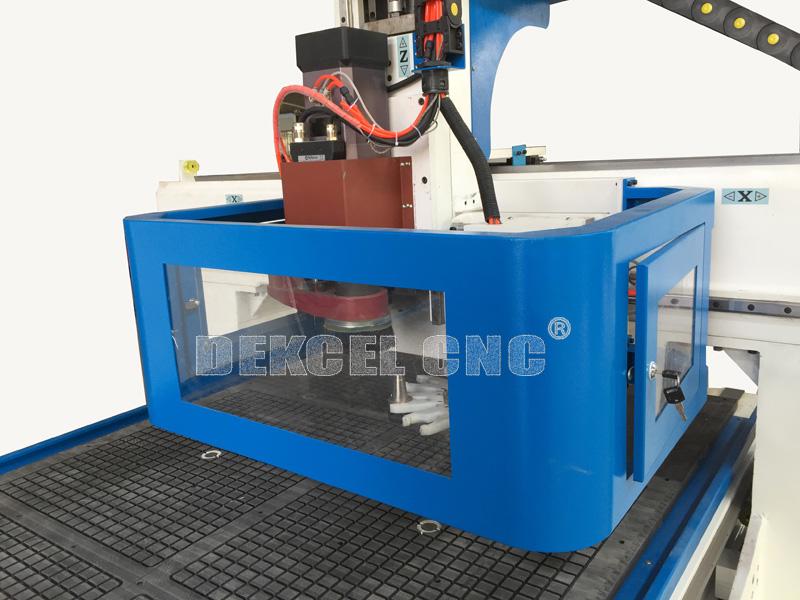

spindle head of cnc router machine

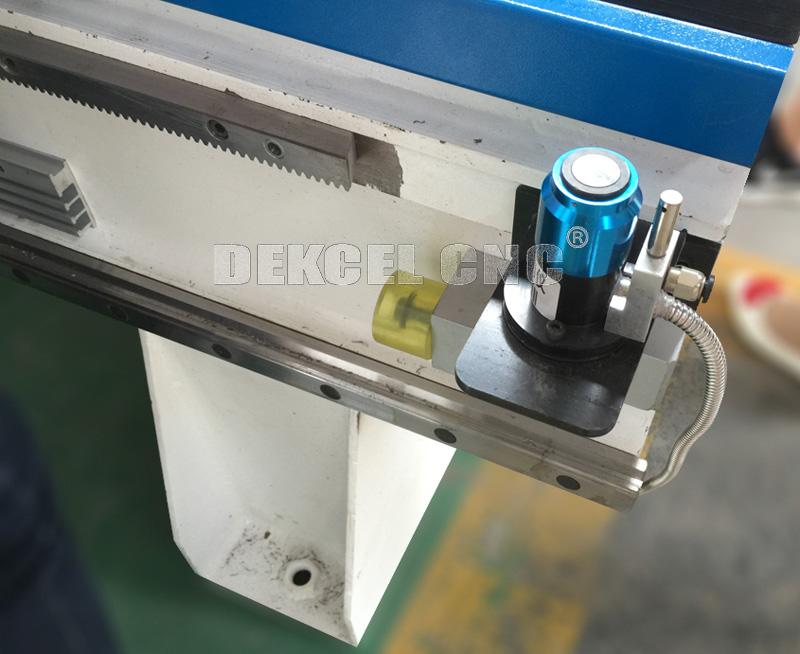

position system of cnc engraving router machine

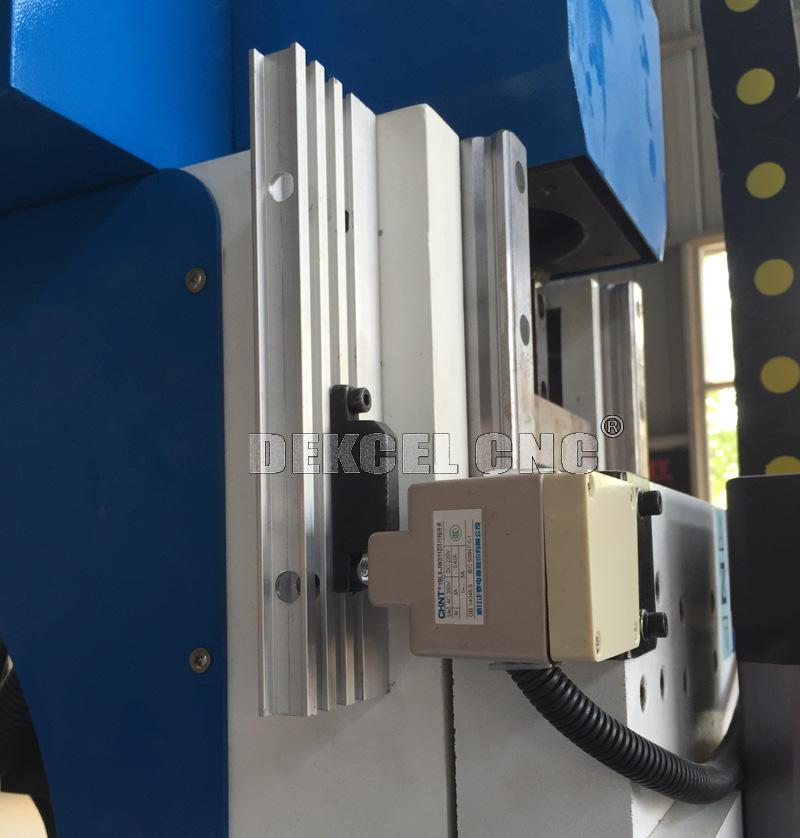

woodworking cnc router machine

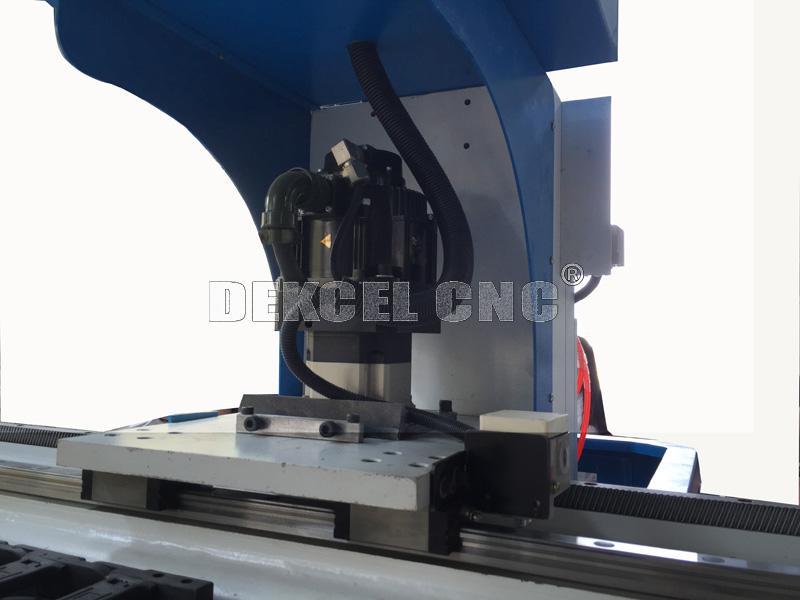

cnc router servo motor with reducer

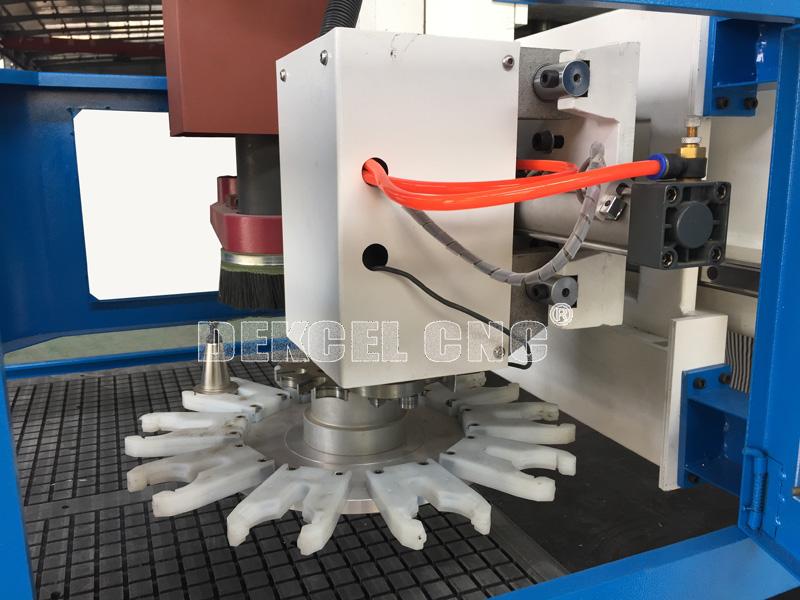

cnc router 10 tools changer system

cnc engraving machine oil injection system

Our advantage
1.  As a manufacturer, we have 10 years factory experience for cnc woodworking engraving router machine. We can devoted to the research and manufacture of many different models.
2.  Factory outlet can provide the lowest price and professional after-sales service.
3.  We joined the trade Assurance to make sure the buyer’s benefit. If can’t meet the details in the contact,100% of your payment will be returned.
4.  Our products are very popular in USA, Russia, Middle East, South East Asia and so on.
Application of cnc woodworking engraving router machine
Advertising: Advertising signs, logo making, acrylic cutting, plastic molding, engraving on a variety of advertising decorative products materials.
Various Wooden products,like Solid Wood Furniture and Solid Wood Door,Decorative Panel,Computer Desk,Office Furniture.
Other industry: relief, widely used in craft gifts industry, Aluminum industry, Cutting  aluminum, aluminum composite panel, aluminum honeycomb panels, aluminum profile, 3D ornamental engraving process, wave board production, LED, neon trough literal cutting, plastic mold making light box . Acrylic, copper, PVC board, artificial stone, MDF board and other types of sheet processing.
cnc router engraving on wood

cnc engraving machine for wood door

cnc engraving machine for wood furniture
